Struggling to choose between roof prism and Porro prism binoculars? You're not alone! Both have their strengths, but choosing the right one depends on youroutdoor activities, budget, and viewing needs. Whether you're tracking game at dawn, birding in dense forests, or spotting targets at the range, the right prism type can make or break your experience.

In this guide, we’ll break down the key differences between Roof Prism and Porro Prism binoculars, explore the pros and cons of each, and help you decide which one is best for your needs. If you're choosing binoculars for hunting, birdwatching, target shooting, or stargazing, check out our previous blog for guidance.

What Are Roof Prism and Porro Prism Binoculars?

Both roof prism and Porro prism binoculars use prism systems to correct and transmit the image from the objective lens to the eyepiece. The type of prism system determines both the internal structure and external design of the binoculars.

Porro Prism Binoculars:

The classic design, first introduced in 1854, uses a zigzag light path to correct the image. Porro prism binoculars are known for their affordability and excellent depth perception.

Roof Prism Binoculars:

A modern design invented in Germany, Roof Prism binoculars use a straight-barrel design for a more compact and streamlined shape. There are two types:

● Schmidt-Pechan (S-P) Prism: Compact and lightweight, ideal for general outdoor use.

● Abbe-König (AK) Prism: Offers the highest light transmission (up to 93%), making it perfect for low-light conditions like hunting and astronomy.

Since their invention, roof prism binoculars have become the standard for high-performance optics due to their compact design and improved durability. However, Porro prism binoculars still hold their place in certain applications due to their optical advantages and affordability.

Key Differences Between Roof Prism and Porro Prism Binoculars

Size Comparison

Roof prism binoculars are generally more compact and lightweight than Porro prism binoculars. The light path in a roof prism system follows a straight-line design, reducing the size and making them easier to handle. In contrast, Porro prism binoculars require more internal space due to their angled light path, resulting in a bulkier design.

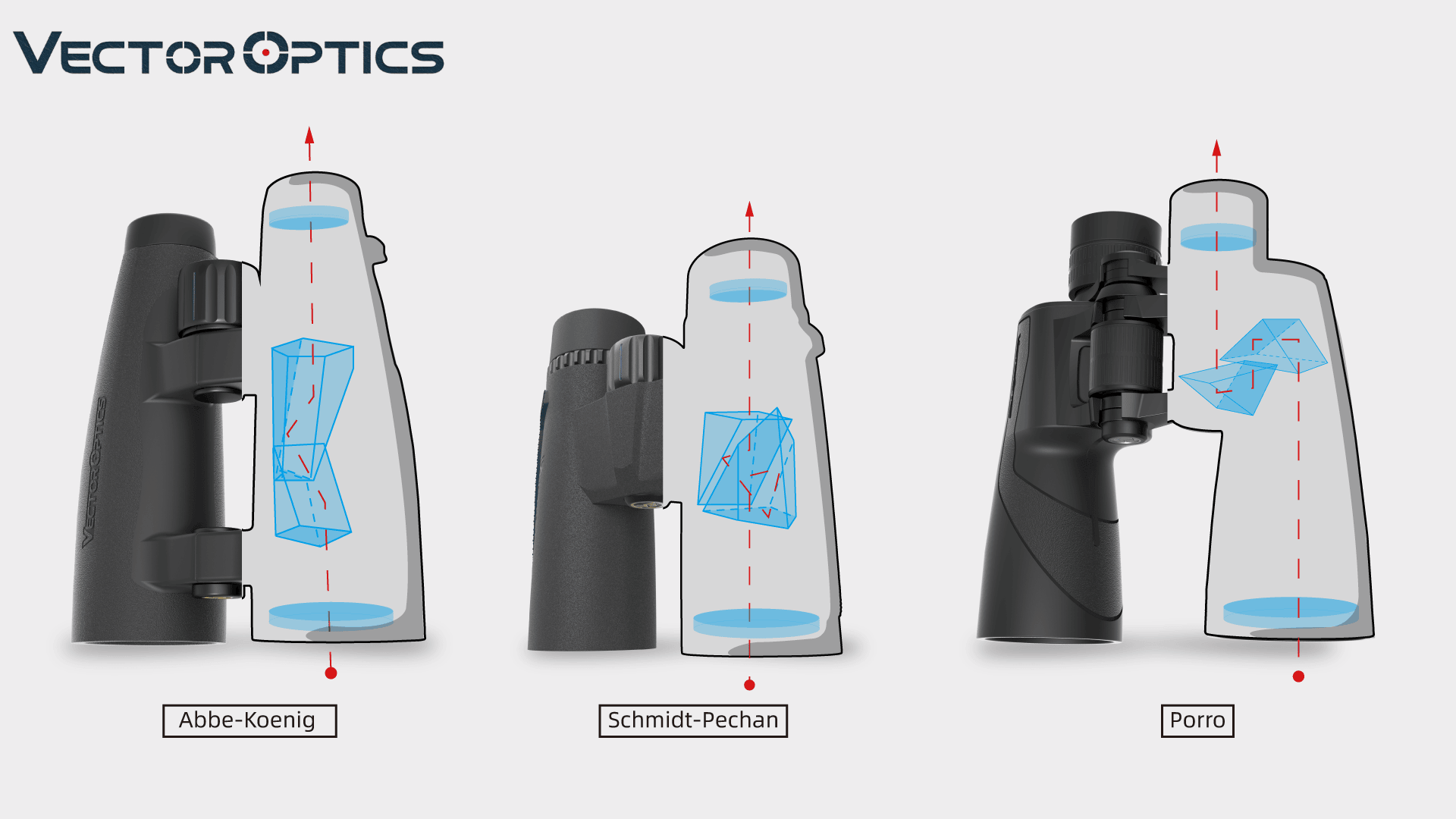

(Roof Prism vs Porro Prism Light Path Diagram)

We can see from the picture that the light in Roof prism form the roof-shape path and hence the name. While in Porro prism, the light path has a rectangular shape. Between the two types of roof prism binoculars shown in the picture, the AK prism has a longer design.

Roof Prism Binoculars: What’s the Difference Between S-P & AK Prism?

AK prisms let more light pass through, giving you brighter, clearer images. AK prisms, which use total internal reflection with just three reflections, keep light loss low but have a longer design. S-P prism scopes, on the other hand, are the most compact and lightweight, though they reflect light five times, which means a bit more light loss.

AK prism binoculars excel in low-light conditions, offering up to 93% light transmission—ideal for hunting at dawn or dusk when visibility is critical. However, their longer and heavier design may require additional support, such as a tripod or chest harness, for extended use. If portability is a priority, consider S-P prism models, which strike a balance between light transmission and weight.

Pros and Cons of Roof Prism & Porro Prism Binoculars

Advantages of Roof Prism Binoculars

First of all, the most obvious advantage of roof prism binoculars must be its size. The compact and lightweight design make them easy to carry for extended use. Beside this, the streamlined and ergonomic shape is also a highlight. You will find it more comfortable to hold and use.

Another pro of roof prism binoculars is the waterproof capability. They tend to have a more streamlined build with fewer external joints, which minimizes potential entry points for water and dust. Additionally, most roof prism models feature an internal focusing mechanism, eliminating moving external parts that could weaken the seal. On the other hand, Porro prism binoculars often rely on external focusing mechanisms, which can let moisture in more easily. This makes roof prism binoculars a more reliable choice for wet or dusty environments.

● Compact and lightweight– Easier to carry for extended use.

● Streamlined, ergonomic design– More comfortable to hold.

● Better waterproofing and durability– Ideal for rugged outdoor conditions.

● High-quality optical coatings– Improves image brightness and contrast.

Advantages of Porro Prism Binoculars

Porro prism binoculars remain the top choice for beginners due to their budget-friendly price. Despite being affordable, they still deliver good performance. Unlike roof prism binoculars, their lower manufacturing cost makes them popular among those stepping into the world of observation. This affordability is also why they continue to be widely used rather than phased out.

Another advantage is that many people consider Porro prism binoculars have better stereoscopic effect (3D picture). The movement of light in Porro prism system can amplify and inverts the light to present a more 3D picture. Whenever you need to observe wildlife or birds, you can get a vivid picture due to the greater depth perception.

● Affordable and beginner-friendly– Great value for money.

● Superior depth perception– Provides a more immersive viewing experience.

● Excellent image quality at lower costs – No need for expensive phase-correction coatings.

AK Prism vs S-P Prism: Which is Right for You?

Last but not least, let’s talk about the differences between AK prism and S-P prism.

AK prism system binoculars are the most expensive type on the market because of the complex manufacturing process. Also, the delicate design and less internal reflection of AK prism brings the brightest image under the same light condition. If you particularly care about image brightness, or would use your binocular for hunting at dawn and dusk, the AK prism binoculars is your best companion.

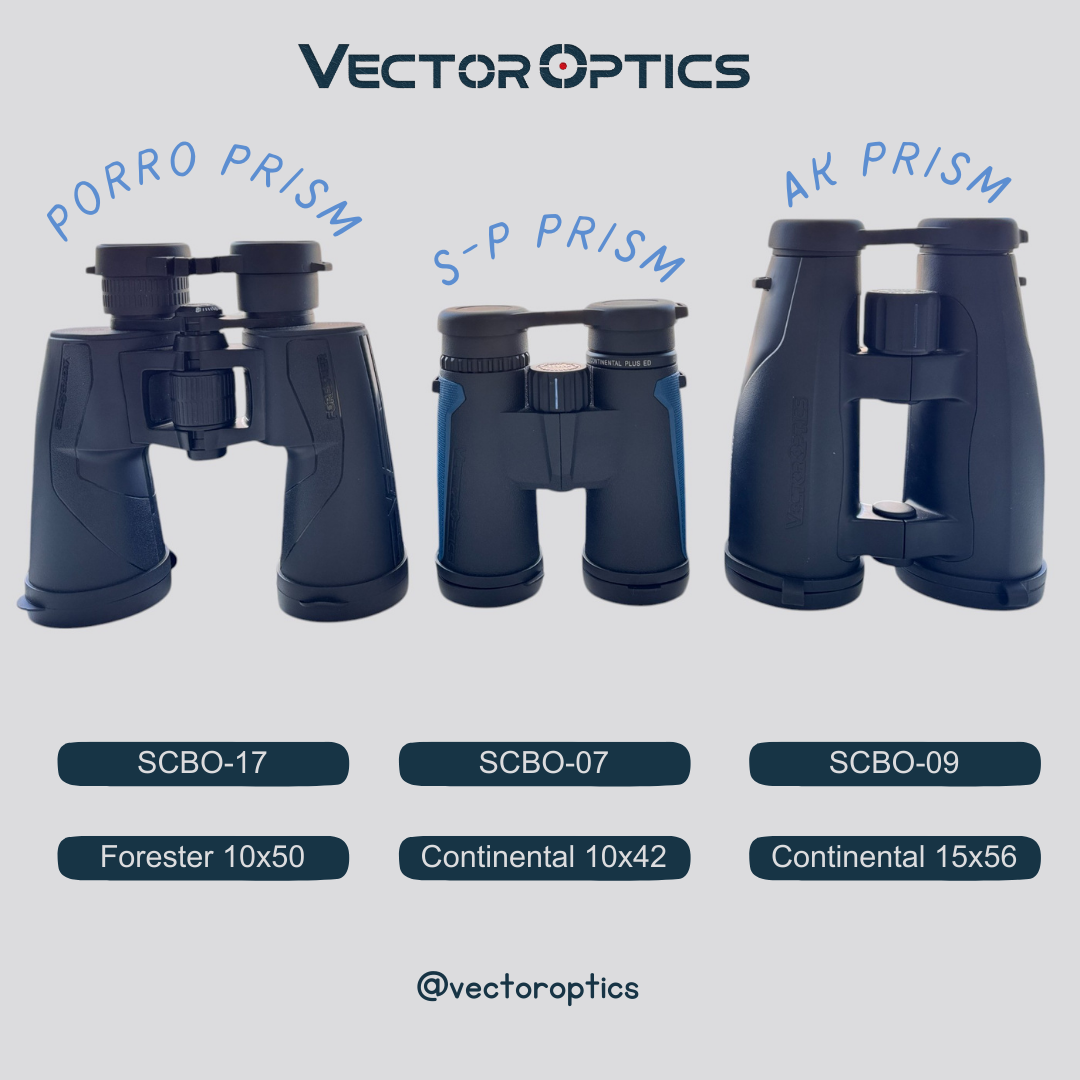

Likewise, we've known that AK prism binocular is longer than S-P prism binocular. For those who values portability, the compact S-P prism binoculars is also what they need.

● AK Prism: Longer design, higher light transmission, ideal for low-light conditions.

● S-P Prism: Compact, lightweight, suitable for general outdoor use.
