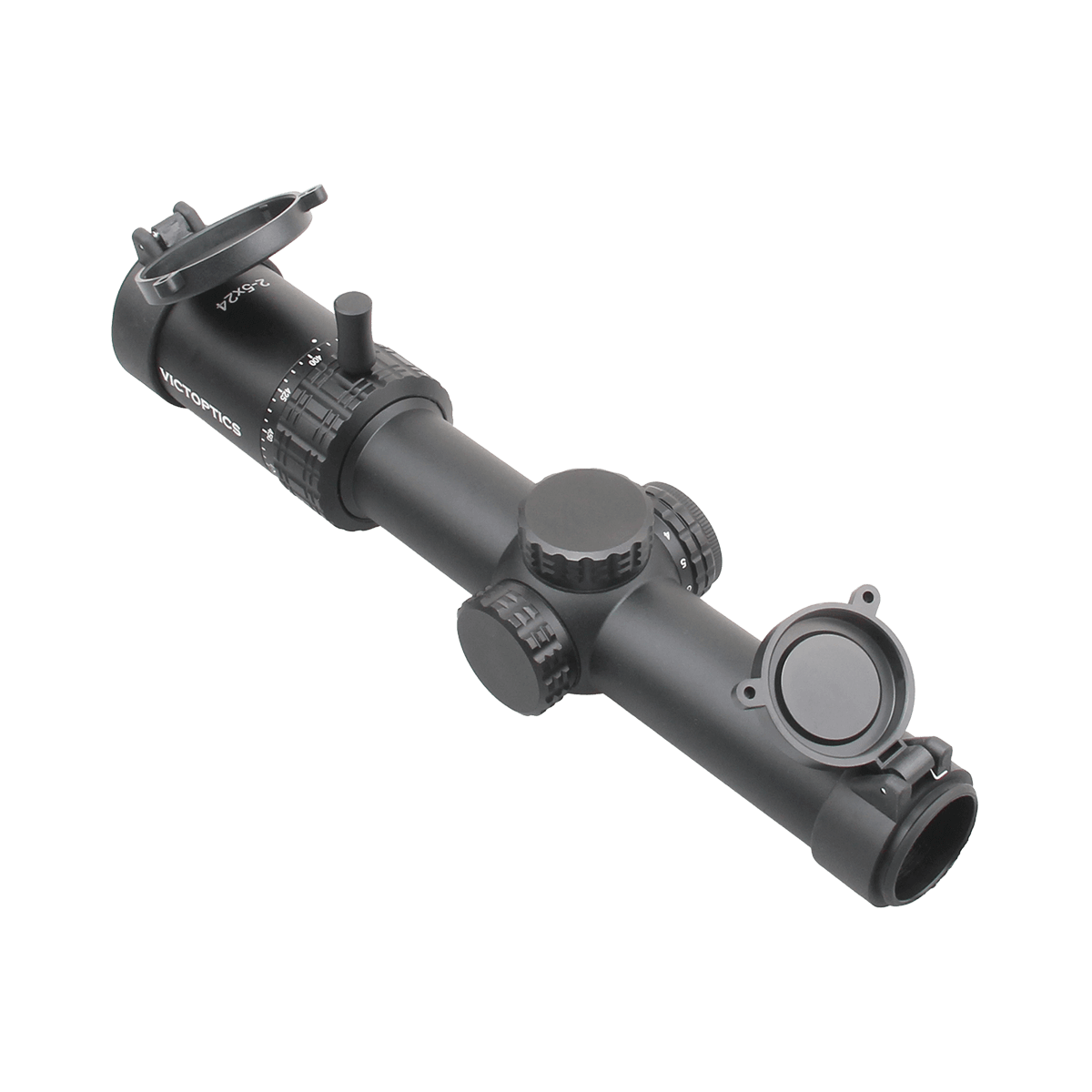

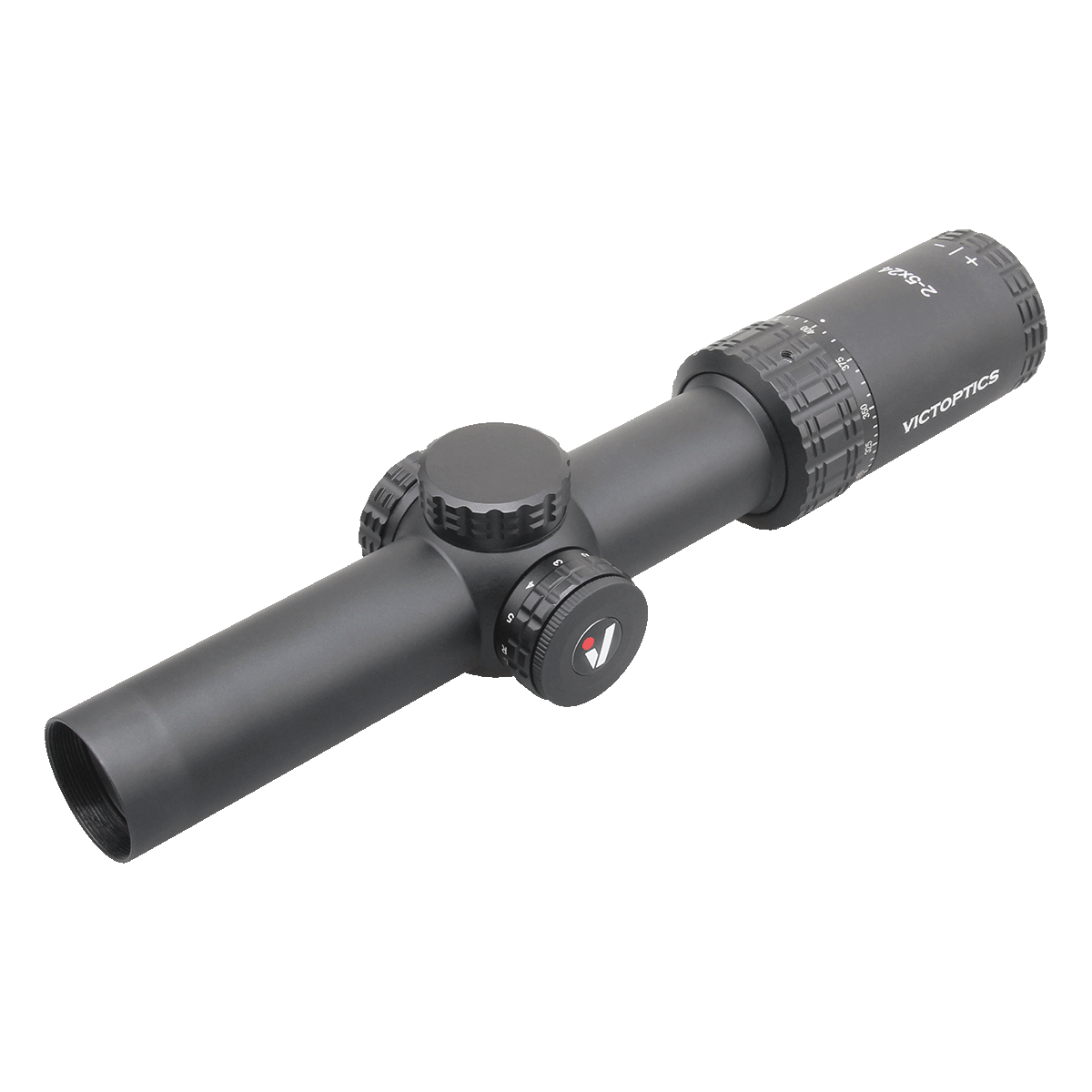

Edge-to-Edge Image without Inside Dark Ring Around Image, 3.8in Long Eye Relief 30mm Monotube Made of 6061 T6, 1/2 MOA Capped Adjustment, Power Lever Mount Fully-multi Coated, Wide Field of View, Red & Green Illumination, with Flip-up Caps Etched Glass Illuminated BDC Crossbow Reticle w/ Digital Lines & Dots, 300-475 FPS
| Magnification | 2-5x |
| Objective Lens Dia | 24 mm |
| Focal Plane | |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 10.7-4.8 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 63.7-25.5 ft @ 100 yards |
| Linear Field of View @ 100 m | 21.24-8.5 m @ 100 meters |
| Angular Field of View | 12.19-4.87° |

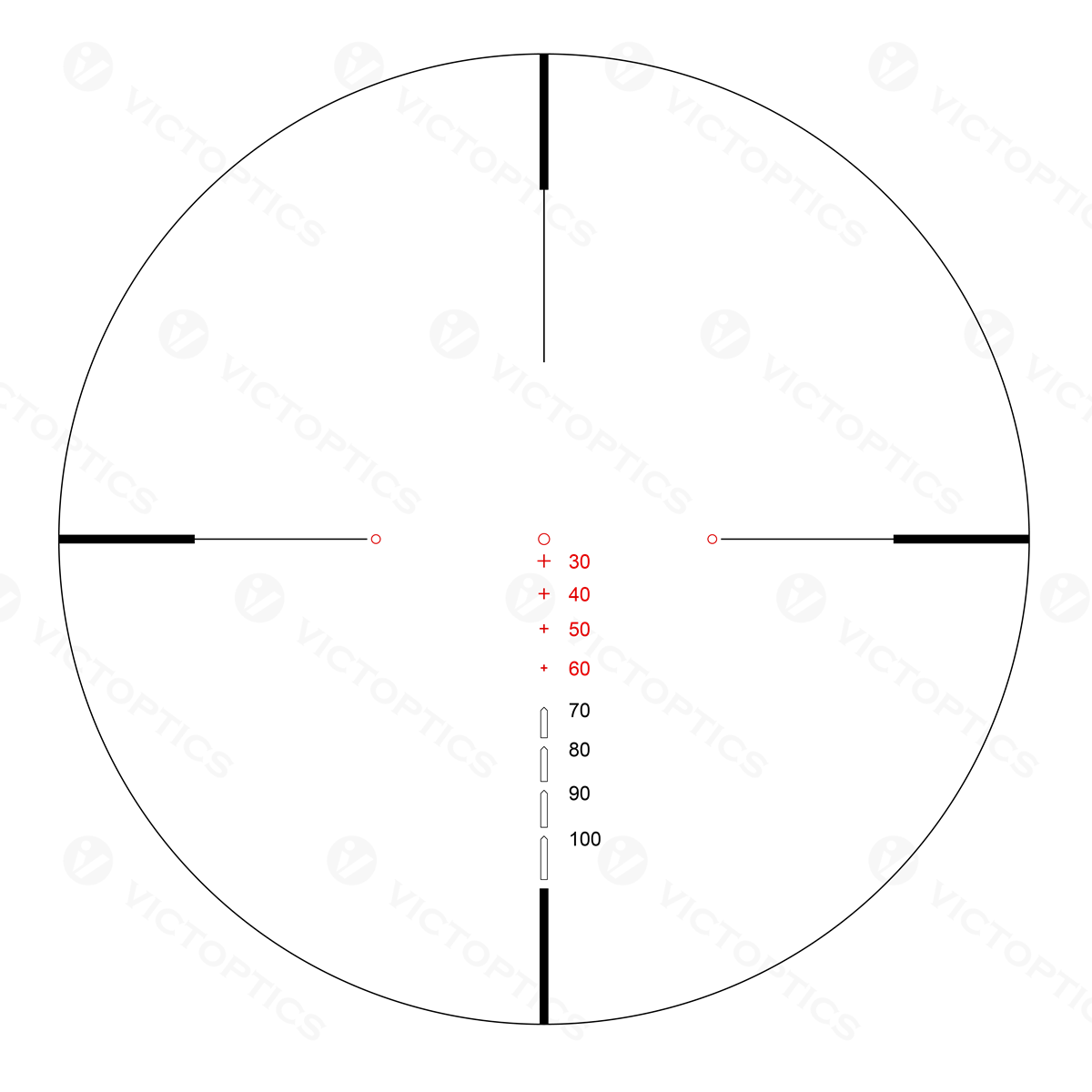

| Reticle | Etched glass VCB-CDO |
| Tube Dia | 30 mm |
| Parallax Setting | 30 yards |

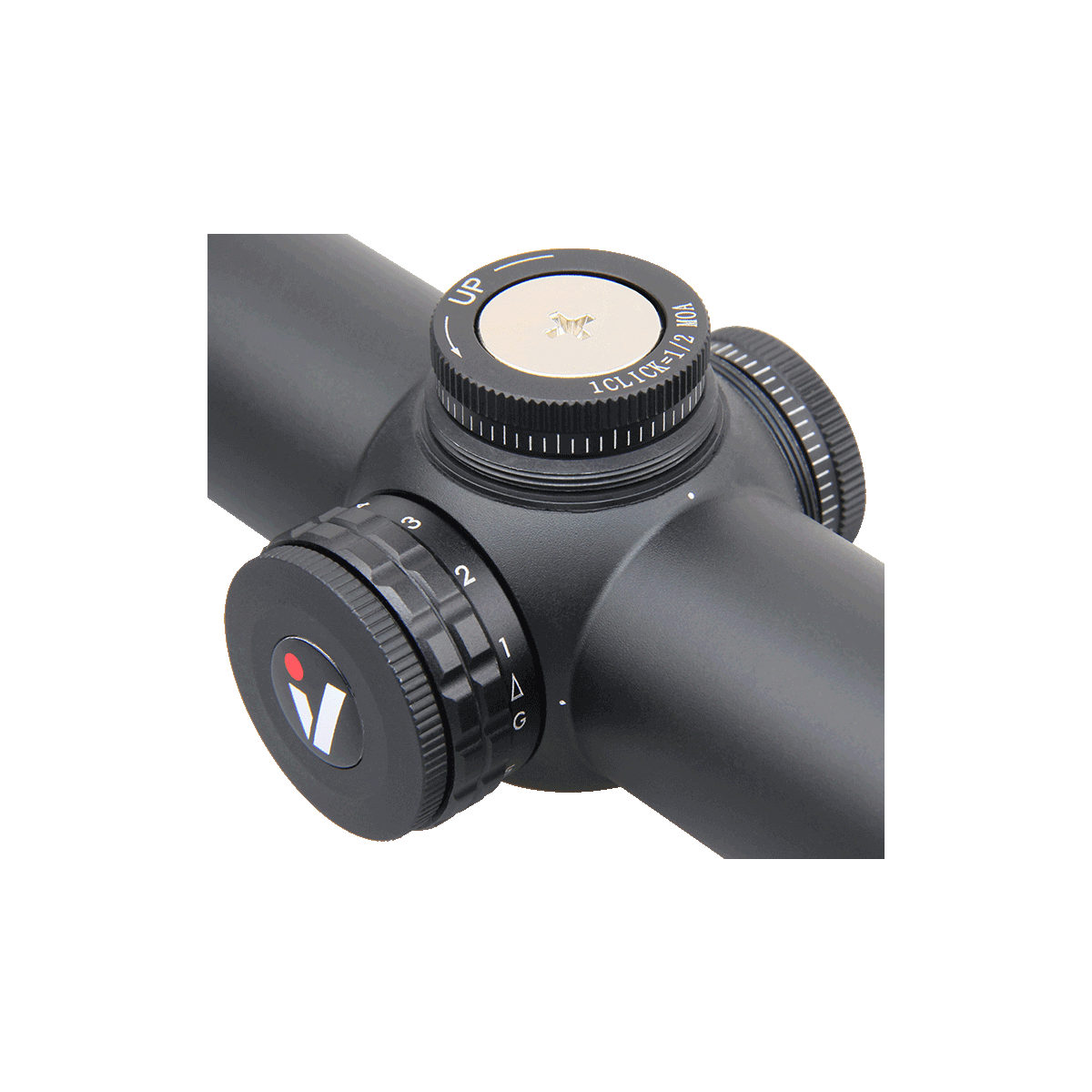

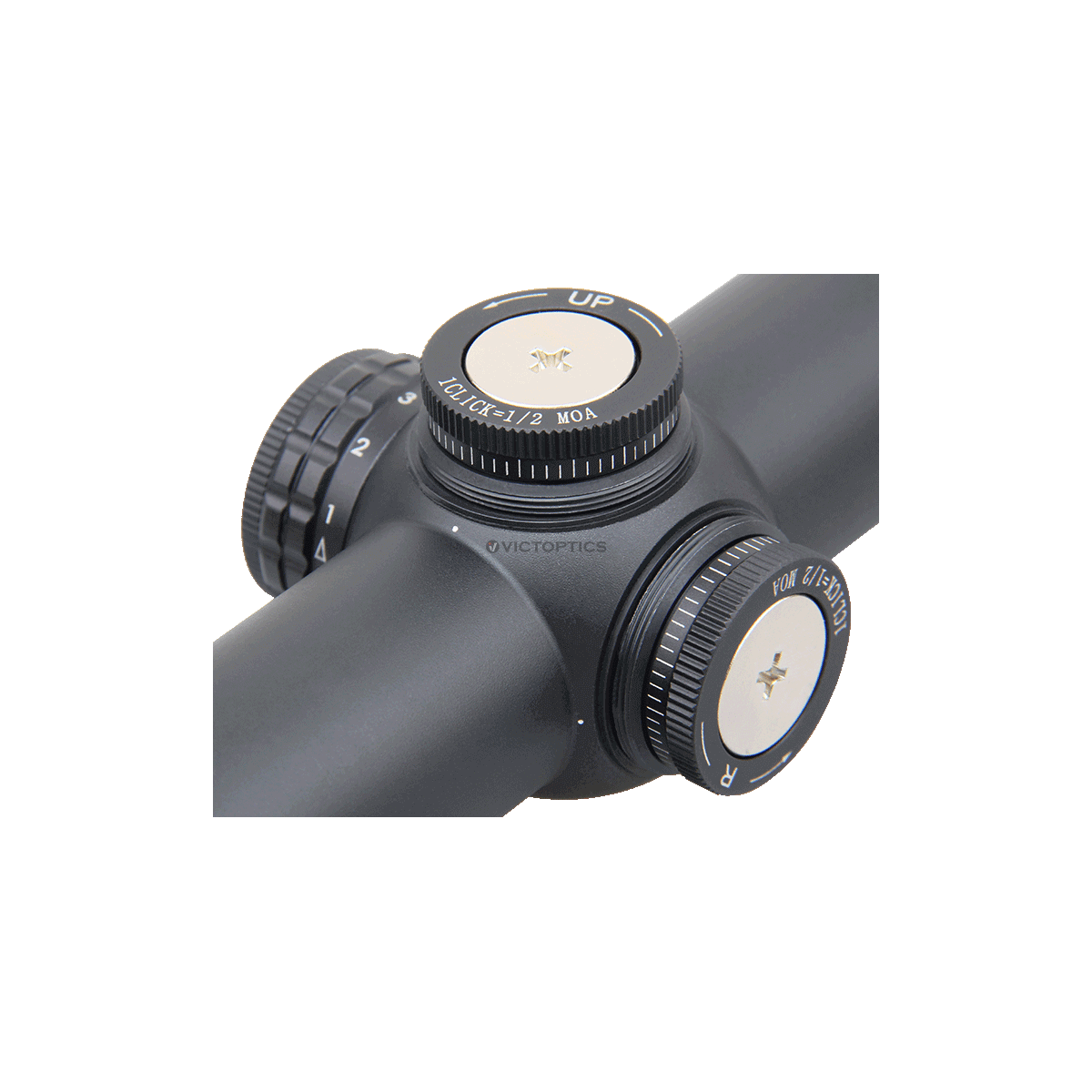

| Click Value | 1/2 MOA |
| Turret Function | |
| Elevation Adjustment Range | >60 MOA |
| Windage Adjustment Range | >60 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 5 levels red & green |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 248 mm / 9.8 in |
| Weight (Net) | 380 g / 13.4 oz |

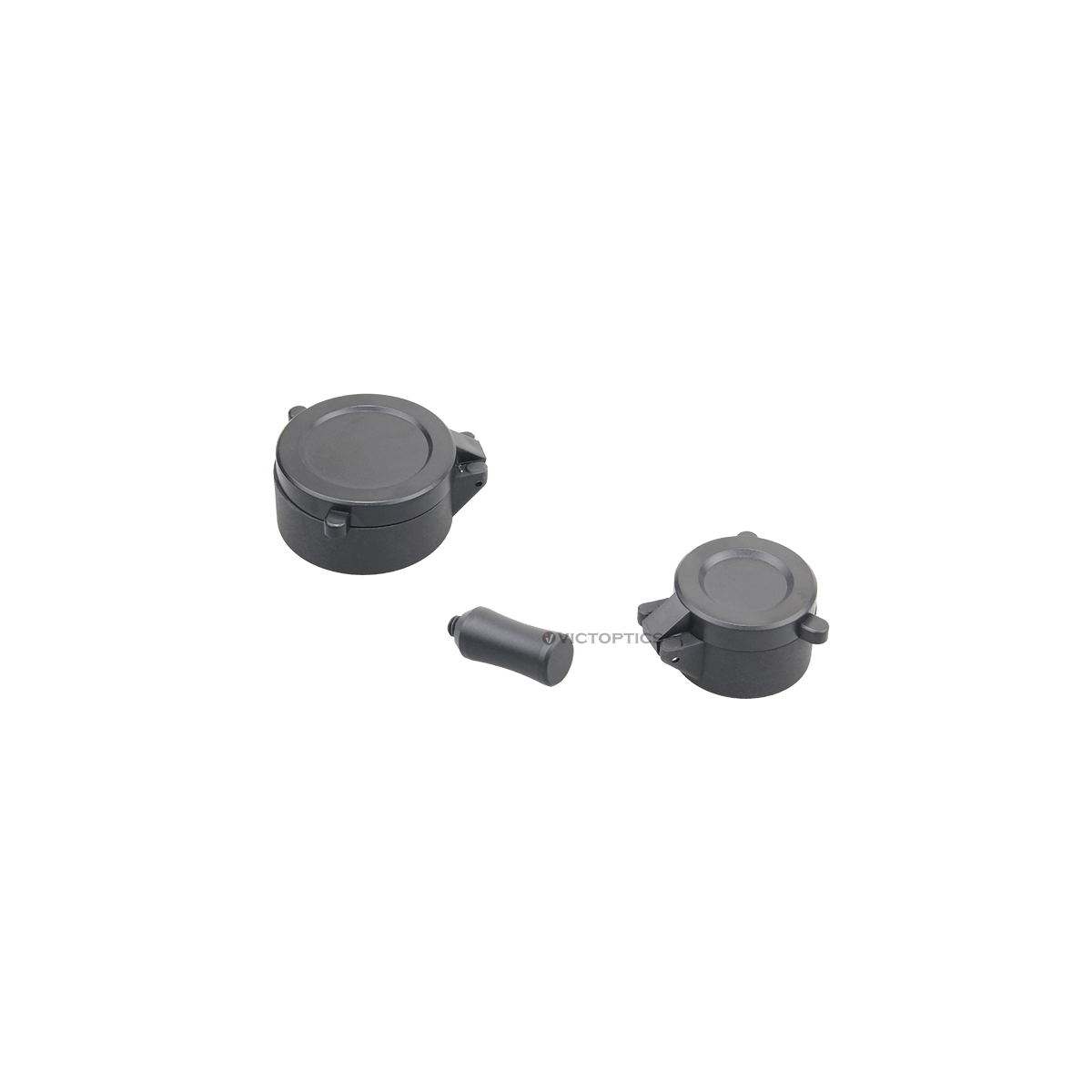

| Items in the Package | Power Ring Lever Mount, One Pair of 30mm Weaver Scope Rings, Flip-up Caps & Cleaning Cloth, etc. |
