First Focal Plane, Edge-to-Edge Image, 96mm 3.8" Long Eye Relief, Crystal Clear 1/10MIL Adjustment with Turret Lock Feature, VIS-FMIL Etched Glass Reticle 30mm Monotube, Wide Field of View, Side Focus Min at 15 Yds, Power Ring Lever
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 11.0-2.75 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 28.8-7.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 9.6-2.4 m @ 100 meters |
| Angular Field of View | 5.5-1.4° |
| Reticle | VIS-FMIL |
| Tube Dia | 30 mm |
| Side Focus | 15 yards to Infinity |

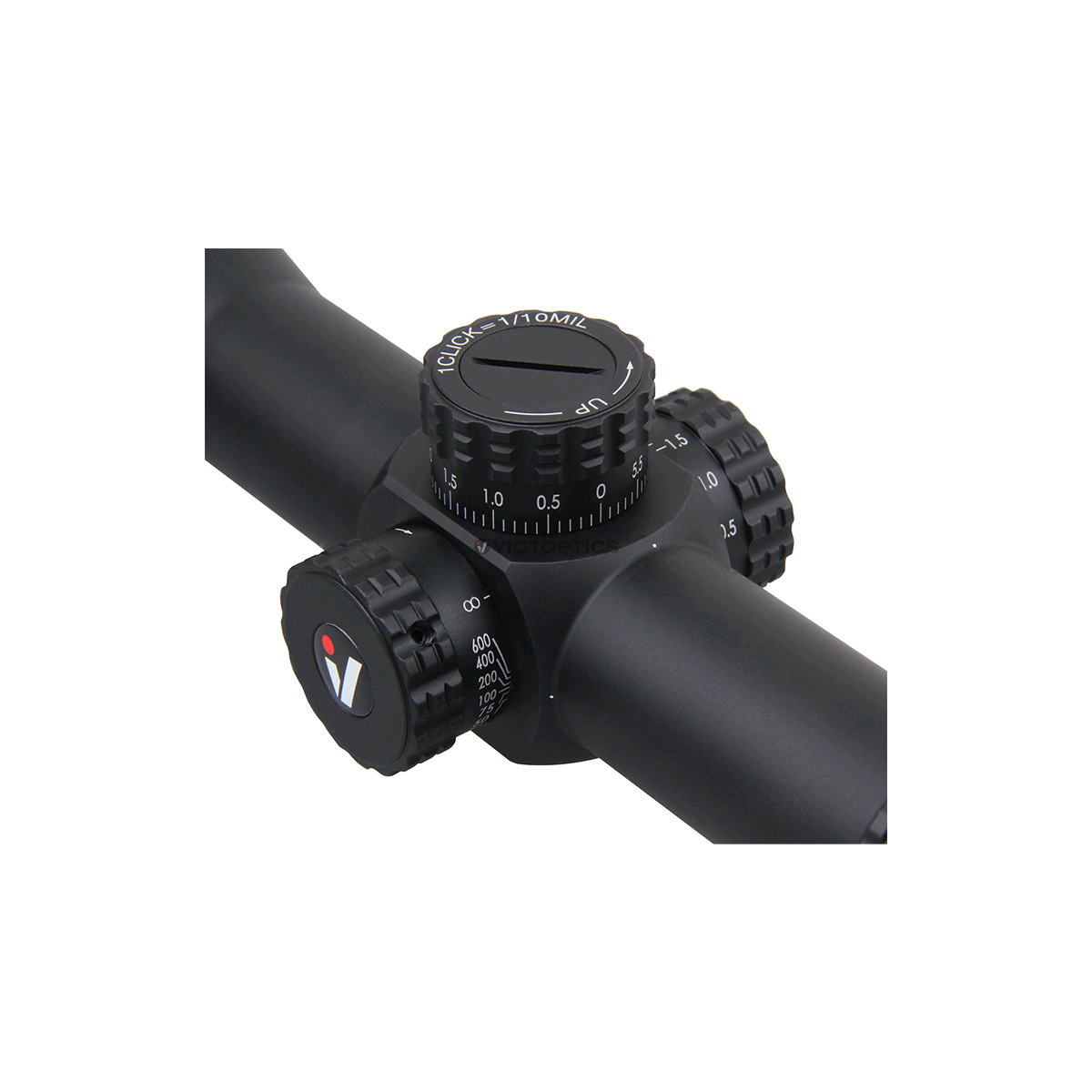

| Click Value | 1/10 MIL |

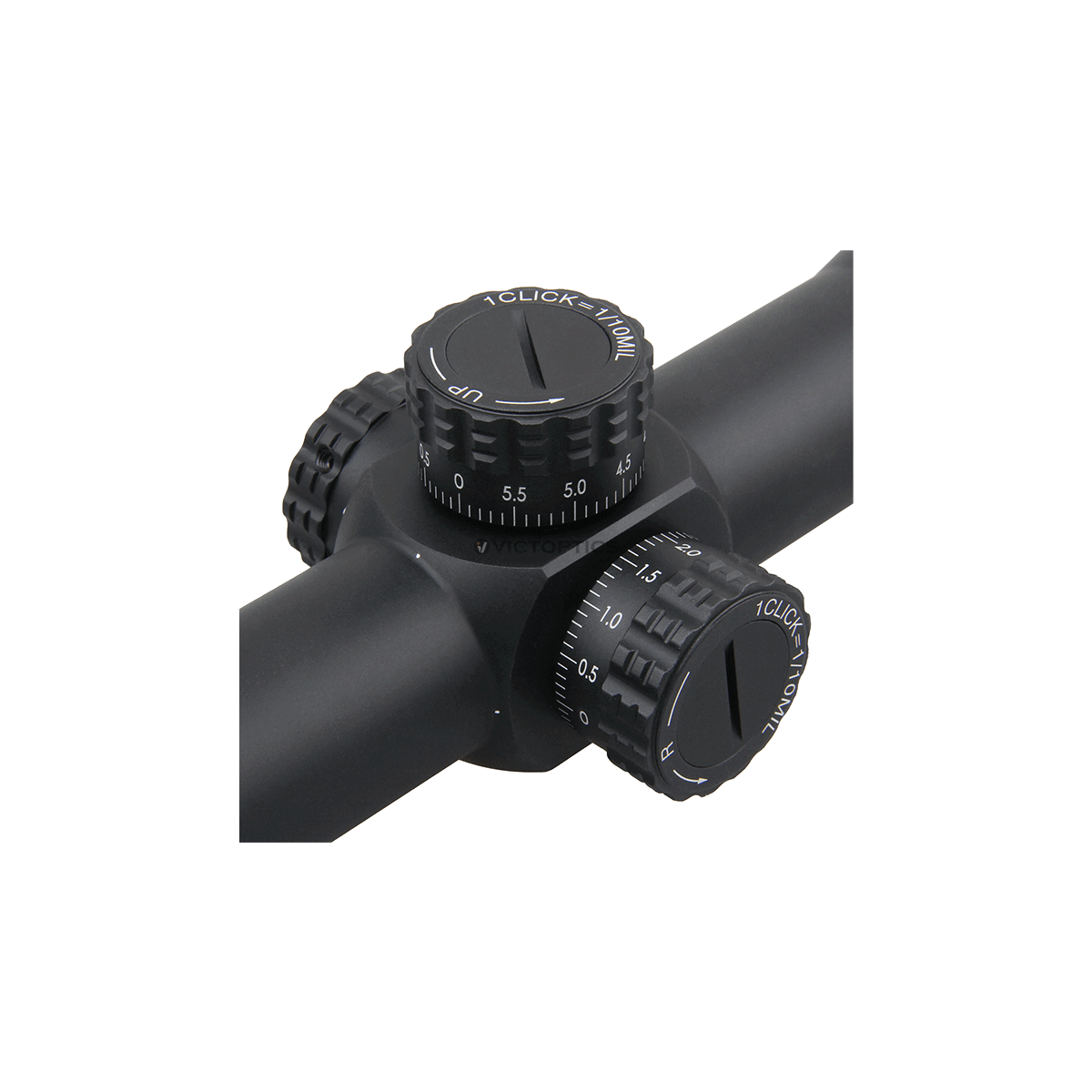

| Turret Function | Turret Lock |
| Elevation Adjustment Range | 15 MIL |
| Windage Adjustment Range | 15 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061 T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 315 mm / 12.4 in |
| Weight (Net) | 518 g / 18.3 oz |

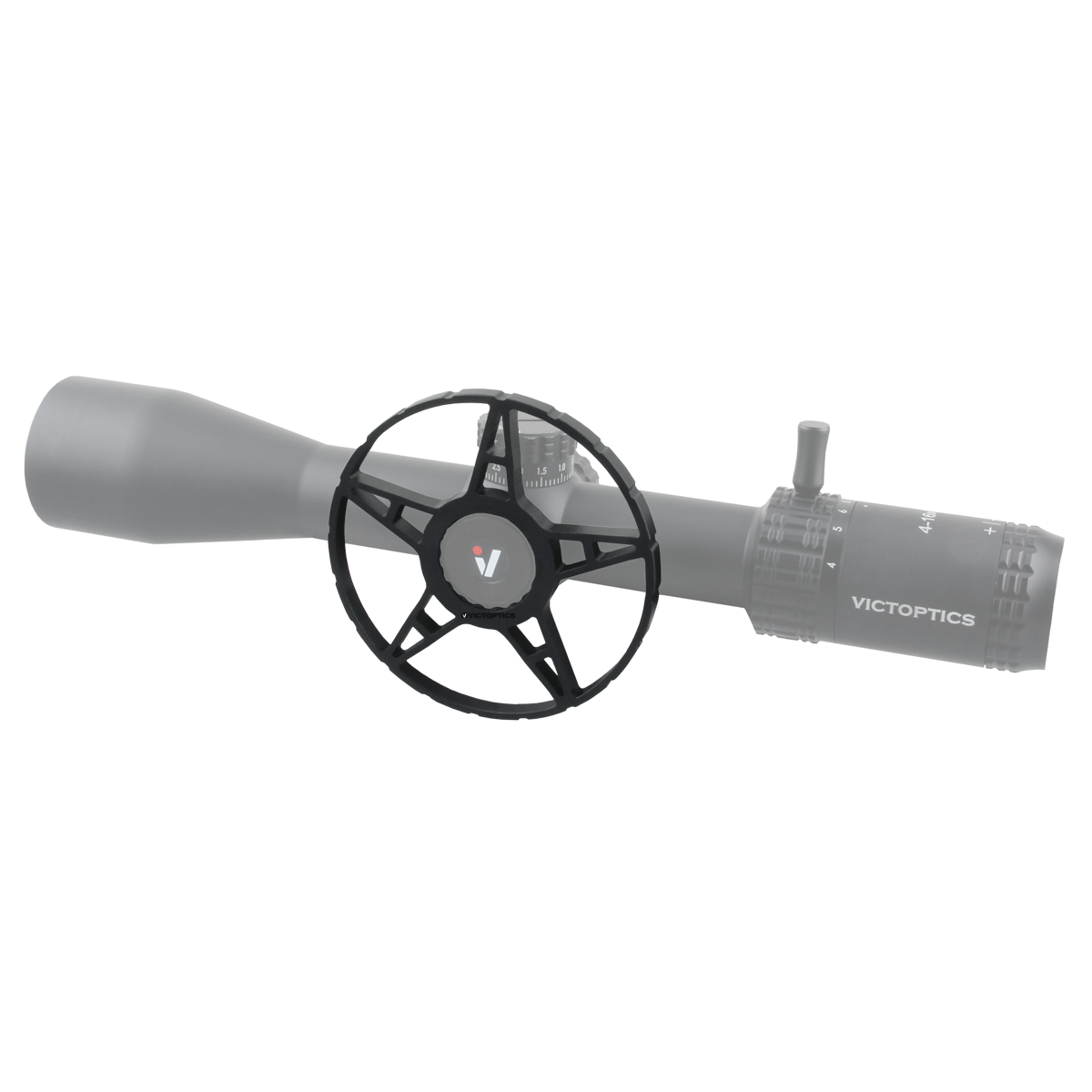

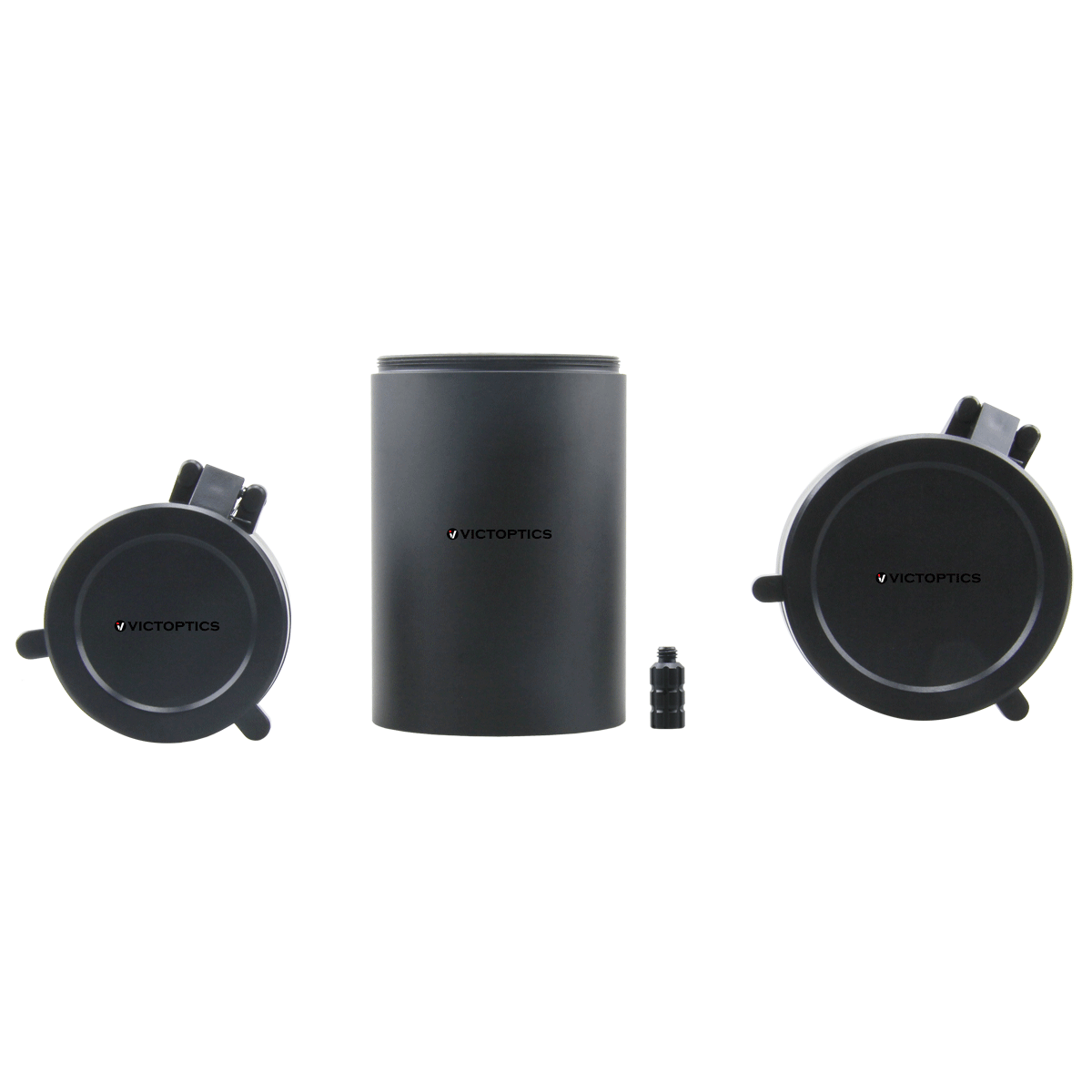

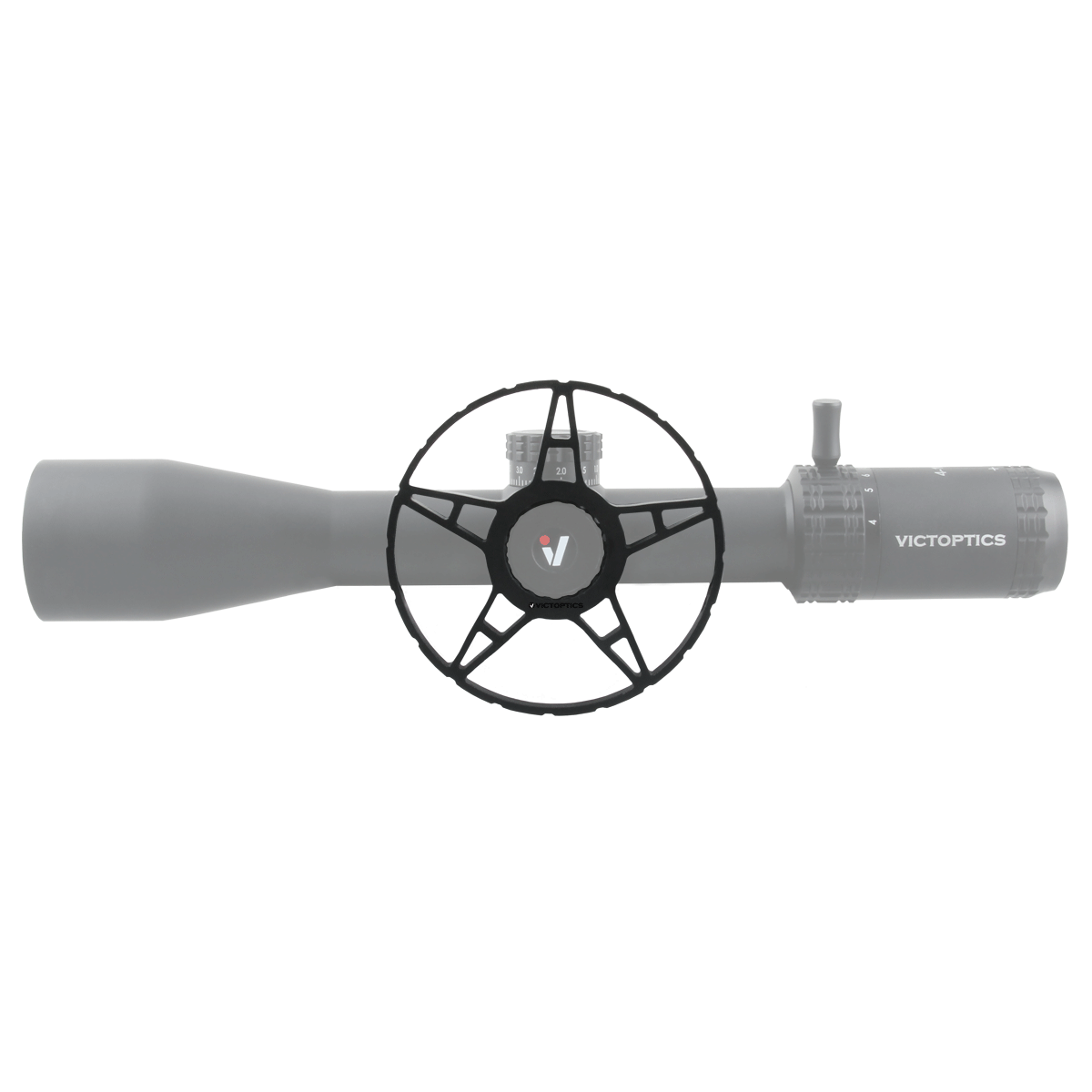

| Items in the Package | One Pair Of 30mm Weaver Scope Rings, Power Ring Lever, 3 Inch Sunshade, Big Side Wheel, Cleaning Cloth, Instruction, Lens Flip-Up Caps |
