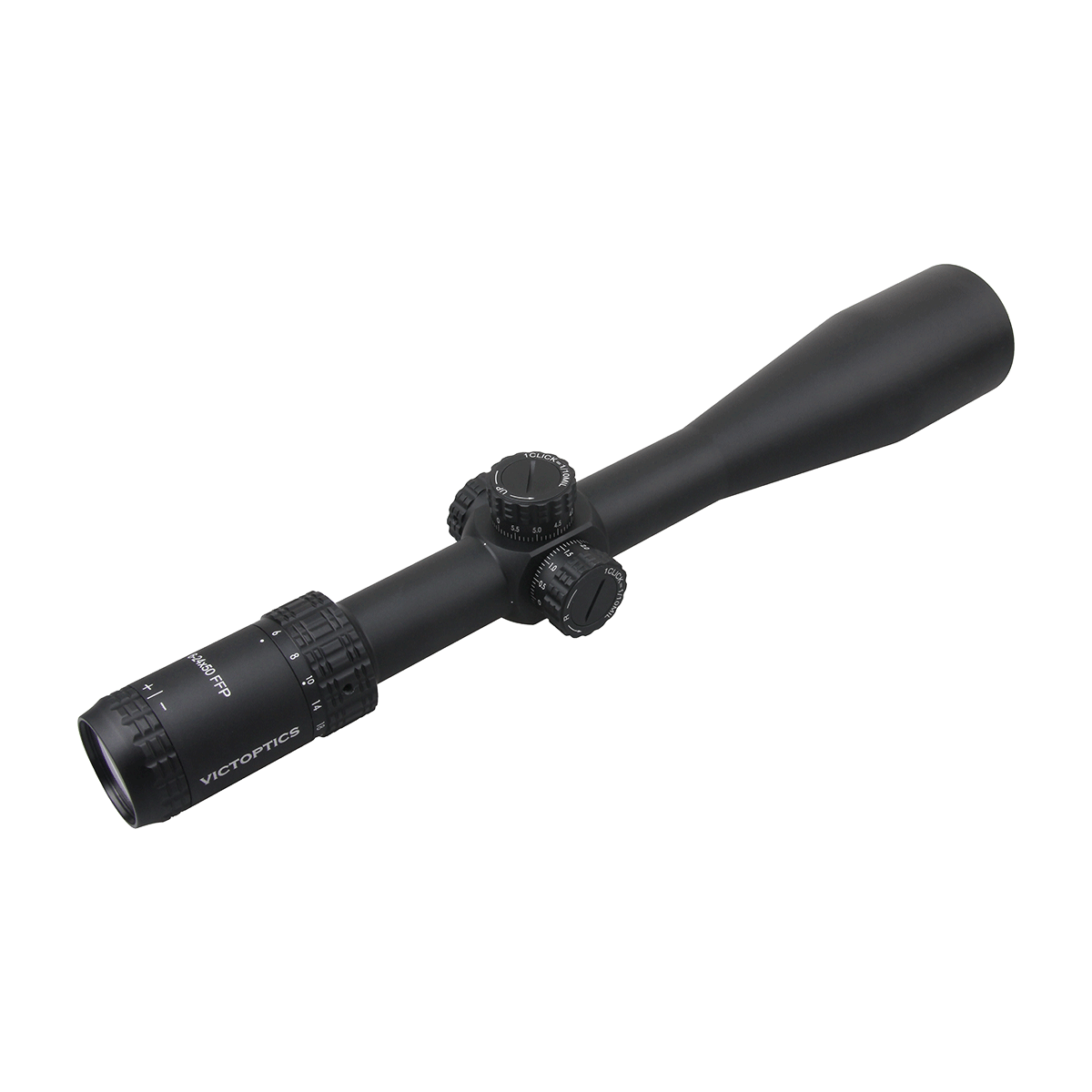

First Focal Plane, Edge-to-Edge Image, 96mm 3.8" Long Eye Relief, Crystal Clear 1/10MIL Adjustment with Turret Lock Feature, VIS-FMIL Etched Glass Reticle 30mm Monotube, Wide Field of View, Side Focus Min at 20 Yds, Power Ring Lever
| Magnification | 6-24x |
| Objective Lens Dia | 50 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 8.3-2.1 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 21.2-5.3 ft @ 100 yards |
| Linear Field of View @ 100 m | 7.1-1.7 m @ 100 meters |
| Angular Field of View | 4.1-1.0° |
| Reticle | VIS-FMIL |
| Tube Dia | 30 mm |
| Side Focus | 20 yards to Infinity |

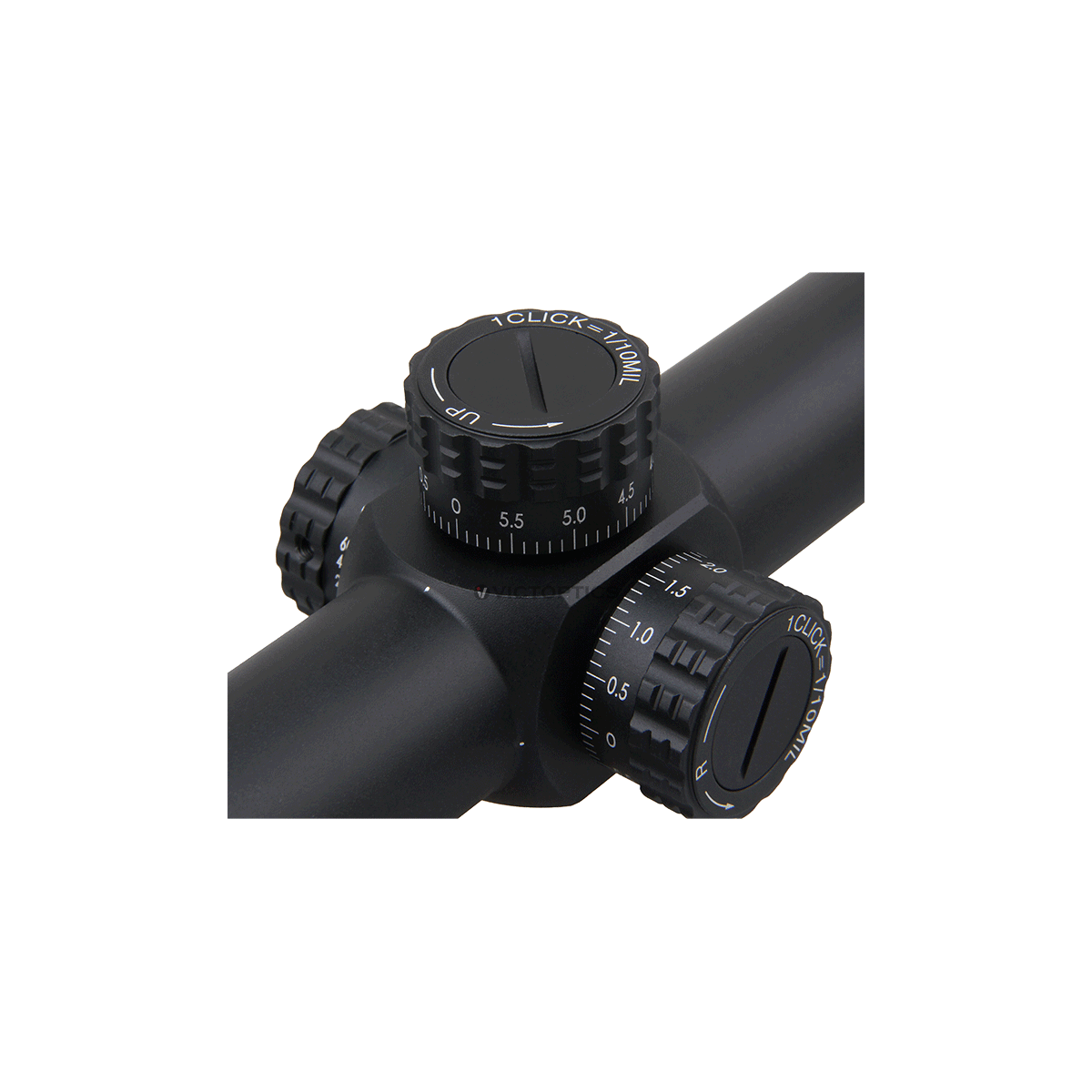

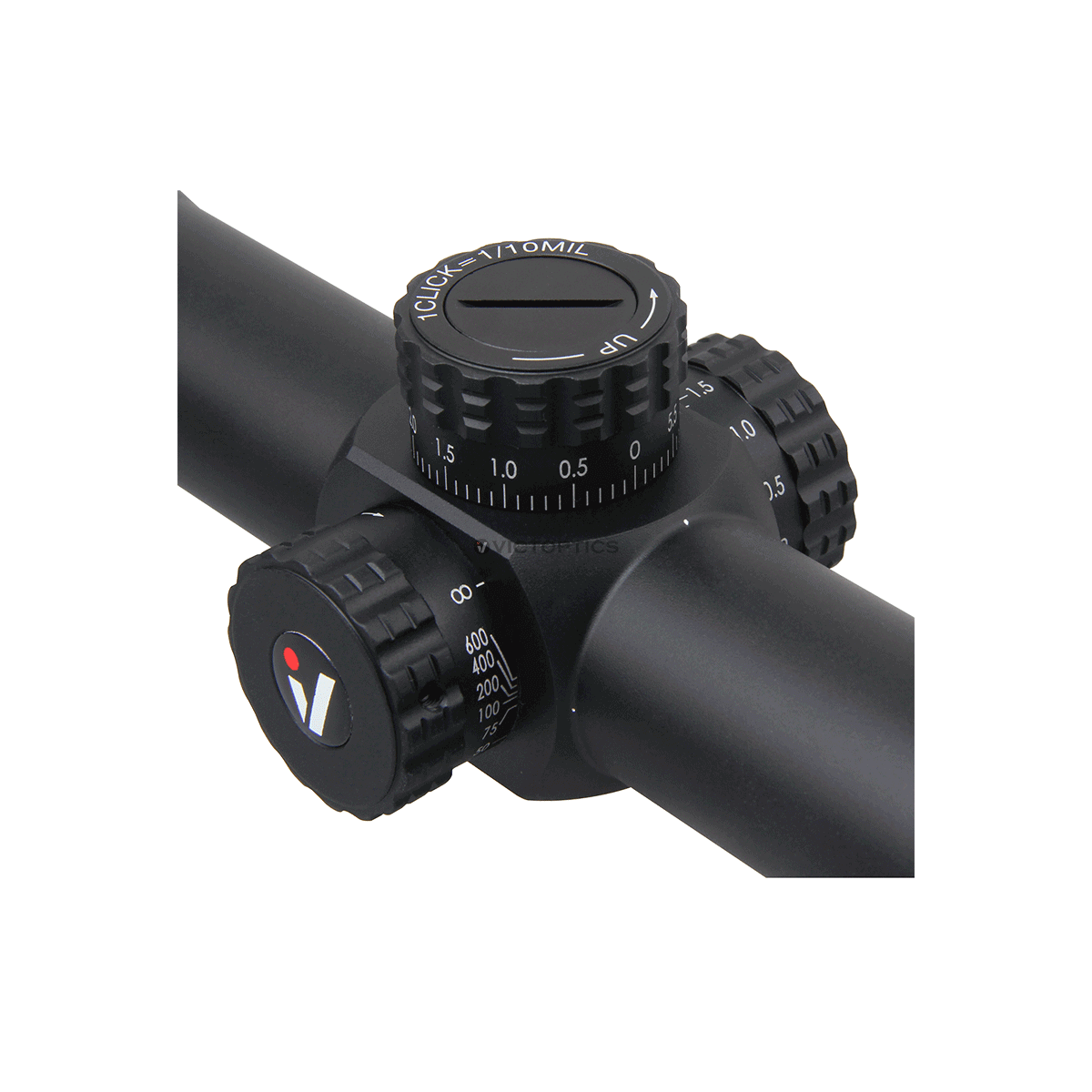

| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 13 MIL |
| Windage Adjustment Range | 13 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061 T6 Aluminum Alloy |
| Finish | Matte Black |

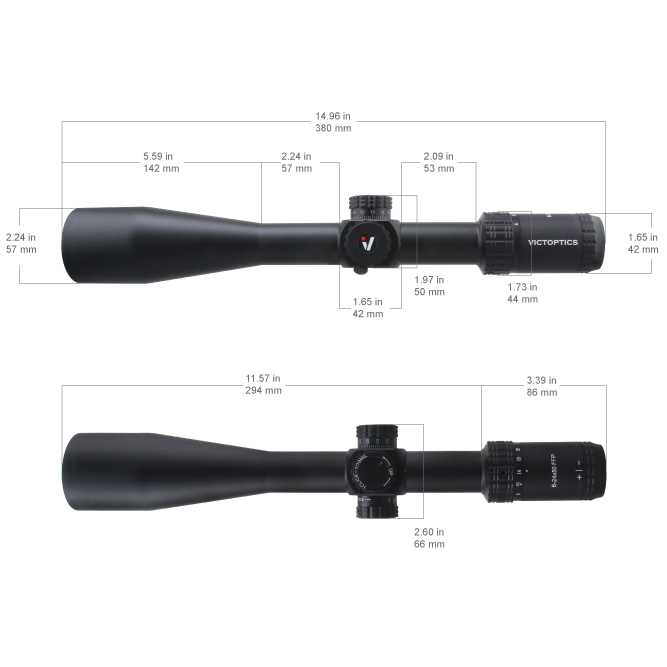

| Length | 375 mm / 14.8 in |
| Weight (Net) | 555 g / 19.6 oz |

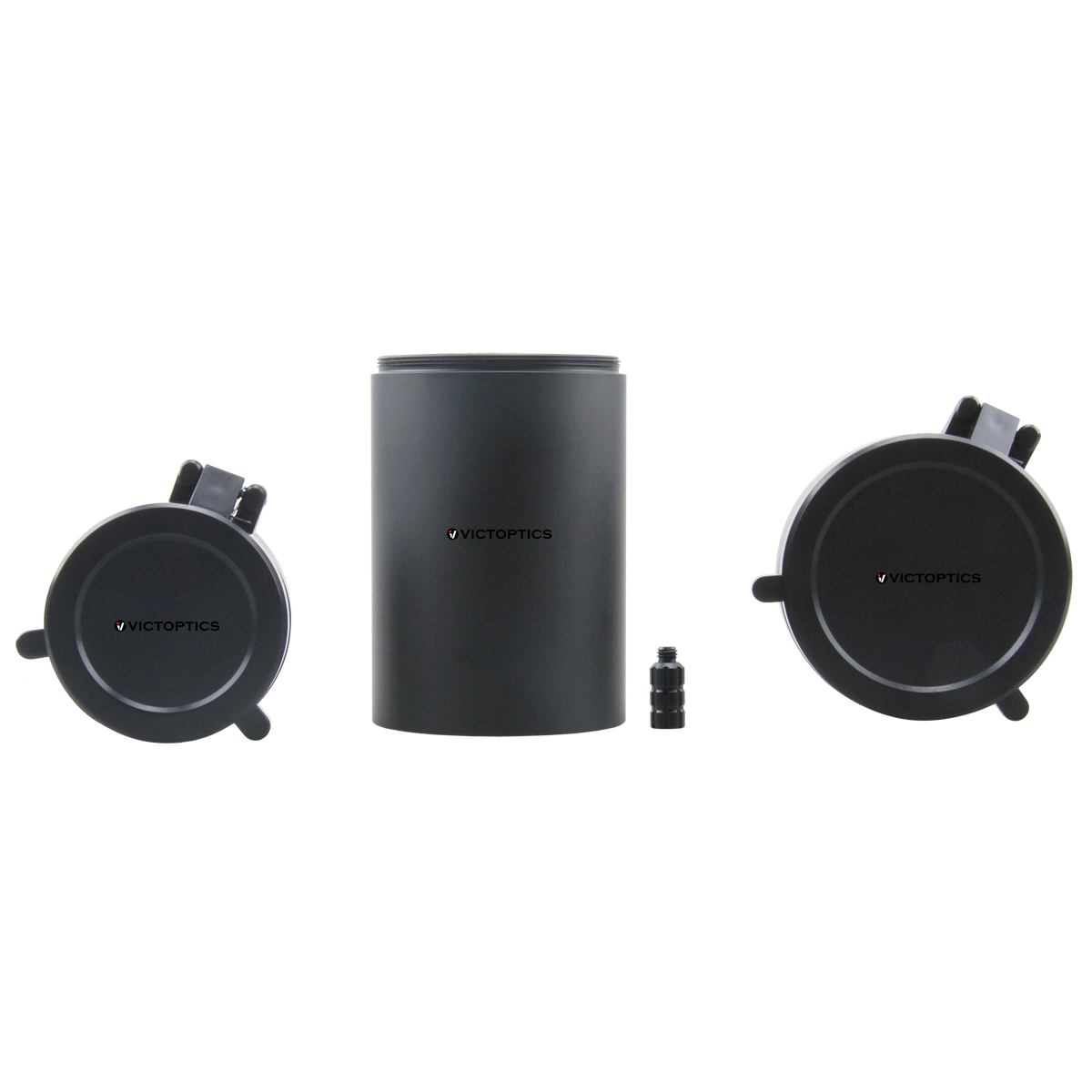

| Items in the Package | One Pair Of 30mm Weaver Scope Rings, Power Ring Lever, 3 Inch Sunshade, Cleaning Cloth, Instruction, Lens Flip-Up Caps |
