Fully Multi-coated Lens for Increased Light Transmission, Presenting Edge-to-Edge Image 5-Gear Green and Red Illuminated Reticle, Adaptable to Various Backgrounds 1/10 MIL Click Value with 18 MIL Total Elevation and Windage Adjustment Range 4 inch / 100 mm Long Eye Relief Maintains Proper Shooting Stance without Worrying Scope Bite
| Magnification | 4-12x |
| Objective Lens Dia | 40 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm |
| Exit Pupil | 10-3.3 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 24.9-8.4 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.3-2.8 m @ 100 meters |
| Angular Field of View | 4.76-1.6° |
| Reticle | VNM-1 MIL |
| Tube Dia | 25.4 mm / 1 in |
| Parallax Setting | 100 yards |

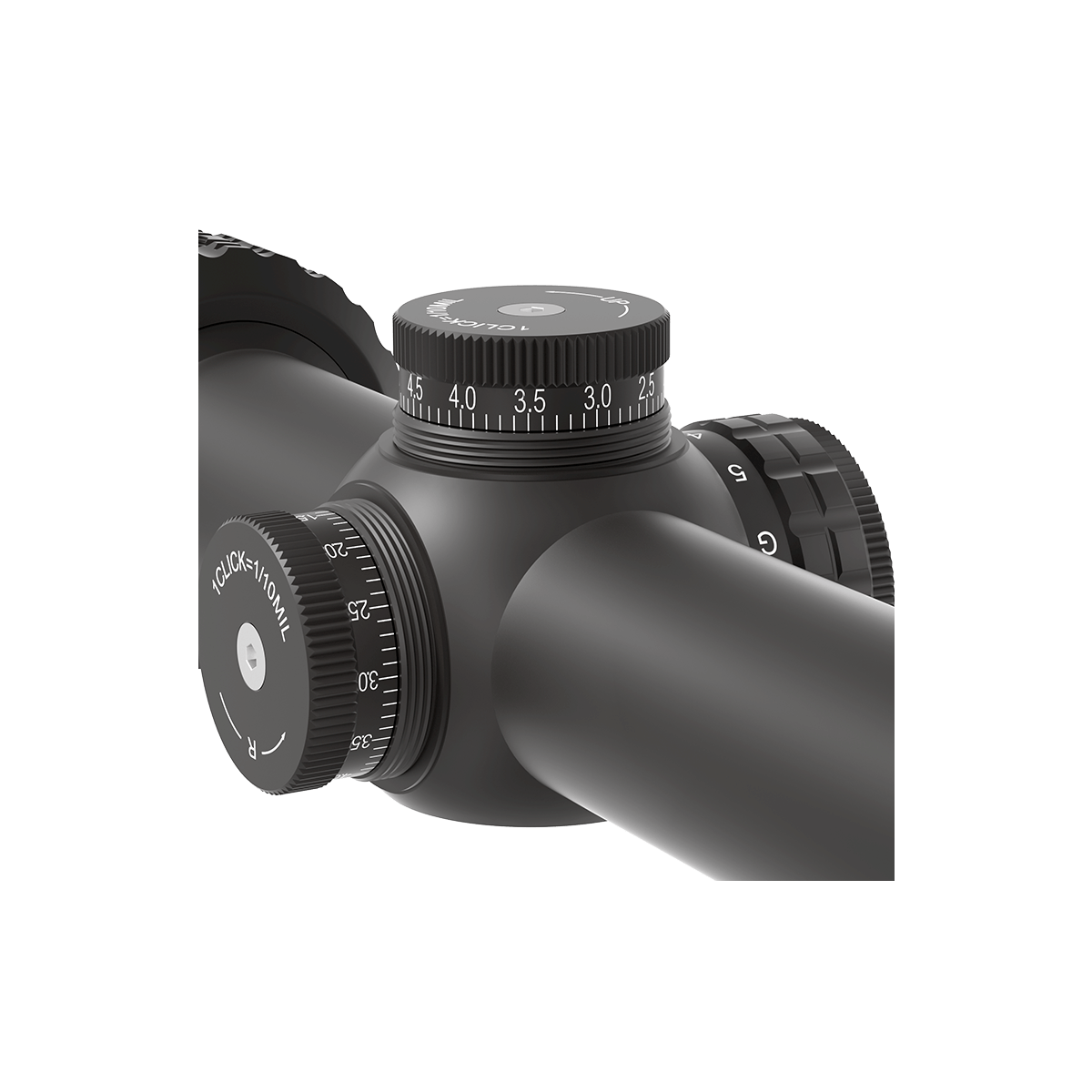

| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | >14.5 MIL |
| Windage Adjustment Range | >14.5 MIL |
| Diopter Compensation | -2 to +2 |

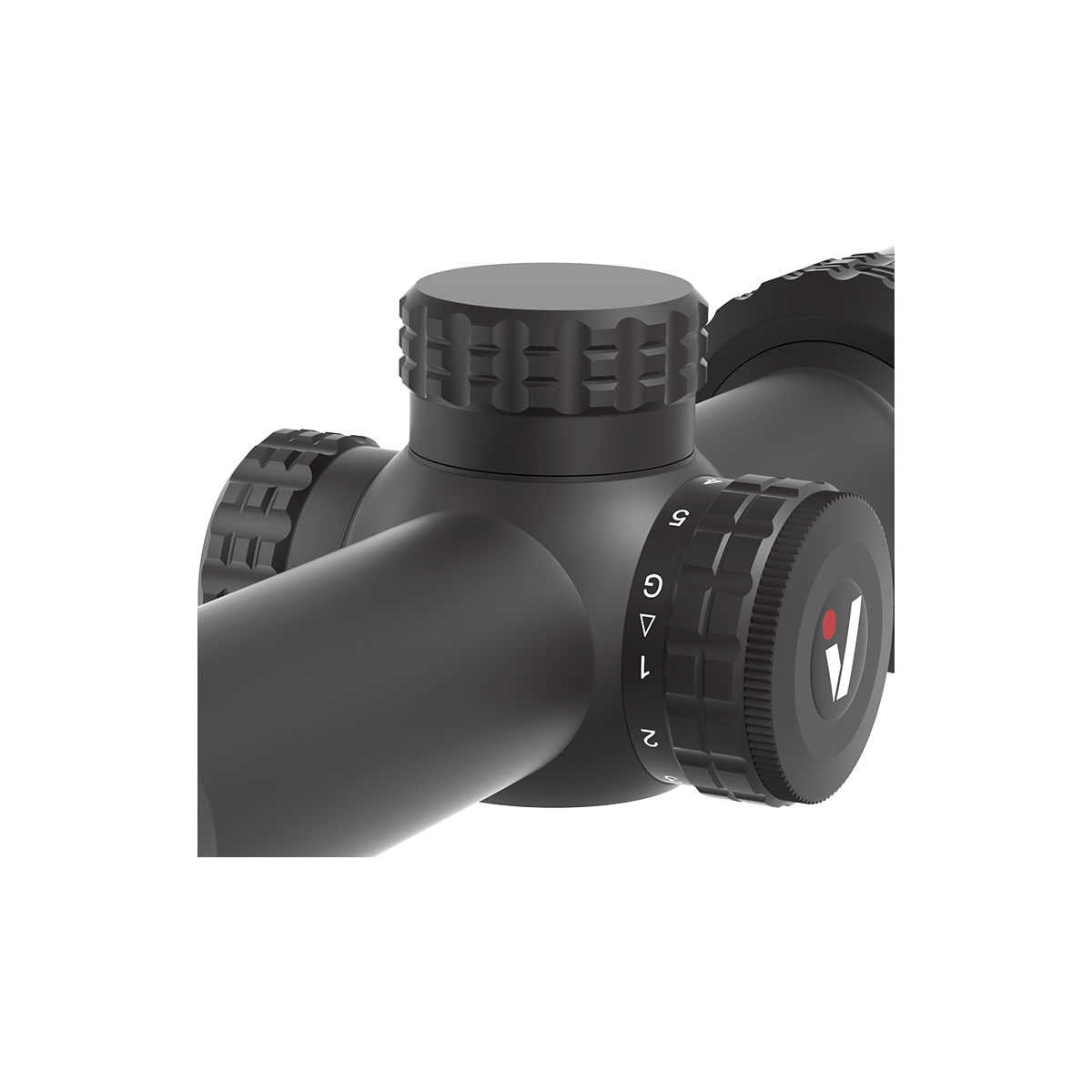

| Illumination Setting | 5 Gears, Red and Green |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 335 mm / 13.19 in |
| Weight (Net) | 458 g / 16.15 oz |

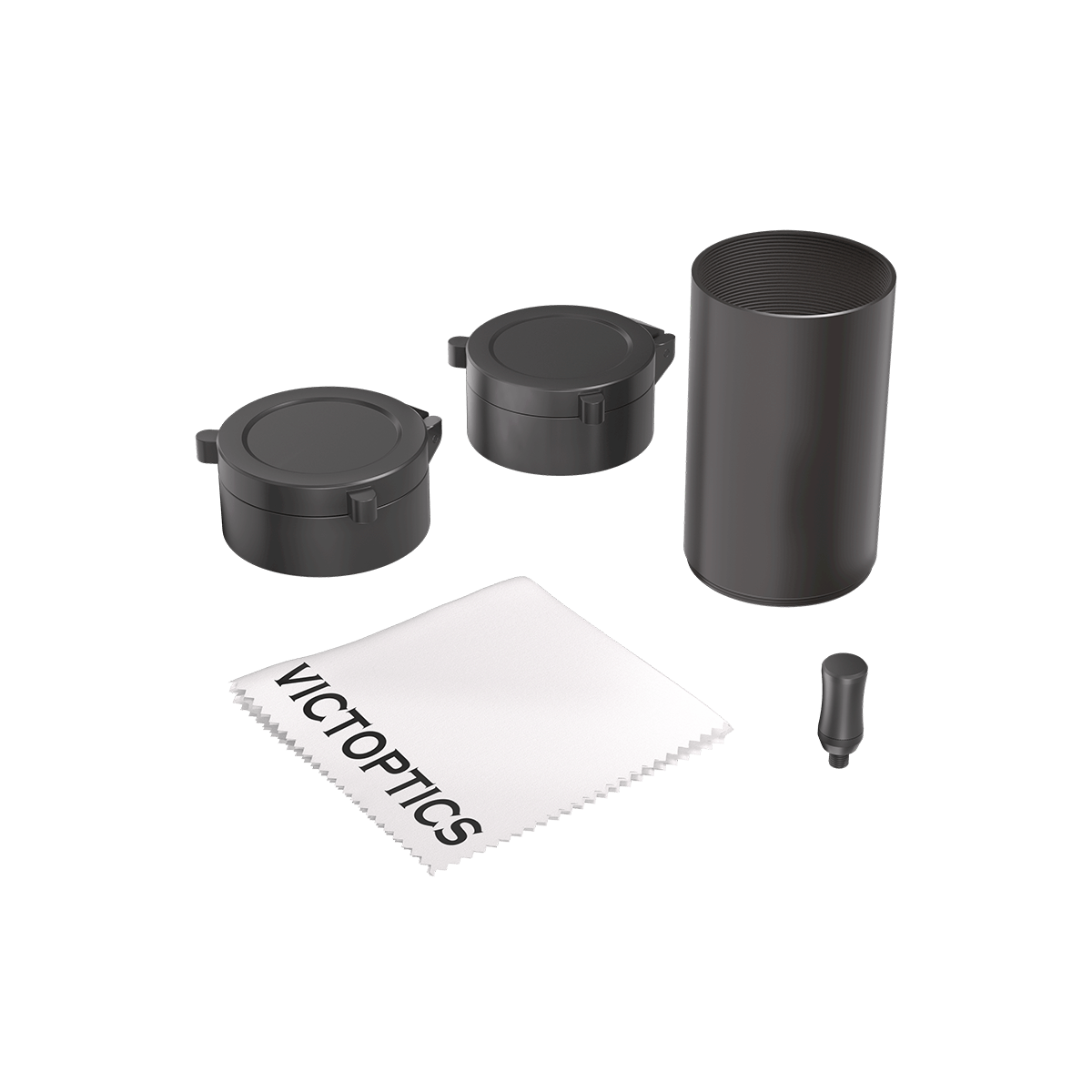

| Items in the Package | User Manual, Cleaning Cloth, Flip-up Caps, Sunshade, Plastic Wrench, Power Throw Lever, etc. |
