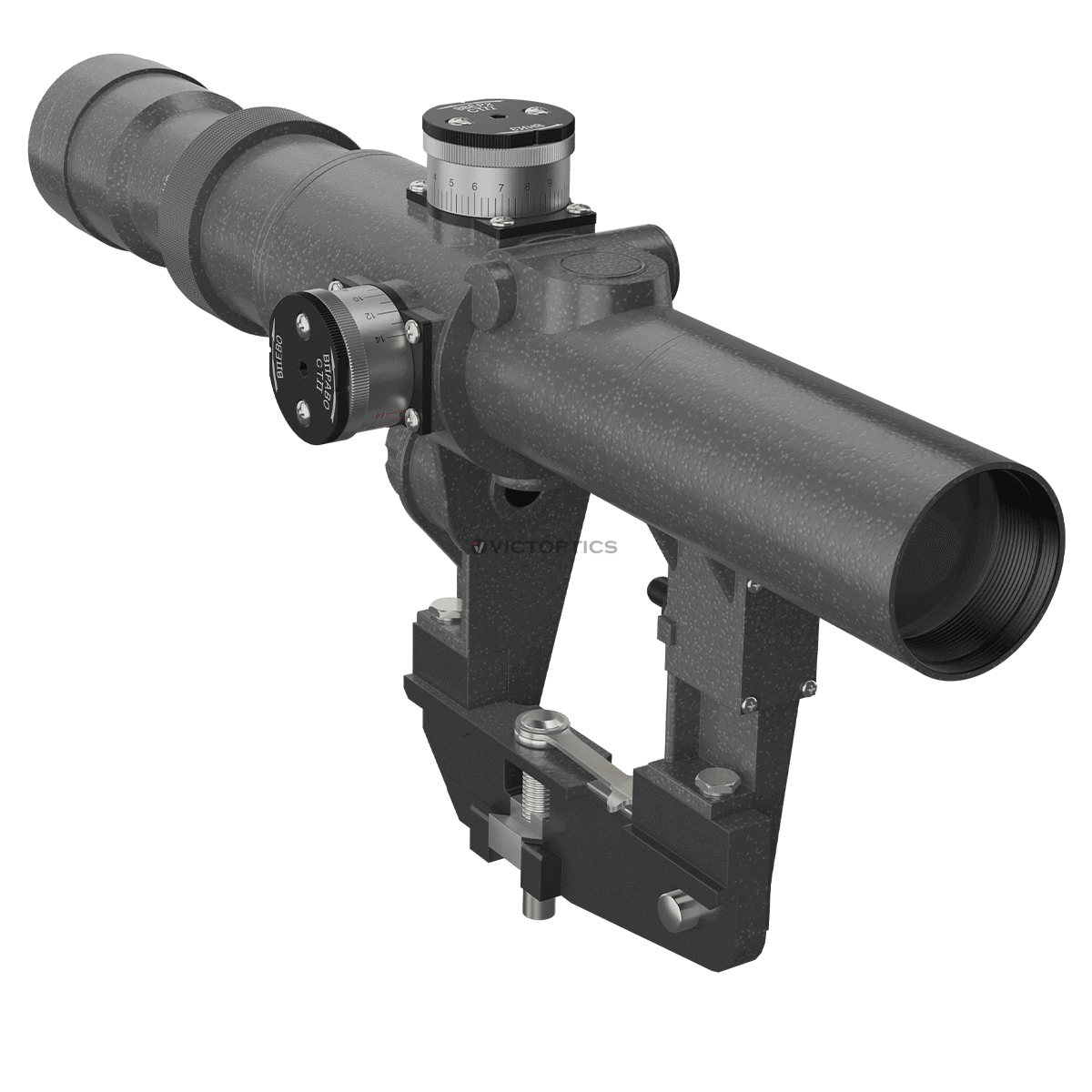

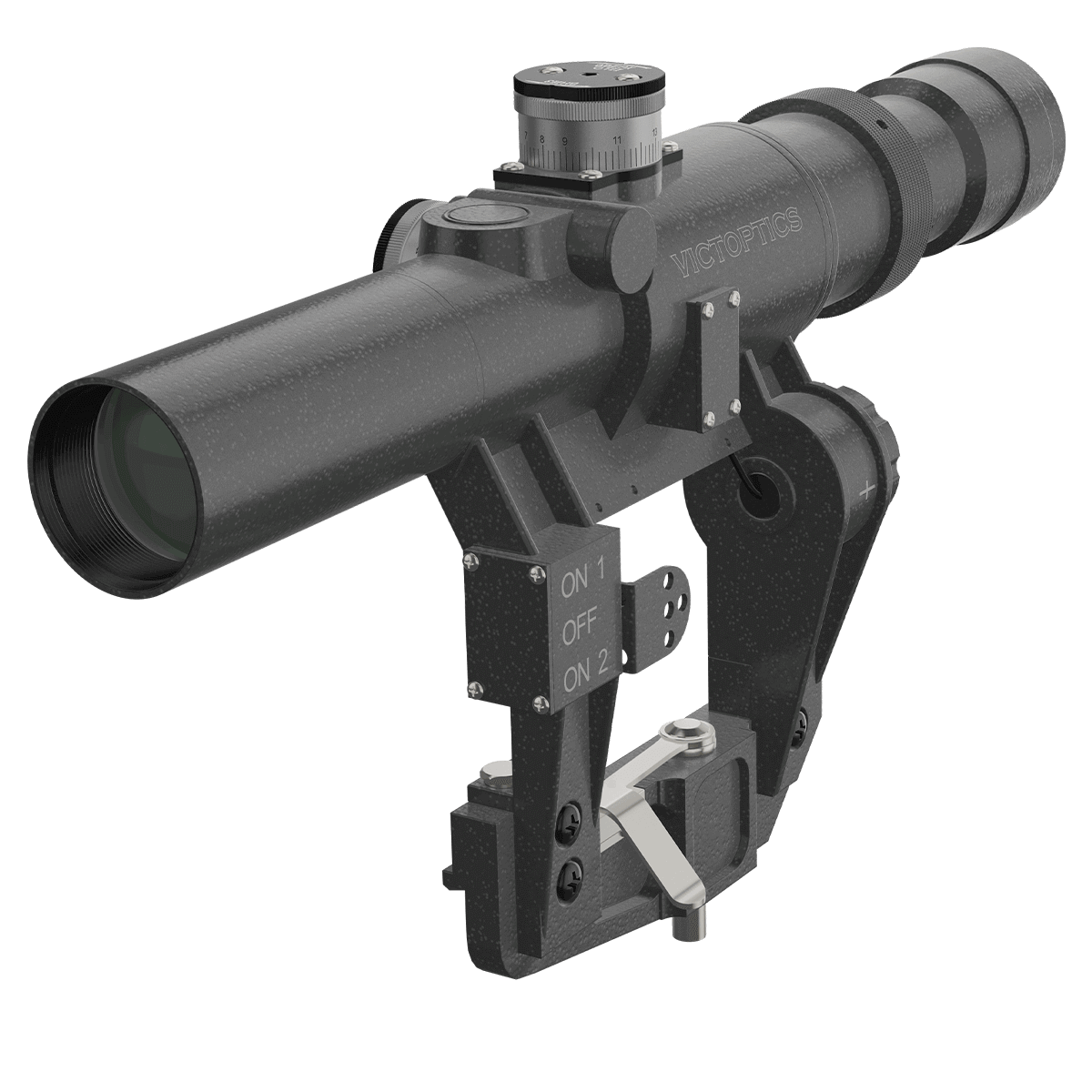

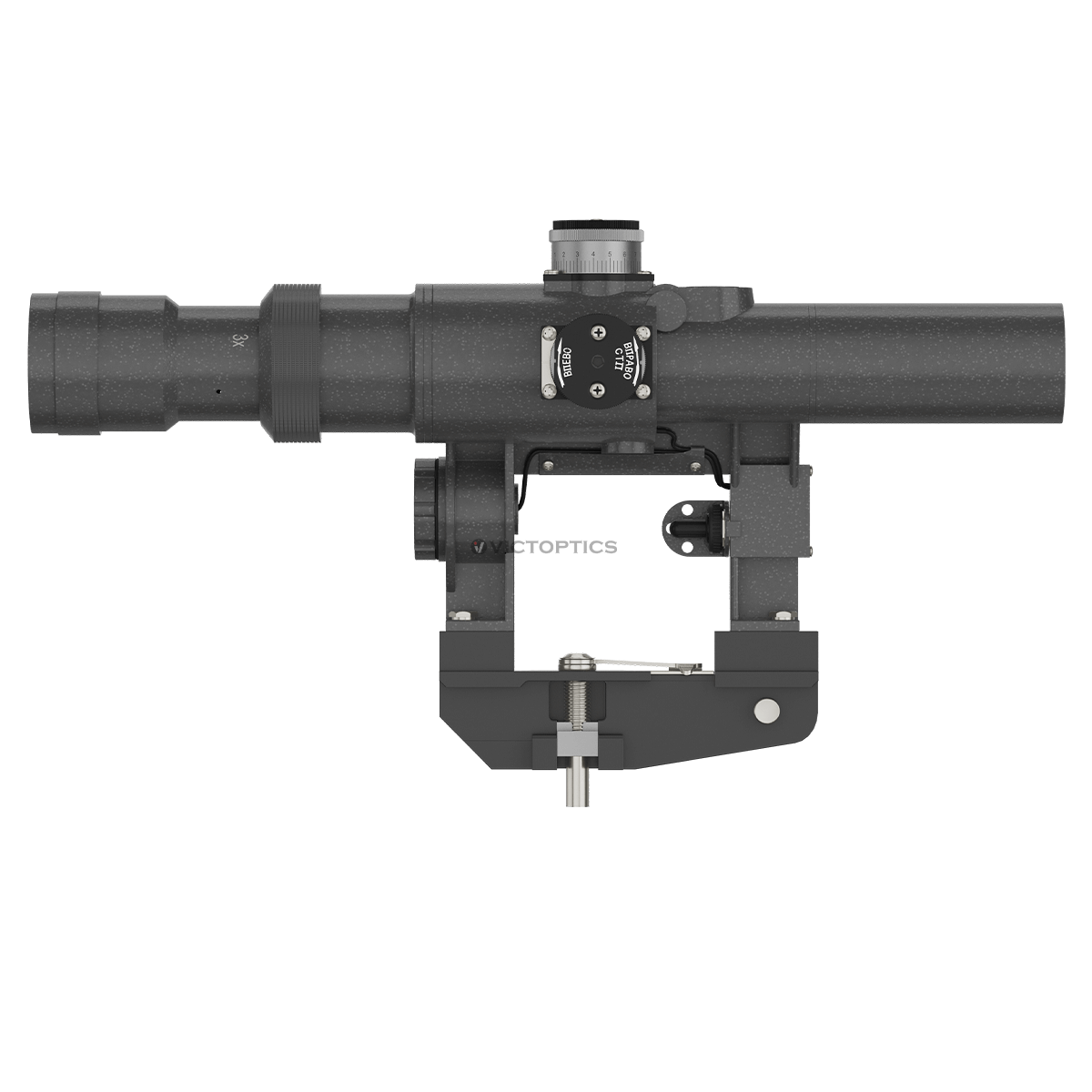

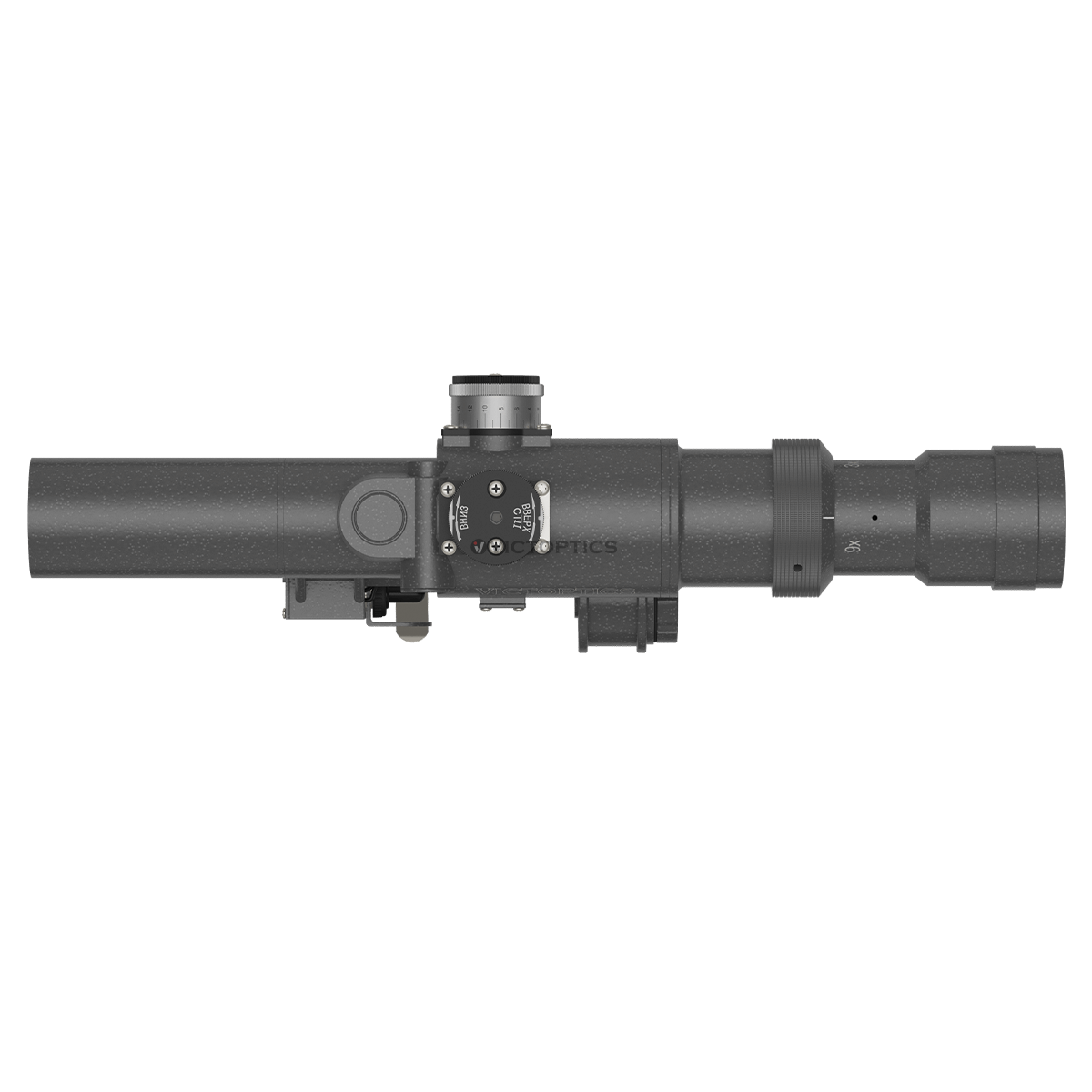

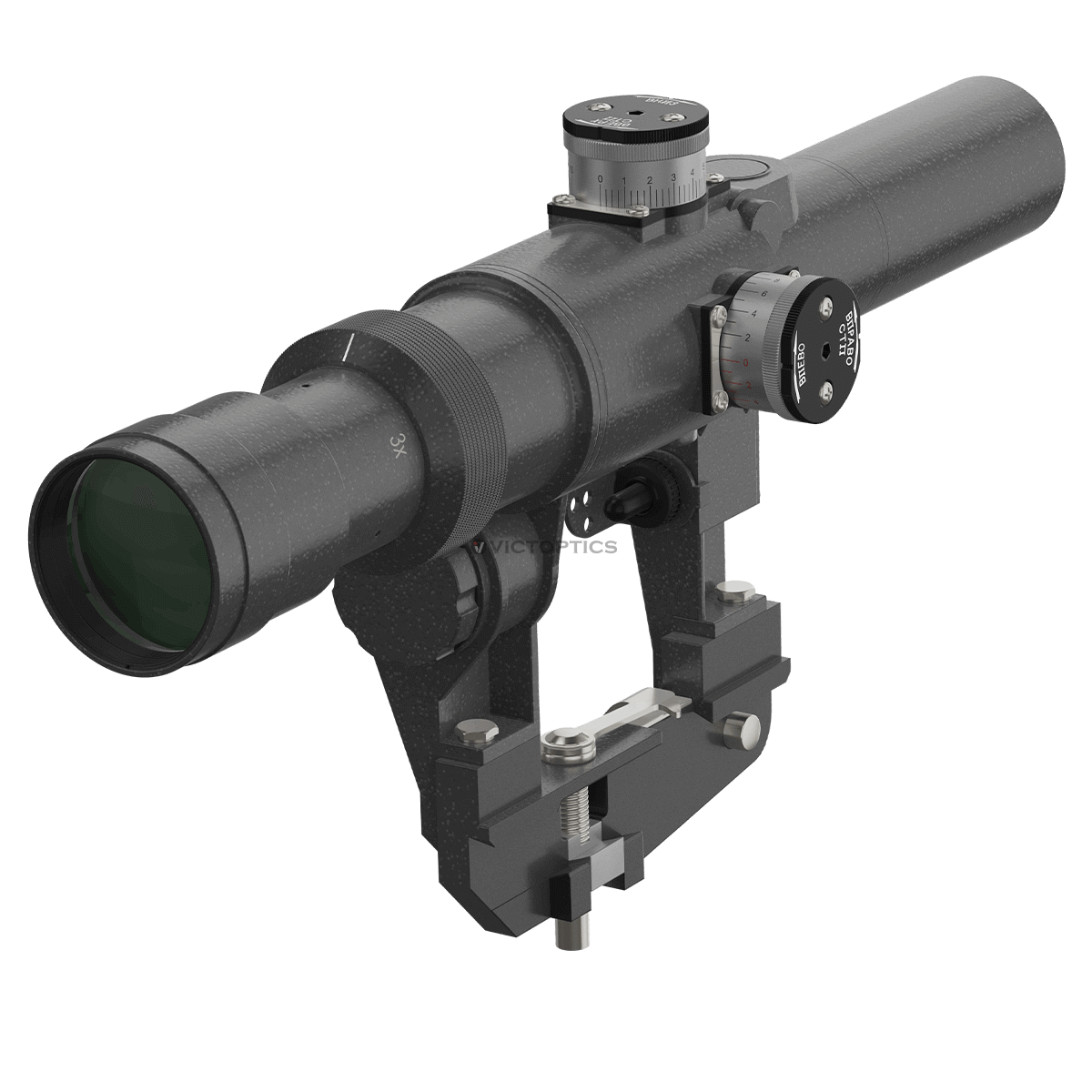

First Focal Plane, Edge-to-Edge Image, 3x Zoom Factor, 2 Levels Red Illumination, On/OFF Switch. Etched SVD Style Reticle, W/ Ocular Lens Eye Cover. Side Mount System.
| Magnification | 3-9x |
| Objective Lens Dia | 24 mm |
| Parallax | |
| Parallax Setting | 100 Yards |
| Dot Size |
| Sensor | N/A |

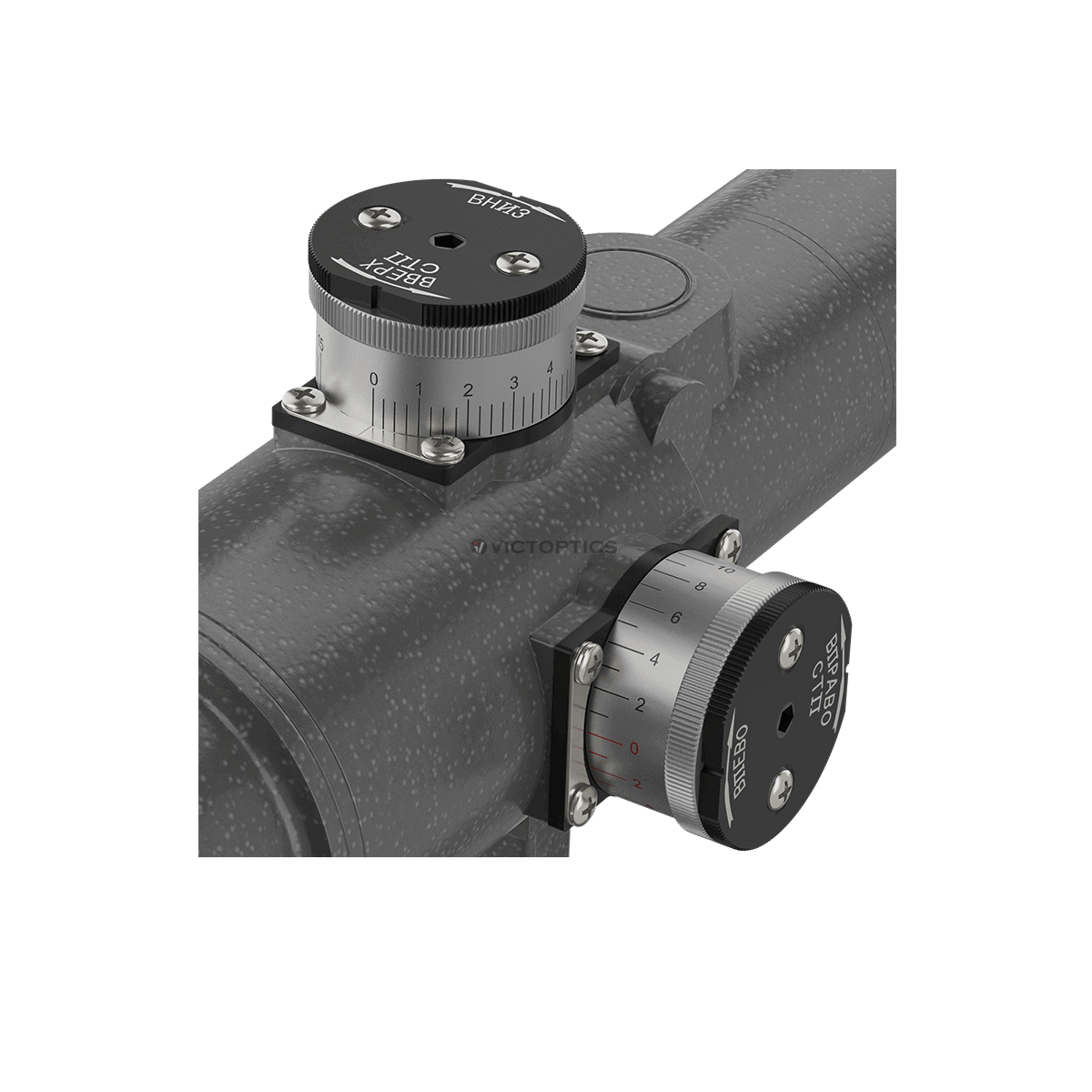

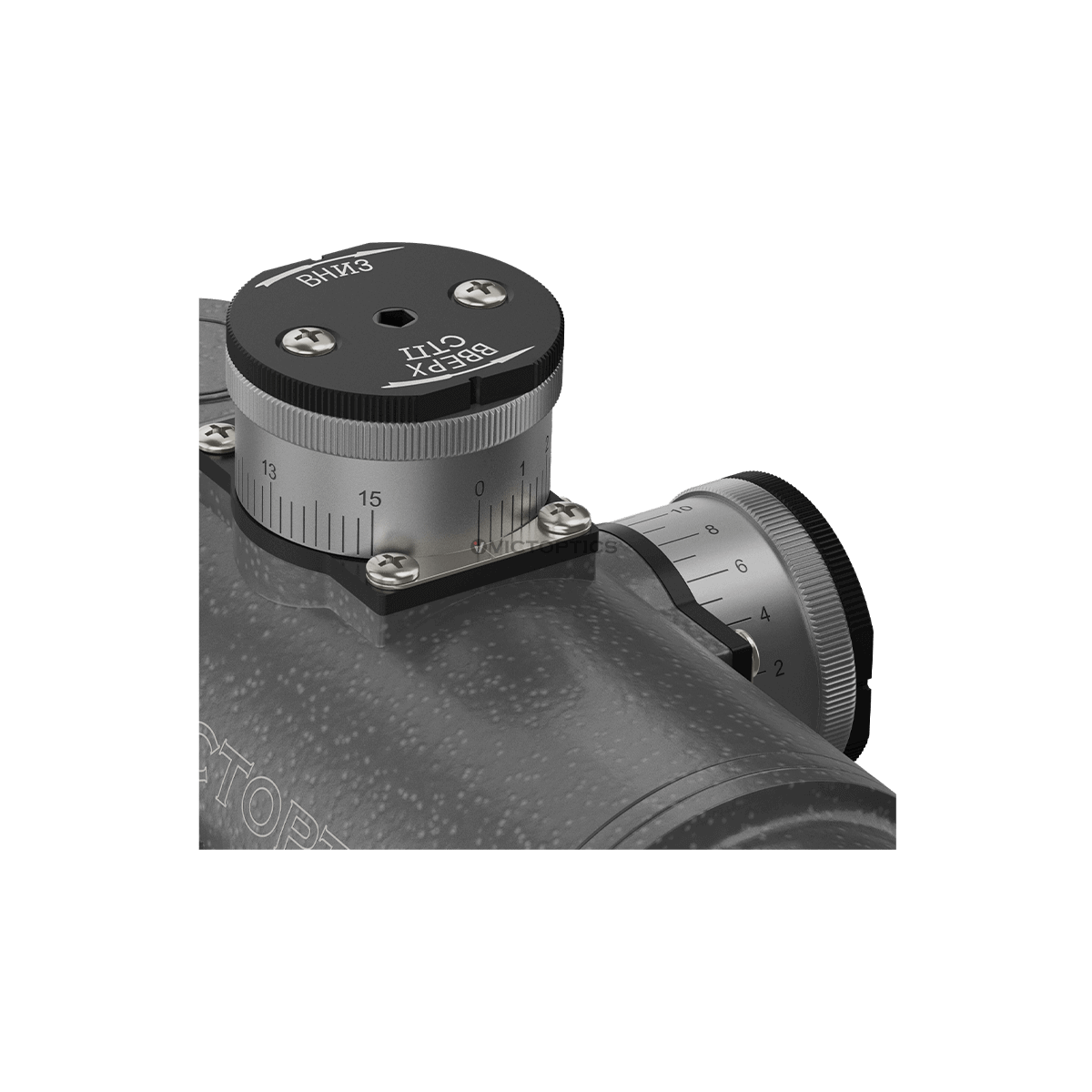

| Click Value | 0.5 MIL |
| Elevation Adjustment Range | 18 MIL |
| Windage Adjustment Range | 18 MIL |
| Footprint | |
| Mounting Rail | |
| Illumination Setting | 2 Levels Red |
| Battery Type | CR2032 |
| Battery Life | |
| Battery Placement | |
| Waterproof | IPX4 |
| Shockproof | 500 G |
| Working Temperature | |
| Housing Material | High quality die cast aluminum |
| Mount Material | |
| Finish | Black |
| Weight (Net) | 602 g / 21.2 oz |

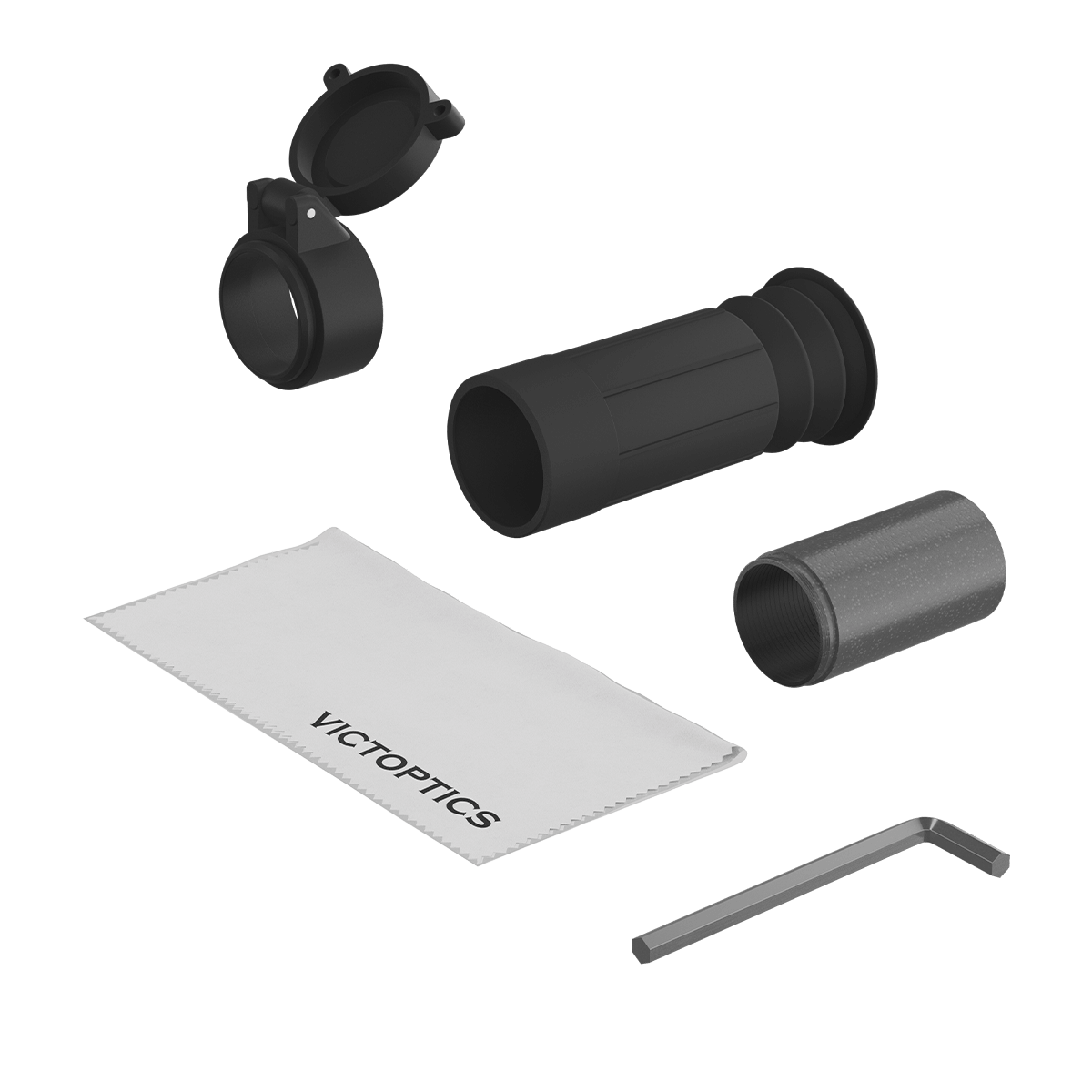

| Items in the Package | Instruction, Ocular Lens Cover, Lens Caps and Cleaning Cloth, etc. |
