Roof Prism ED Lens, 6 Groups 8 Lens, Silver Coated Prism, Fully Multi Coated Lens Phase Correction Coating, 88% Light Transmission. Wide Field of View Made from High Strength Semi-Aromatic Thermoplastic, with Non-Slip Rubber Armor
| Magnification | 10x |
| Objective Lens Dia | 42 mm / 1.6 in |
| Exit Pupil | 4.2 mm / 0.16 in |
| Eye Relief | 12.2 mm / 0.48 in |
| Min. Focal Distance | 2.5 m |
| Lens Coating | Fully Multi-coated |
| Prism Glass | BaK-4, Roof Prism |
| Prism Coating | Silver Alloy |
| Focusing System | Center |
| Linear Field of View | 366 ft @ 1000 yds |
| Linear Field of View | 122 m @ 1000 m |
| Angular Field of View | 7 ° |
| Optical Structure | 6 Groups 8 Lens |
| Diopter | Right Eyepiece |
| Diopter Compensation | -4 to +4 |
| Waterproof | IPX7 |
| Material | Aluminum Alloy |
| Housing Material | Semi-aromatic Thermoplastic |
| Operating Temperature | -20 to +60 ℃ |
| Storage Temperature | 10-25 ℃ |
| Size | 147x130x55 mm |
| Weight | 810 g / 28.57 oz |
| Eyecups | Twist-up |

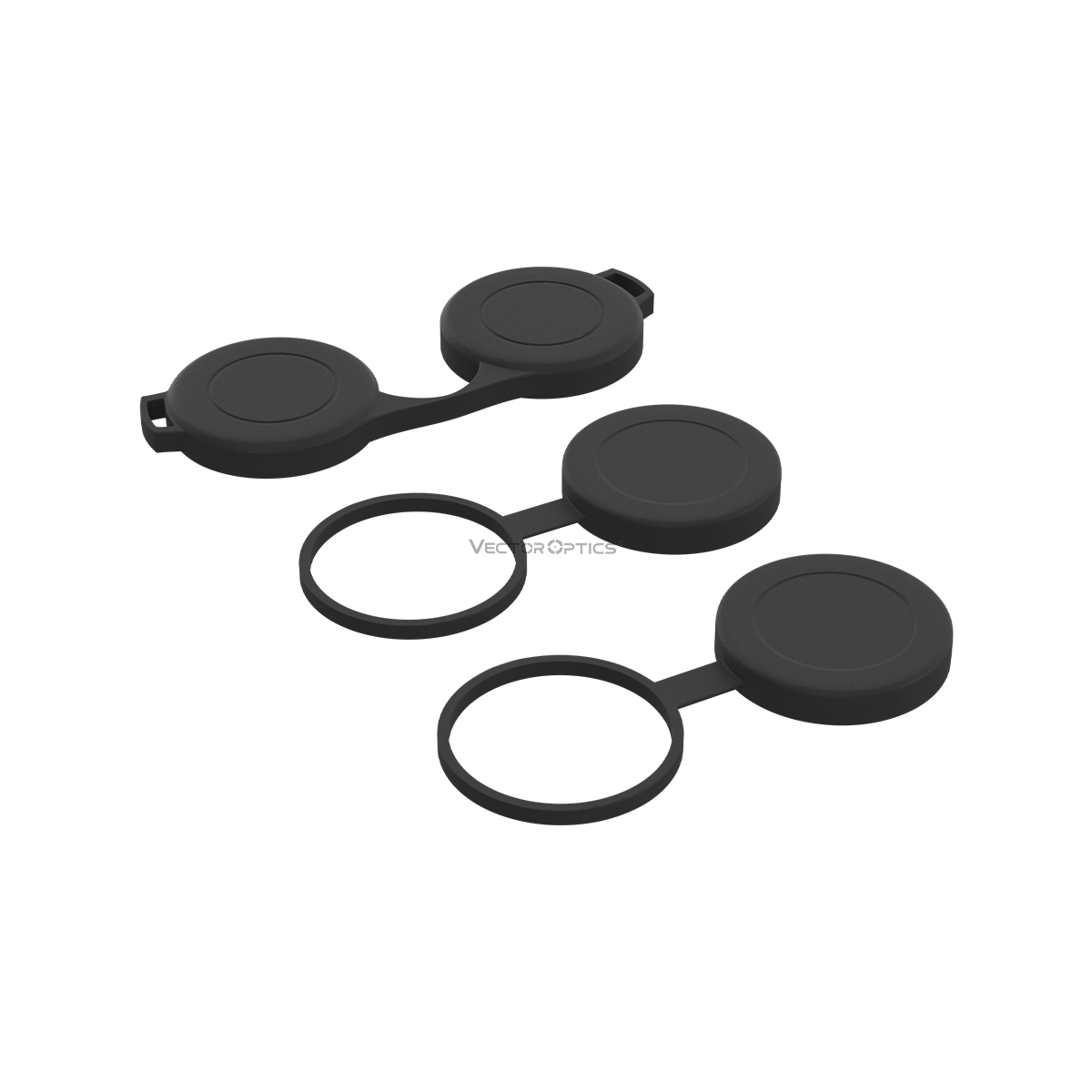

| Items in the Package | Pouch, Shoulder Strap, Lens Caps, Instruction, Cleaning Cloth, etc. |
| Finish | Black |
| Relative Brightness | 17.64 |
| Resolving Power | 144 mm / 5.7 in |
| Surface Treatment | Paint / Rubber |
