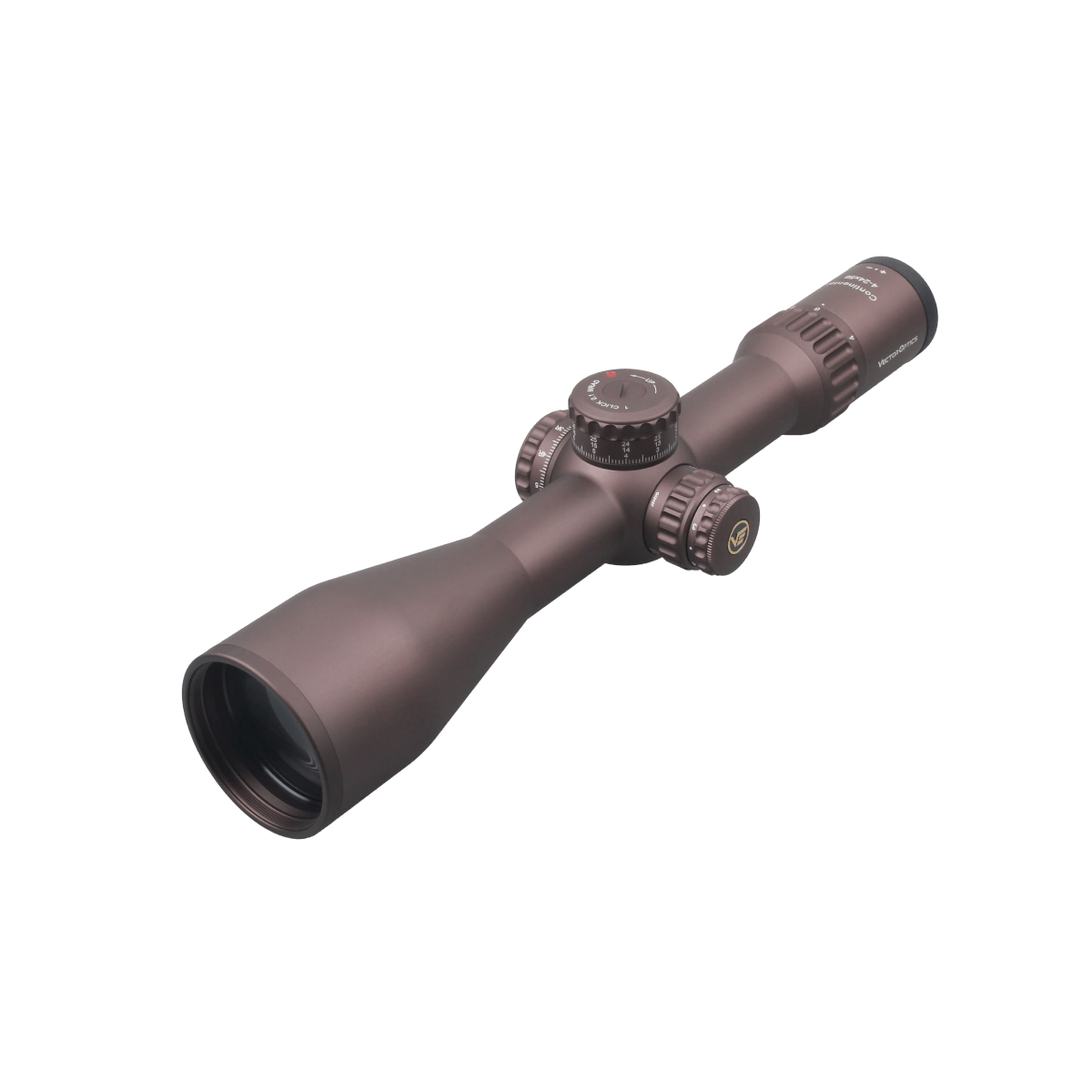

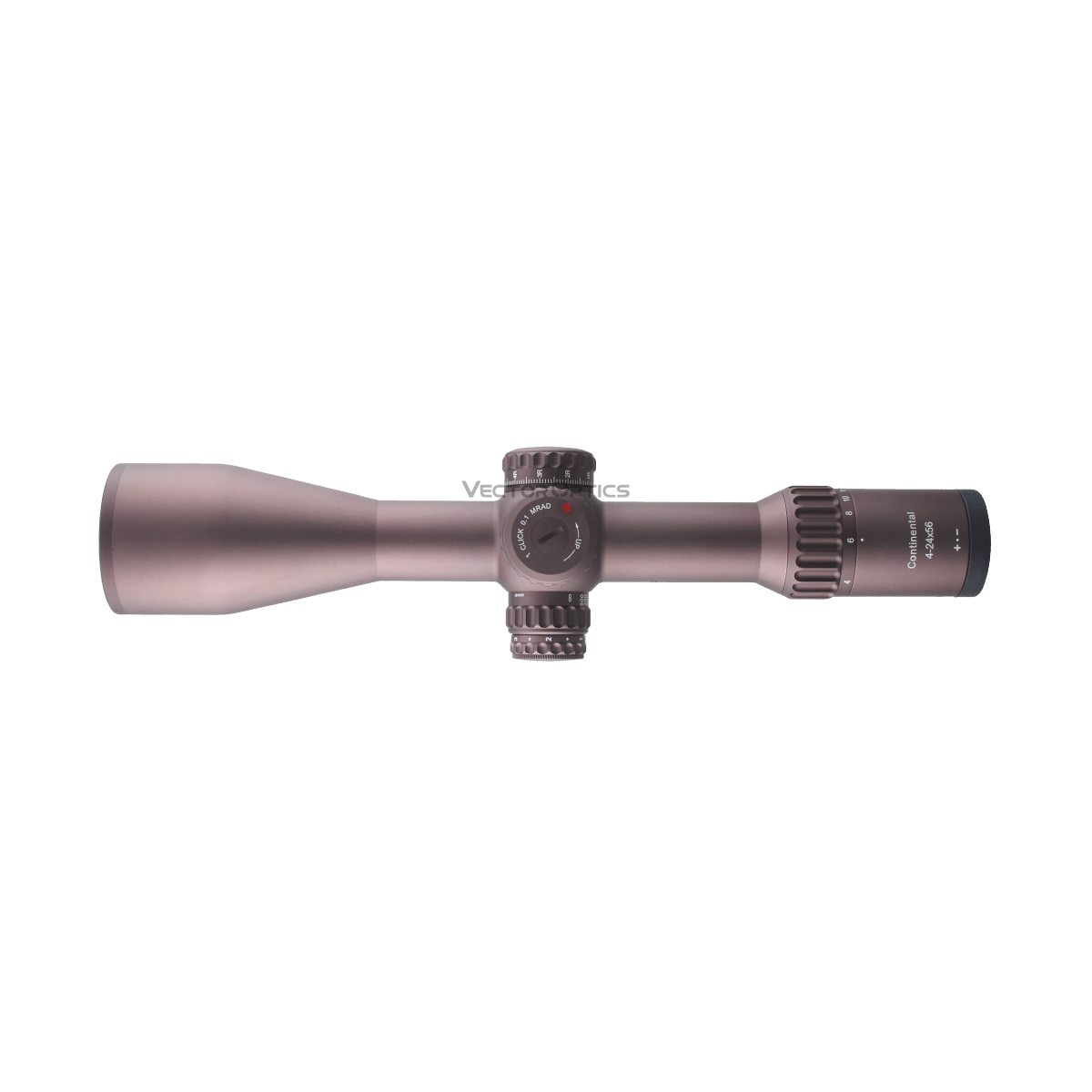

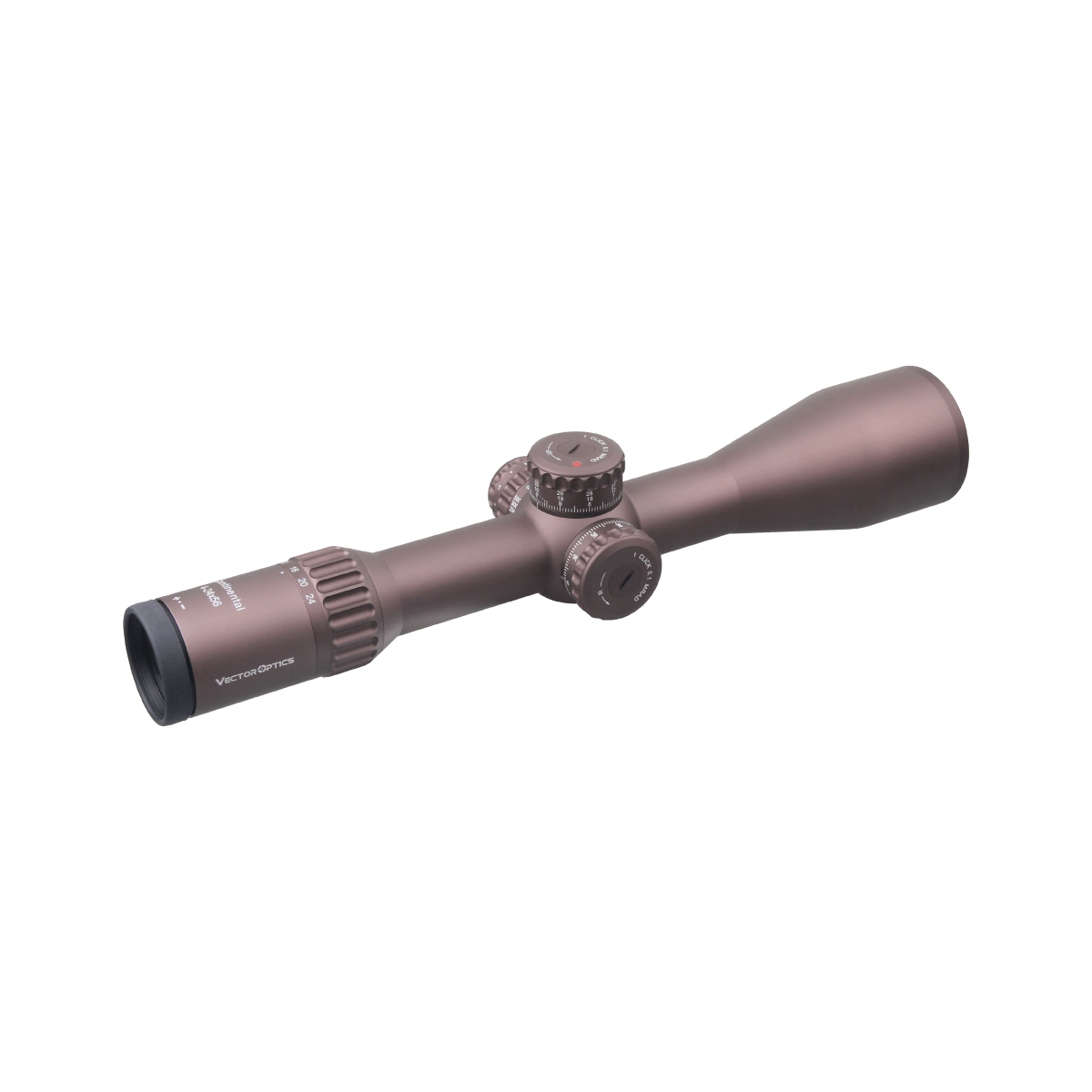

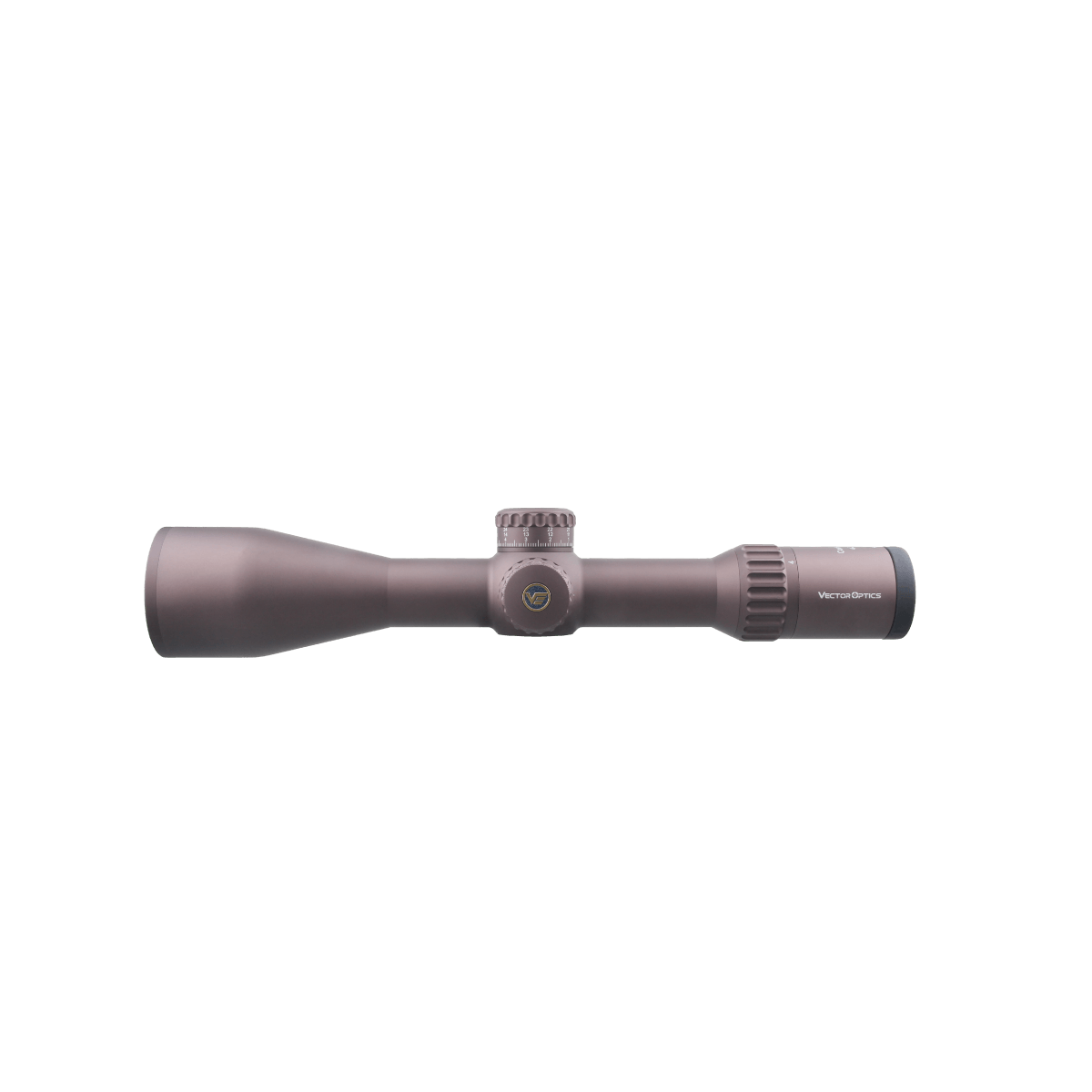

34mm Monotube to Maximize Elevation and Windage Adjustment Range, 56mm Large Objective Lens Presents Brighter Images LaREE Lens & VePRO FMC, Extra-Low Dispersion Glass >93% Light Transmission Presents Crystal Clear Image Zero Stop to Return to a Pre-Set Zero Point without Additional Adjustments, Turret Lock to Prevent Unwanted Changes Etched Glass VEC-MBR Reticle to Compensate for Bullet Drop for Precise Shooting, Ideal for Competition
Magnification | 4-24x |
Objective Lens Dia | 56 mm |

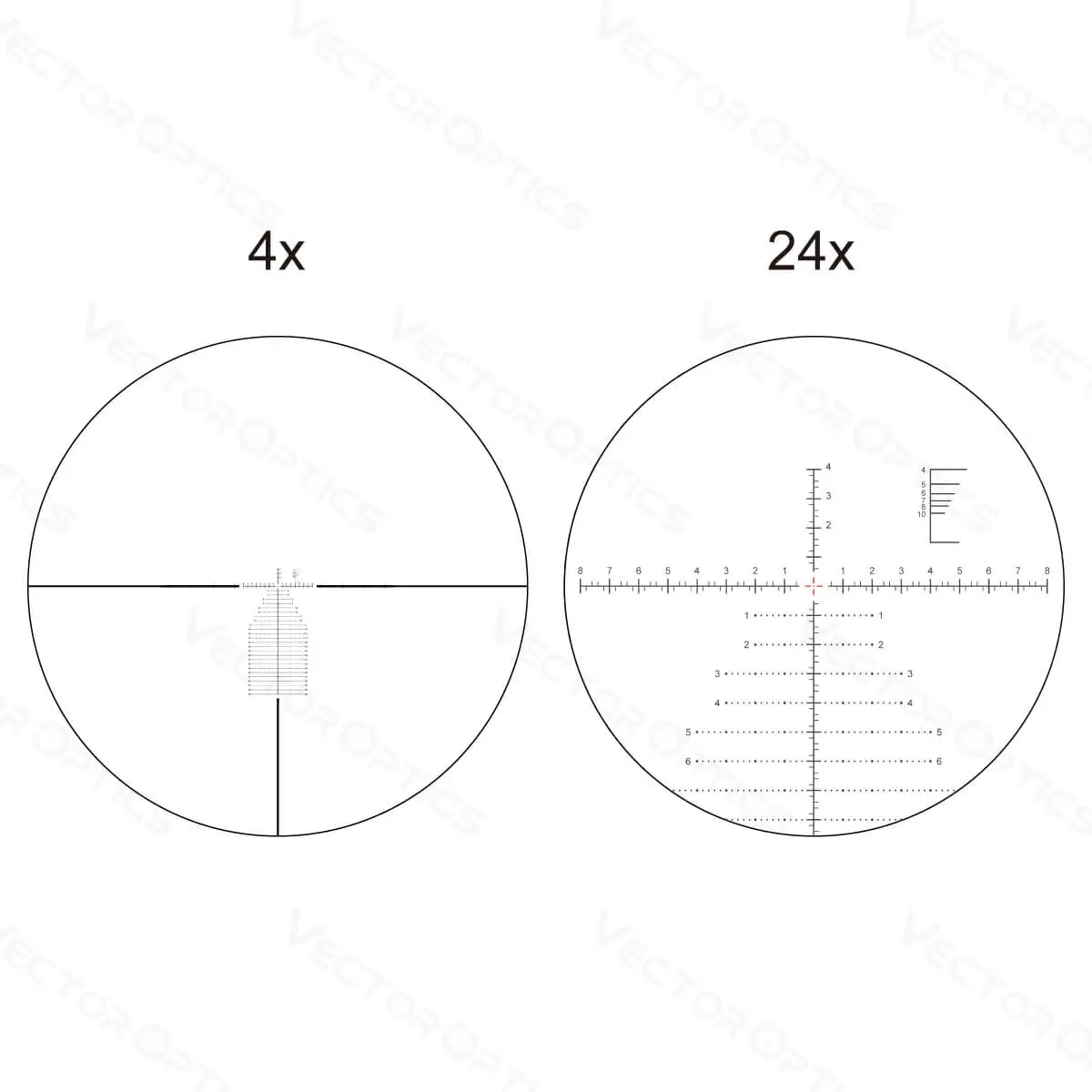

Focal Plane | First Focal Plane |
Eye Relief | 100 mm / 4.0 in |
Lens Coating | Fully Multi-coated |
Linear Field of View @ 100 yd | 30.6-5.1 ft @ 100 yards |
Linear Field of View @ 100 m | 10.2-1.7 m @ 100 meters |
Angular Field of View ° | 5.9-1.0 ° |

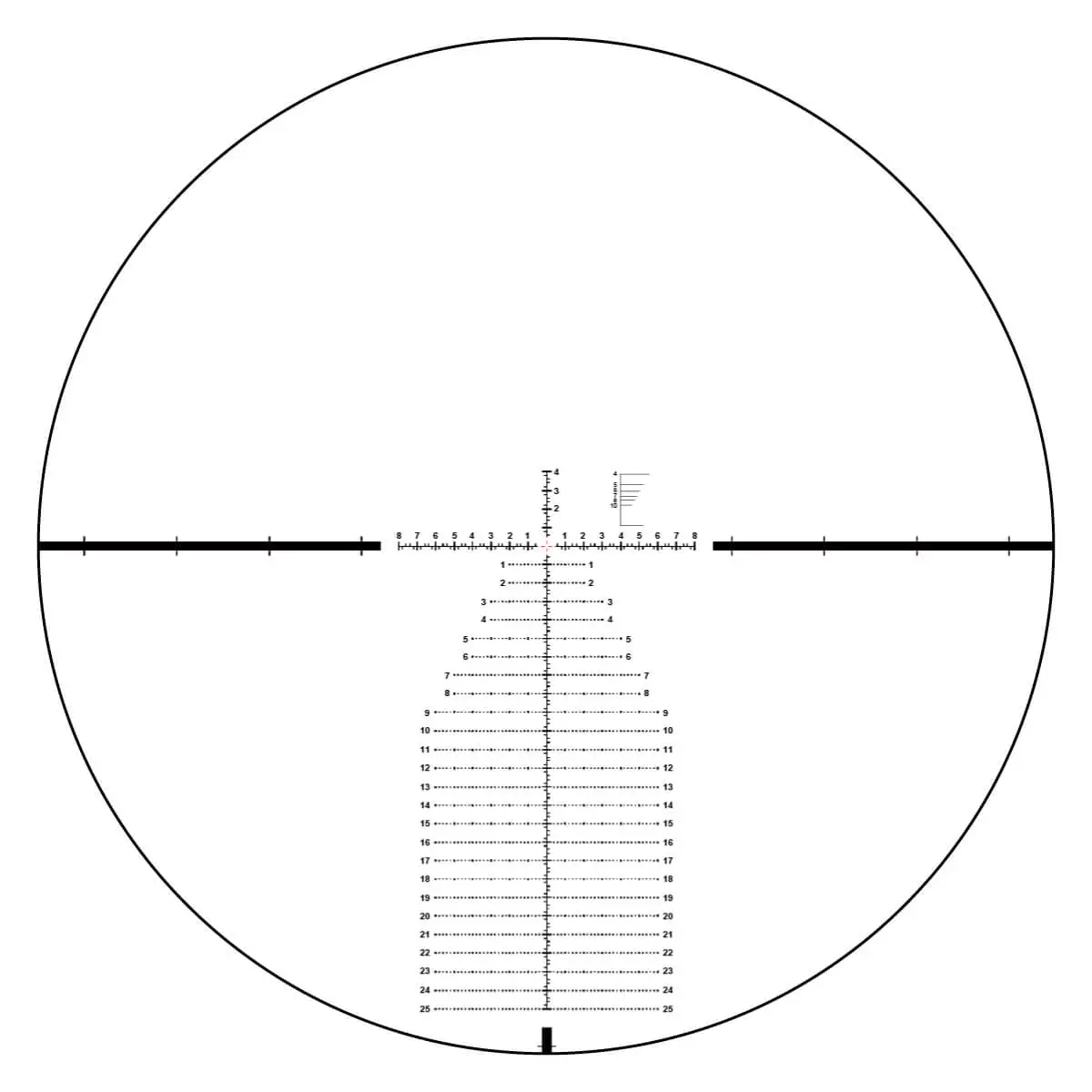

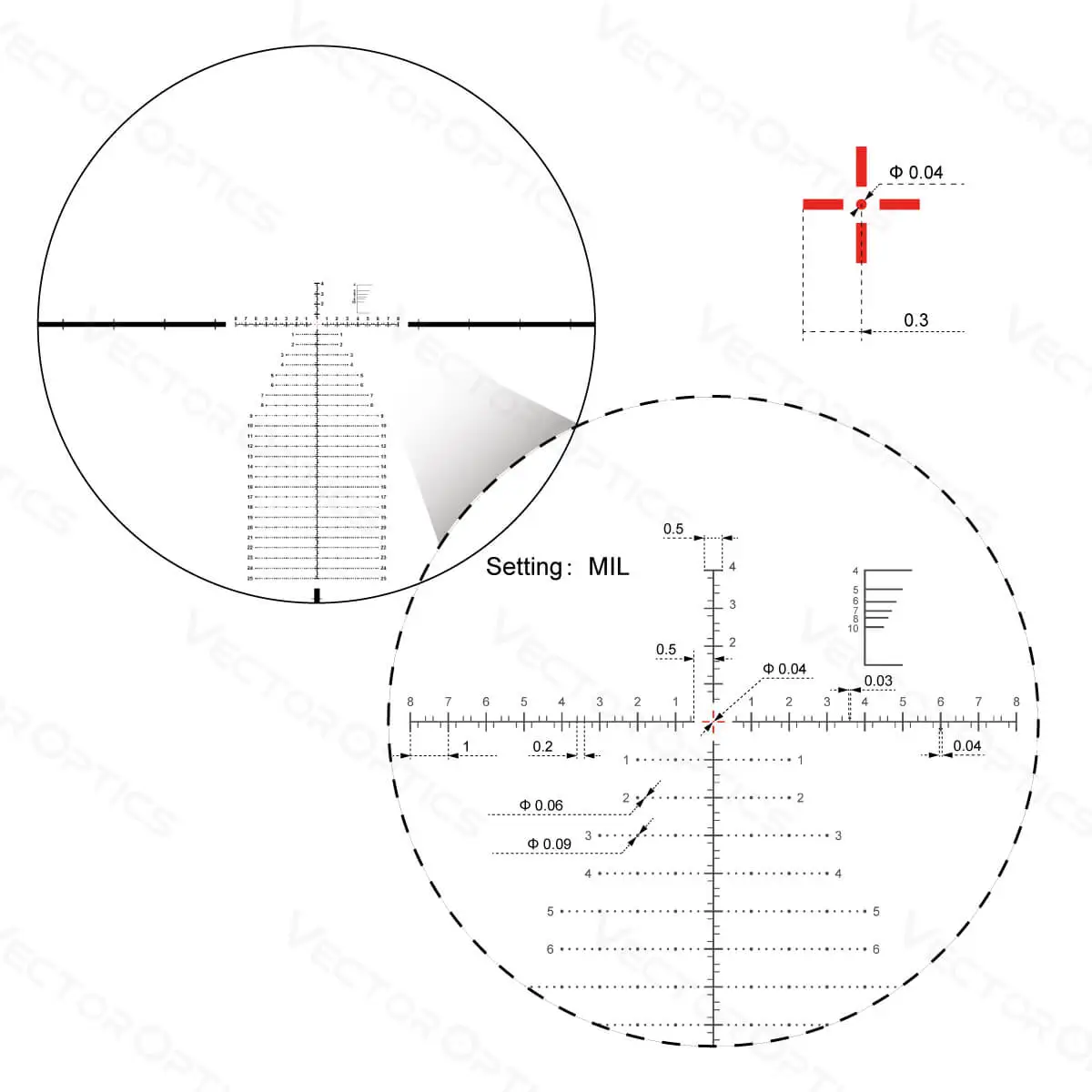

Reticle | VEC-MBR |
Tube Dia | 34 mm |
Side Focus | 10 yards to Infinity |
Click Value | 1/10 MIL |

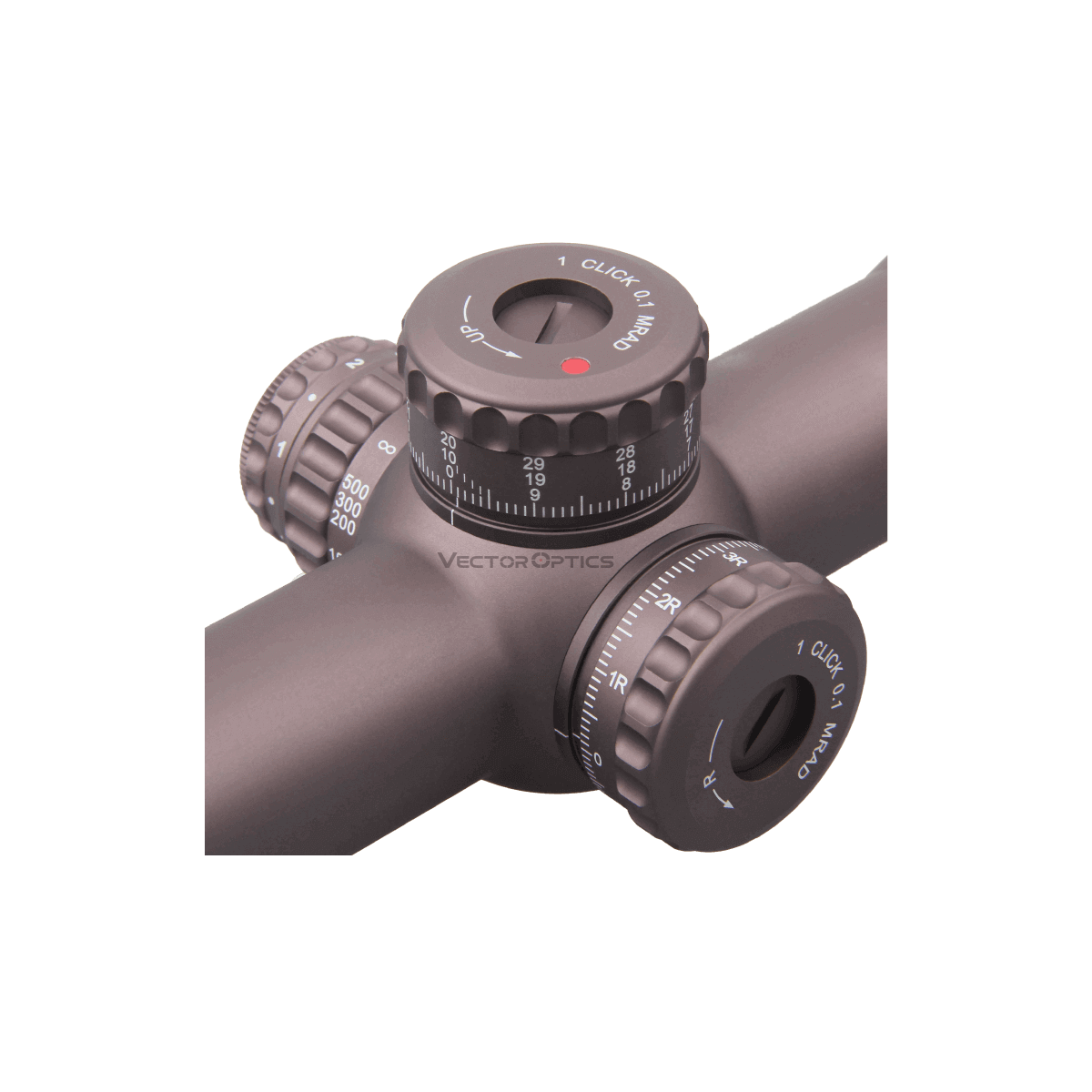

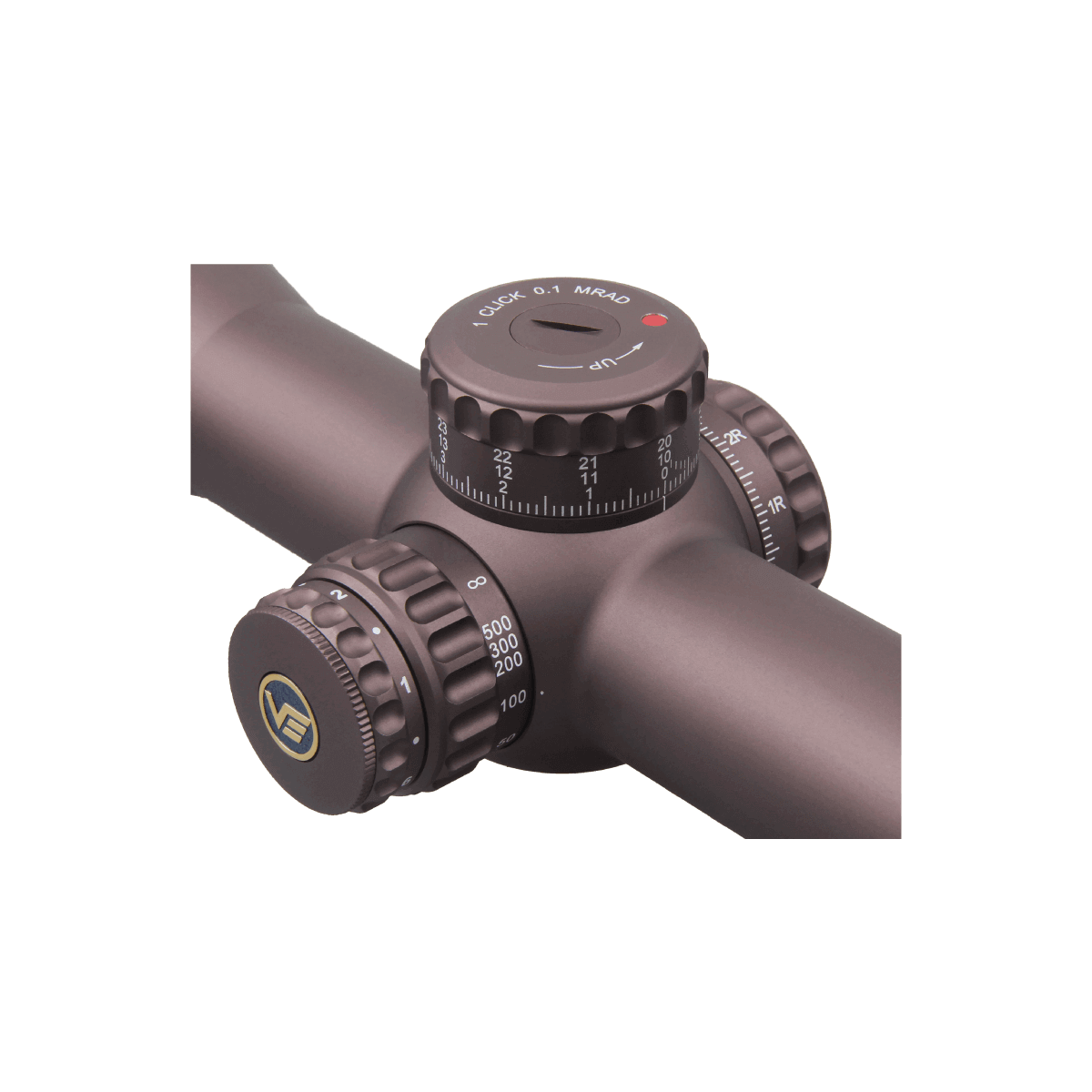

Turret Function | Zero Stop, Turret Lock |
Elevation Adjustment Range | 34 MIL |
Windage Adjustment Range | 16 MIL |
Diopter Compensation | -3 to +2 |
Illumination Setting | 6 Gears |
Battery Type | CR2032 |
Battery Life | N/A |
Waterproof | IP67 |
Fogproof | Nitrogen Filled |
Shockproof | 1000 G |
Housing Material | 6061-T6 Aluminum Alloy |
Finish | FDE |

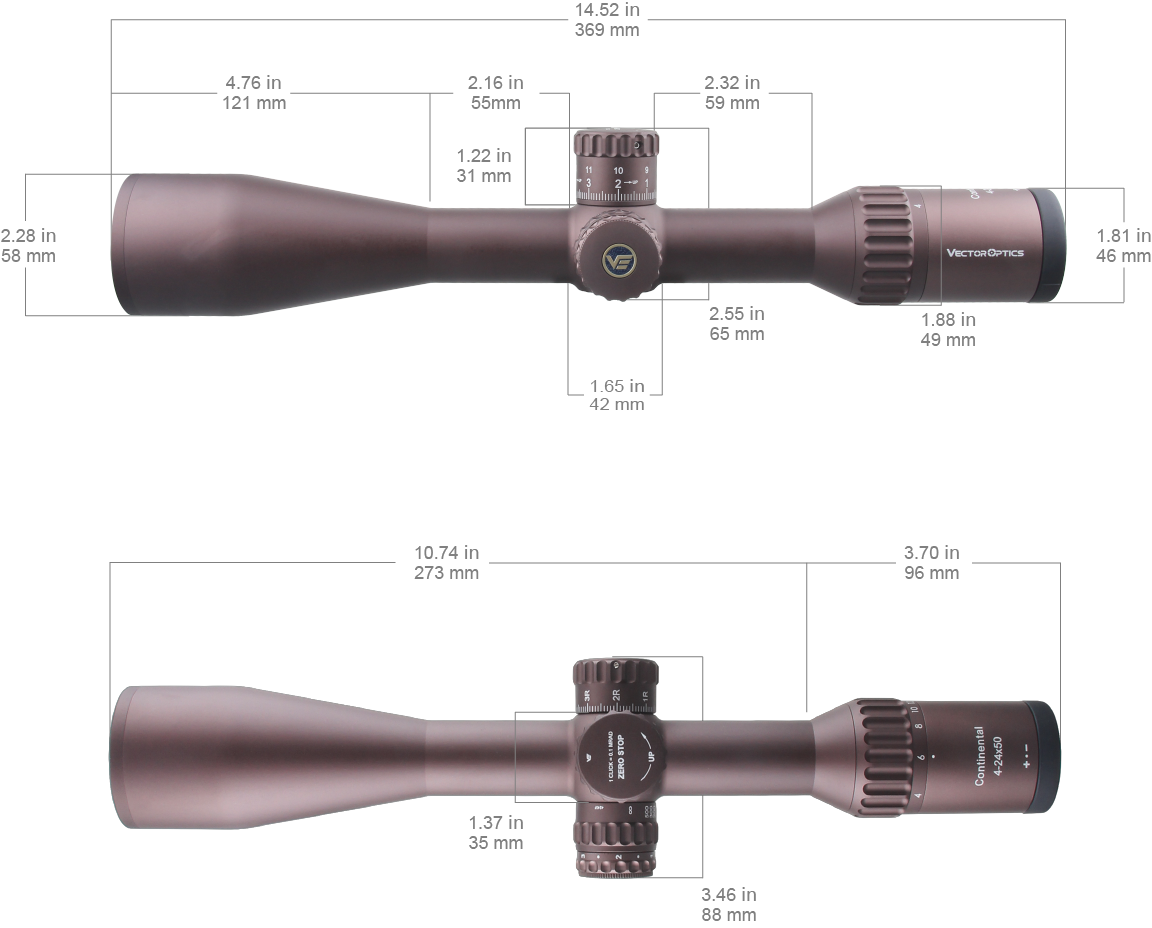

Length | 362 mm / 14.3 in |
Weight | 840 g / 29.6 oz |

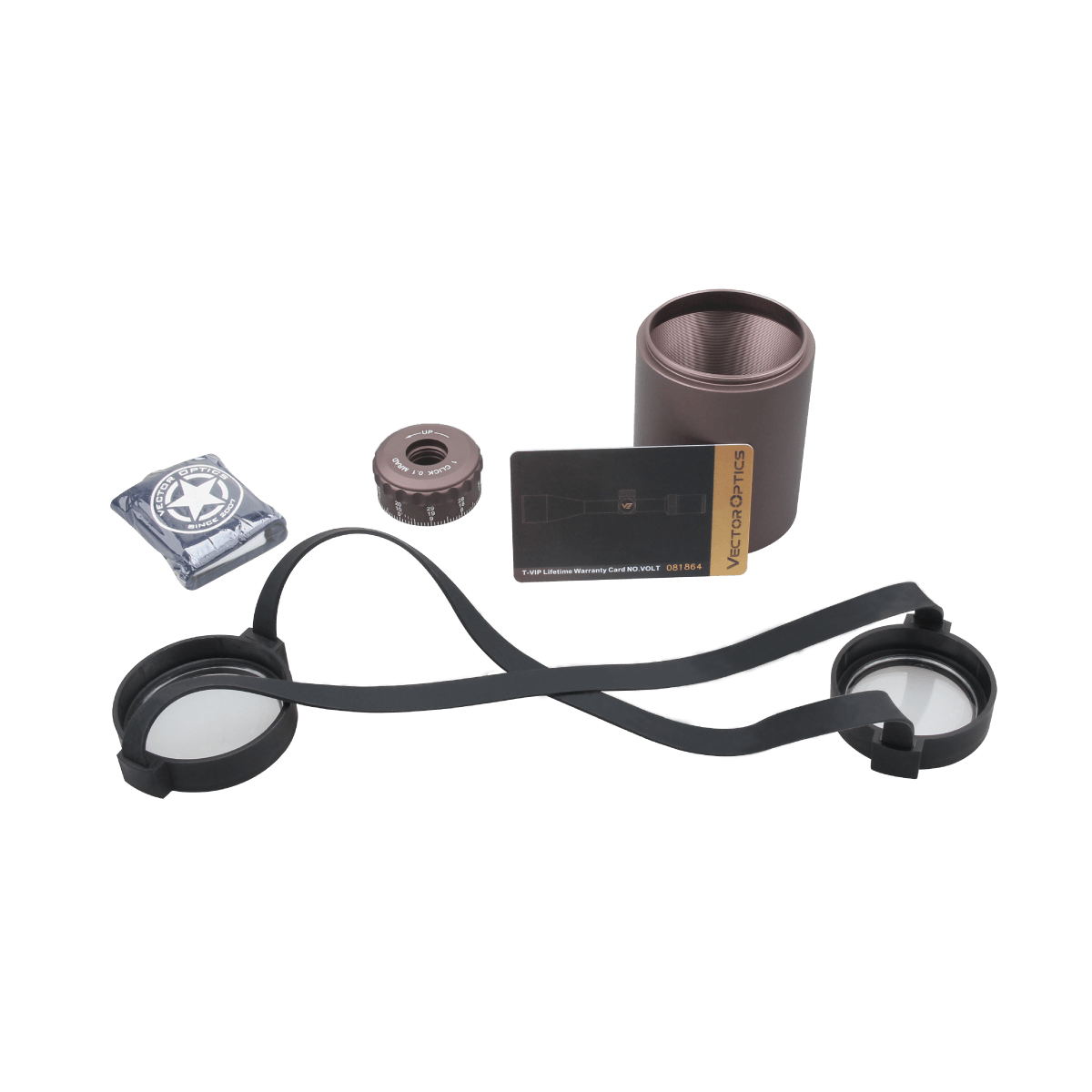

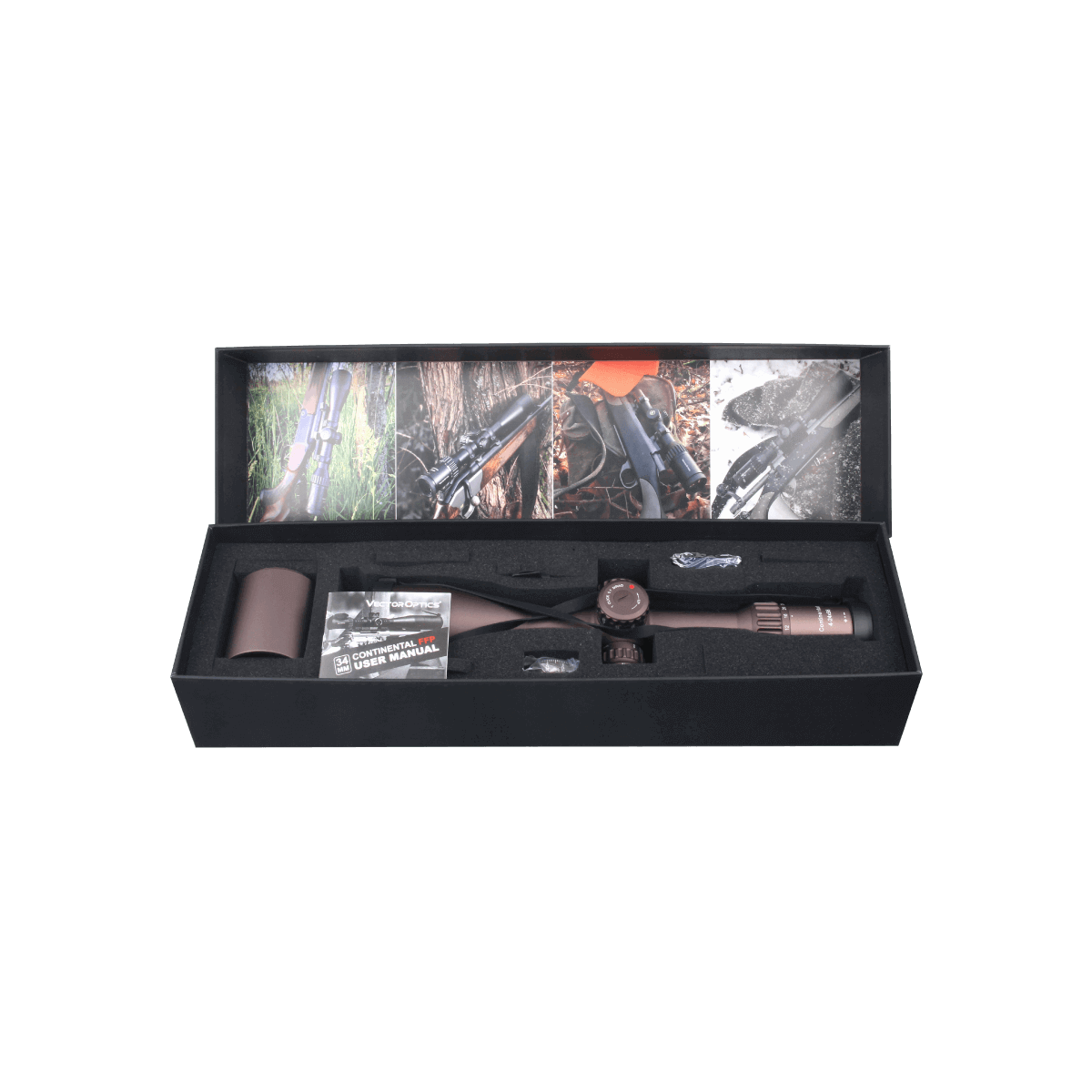

Items in the Package | One Pair of 34mm Picatinny Scope Rings, Spare Elevation Turret (Without Zero-Stop Feature), Sunshade, Instruction, Lens Caps and Cleaning Cloth, etc. |
