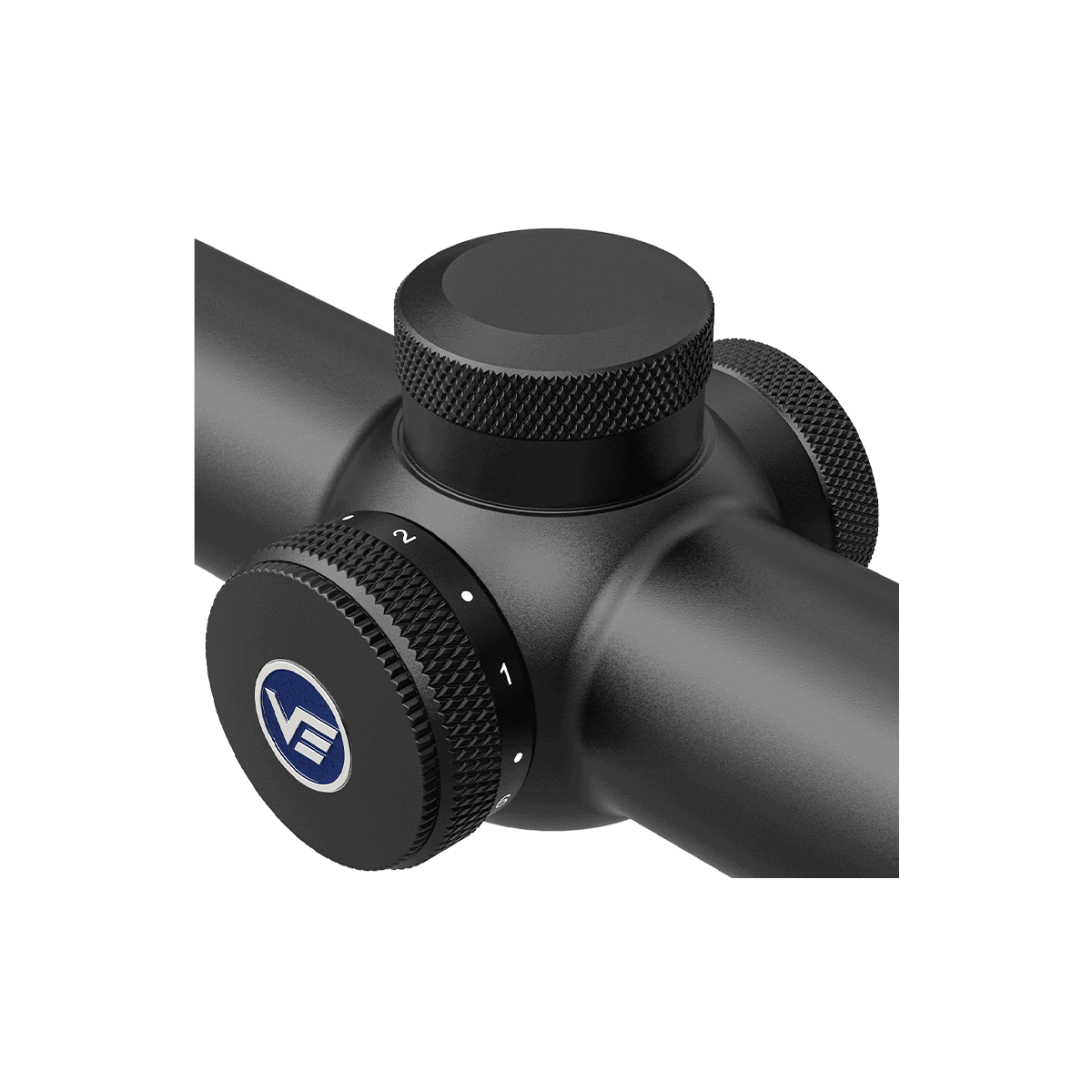

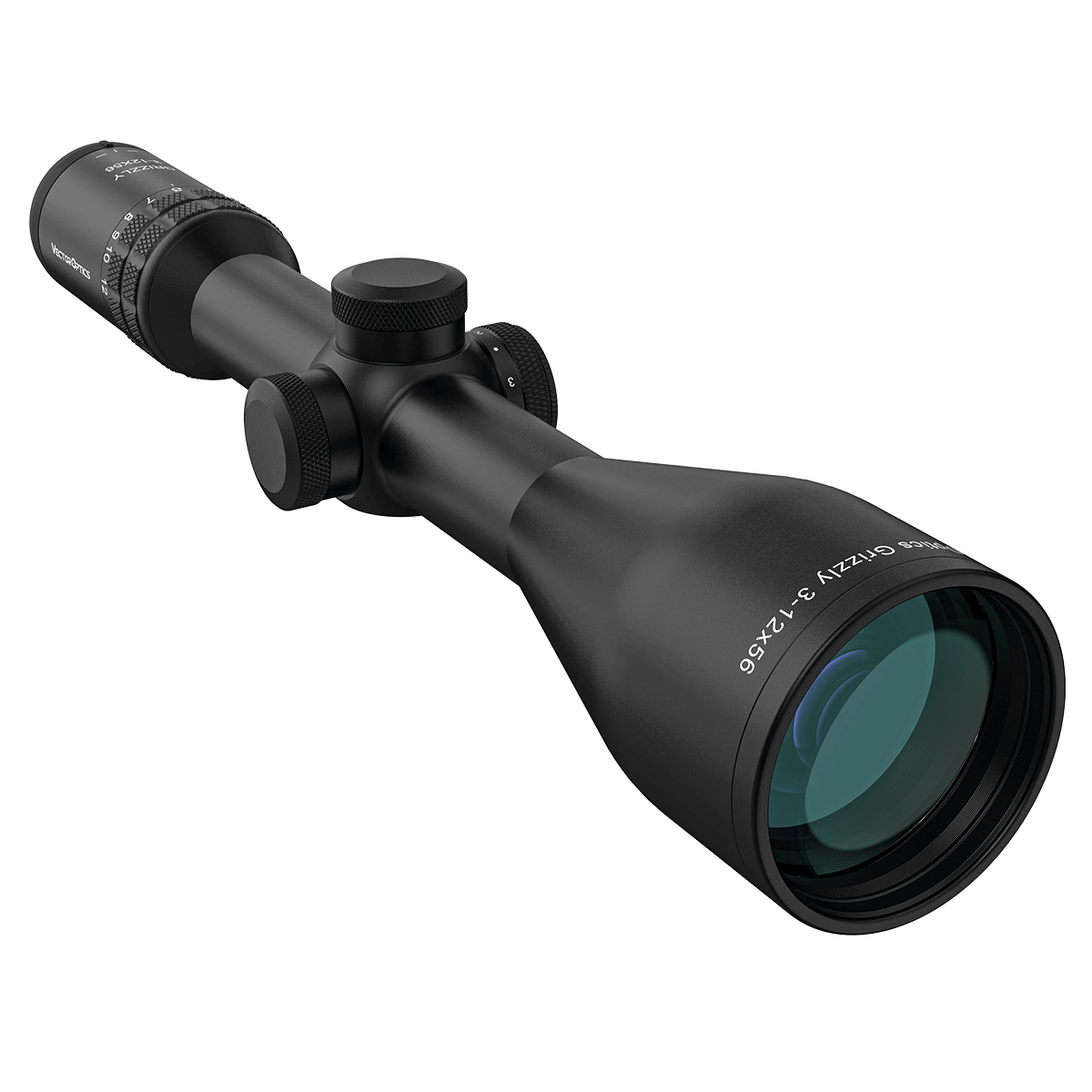

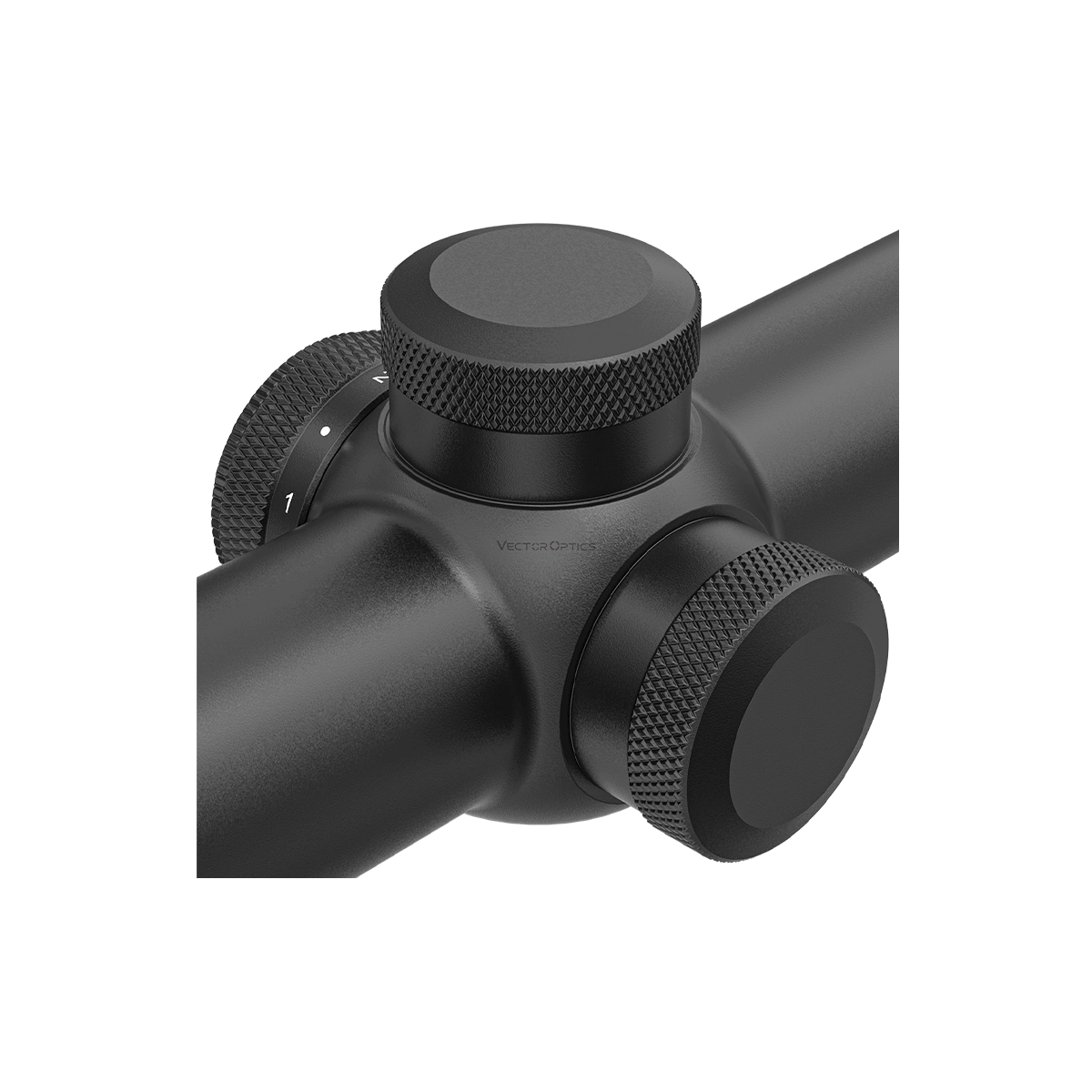

30mm Monotube, 90% Light Transmission, Center Dot Illuminated Fiber Reticle Edge-to Edge Image, FMC, 4in Long Eye Relief, Capped Turret Adjustment
| Magnification | 3-12x |
| Objective Lens Dia | 56 mm |
| Focal Plane | SFP |
| Eye Relief | 97 mm / 3.8 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 41.5-10.4 ft @100 yards |
| Linear Field of View @ 100 m | 13.8-3.5 m @100 meters |
| Angular Field of View ° | 7.9-2.0° |
| Reticle | German #4 fiber |
| Parallax Setting | 100 yards |
| Tube Dia | 30 mm |

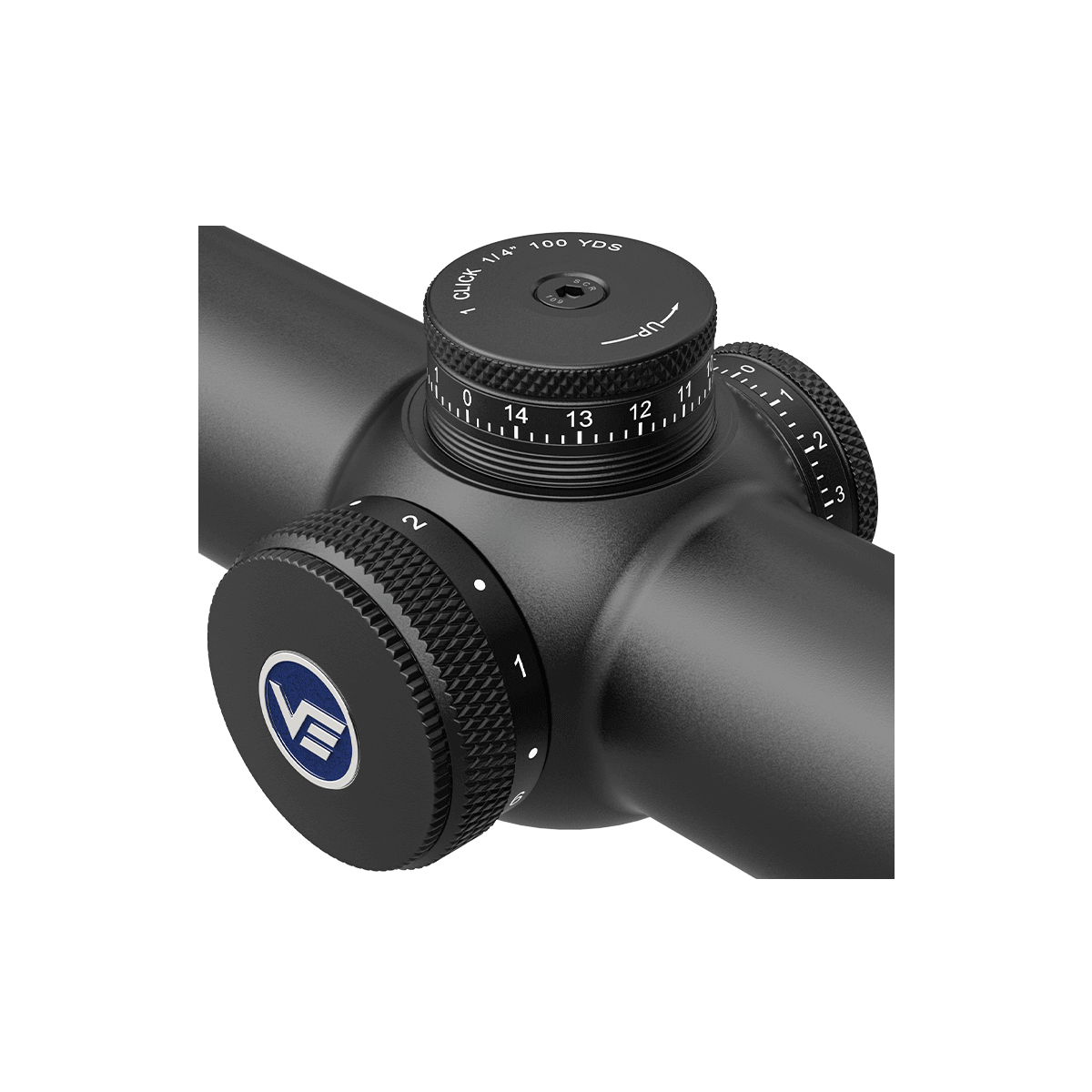

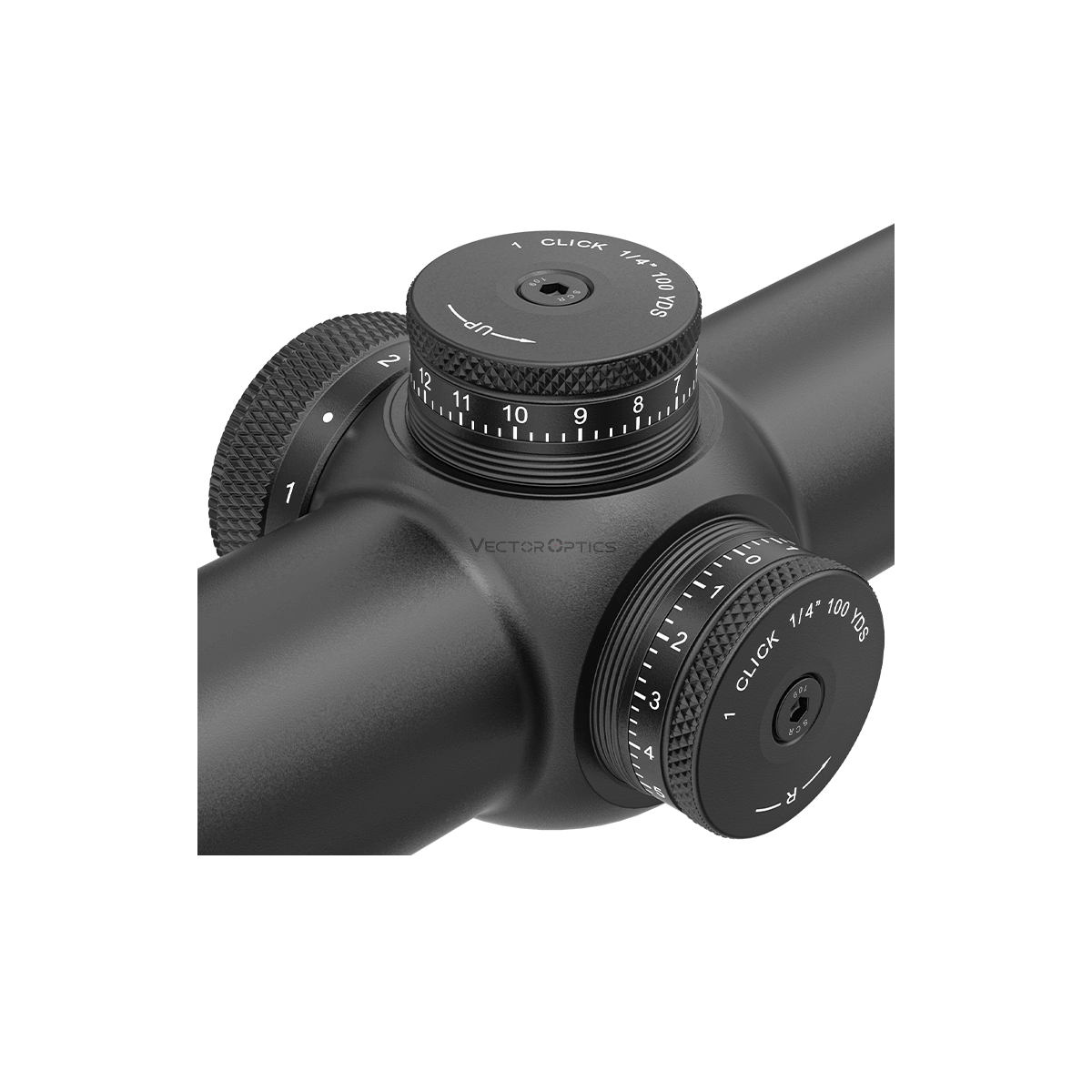

| Click Value | 1/4 MOA |
| Turret Function | N/A |
| Elevation Adjustment Range | >70 MOA |
| Windage Adjustment Range | >70 MOA |
| Diopter Compensation | -3 to +2 |
| Illumination Setting | 6 Levels Red |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IP67 |
| Fogproof | Filled Nitrogen |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 345 mm / 13.6 in |
| Weight | 605 g / 21.3 oz |

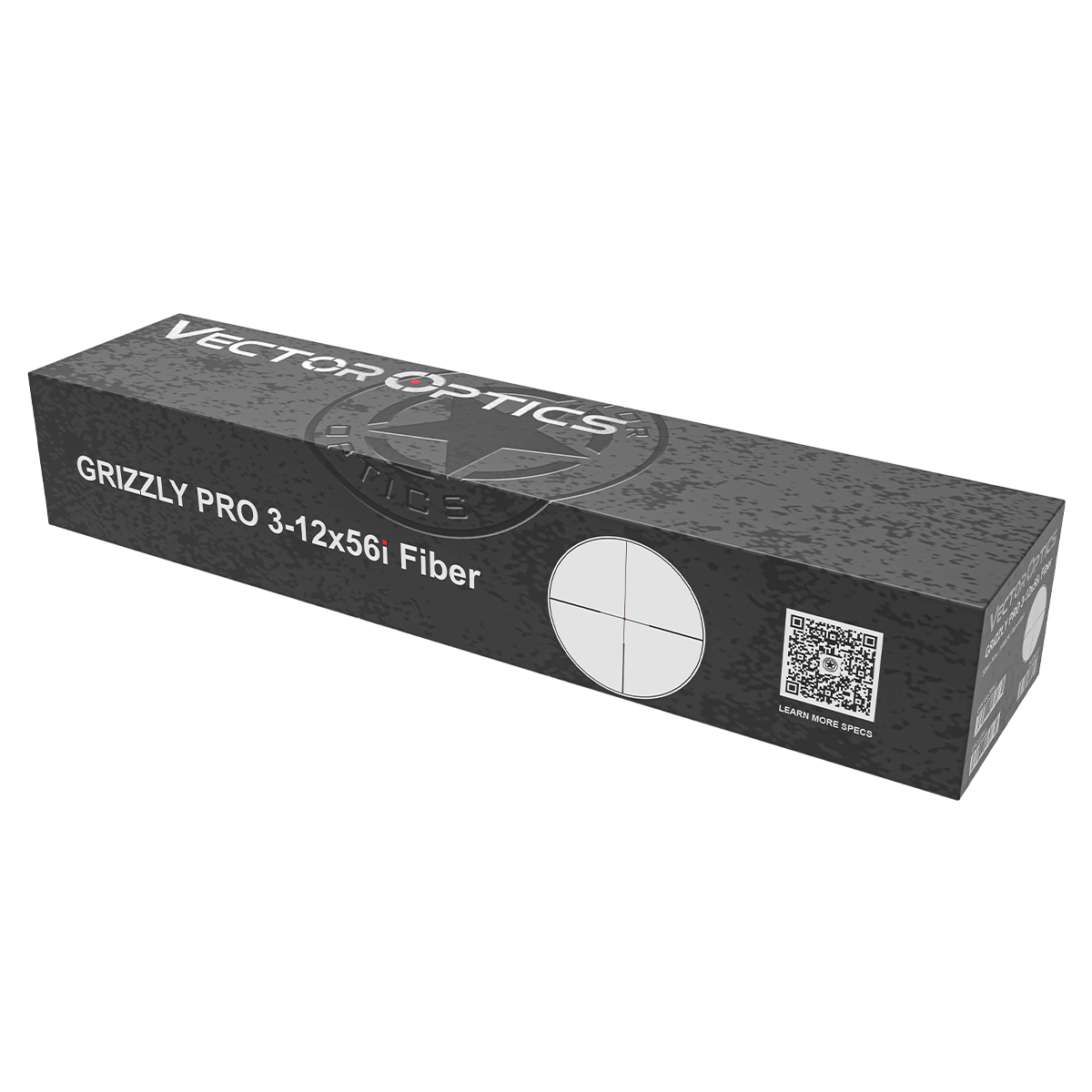

| Items in the Package | Instruction, Flip-up caps, Sunshade, Packed in Nice Retail Box |
