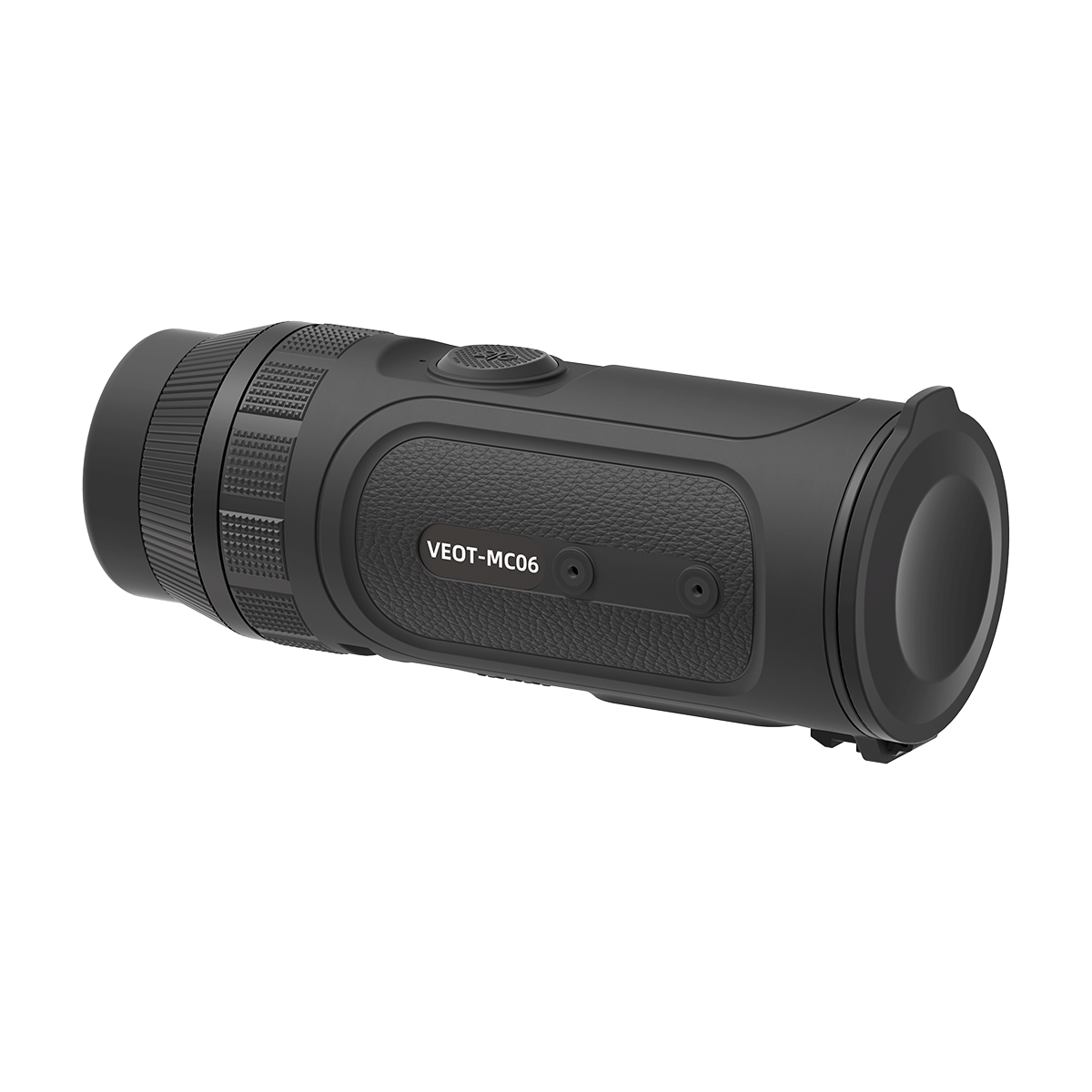

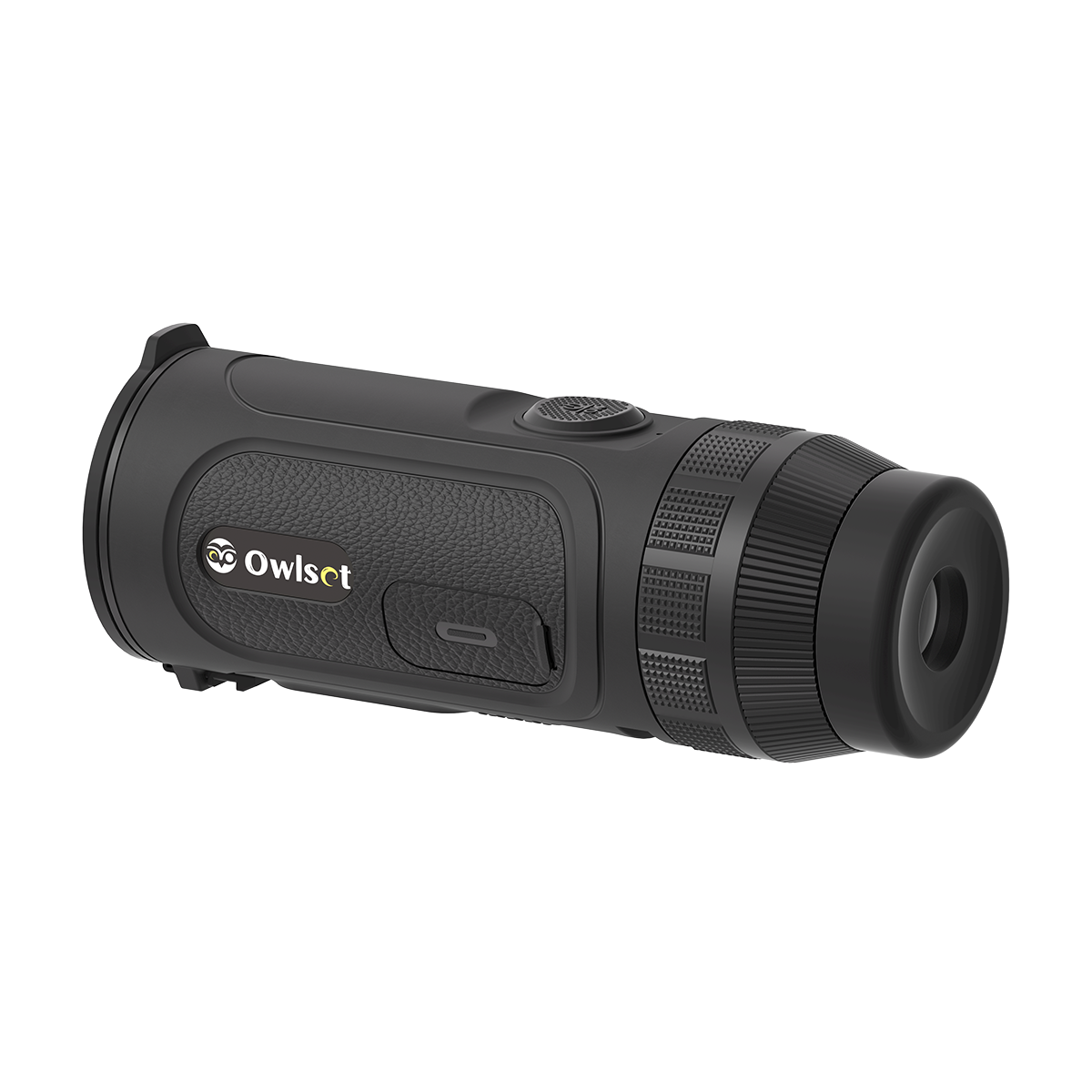

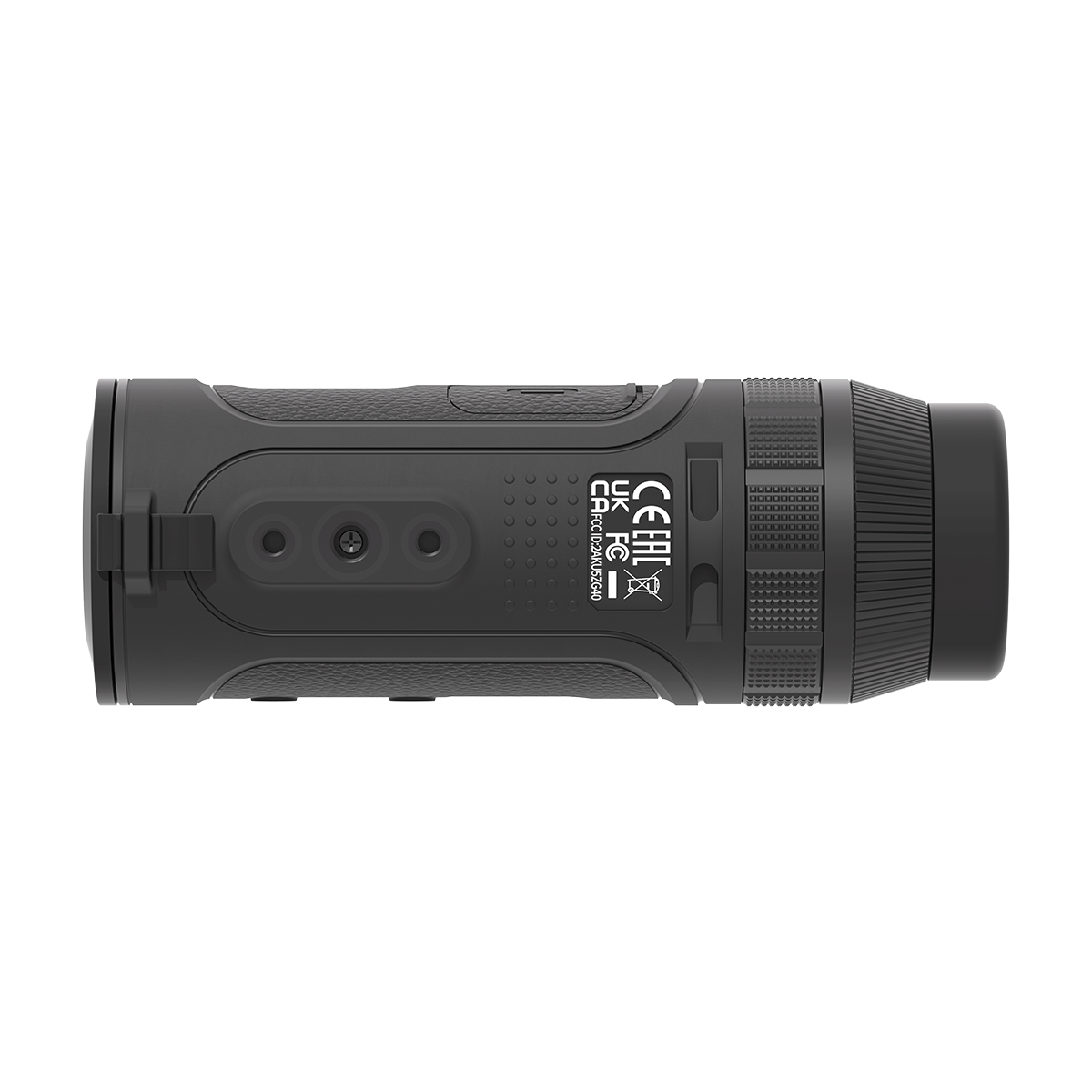

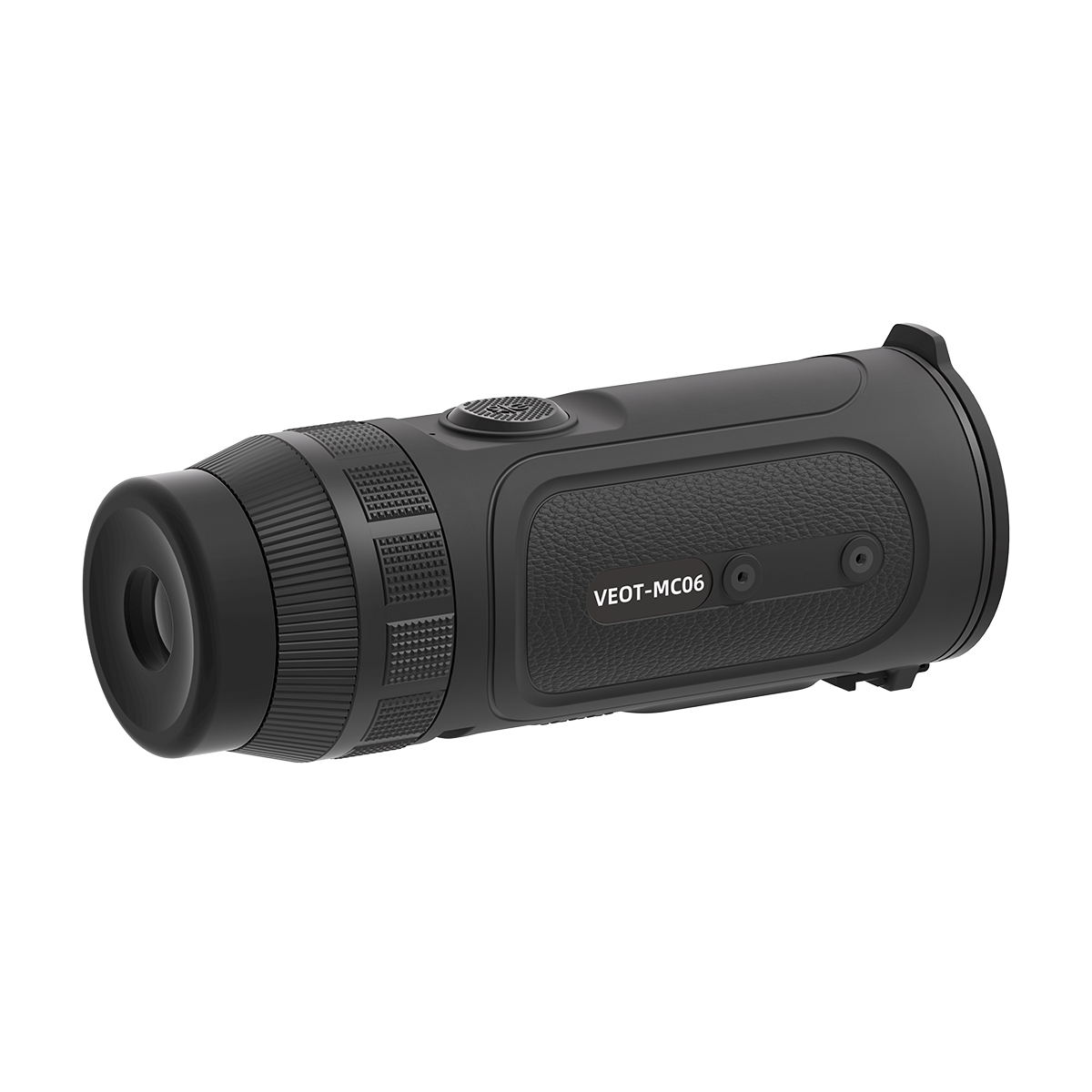

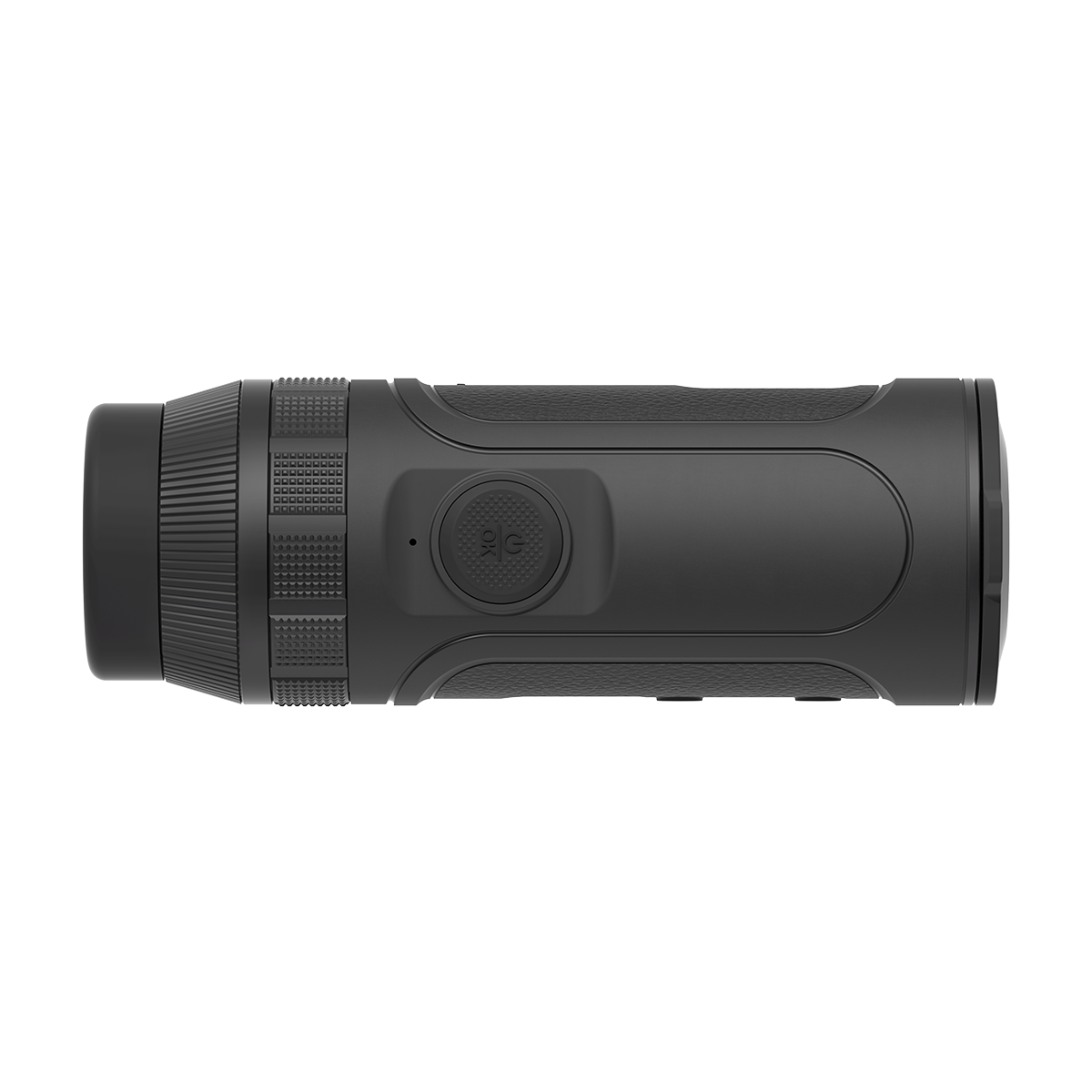

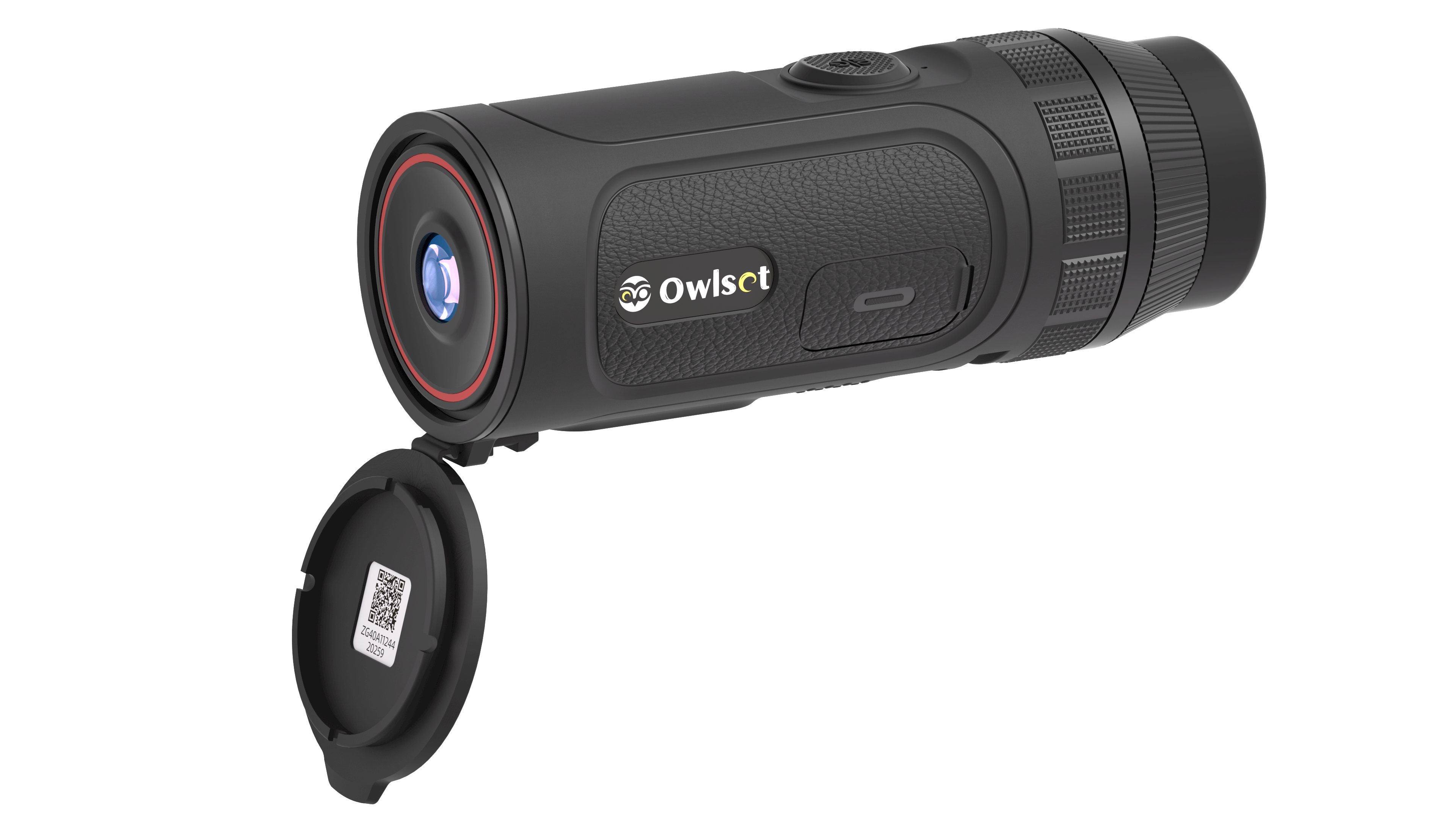

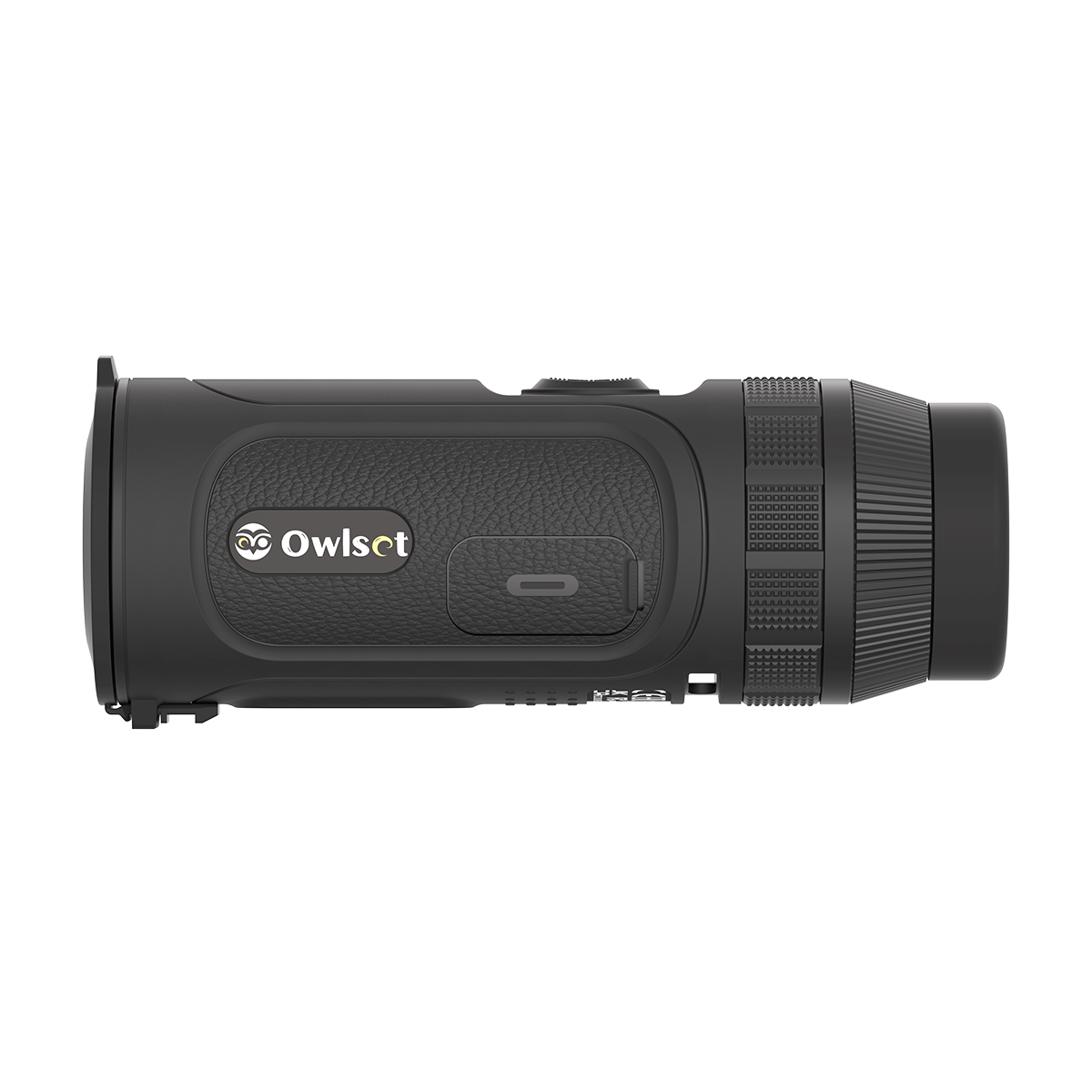

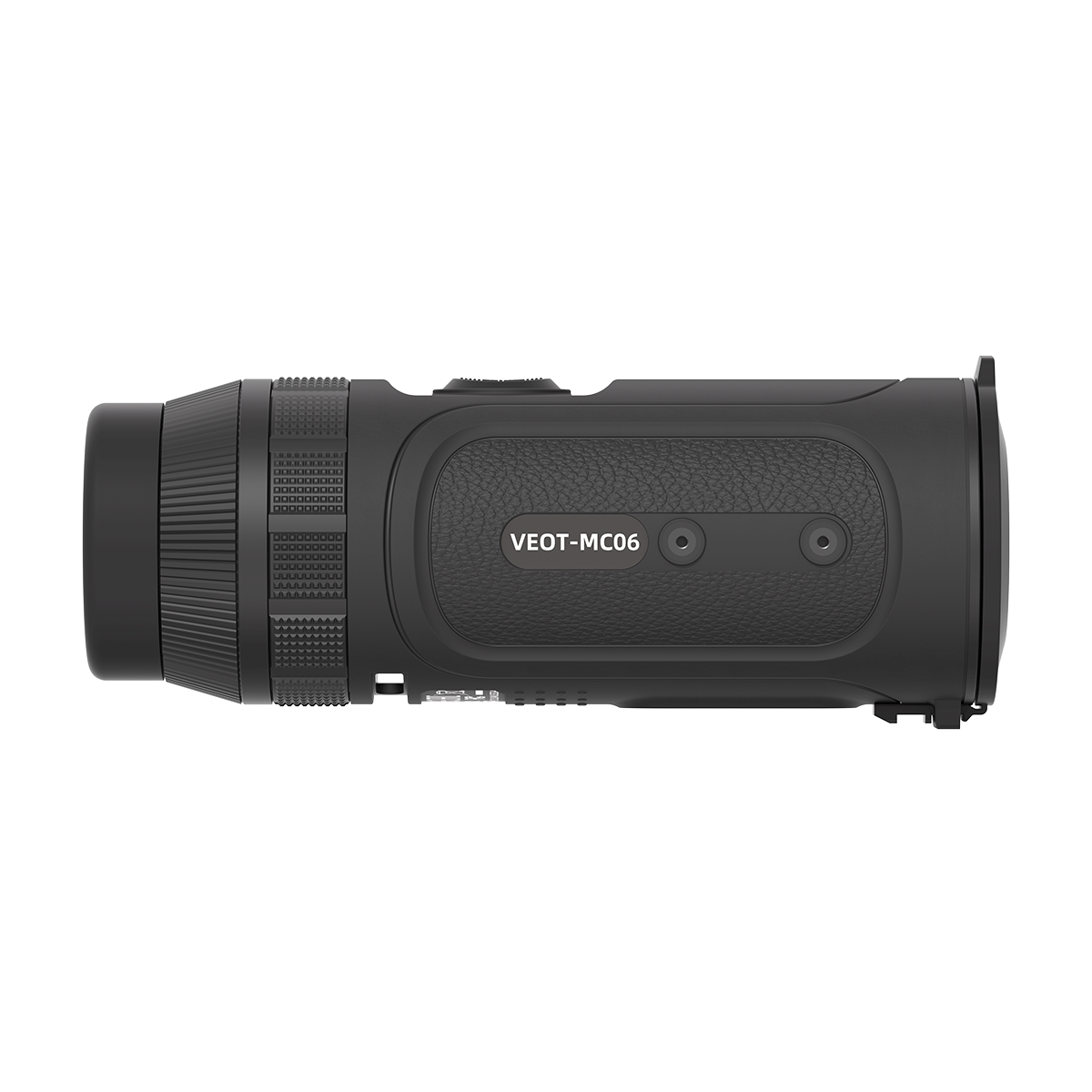

Ultra Compact and Lightweight, Mobile Size Design Provides Convenience to Carry Around 12μm VOx Infrared Detector with 256×192 Resolution Presents Clear and Crisp Images One Button Design Easy to Control, Simplify the Operation to Perform Various Functions 0.32'' AMOLED Screen Presents Smooth Images, 25mm Eye Relief Improves Visual Experience
| Magnification | 1.2 - 4.8x |
| Objective Lens | 10mm / F1.0 |
| Resolution | 256 × 192 pixels @ 12um |
| Detector Material | VOx (Vanadium Oxide) |
| Spectral | 8 - 14 μm |
| NETD | 30mK |
| Angular Field of View: | 17.5°×13.1° |
| Length | 131 mm / 5.16 in |
| Height | 48 mm / 1.89 in |
| Weight (net) | 228 g / 8.04 oz |
| Display Screen | 0.32'' AMOLED 800×600 |
| Eye Relief | 25mm / 0.98 in |
| Diopter compensation | -5 to +5 |
| Detection Range | 500m / 550yd |

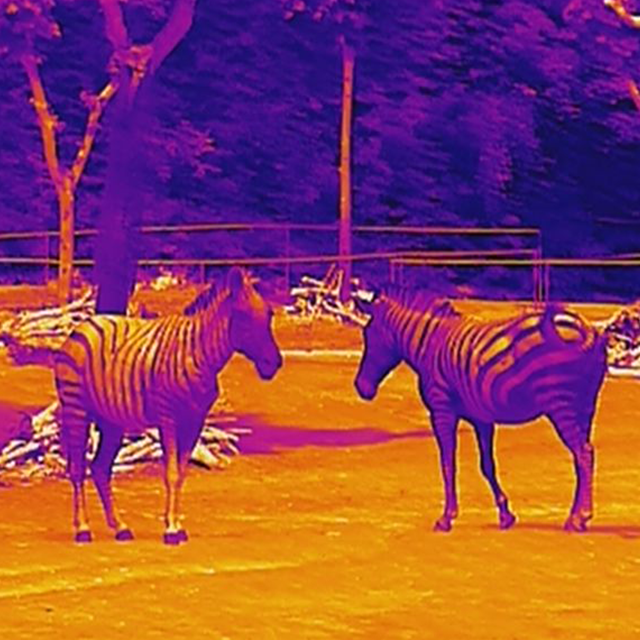

| Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Waterproof | IP67 |
| Battery | Built-in Battery |
| Battery Runtime | 6 hours (Support 20W quick charging) |
| Wi-Fi/APP | 2.4G, 5G |

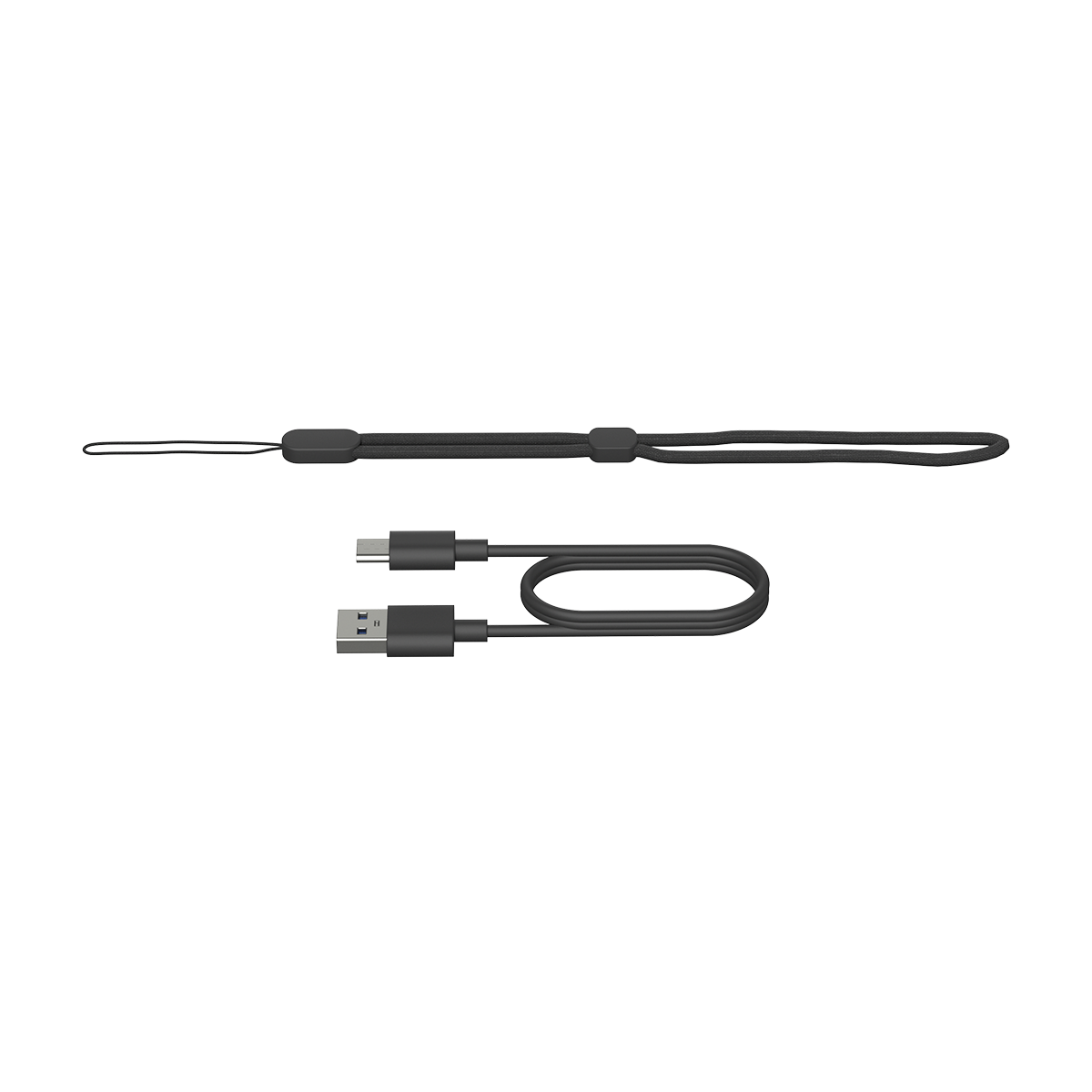

| Items in the Package | Wrist Strap, USB Type-C Cable, User Manual |
| Working Temperature | -20°C to 50°C / -4°F to +122°F |
