Fully Multi-coated Lens Allow Optimal Light Transmission, Presenting Edge-to-Edge Image 11 Gears Center Dot Illuminated Fiber Reticle, Can be Seen Even Under the Strongest Sunlight VHU-3 MIL Reticle Allows for Range Estimation When Set at 12x Magnification 1/10 MIL Adjustments Allow for Precise Calibration, Ensuring Your Shots Hit the Target
| Magnification | 3-12x |
| Objective Lens Dia | 40 mm |
| Focal Plane | SFP |
| Eye Relief | 95 mm / 3.7 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 25.2- 7.8 ft @100 yards |
| Linear Field of View @ 100 m | 8.4-2.6 m @100 meters |
| Angular Field of View ° | 4.8-1.5° |
| Reticle | VHU-3 MIL |
| Parallax Setting | 10 yards to Infinity |
| Tube Dia | 25.4 mm |
| Click Value | 1/10 MIL |
| Turret Function | Reset Zero |
| Elevation Adjustment Range | 25 MIL |
| Windage Adjustment Range | 26 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 11 Levels |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Filled Nitrogen |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 326 mm / 12.8 in |
| Weight | 612 g / 21.6 oz |

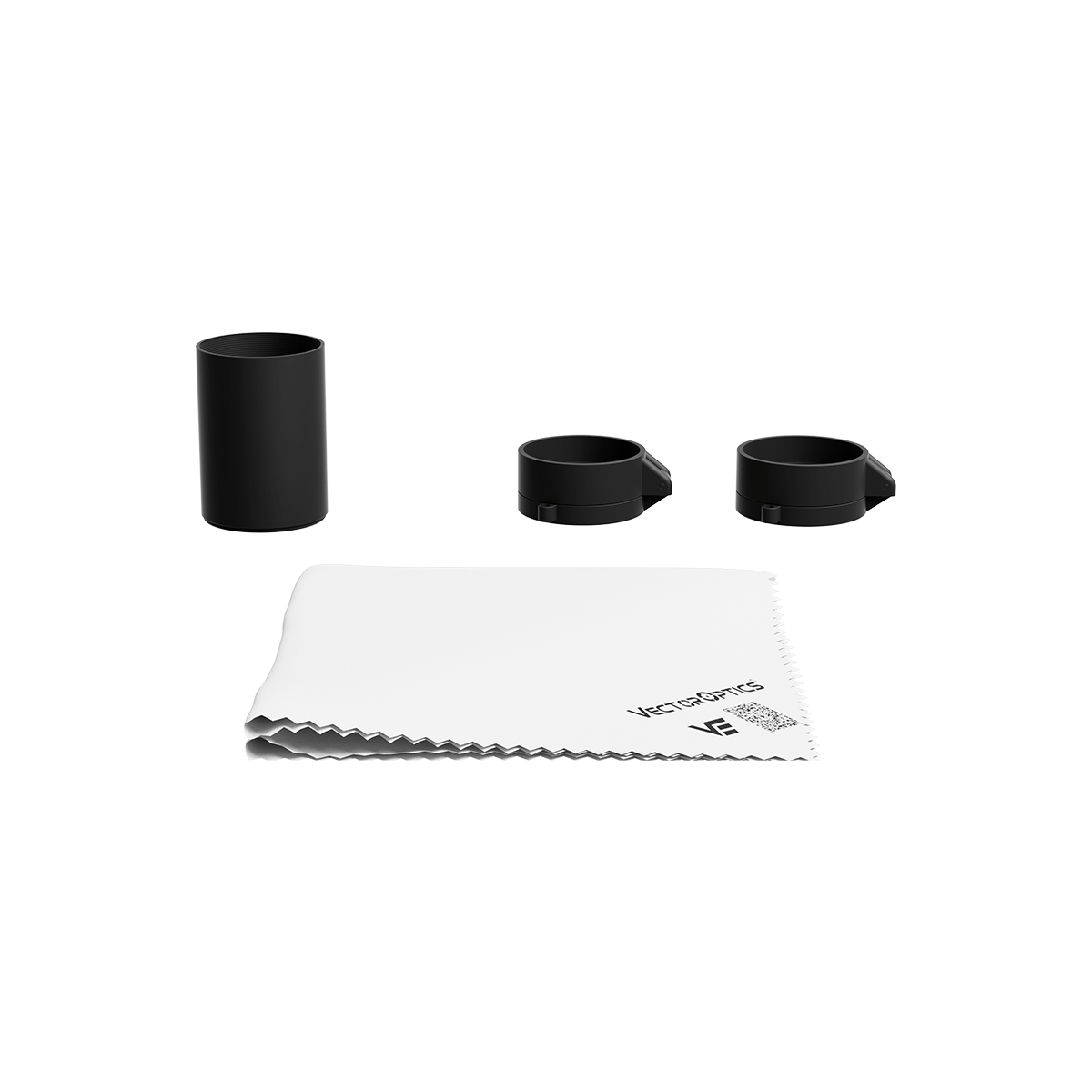

| Items in the Package | Sunshade, Flip-up Caps, Cleaning Cloth |
