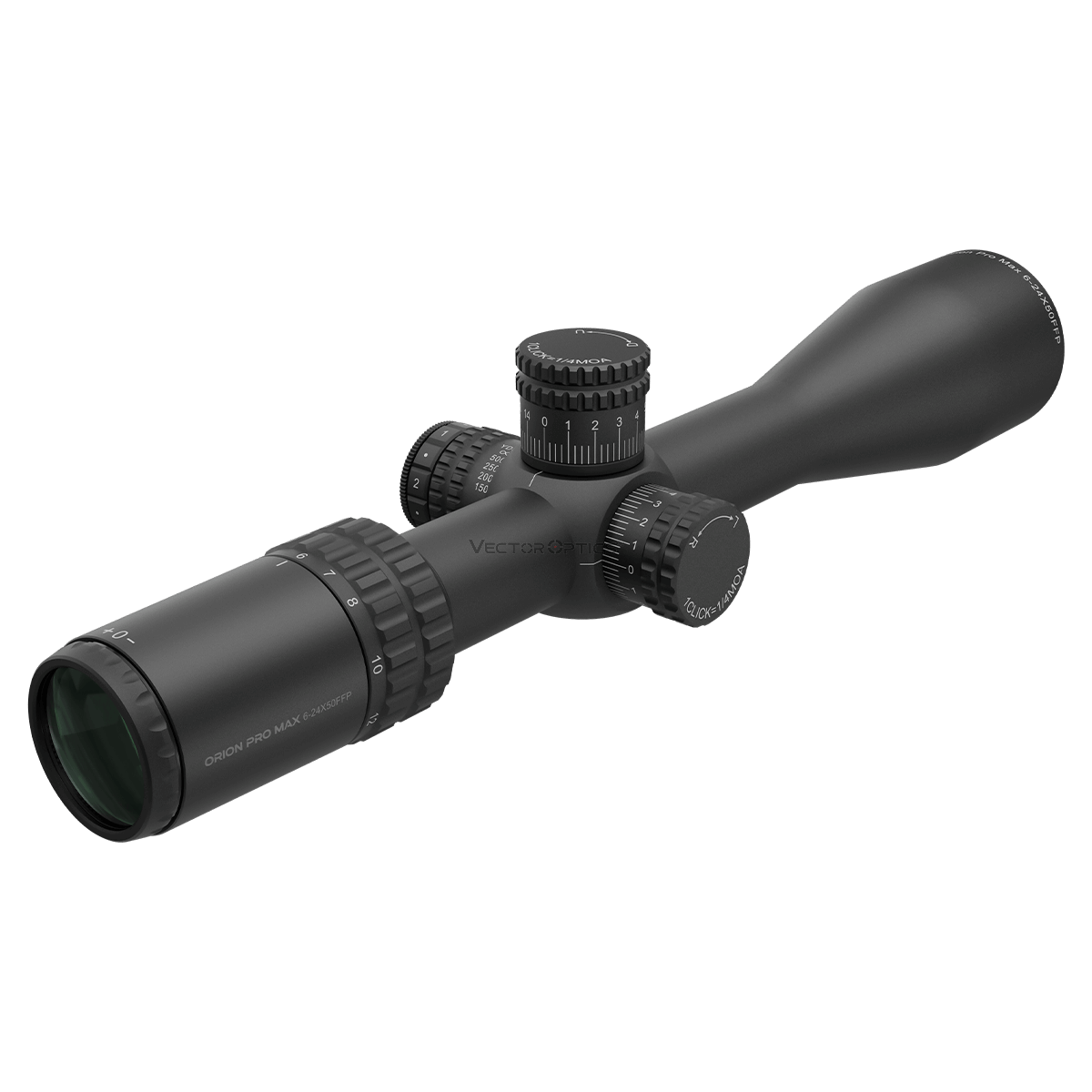

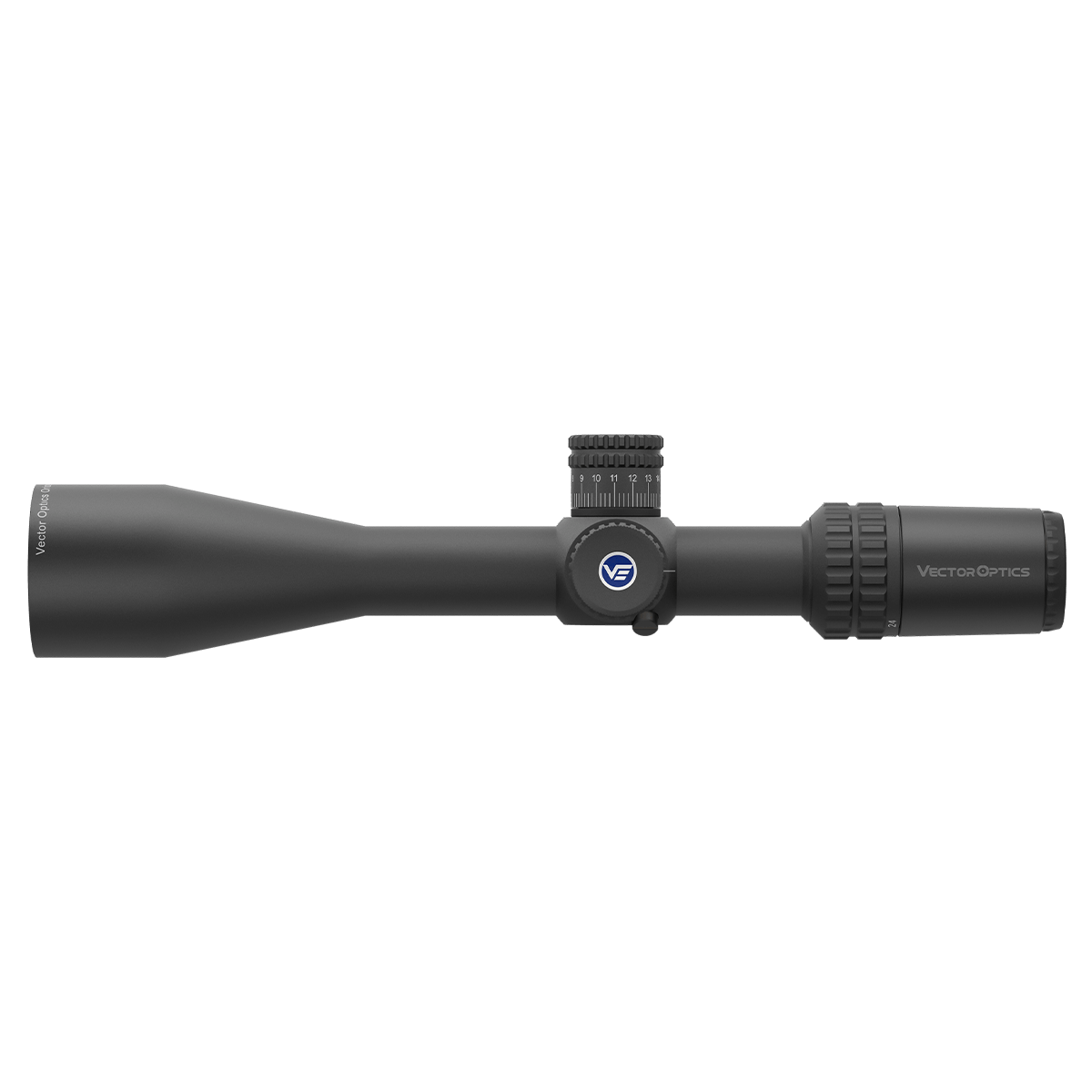

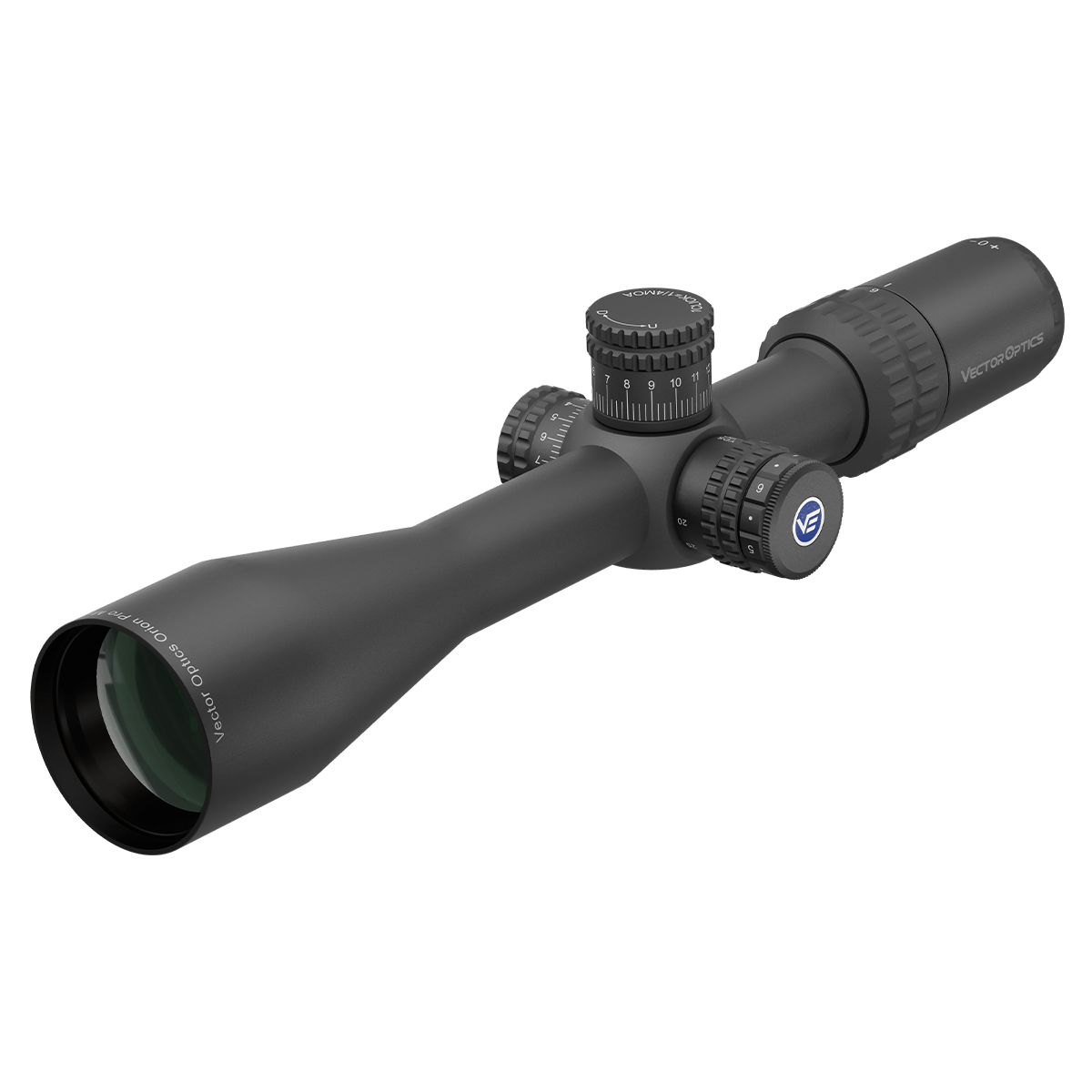

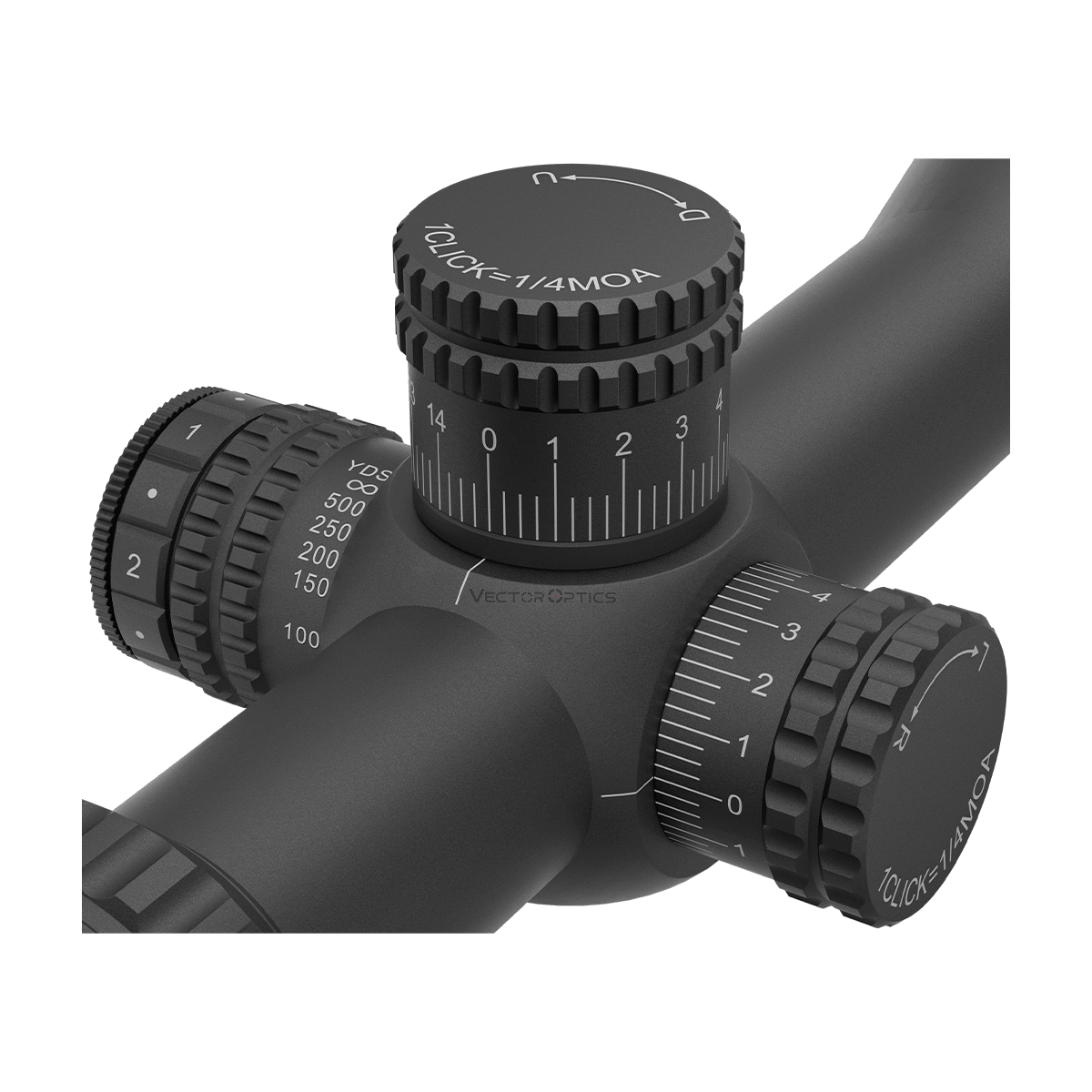

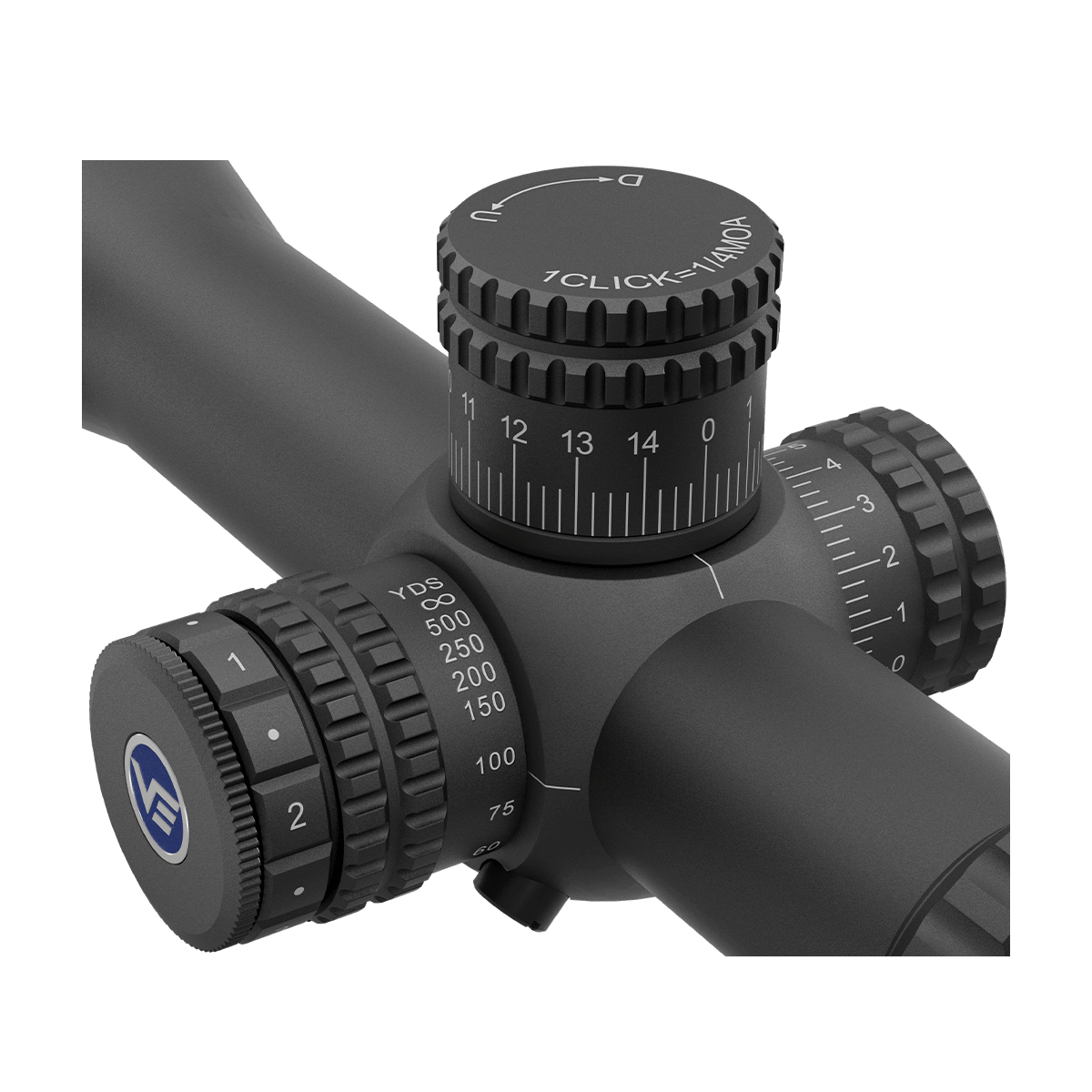

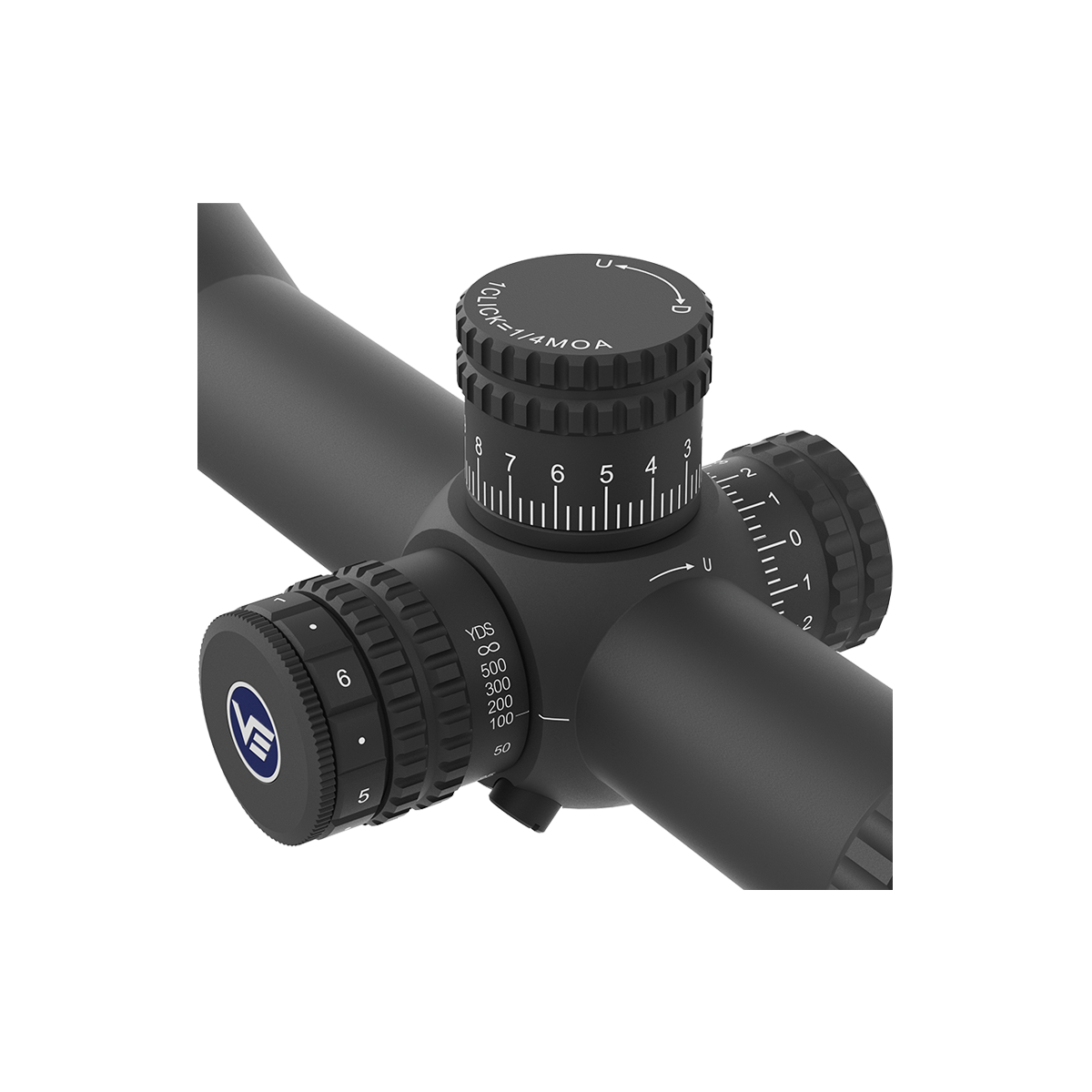

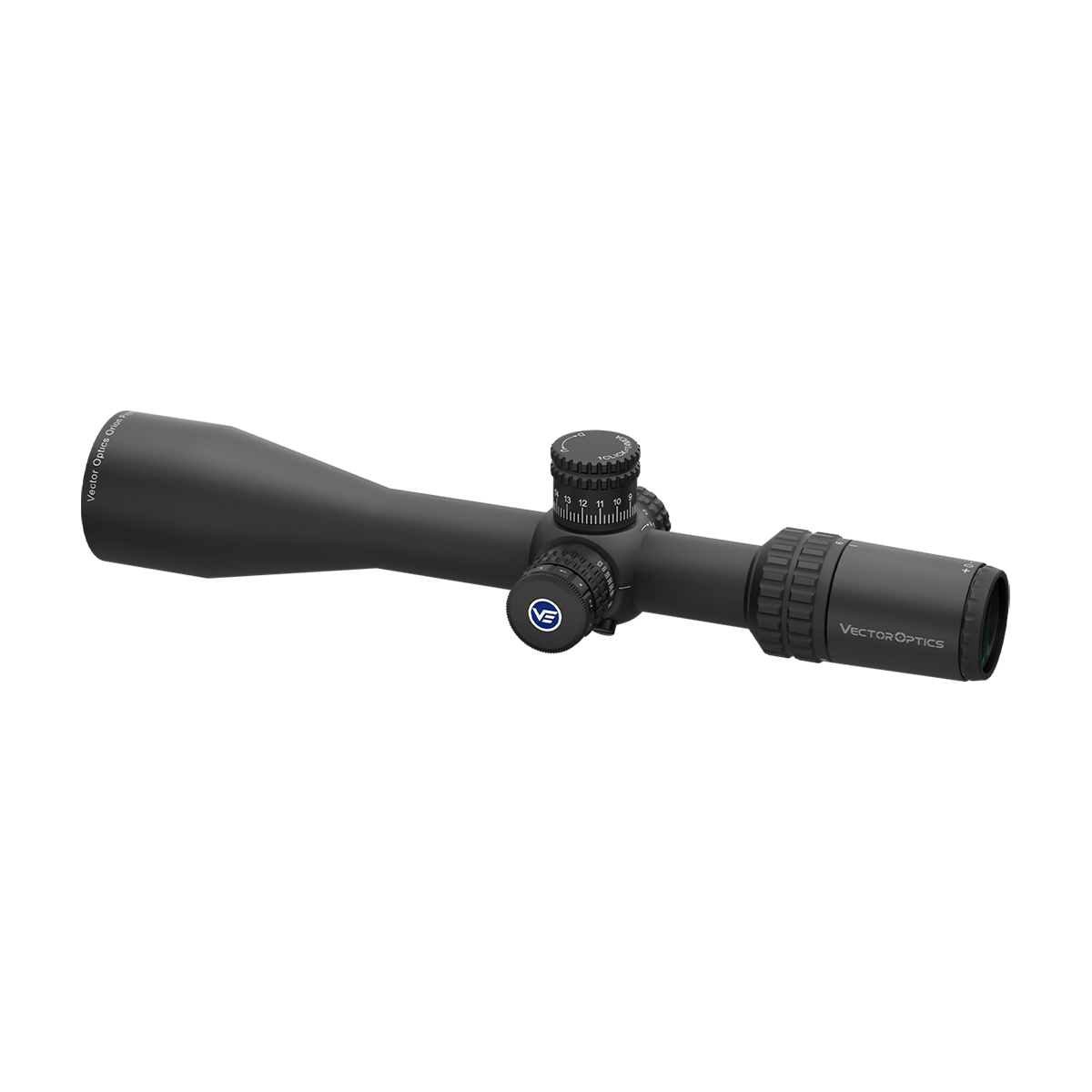

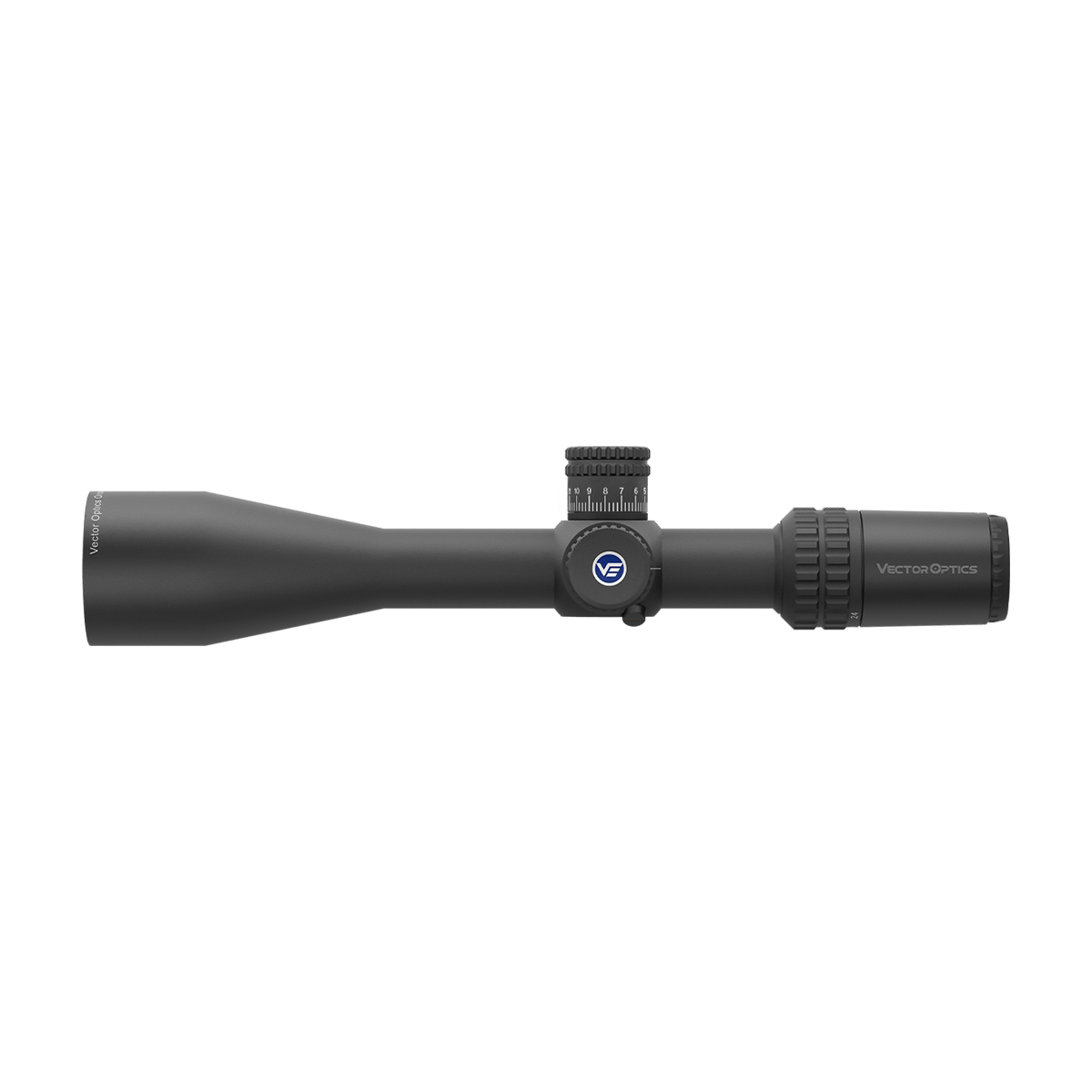

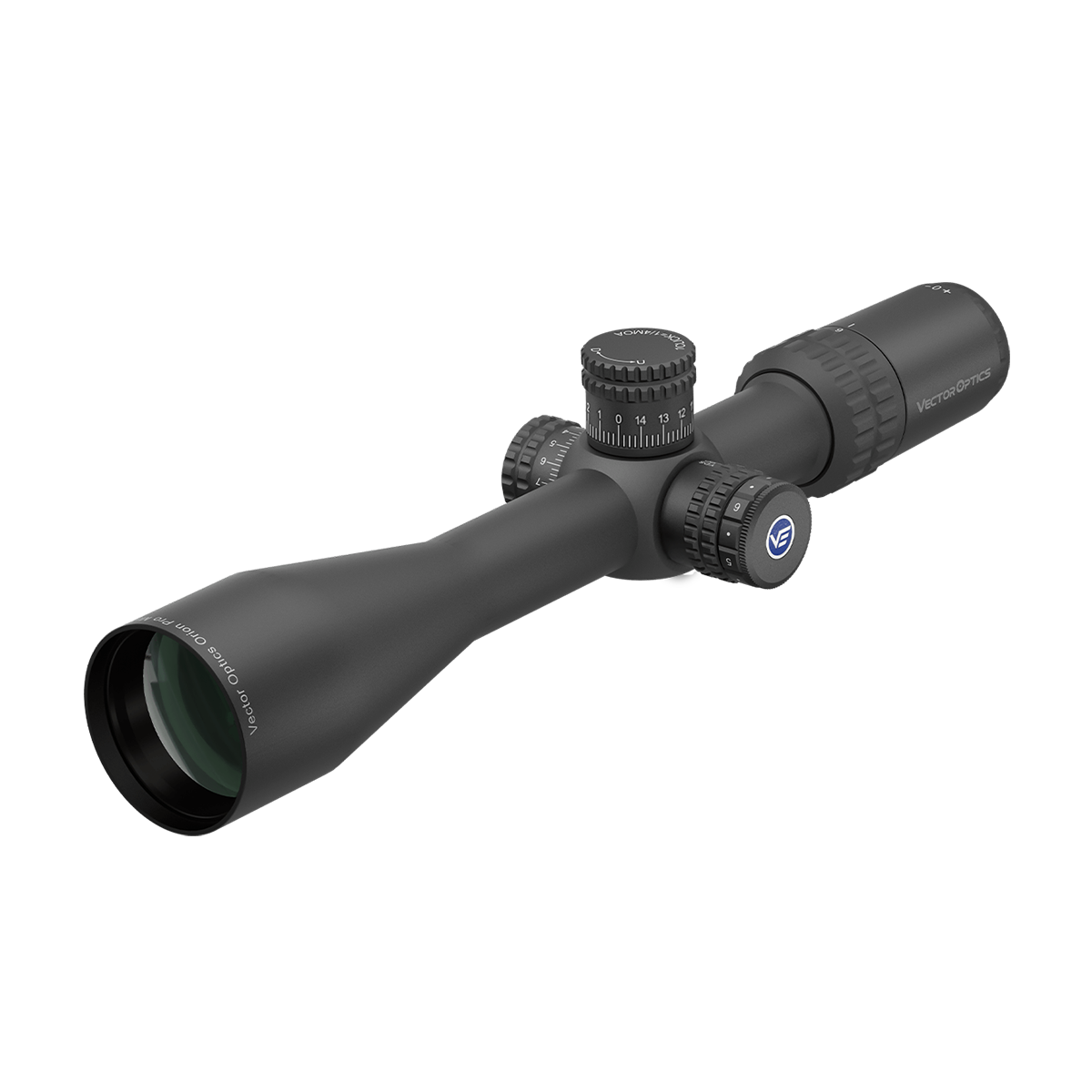

30mm Monotube Made of 6061 T6, First Focal Plane Scope, FMC, Illuminated. Edge-to-Edge Image, Etched Glass Reticle VE-RDF. Side Focus Min from 10 Yds. 1/4 MOA Precise Adjustment, Zero Stop Elevation Dial, Lockable Windage Turret.
| Magnification | 6-24x |
| Objective Lens Dia | 50 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 95 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 19.6-4.9 ft @ 100 yards |
| Linear Field of View @ 100 m | 6.54-1.64 m @ 100 meters |
| Angular Field of View | 3.75-0.94° |
| Reticle | VE-RDF |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/4 MOA |
| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | 80 MOA |
| Windage Adjustment Range | 60 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gear Red |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

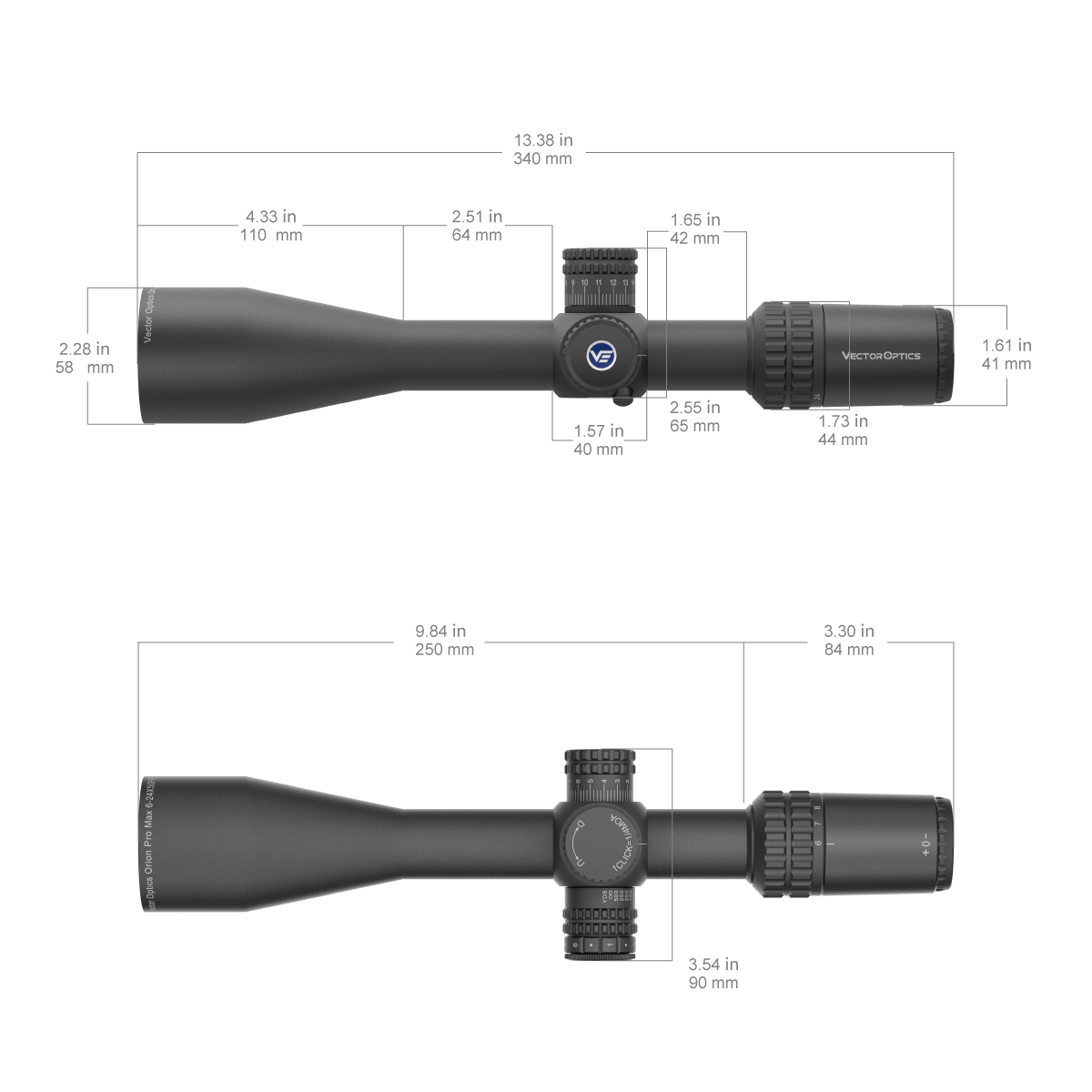

| Length | 340 mm / 13.4 in |
| Weight | 782 g / 27.6 oz |
| Items in the Package | One Pair of 30mm Weaver Scope Rings, Sunshade, Instruction, Flip-up Caps and Cleaning Cloth |
