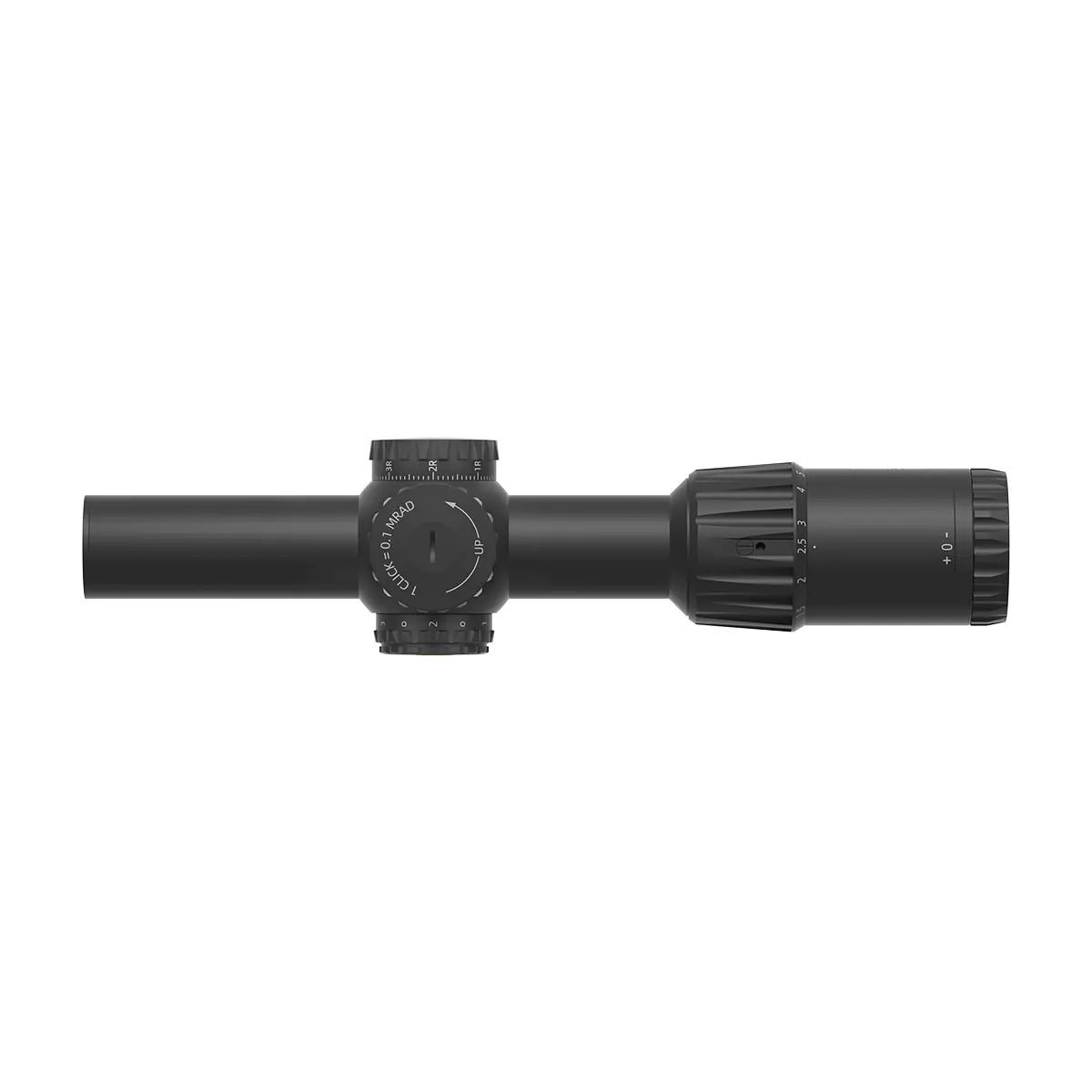

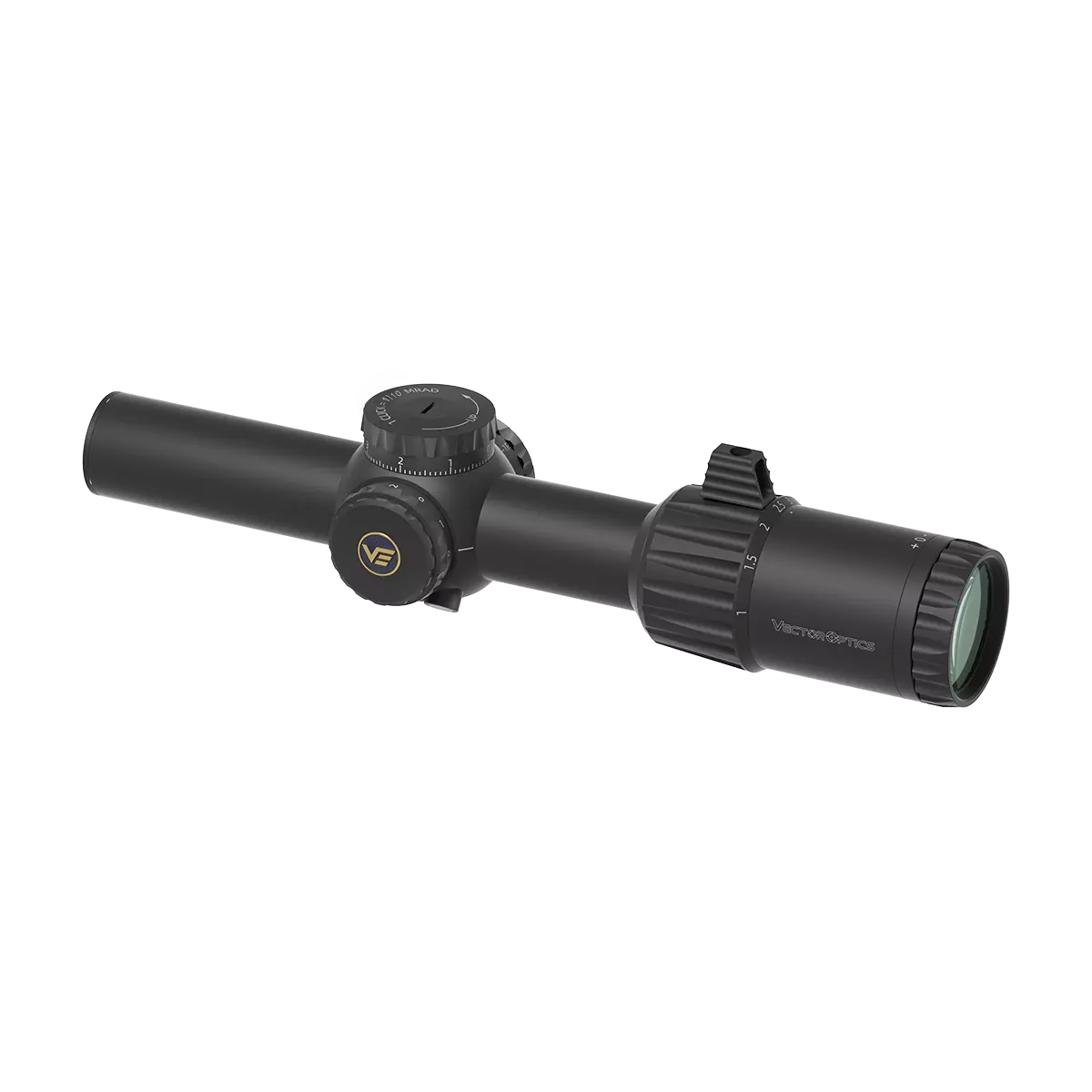

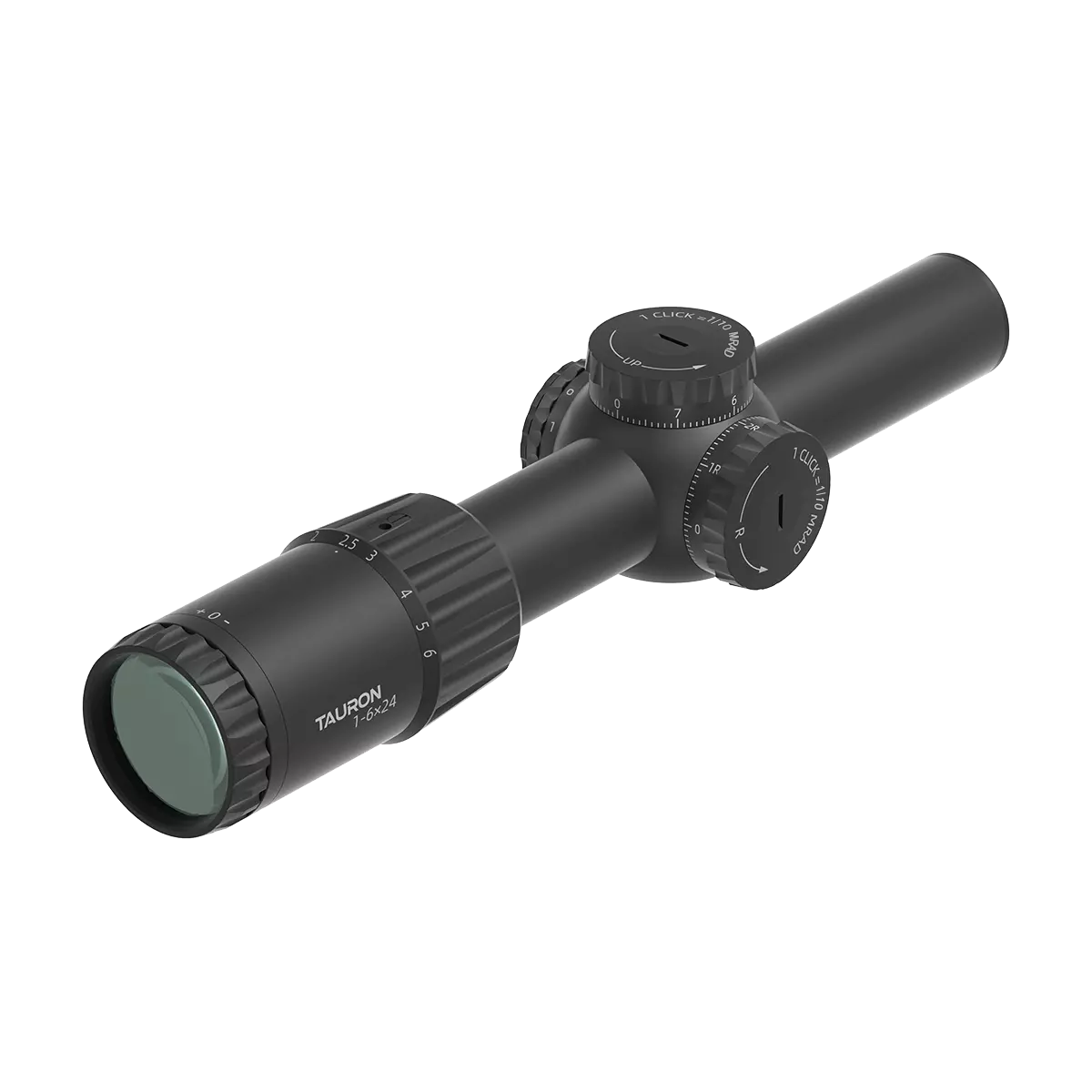

30MM Tube Enlarges Elevation and Windage Range with 1/10 MIL Click Value True 1x power for Two Eyes Open Shooting, Enhancing Situational Awareness Turret Lock Function Prevents Unintentional Adjustments, Secure the Settings Etched Glass Bullet Drop Compensation Reticle for Fast Target Acquisition 6-Gear Illumination Ensures Better Reticle Visibility in Low-Light Environment
| Magnification | 1-6x |
| Objective Lens Dia | 24 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 105.01 - 18 ft @ 100 yards |
| Linear Field of View @ 100 m | 35 - 6 m @ 100 meters |
| Angular Field of View ° | 20.05 - 3.44 ° |

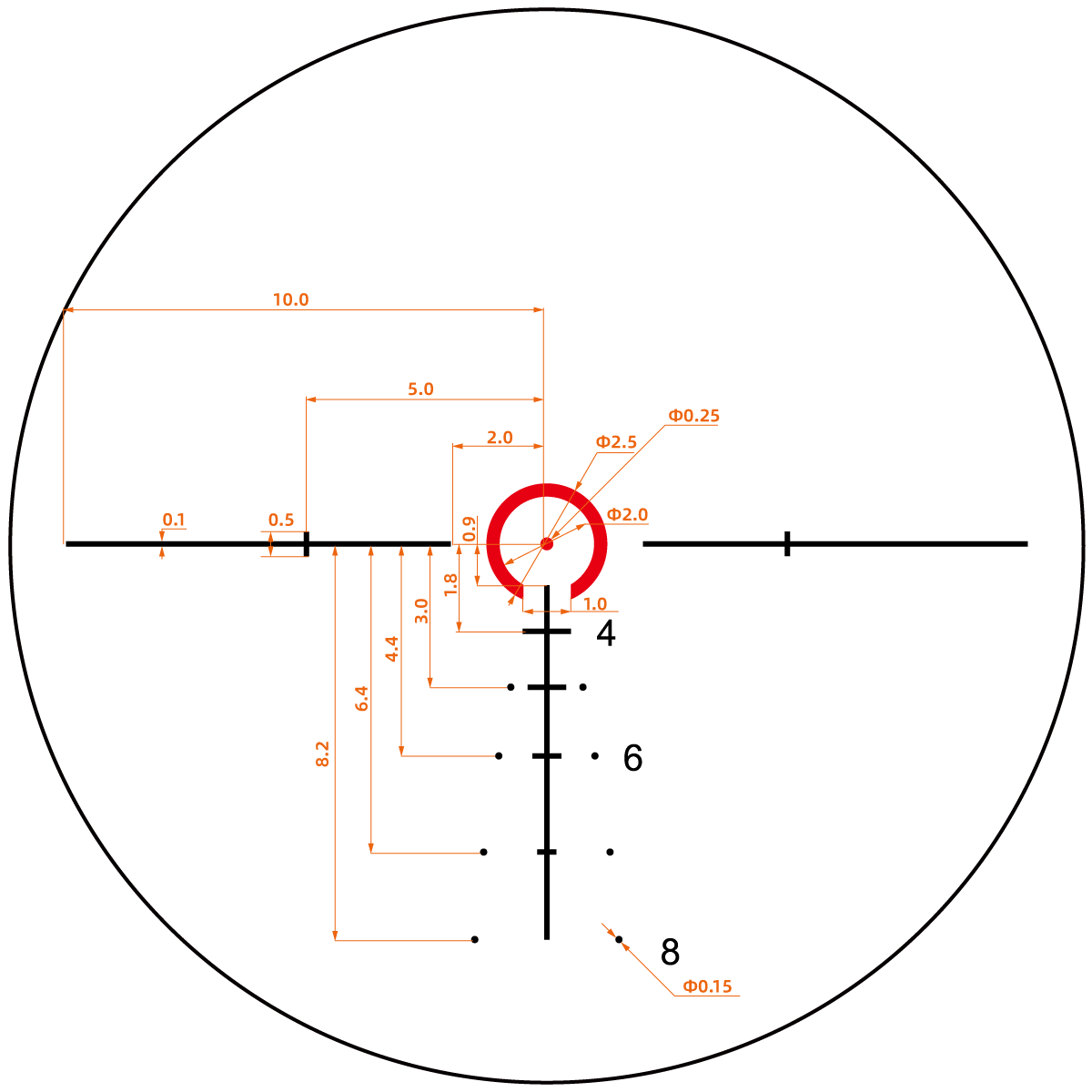

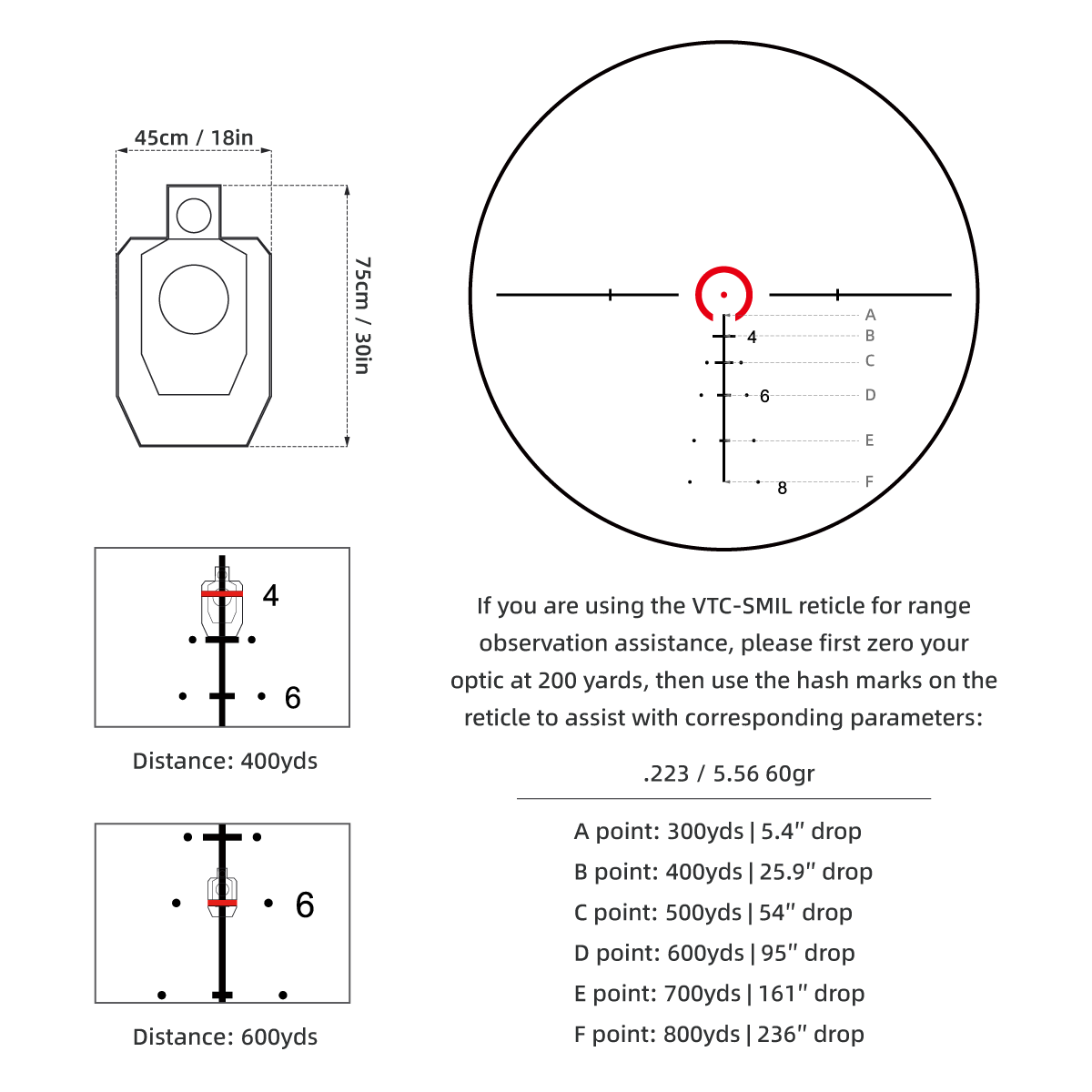

| Reticle | VTC-SMIL |
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |

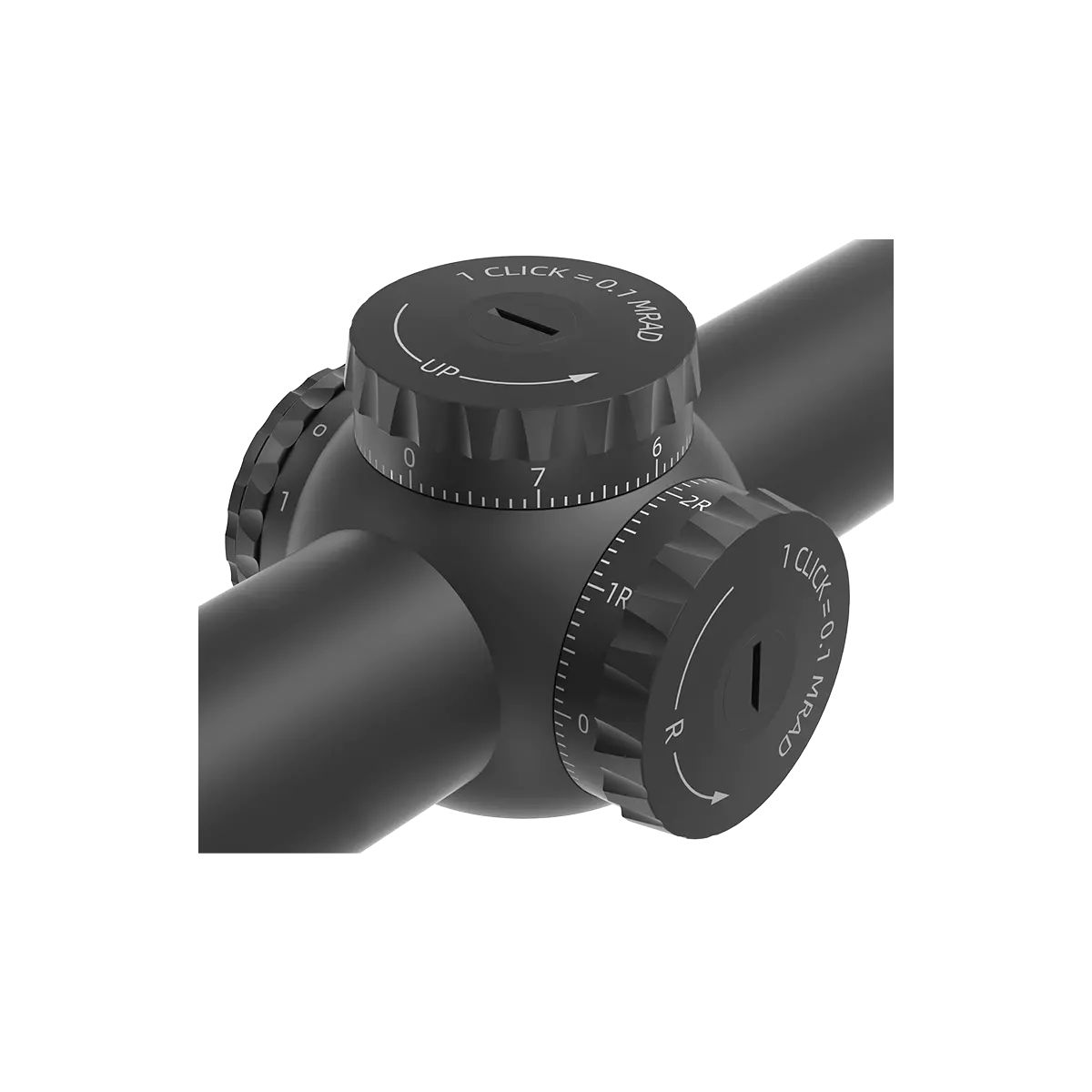

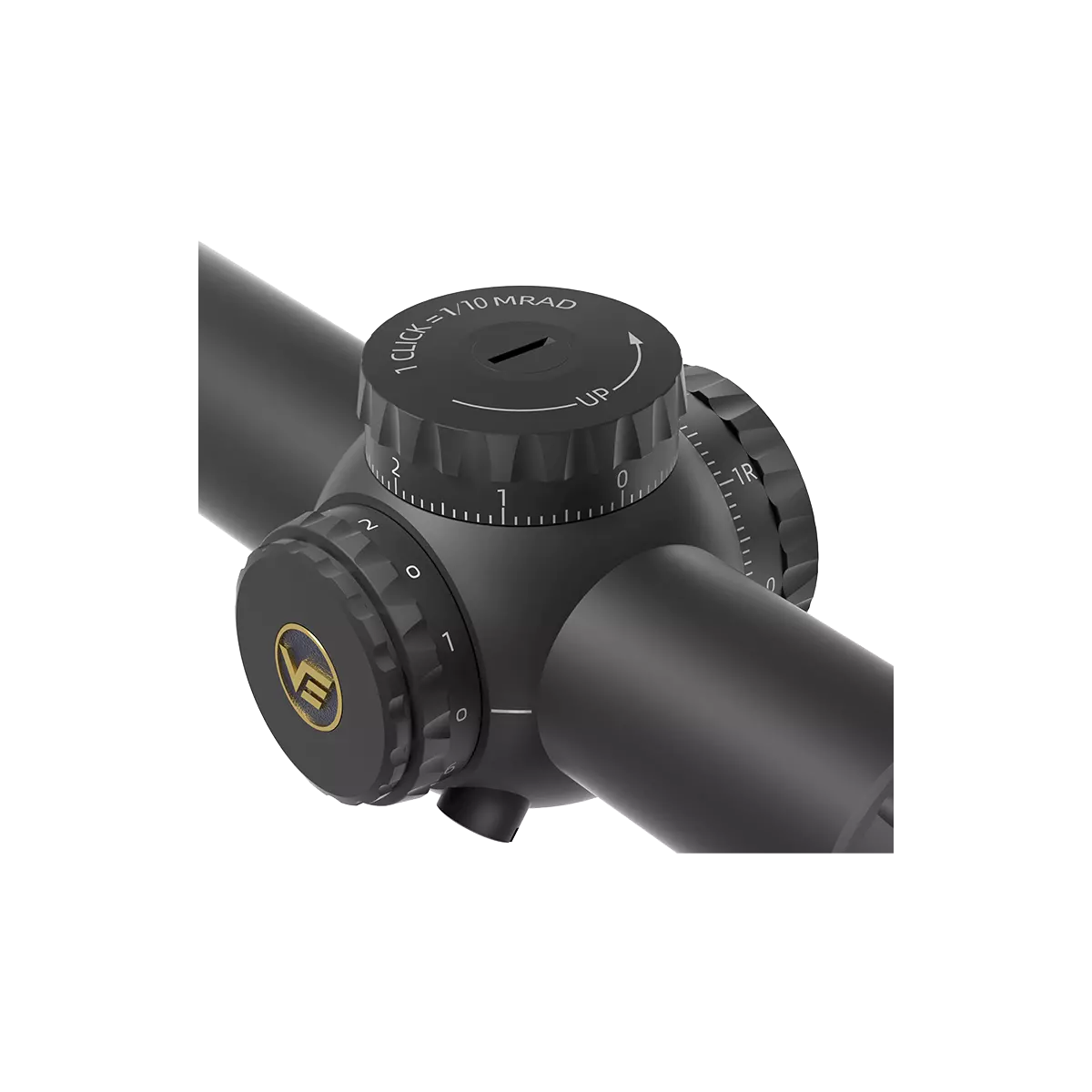

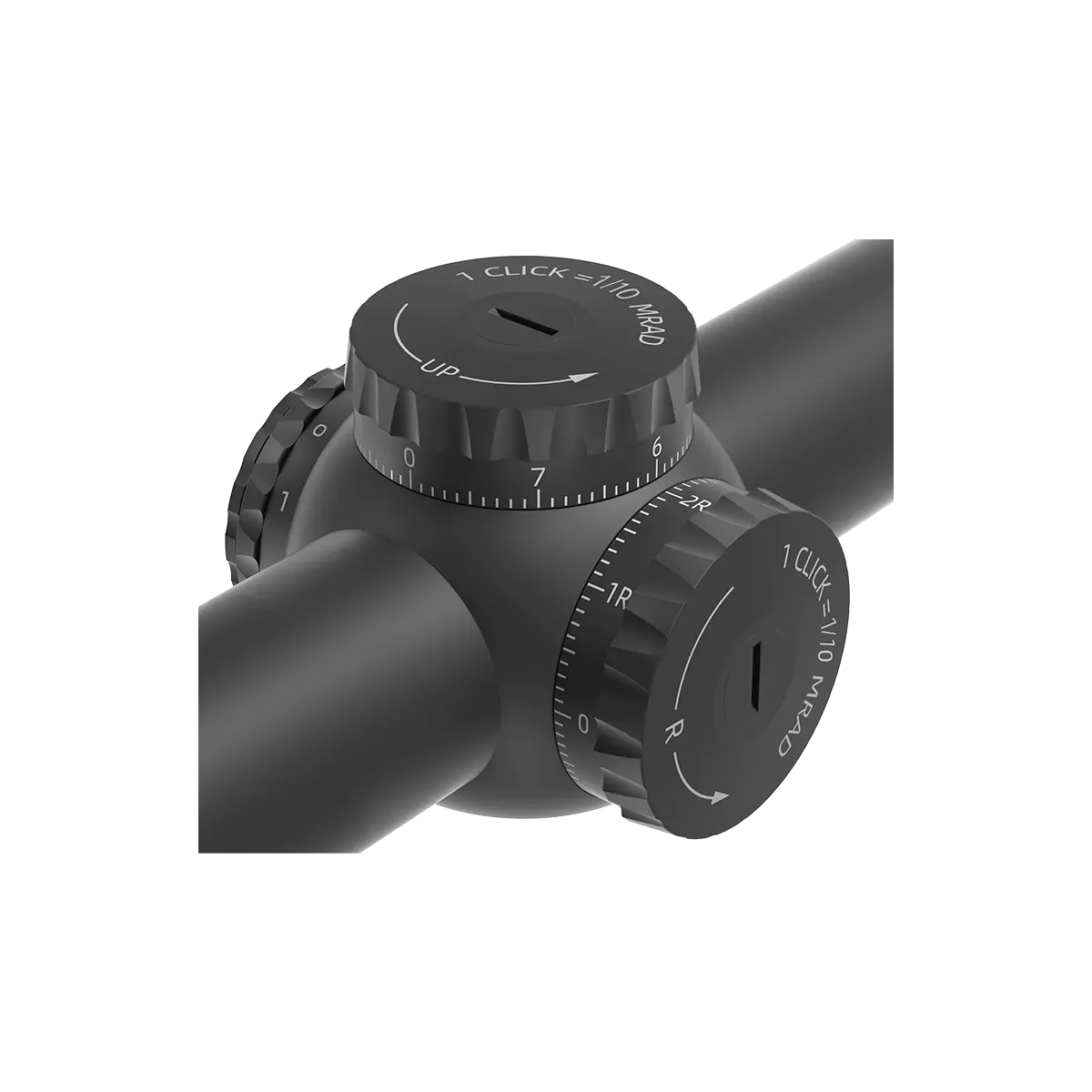

| Click Value | 1/10 MIL |

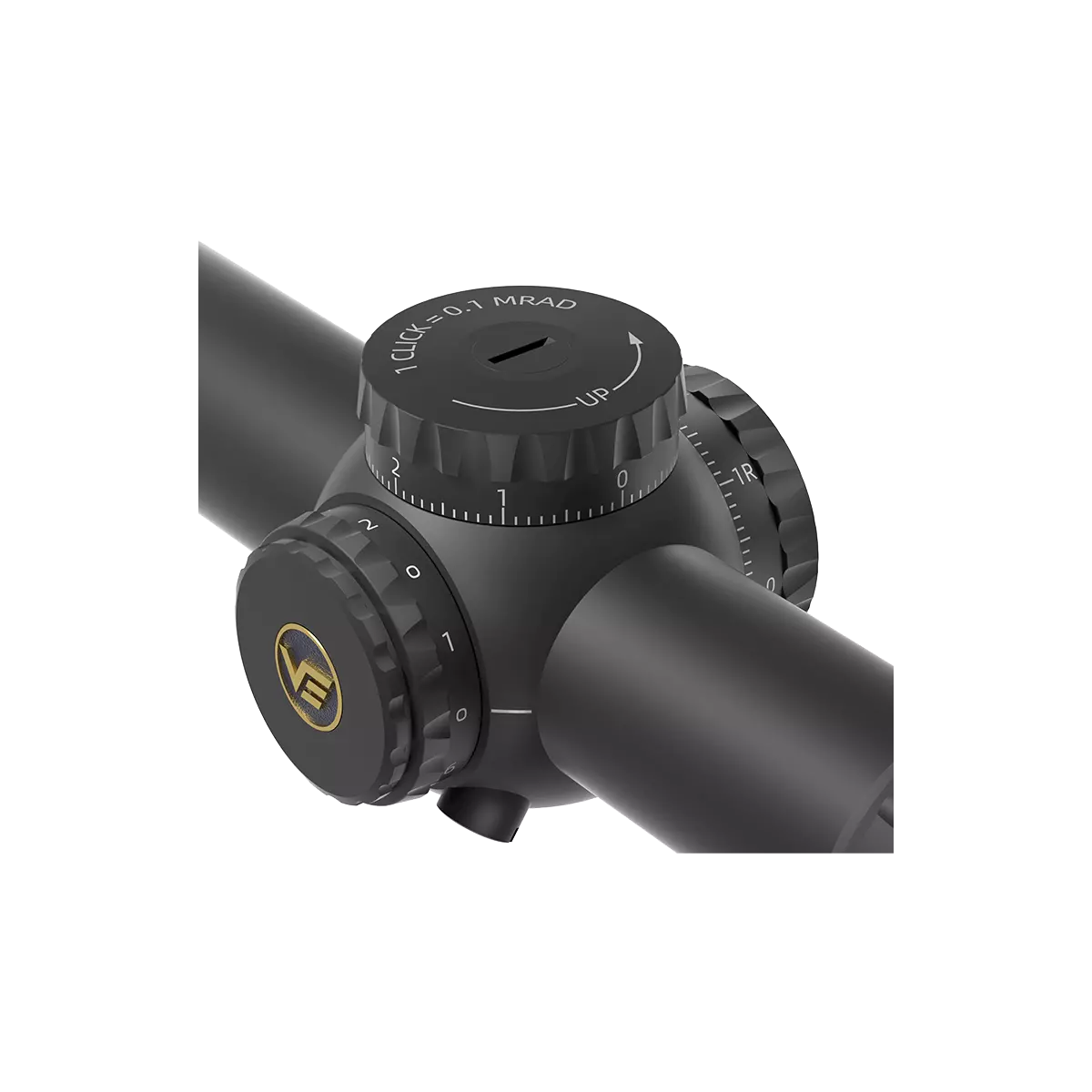

| Turret Function | Turret Lock |
| Elevation Adjustment Range | ≥ 60 MIL |
| Windage Adjustment Range | ≥ 60 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears, Red, On/Off Switch |
| Battery Type | CR2032 |
| Battery Life | 20,000H |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 264 mm / 10.39 in |
| Weight | 537 g / 18.94 oz |

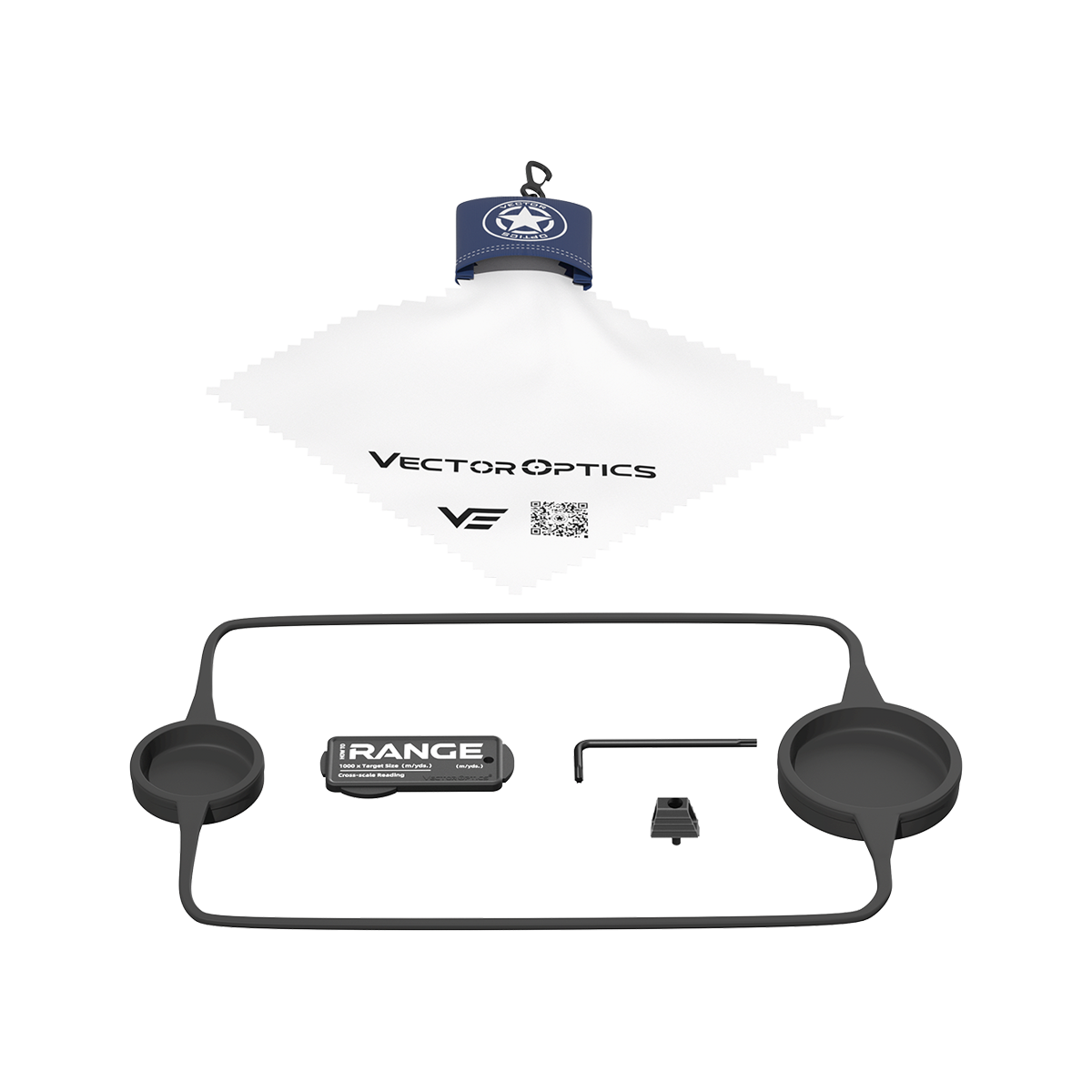

| Items in the Package | Lens Caps, User Manual, Plastic Wrench, Hex Key, Cleaning Cloth, etc |
