We're excited to share thrilling news: VictOptics has launched the complete SOI series of scopes, designed specifically for airguns and airsofts. Unlike our popular S6 series LPVO, the SOI series (our MPVO range) is even more budget-friendly while maintaining the S6’s exceptional quality and premium lenses.
The blog is divided into five key sections, making it easy to explore the topics that matter most to you:
1. Suitable Scenarios of SOI Series Airgun Scopes
2. Compatible Airgun Types for SOI Scopes
3. Why 1 inch Tube? Understanding the Compact Design from Scratch
4. Innovative Reticle Pattern for Enhanced Targeting
5. SOI Series Airgun Scopes Overview: from VIOC-01 to VIOC-06
The SOI VIOC scopes are able to use both in hunting and recreational target shooting scenarios. Let's explore the hunting scenario usages and how to select the right magnifications for your needs.
For airgun hunting, we are actually talking about small game hunting, varmint hunting or pest control. Due to the dynamic shooting process, it’s better to have a scope with acceptable eyebox to get the full field of view quickly. Additionally, other factor to consider is weight. Many shooters prefer to use compact air guns in hunting small games, during which a compact scope is also the best partner to mount on the air gun. With wide field of view and large eyebox, the SOI series air gun scopes allow you to quickly acquire your target.
When it comes to target shooting, your choice of magnification should depend on the shooting distance.
● For shooting distances up to 35 yards, a 4-12x scope is a solid option for your airgun.
● For 5-50m target shooting, the VIOC-01 1.5-5x20 and VIOC-02 2-7x32 is ideal.
● For distances between 20-200m, the VIOC-03 3-9x40 provides optimal magnification and clarity.
● For versatile close and mid-range shooting, we have VIOC-05 3-9x40 and VIOC-06 4-12x40 with AO adjustment.
Compatible Airgun Types for SOI Scopes and Continental MPVO
All SOI scopes are airgun-rated, making them suitable for spring piston and break barrel airguns.
For example, both the HW99S (99 S), an entry-level springer, and theGamo Whisper Wildcat .22, a break barrel action rifle, are perfect for small game hunting, pest control, or informal plinking. To engage small game at 20-25 meters with the 99 S, we recommend using a 3-9x AO scope for optimal performance.
While for heavy-recoil spring piston air guns, consider the shockproof ability first. To mount on a spring piston air gun, a scope should remain stable and reliable. Otherwise, the internal parts may loosen after just a few shots.
The SOI scopes feature a robust aluminum alloy monotube design, ensuring they remain secure and won’t break apart, even under heavy recoil.
Except for the VIOC-06 SOI 4-12x40 AO, all scopes in the SOI series feature a 25.4mm / 1 Inch diameter tube. The small tube diameter realizes compact and lightweight design. The 6 models of air gun scope weight range from 200 to 600 grams, offering the lightest possible options for your airgun configuration.
Let's compare the weight & size between SOI & S6/S4 Series.
VIOC-01 | OPSL22 | |
Tube Diameter | 25.4mm | 30mm |
Objective Lens Dia | 20mm | 24mm |
Focal Plane | SFP | SFP |
Field of View | 14.21-4.35 ° | 21.0-3.5° |
Click Value | 1/5 MIL | 1/5 MIL |
Reticle | VNM-1 MIL | VI-CTSIX |
Length | 220 mm / 7.9 in | 249 mm / 9.8 in |
Weight | 225g/ 7.9oz | 425 g / 15.0 oz |
Reticle |
SOI VIOC-05 (3-9x) VS S4 OPSL16 (4-16x)
VIOC-05 | OPSL16 | |
Tube Diameter | 24.5mm | 30mm |
Objective Lens Dia | 40mm | 44mm |
Focal Plane | SFP | SFP |
Field of View | 5.5-1.95° | 5.5-1.4° |
Click Value | 1/10 MIL | 1/10 MIL |
Reticle | VNM-1 MIL | MDL wire reticle |
Length | 317 mm / 12.48 in | 315 mm / 12.4 in |
Weight | 520g/ 18.3oz | 515 g / 18.2 oz |
Reticle |
The VIOC-05 features a 24.5mm diameter tube, while the OPSL16 has a 30mm tube. Both scopes offer 1/10 MIL click adjustments, a similar weight, and a comparable field of view (FOV).
It’s a popular choice for those who regard weight as a priority by reducing overall weight of air gun setup. Moreover, 1 inch tube scope is cheaper than 30 and 34mm tube due to the low manufacturing cost. That’s why makes it the most budget entry-level scope to choose.
Normally, 1 inch tube scopes offer a smaller windage and elevation adjustment range than 30mm tube diameter. Therefore, they are often seen in low magnification scopes for close to medium-range shooting.

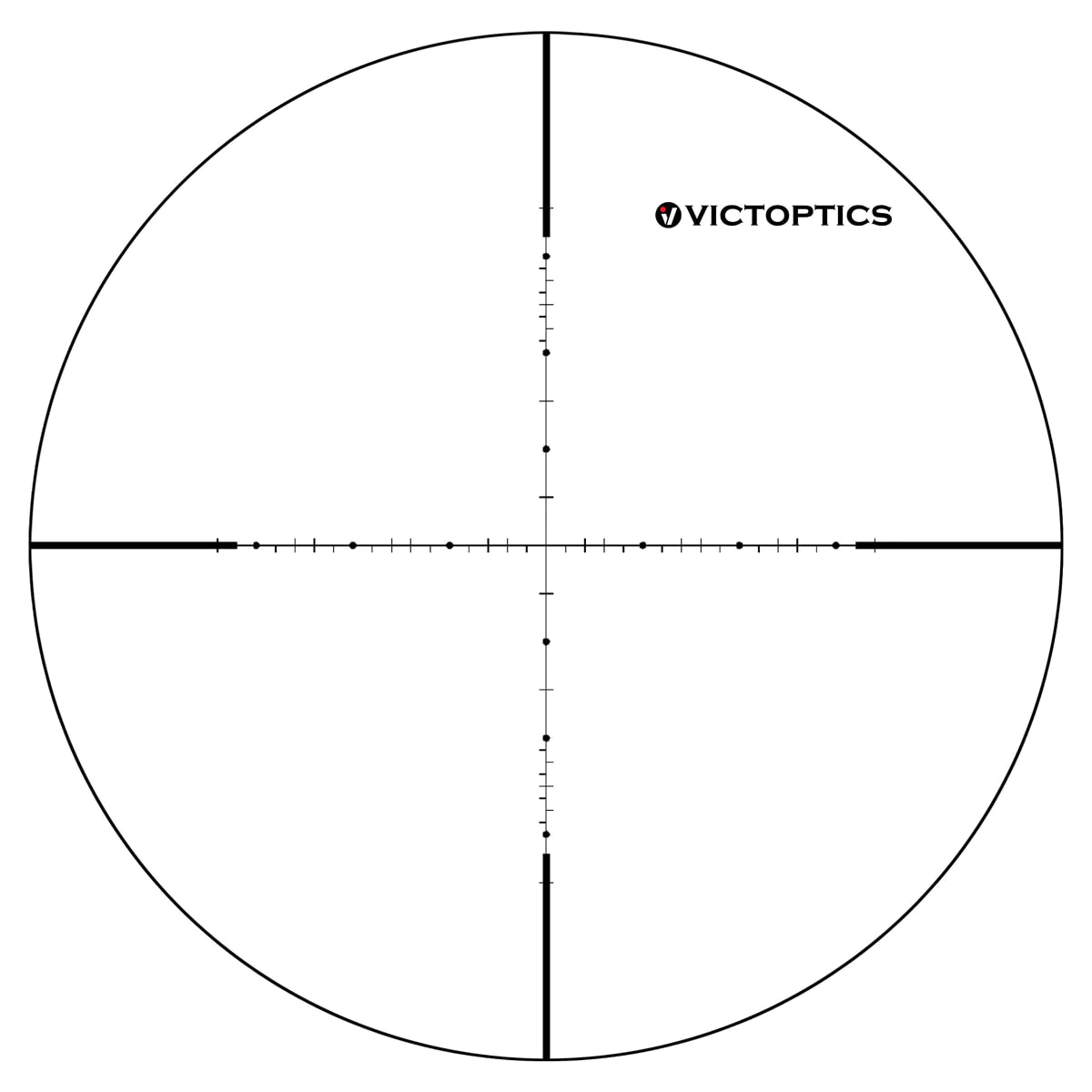

As for reticle patterns, SOI series scopes are equipped with VNM-1 MIL which is designed for multi-scenario accurate adjustments. The dash on the reticle can help you with windage and elevation adjustments. At the same time, we built them with red & green dual illumination settings. You can see the reticle clearly under low-light conditions and different shooting backgrounds, versatile and reliable for various shooting scenarios.
Here’re parameter chart of SOI scopes.
VIOC-01 | VIOC-02 | VIOC-03 | VIOC-04 | VIOC-05 | VIOC-06 | |
Magnification | 1.5-5x | 2-7x | 3-9x | 4-12x | 3-9x | 4-12x |
Tube Diameter | 1 Inch | 1 Inch | 1 Inch | 1 Inch | 1 Inch | 30mm |
Objective Lens Dia | 20mm | 32mm | 40mm | 40mm | 40mm | 40mm |
Focal Plane | SFP | SFP | SFP | SFP | SFP | SFP |
Field of View | 14.21-4.35 ° | 11.57-3.09 ° | 5.39-1.95 ° | 4.76-1.6° | 5.5-1.95° | 4.7-1.7° |
Parallax Setting | 50 yards | 50 yards | 100 yards | 100 yards | 5 yards to Infinity (AO) | 10 yards to Infinity (AO) |
Click Value | 1/5 MIL | 1/10 MIL | 1/10 MIL | 1/10 MIL | 1/10 MIL | 1/10 MIL |
Reticle | VNM-1 MIL | VNM-1 MIL | VNM-1 MIL | VNM-1 MIL | VNM-1 MIL | VNM-1 MIL |
Weight | 225 g / 7.9 oz | 328 g / 11.06 oz | 447 g / 15.8 oz | 458 g / 16.15 oz | 520 g / 18.3 oz | 580 g / 20.5 oz |
As shown in the chart, the VIOC-01 and VIOC-02scopes have a fixed parallax setting at 50 yards, while the VIOC-03 and VIOC-04 are set at 100 yards. The VIOC-05 and VIOC-06 feature an AO (Adjustable Objective) parallax, allowing you to adjust the parallax for close-range distances. This AO feature ensures a crisp focus at shorter ranges, such as 5m or 10m, making these scopes more versatile and suitable for a variety of shooting scenarios.
Whether you're an airgun shooter looking for a reliable MPVO or a firearm enthusiast seeking a high-performance scope, VictOptics SOI series offer excellent choices. The SOI scopes provide an affordable, lightweight solution for airsoft and airgun applications. For high-end MPVO, check our another blog post.
Ready to enhance your shooting experience? Explore our full range today!
