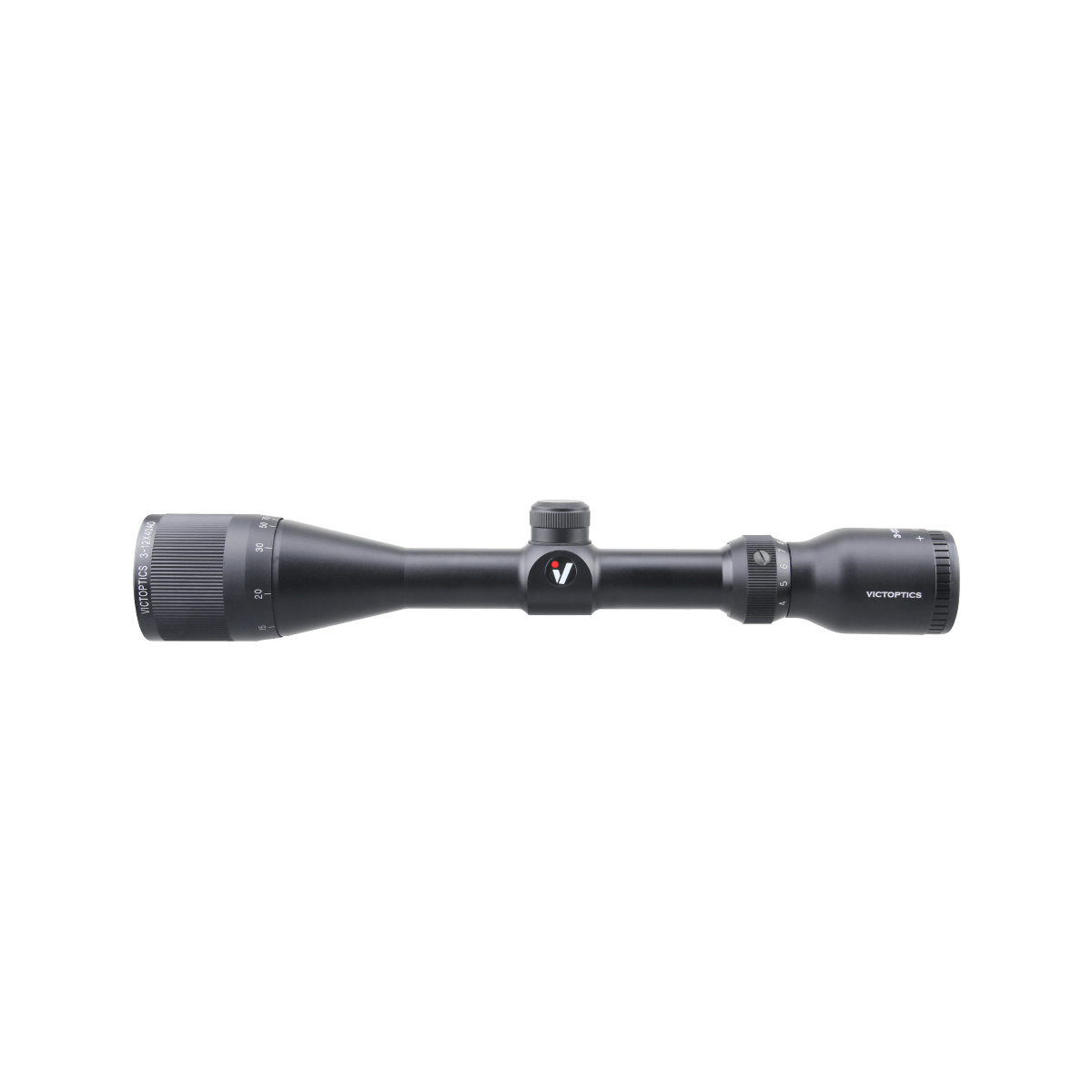

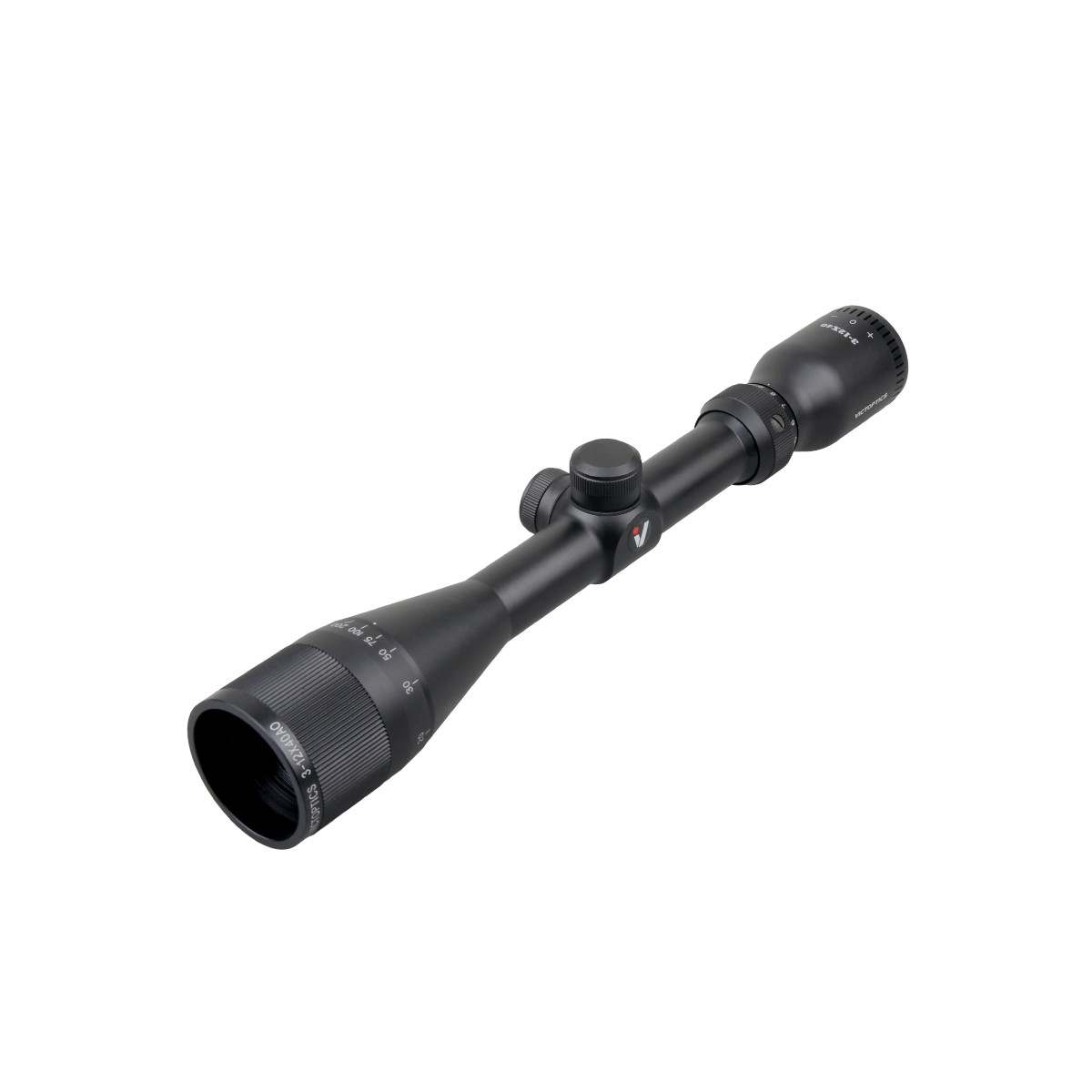

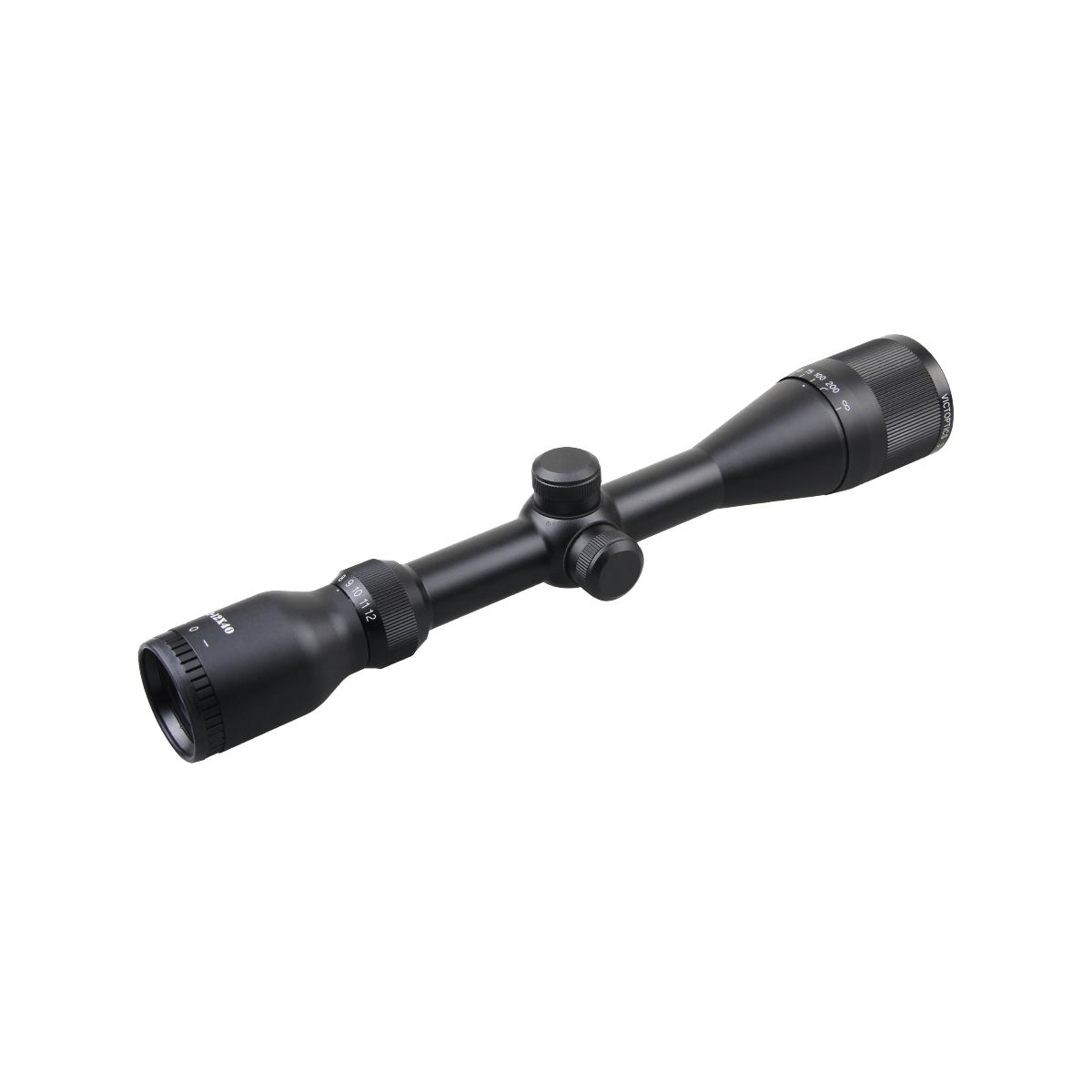

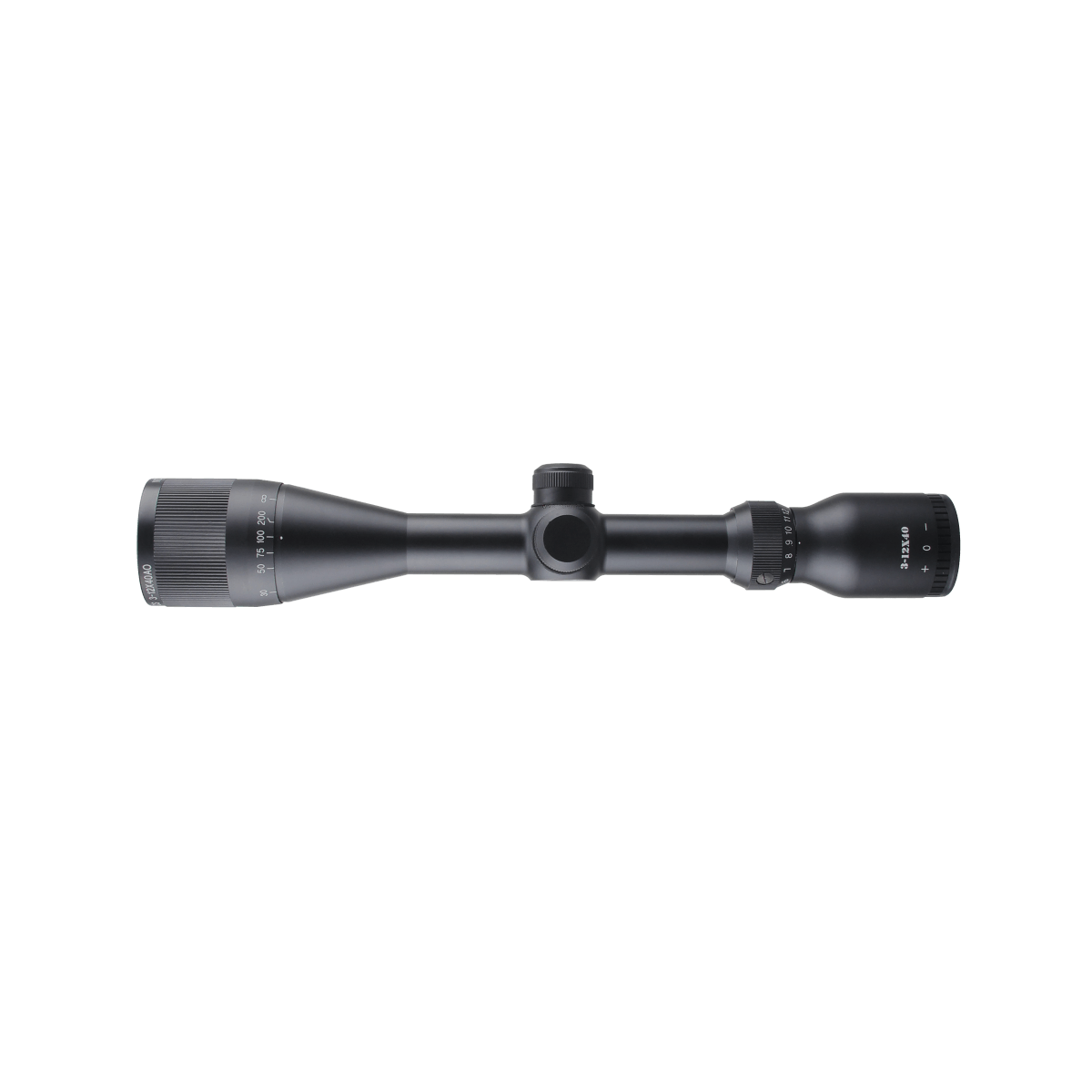

25.4mm 1" Monotube, Fully Multi Coated, Wide FOV, Objective Lens Focus. 1/4 MOA Capped Adjustment, Mil-dot Reticle, W/ Sunshade and Flip-up Caps.
| Magnification | 3-12x |
| Objective Lens Dia | 38 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 95 mm / 3.7 in |
| Exit Pupil | 13.3-3.3 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 35.0-11.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 11.67-3.87 m @ 100 meters |
| Angular Field of View | 6.69-2.22° |
| Reticle | VMD-2 (MOA) |
| Tube Dia | 25.4 mm |
| Parallax Setting | 10 yards to infinity |

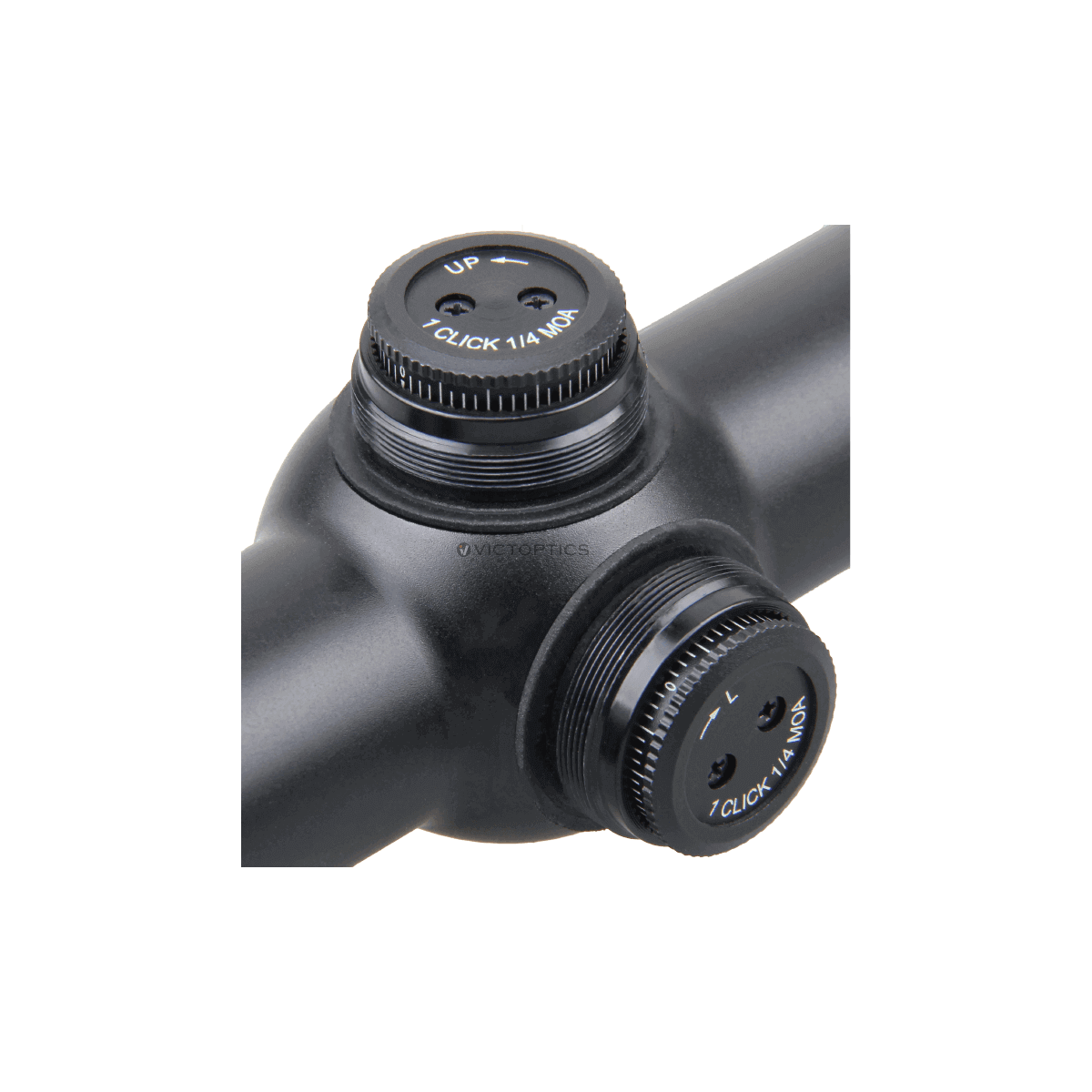

| Click Value | 1/4 MOA |
| Turret Function | |
| Elevation Adjustment Range | 60 MOA |
| Windage Adjustment Range | 60 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

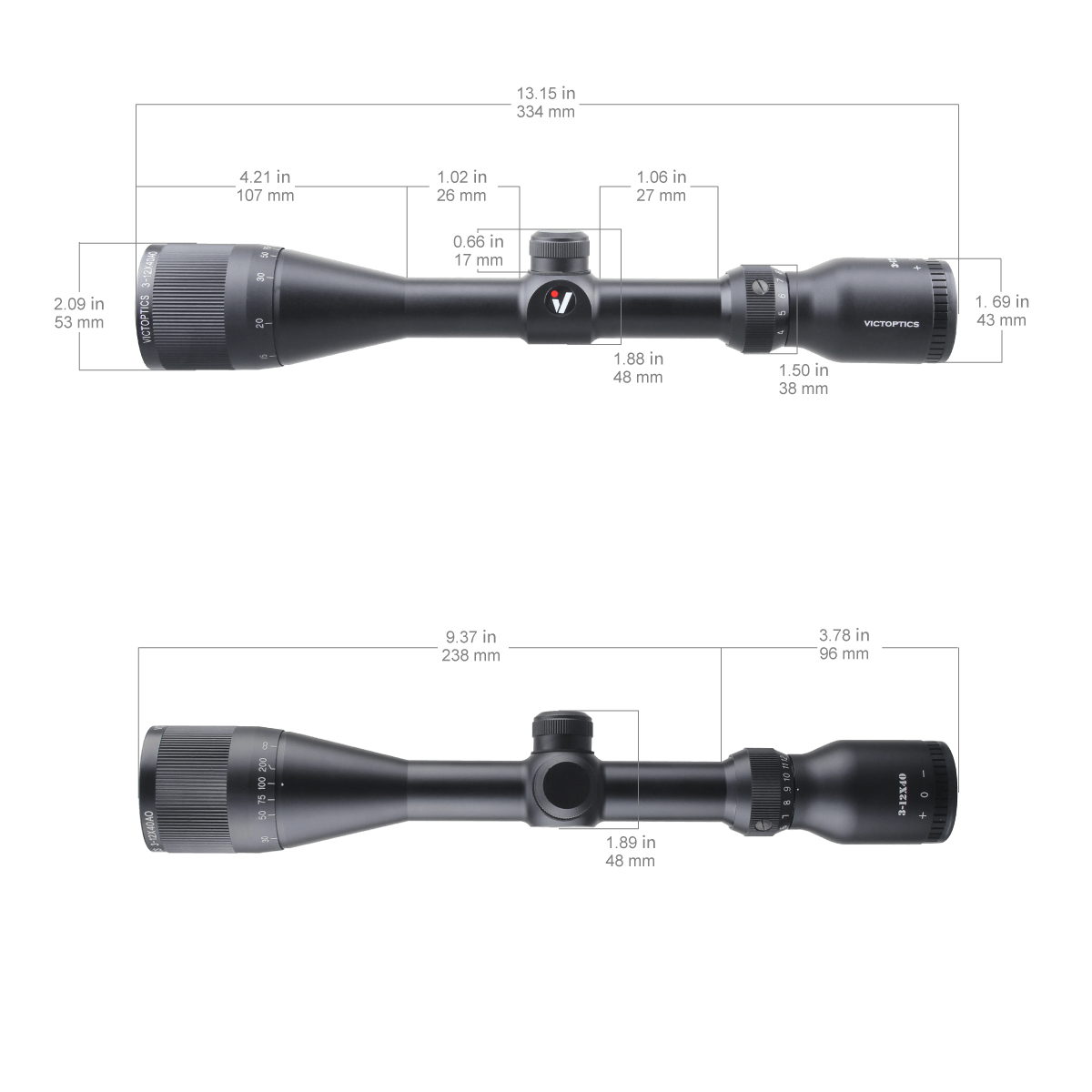

| Length | 332 mm / 13.0 in |
| Weight (Net) | 470 g / 16.6 oz |

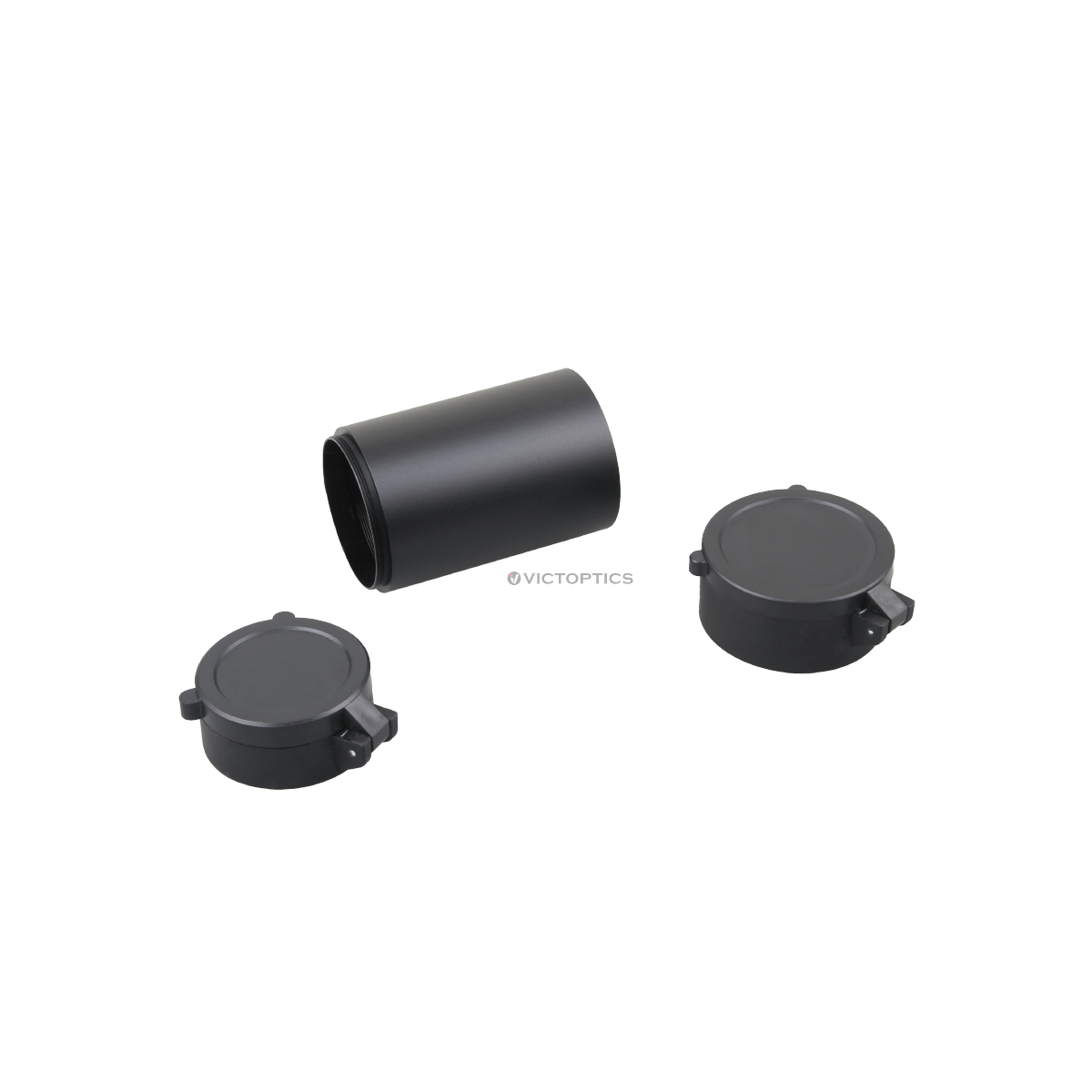

| Items in the Package | One Pair of 25.4mm Weaver Scope Rings, Flip-up Caps, Sunshade & Cleaning Cloth, etc. |
