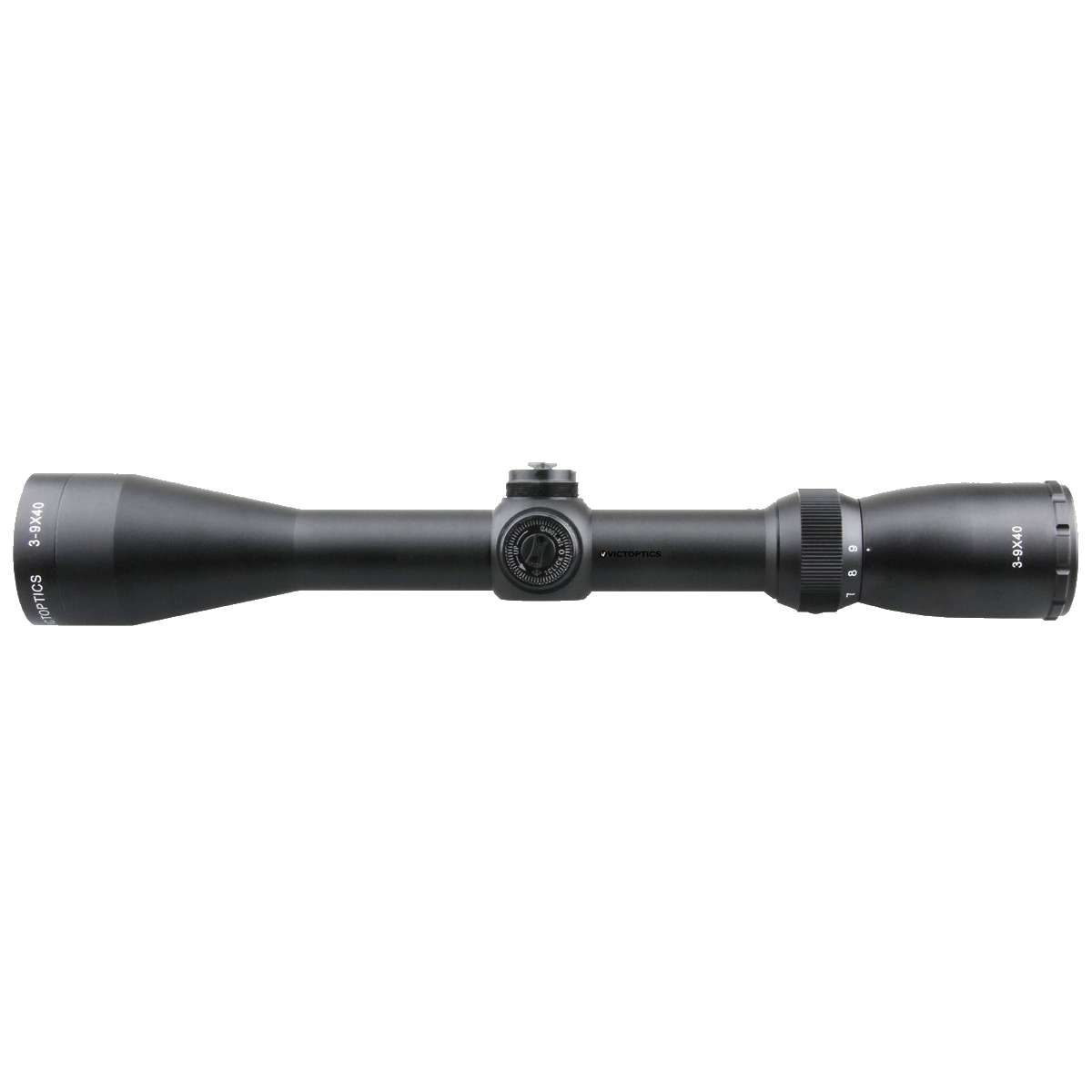

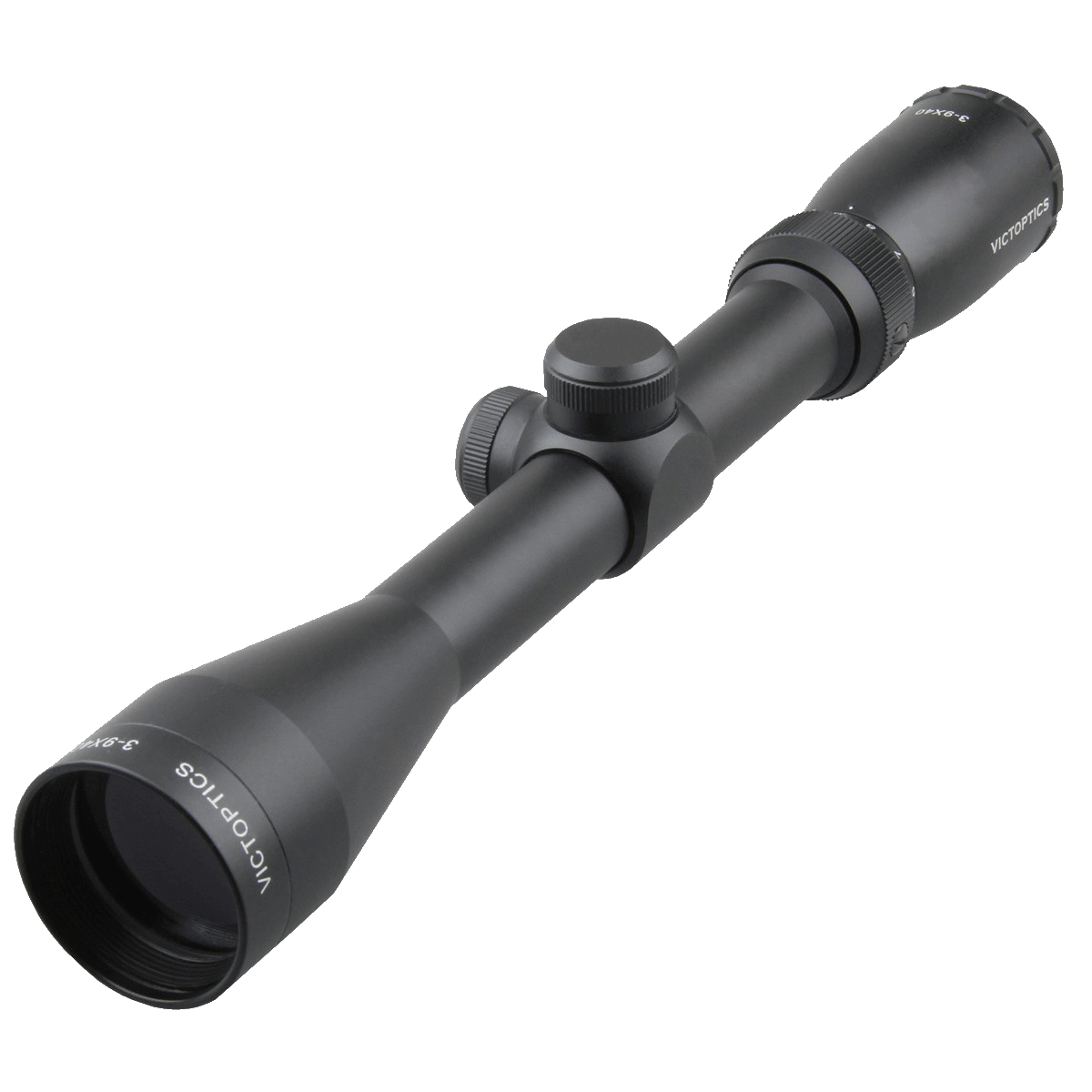

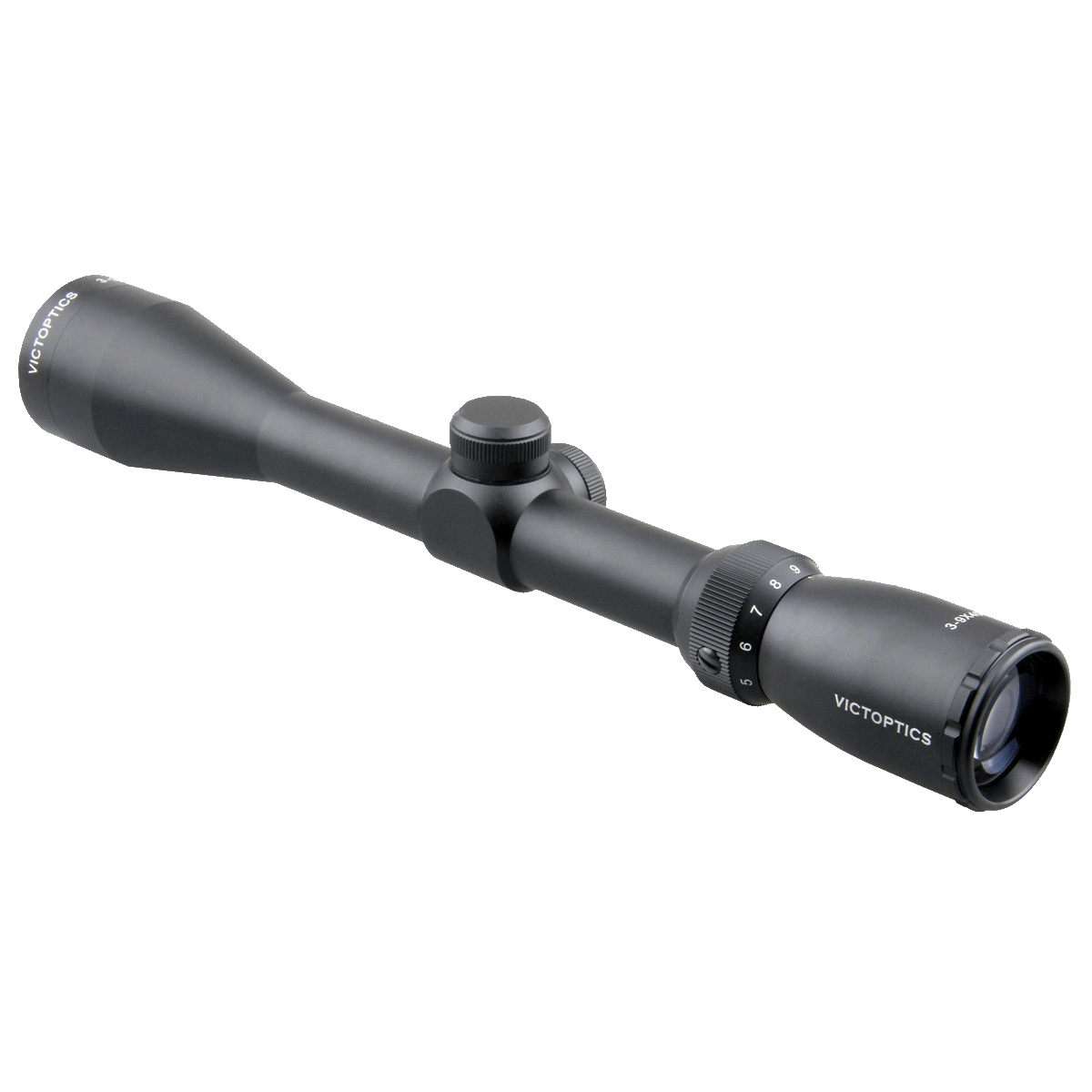

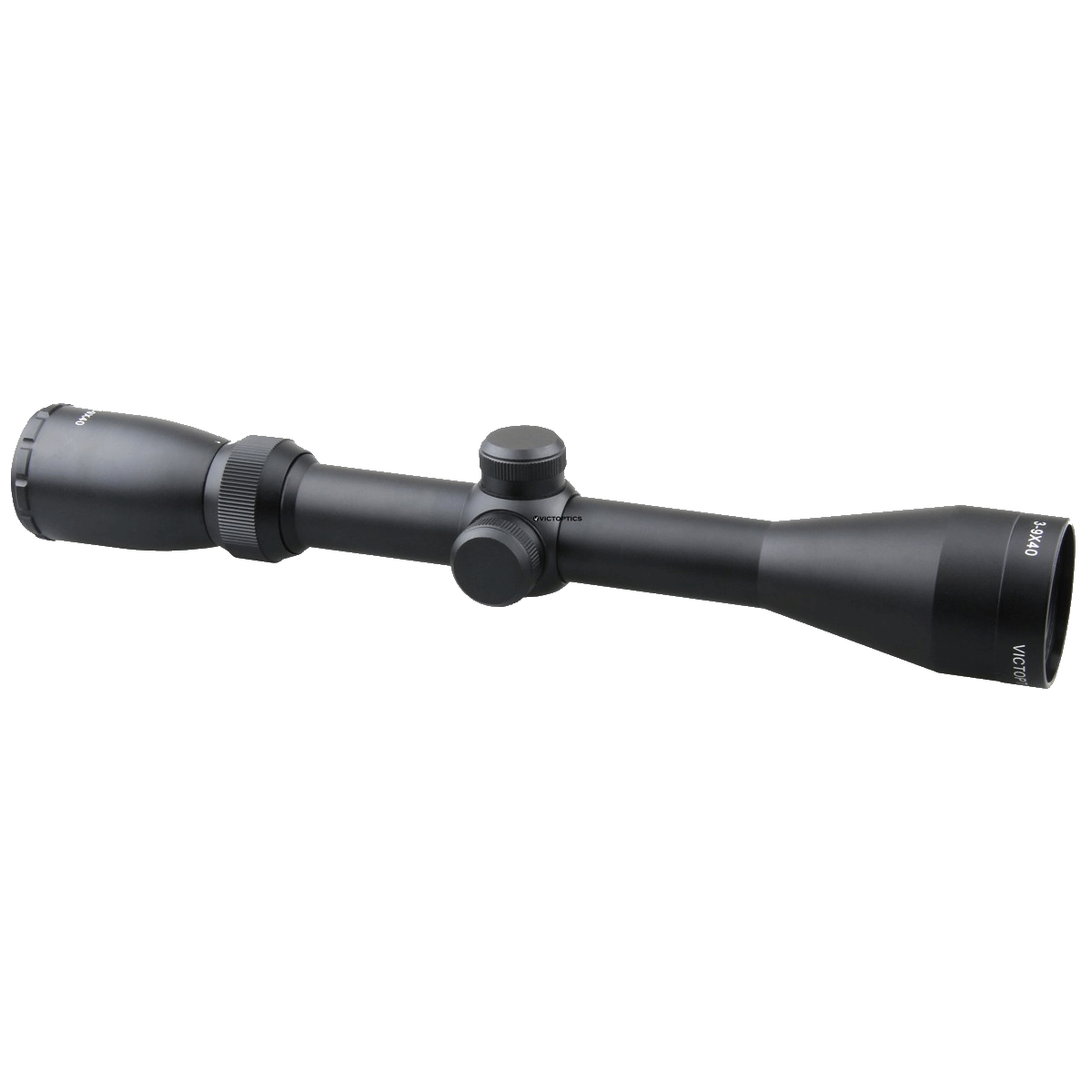

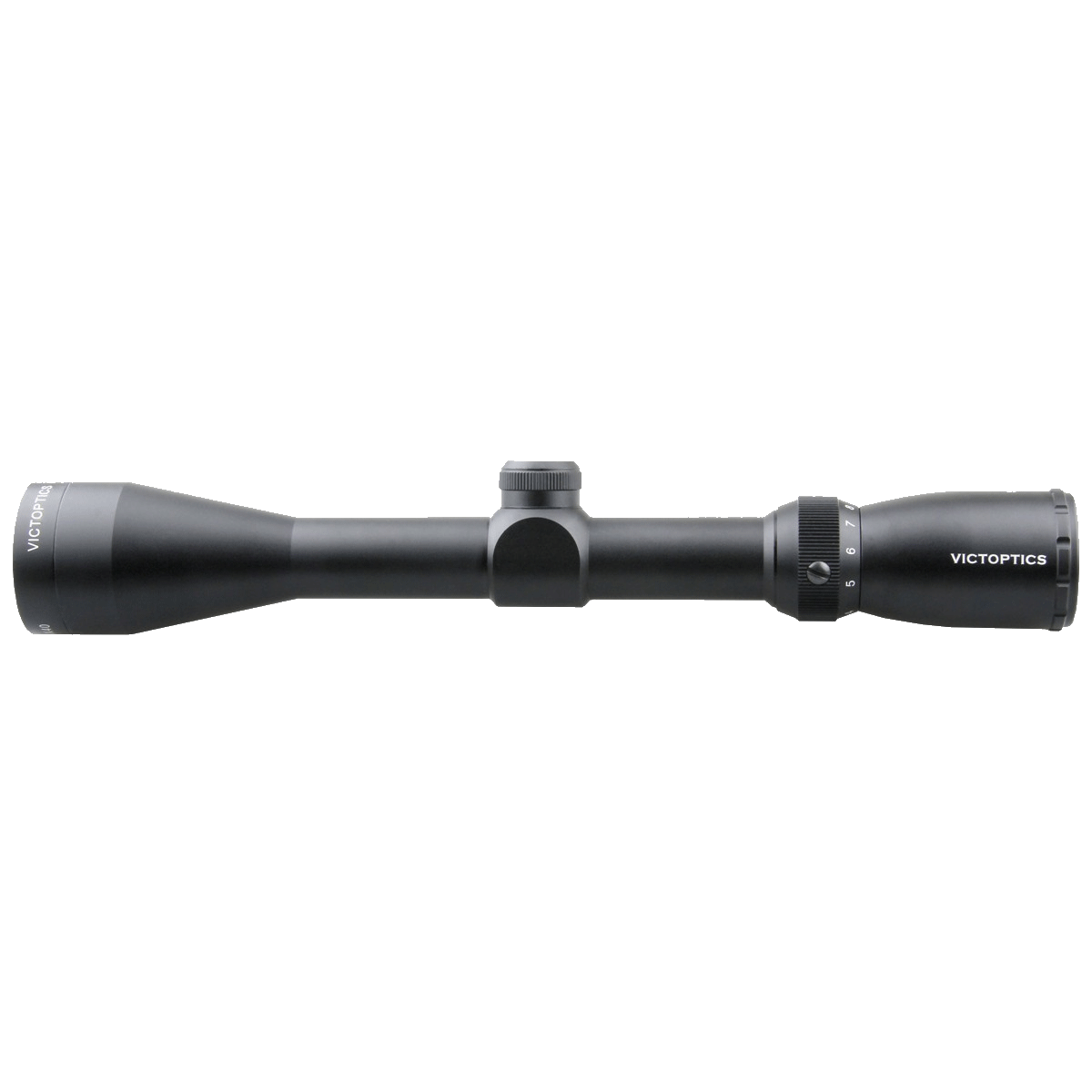

Victoptics PAC 3-9x40

Model: OPSL20

25.4mm One Inch Tube, Wide Field of View, Capped 1/4 MOA Adjustment

Find Online Stores Send Inquiry

Features

  • Fog Resistance

    Prevents lens fogging in wet or cold conditions. Maintain visibility and accuracy.

  • Second Focal Plane

    Consistent Reticle with Varying Magnification

  • IPX4 Water Resistance

    It can withstand water splashes, such as rain or accidental spills, but it is not fully waterproof and should not be submerged in water.

  • 1 inch Tube Size

    This tube size is mainly used in your average hunting rifle scope.

Specifications

  • Optical Parameters
  • Mechanical Parameters
  • Magnification 3-9x
    Objective Lens Dia 40 mm
    Focal Plane Second Focal Plane
    Eye Relief 78 mm / 3.1 in
    Exit Pupil 13.3-4.4 mm
    Lens Coating Multi-coated
    Linear Field of View @ 100 yd 11.5-4.2 ft @ 100 yards
    Linear Field of View @ 100 m 6.6-12.6 m @ 100 meters
    Angular Field of View 6.6-2.4°
    Reticle VMD-2
  • Tube Dia 25.4 mm
    Parallax Setting

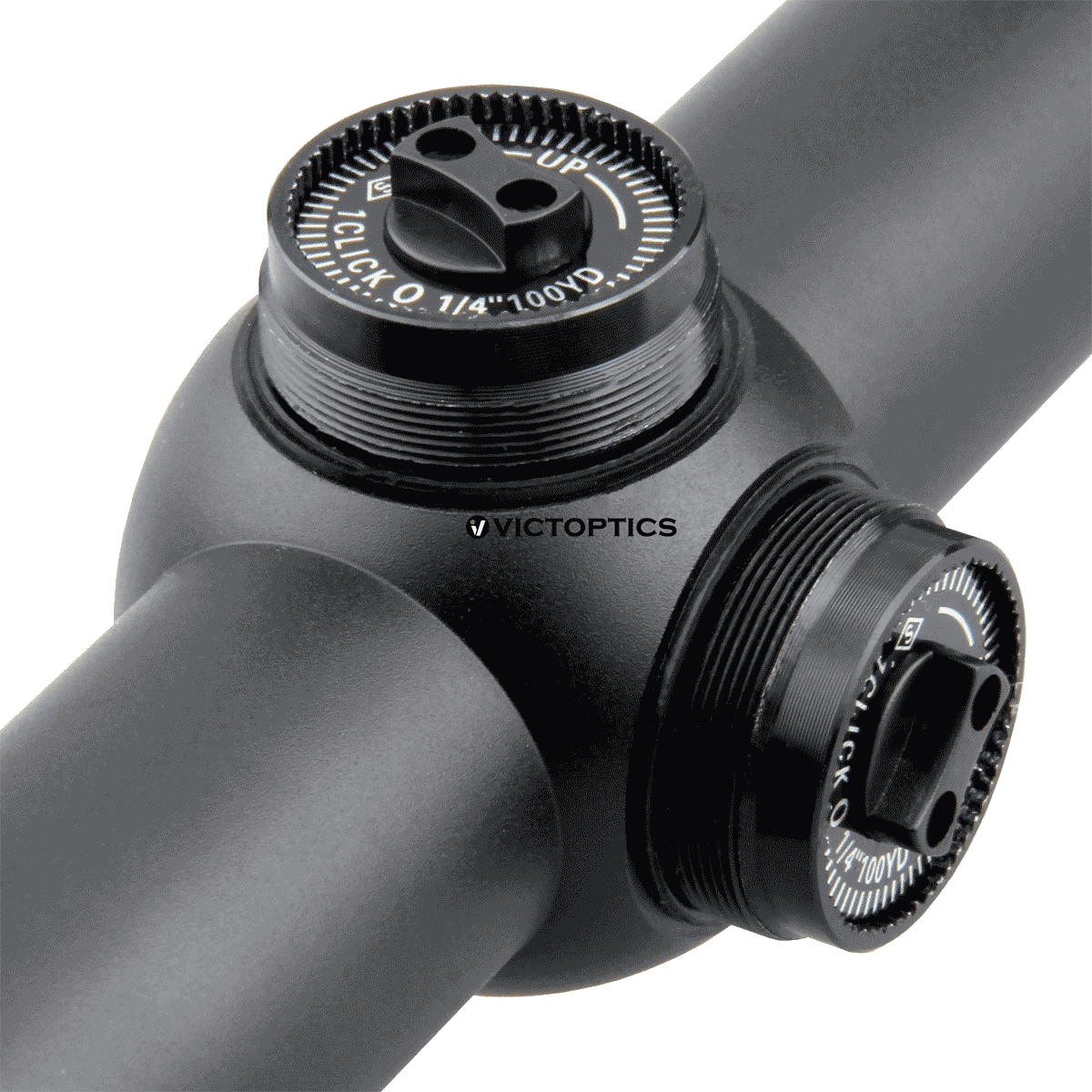

    Click Value 1/4 MOA
    Turret Function
    Elevation Adjustment Range 60 MOA
    Windage Adjustment Range 60 MOA
    Diopter Compensation
    Illumination Setting N/A
    Battery Type
    Waterproof IPX4
    Fogproof Nitrogen Filled
    Shockproof 750 G
    Housing Material 6063-T6 Aluminum Alloy
    Finish Matte Black

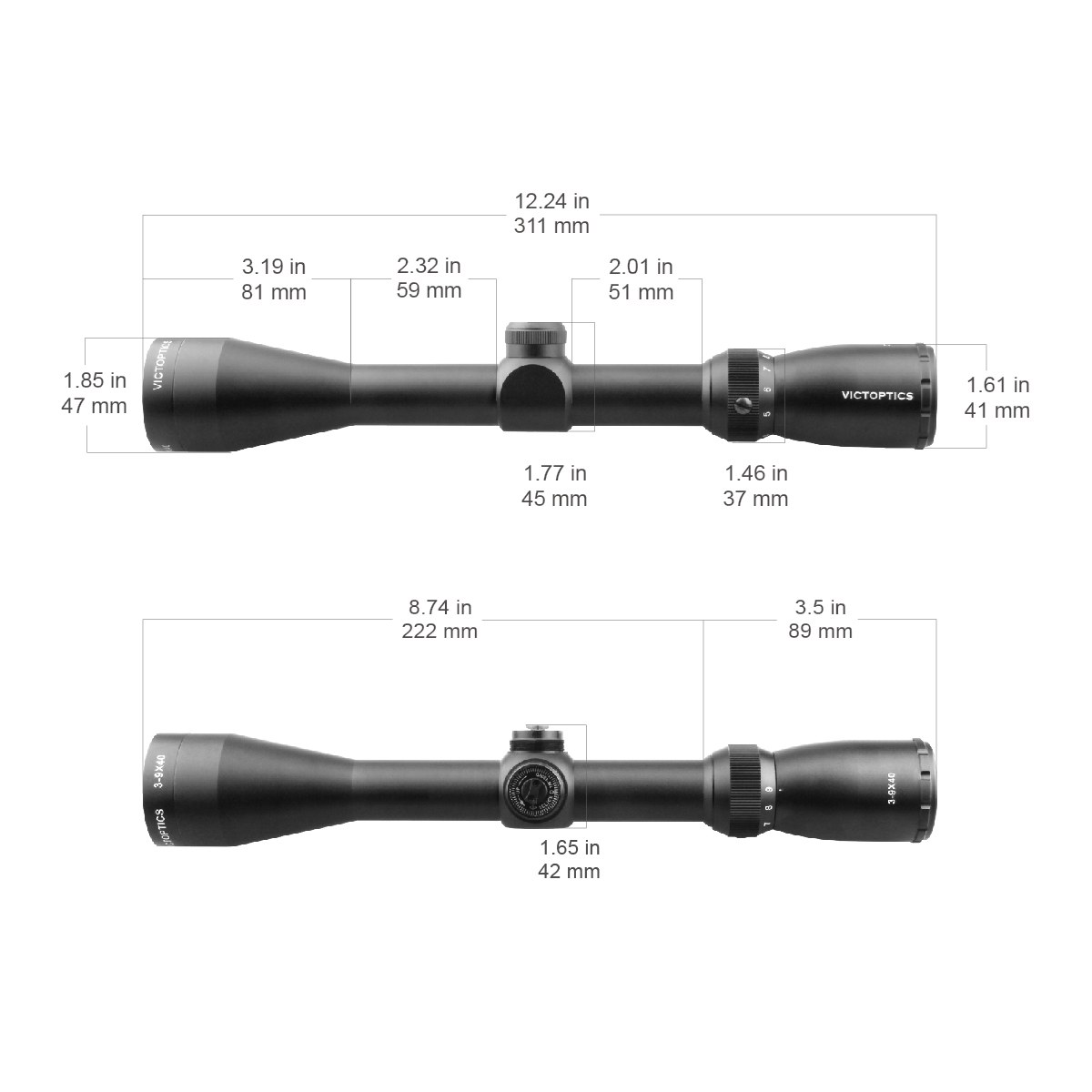

    Length 310 mm / 12.2 in
    Weight (Net) 370 g / 13.0 oz

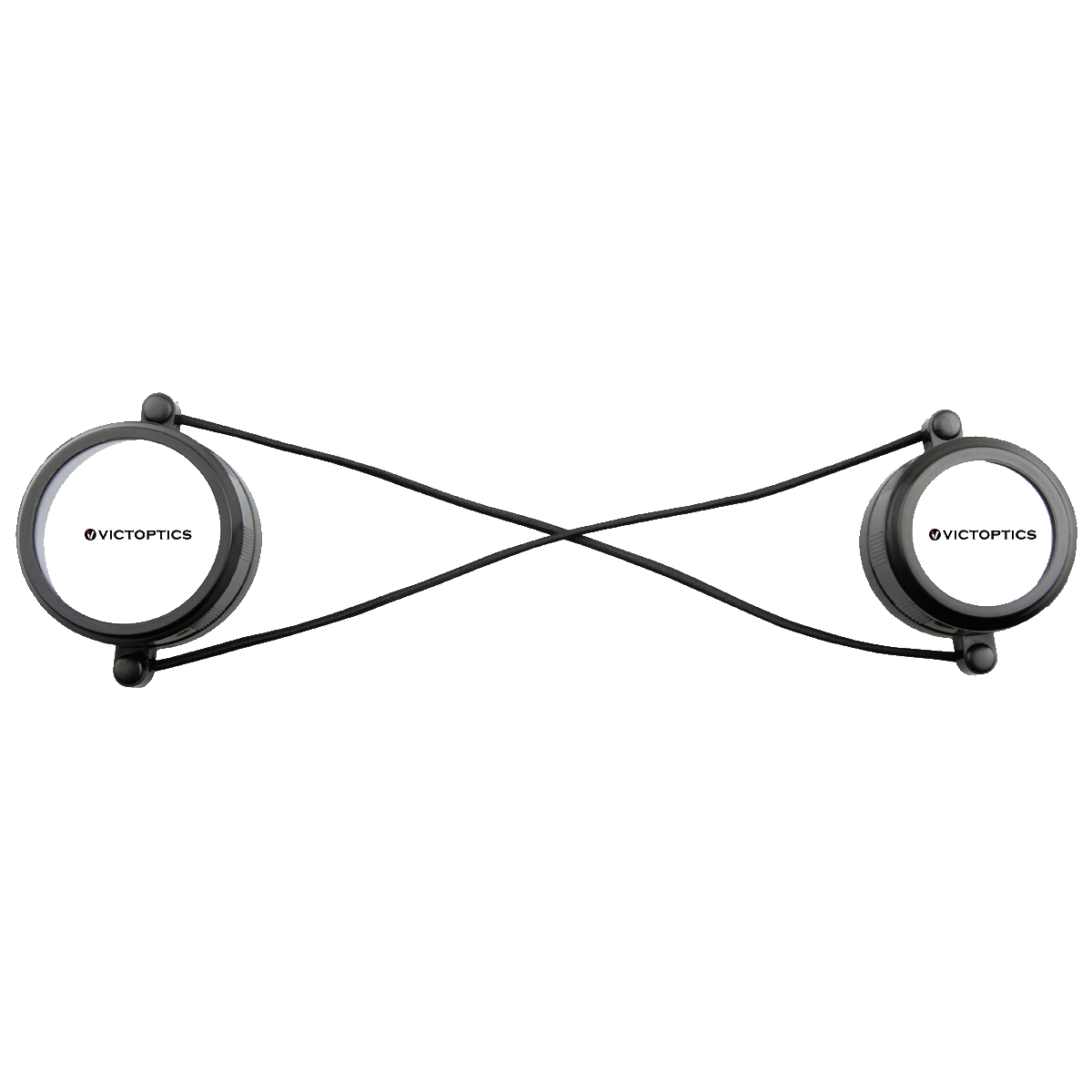

    Items in the Package One Pair Of 25.4mm Weaver Scope Rings, Cleaning Cloth, Lens Flip-Up Caps

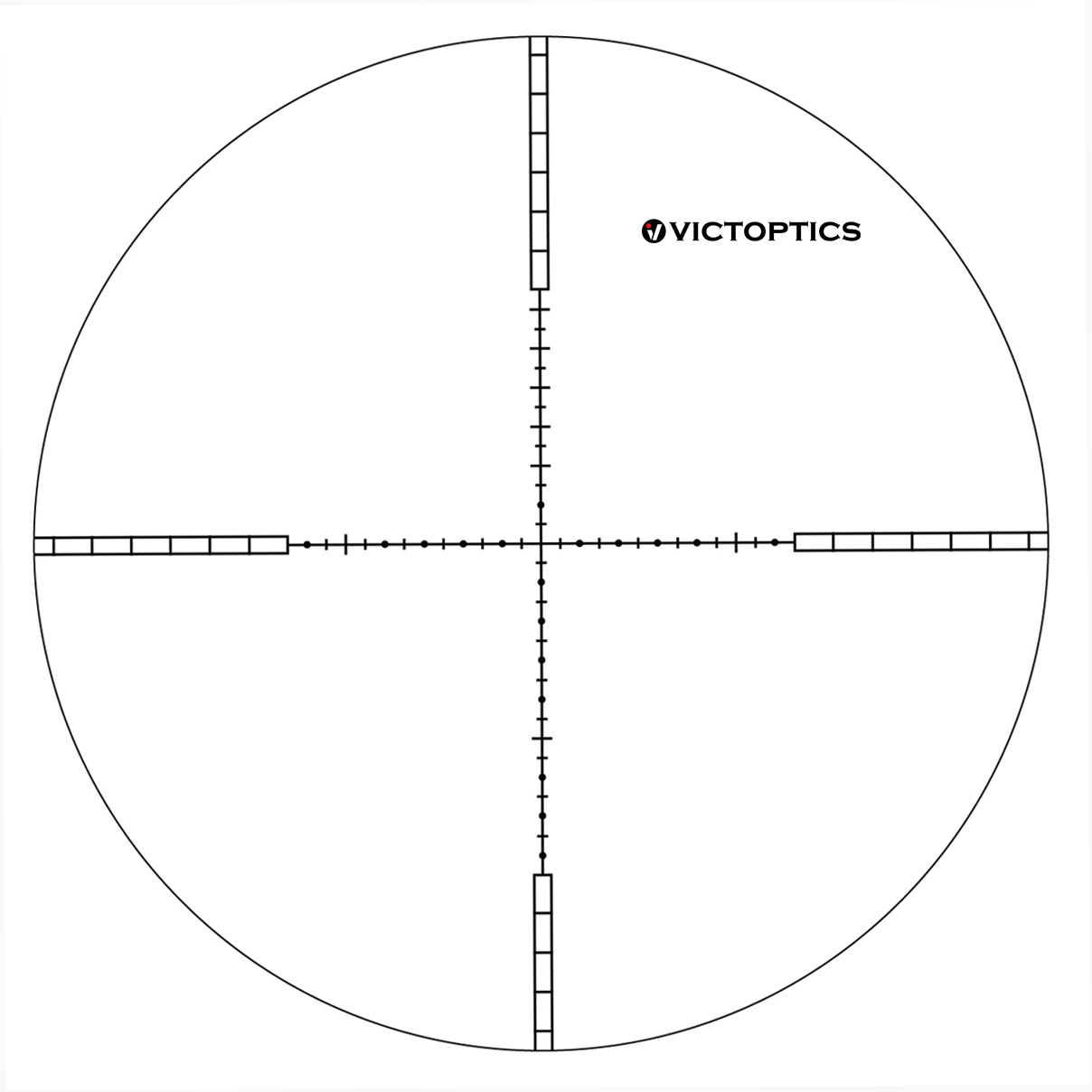

  • VMD-2 Reticle

Download

  • Victoptics Universal Scope Manual
  • VIS-FMIL & MDL & VMD-2 Reticle Manual

Warranty Policy

The product supports a 1-year warranty policy.
