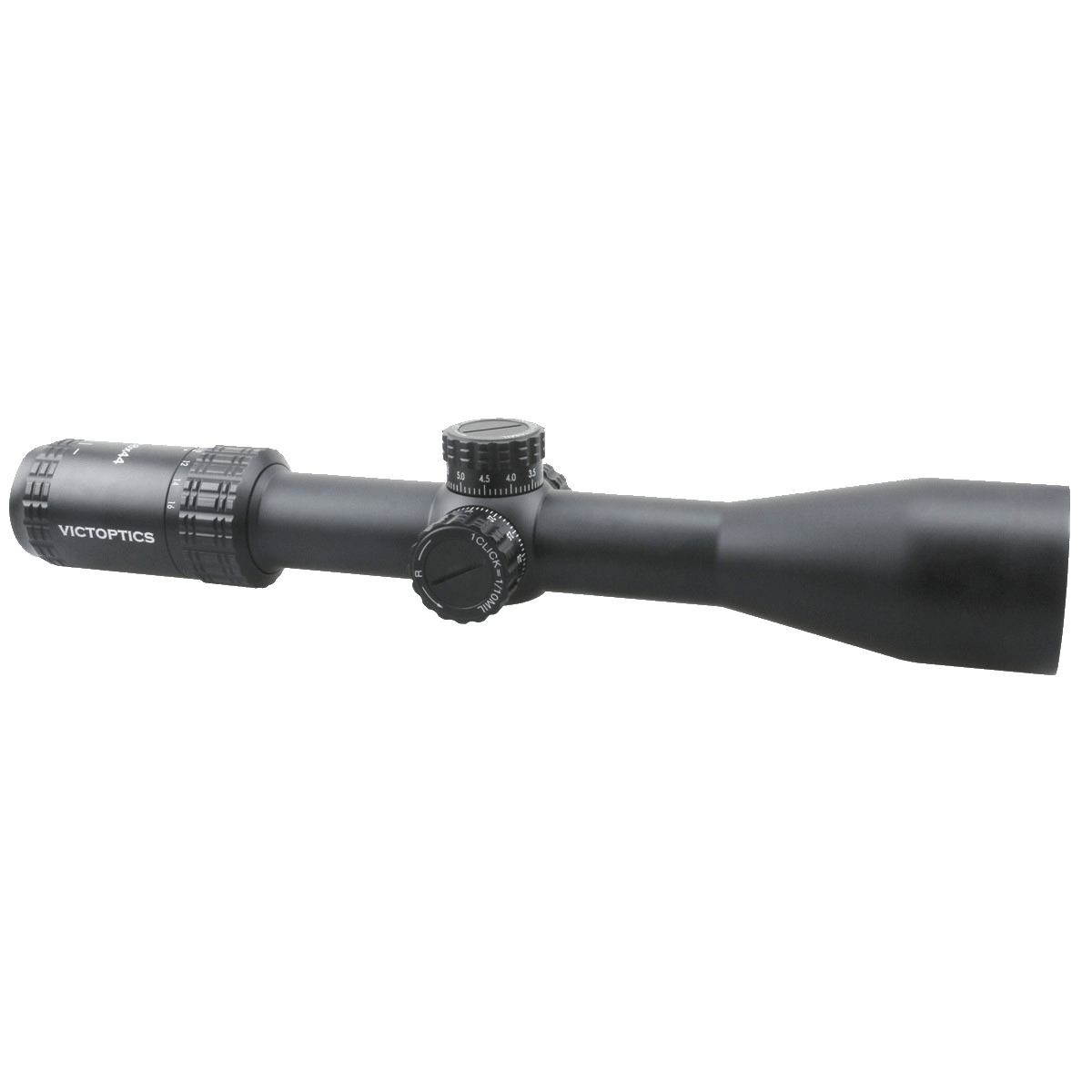

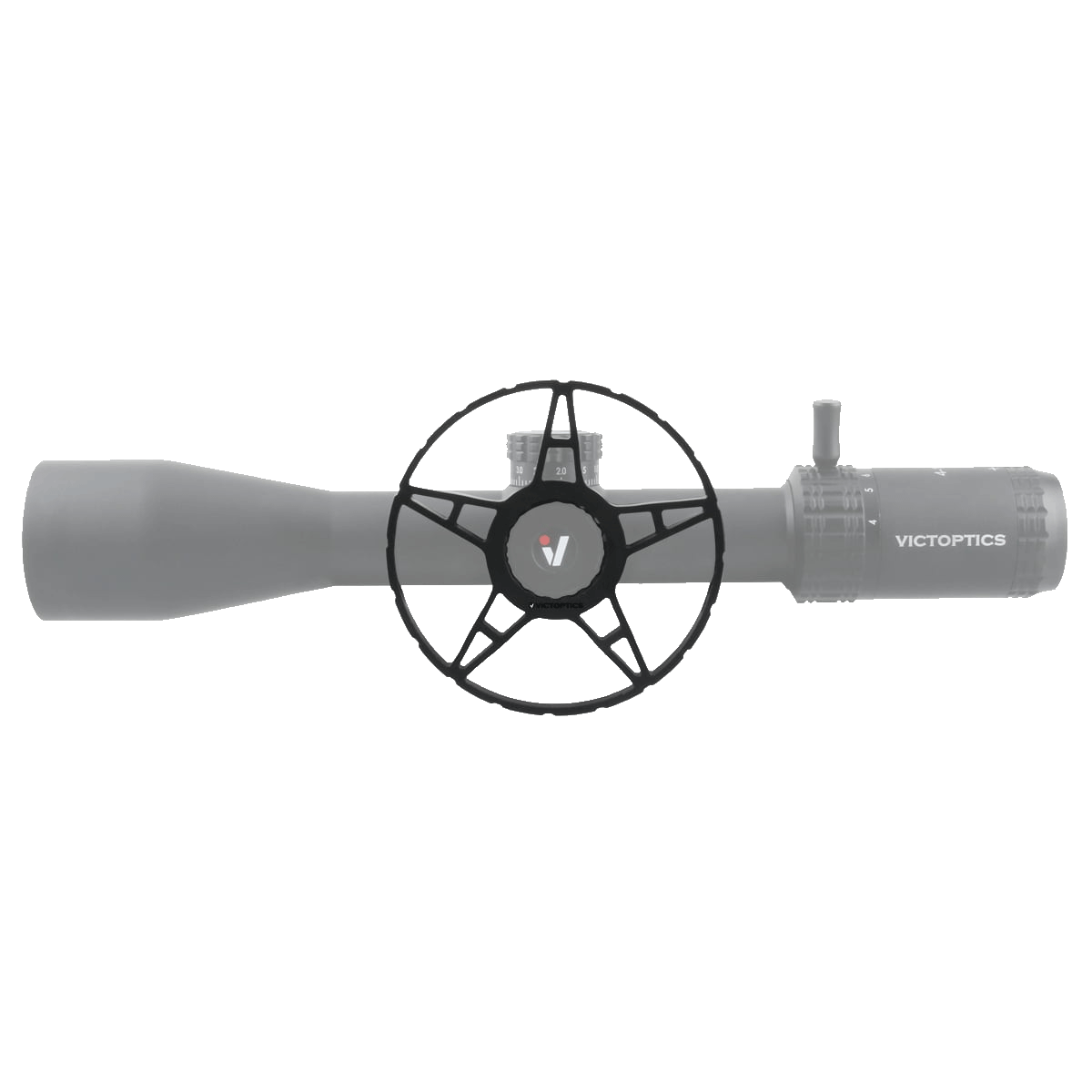

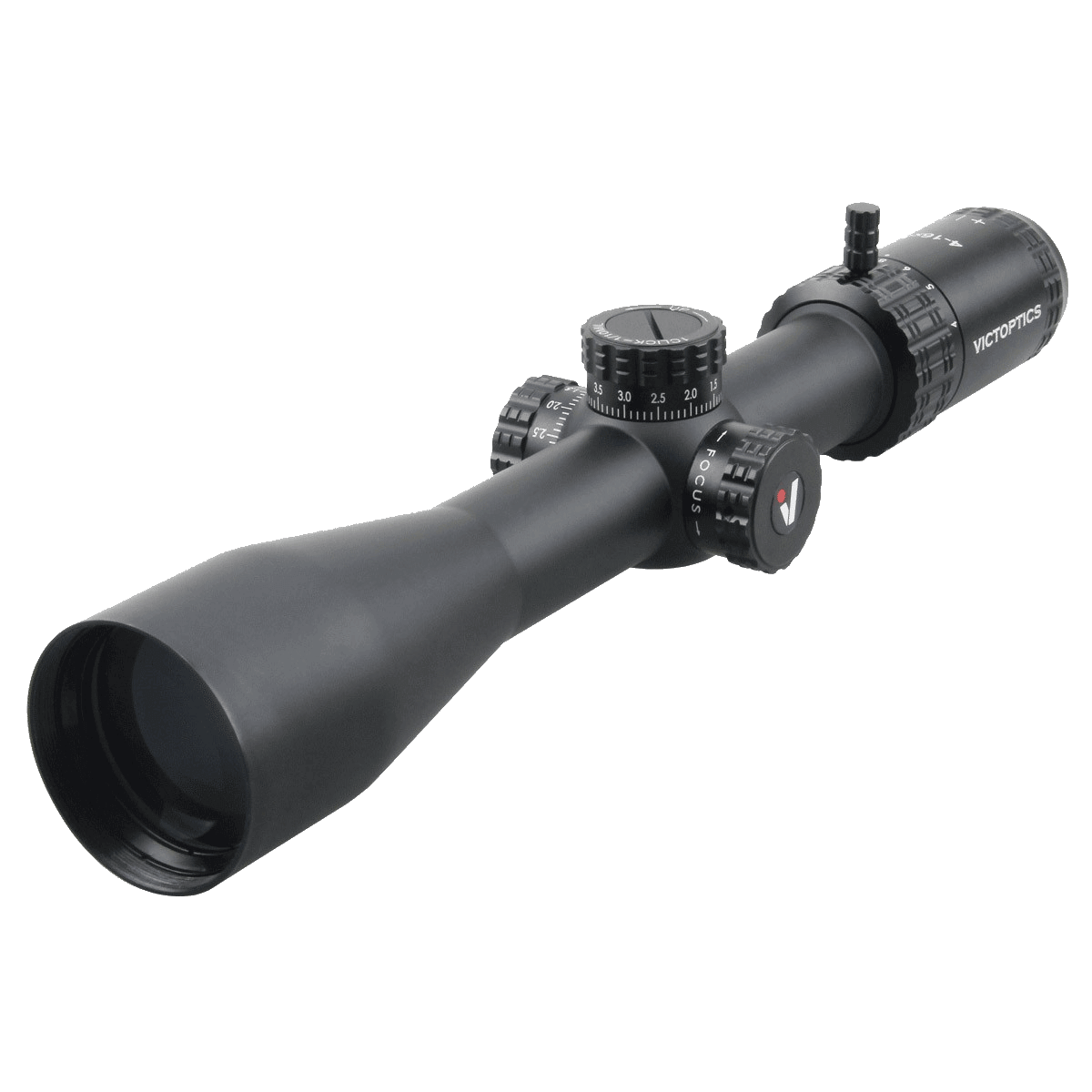

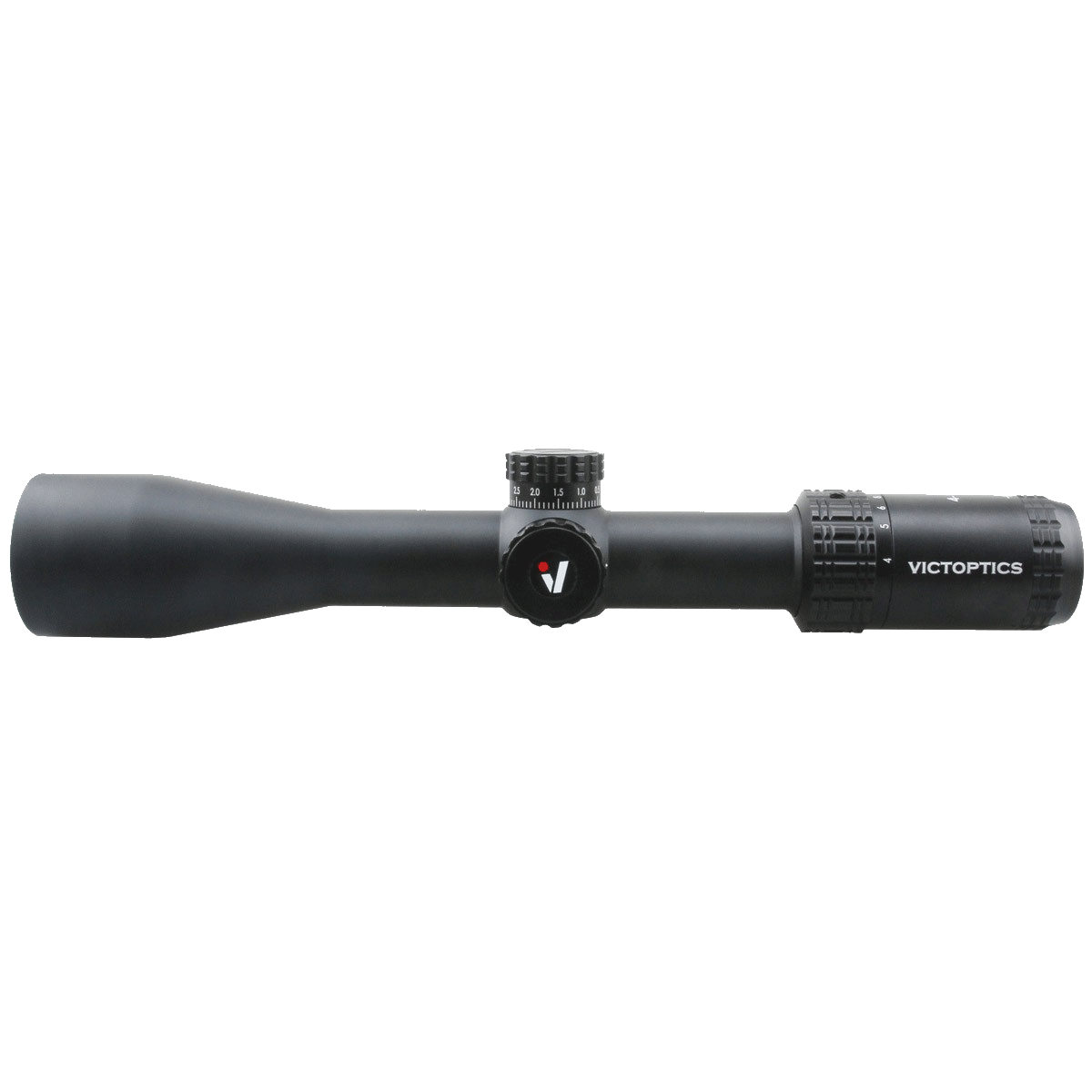

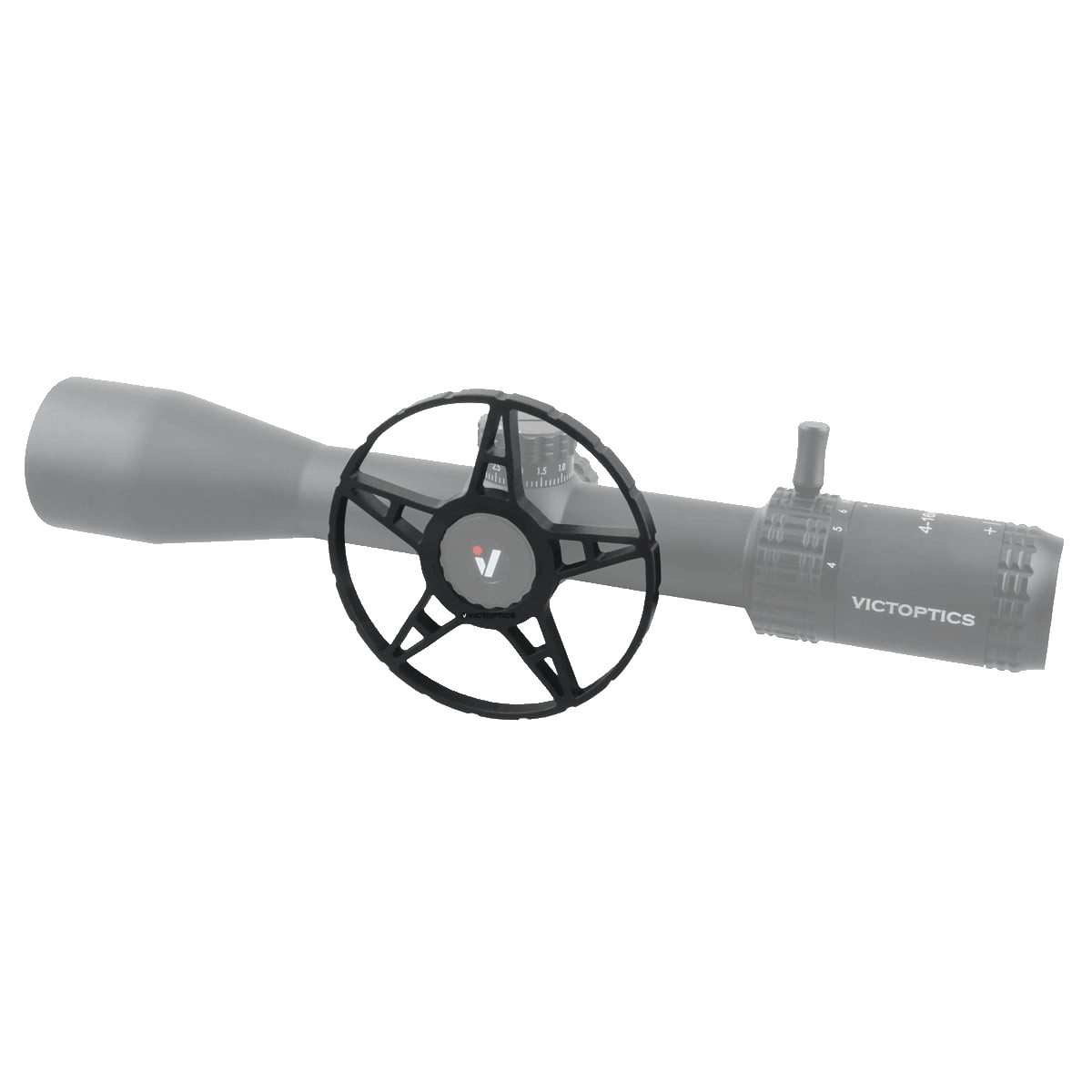

Super Slim Edge-to-Edge Image, Crystal Clear Optics, 1/10MIL Adjustment with Turret Lock Feature WDL Reticle Used at 10x Power, Custom Designed Patent Reticle Exclusive for Air Guns & Fire Arms Long Eye Relief, 30mm Monotube, Wide Field of View, Side Focus Min at 15 Yds, Power Ring Lever Mount
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 11.0-2.75 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 28.8-7.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 9.6-2.4 m @ 100 meters |
| Angular Field of View | 5.5-1.4° |

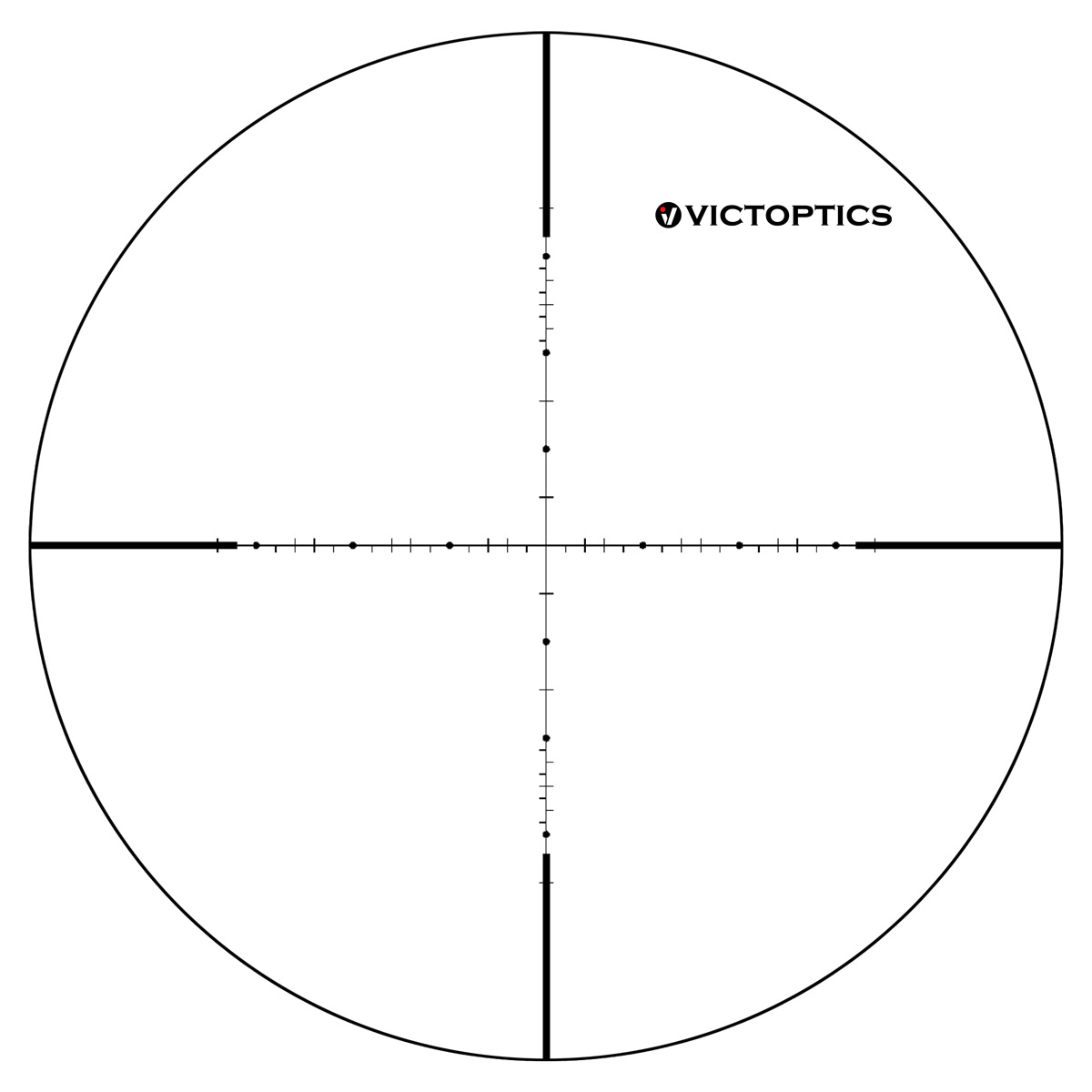

| Reticle | MDL wire reticle |
| Tube Dia | 30 mm |

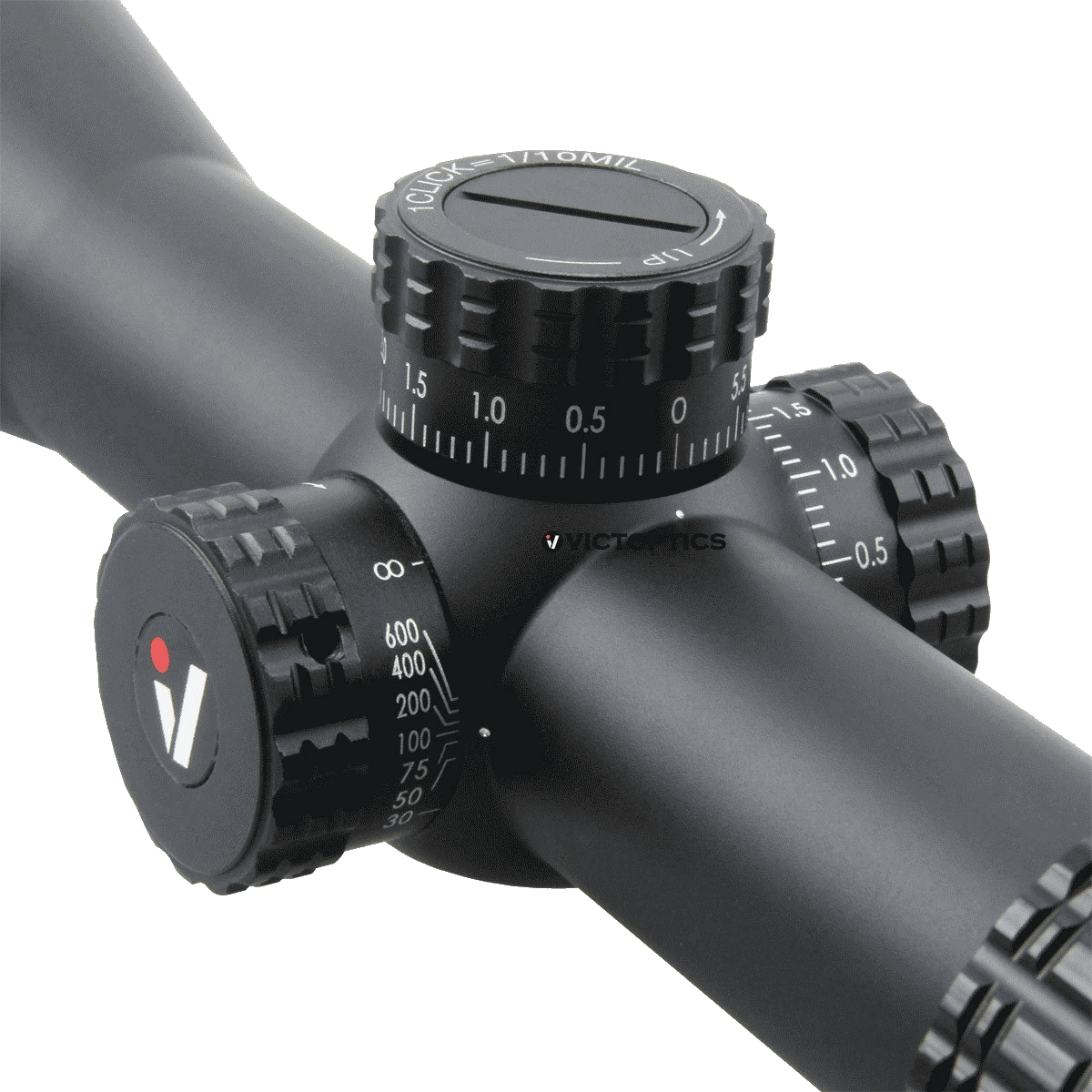

| Side Focus | 15 yards to Infinity |

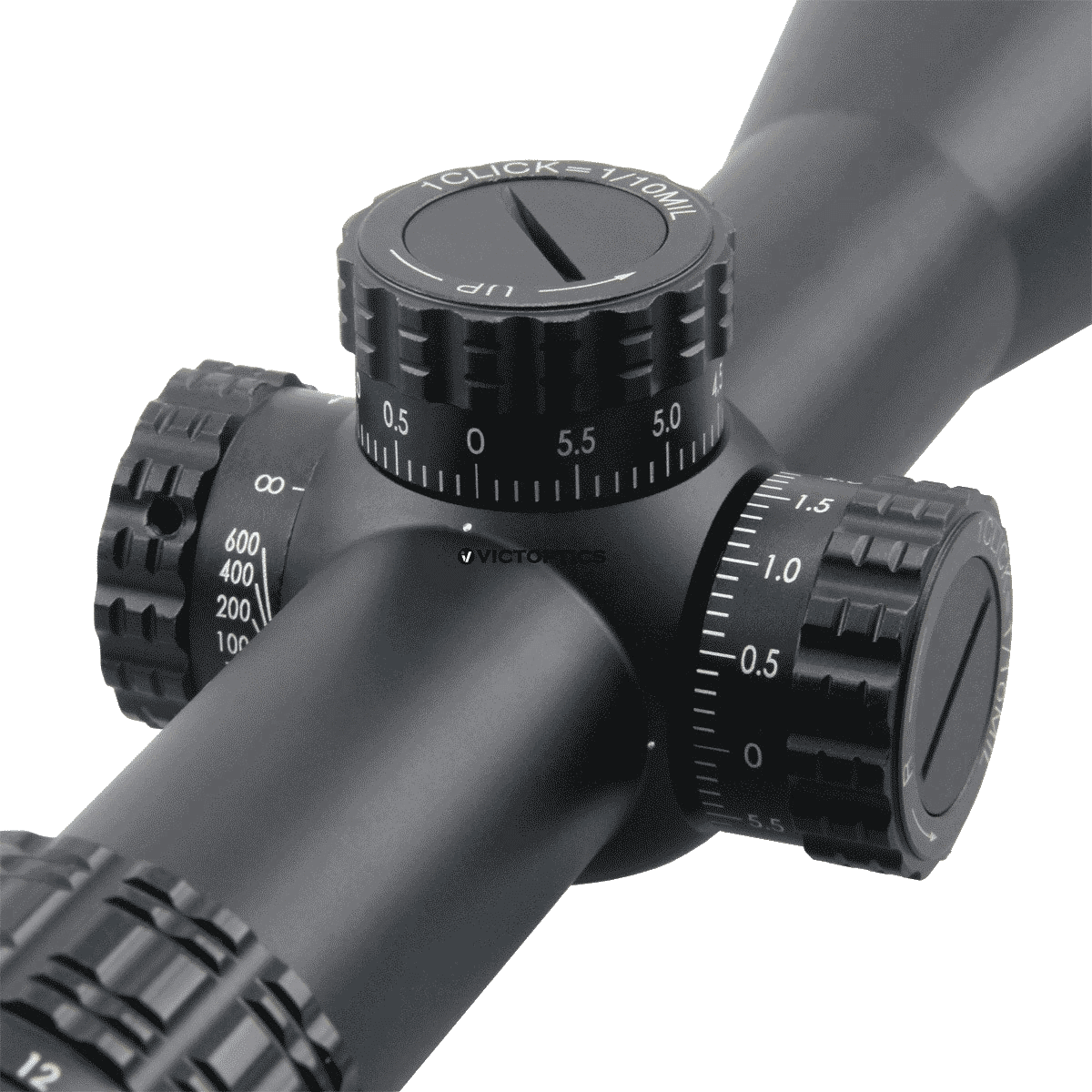

| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 15 MIL |
| Windage Adjustment Range | 15 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061 T6 Aluminum Alloy |
| Finish | Matte Black |

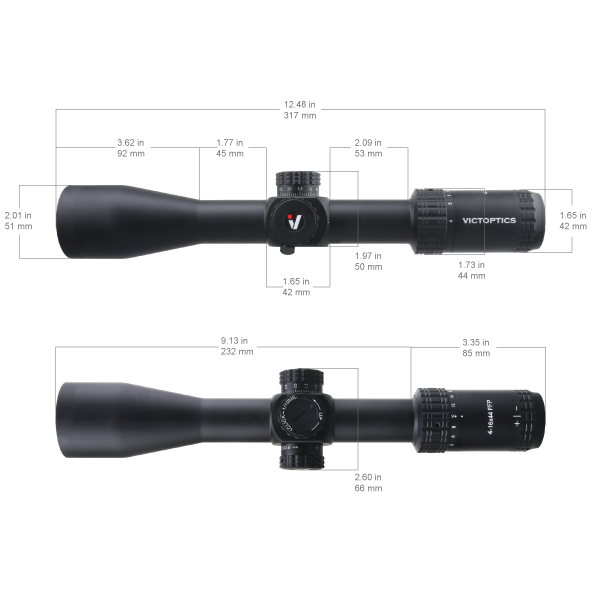

| Length | 315 mm / 12.4 in |
| Weight (Net) | 515 g / 18.2 oz |

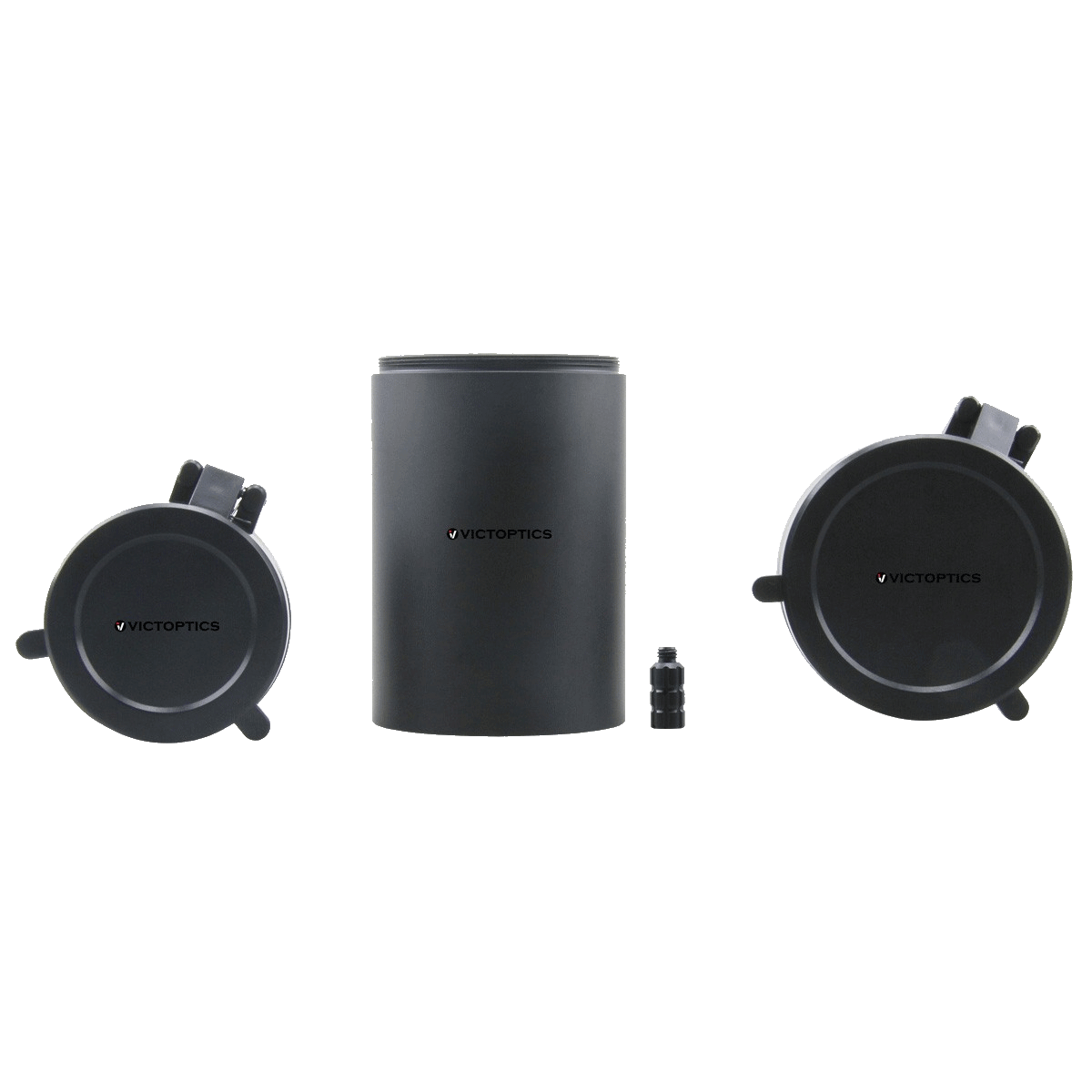

| Items in the Package | One Pair Of 30mm Weaver Scope Rings, Power Ring Lever, 3 Inch Sunshade, Cleaning Cloth, Instruction, Lens Flip-Up Caps |
