Fully Multi-coated Lens for Increased Light Transmission, Presenting Edge-to-Edge Image 5-Gear Green and Red Illuminated Reticle, Adaptable to Various Backgrounds Scaled at a 9x Magnification, Capped 1/10 MIL Click Value for W/E Corrections 4 inch / 100 mm Long Eye Relief Maintains Proper Shooting Stance without Worrying Scope Bite
| Magnification | 3-9x |
| Objective Lens Dia | 40 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm |
| Exit Pupil | 13.3-4.4 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 28.2-10.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 9.4-3.4 m @ 100 meters |
| Angular Field of View | 5.39-1.95 ° |
| Reticle | VNM-1 MIL |
| Tube Dia | 25.4 mm / 1 in |
| Parallax Setting | 100 yards |

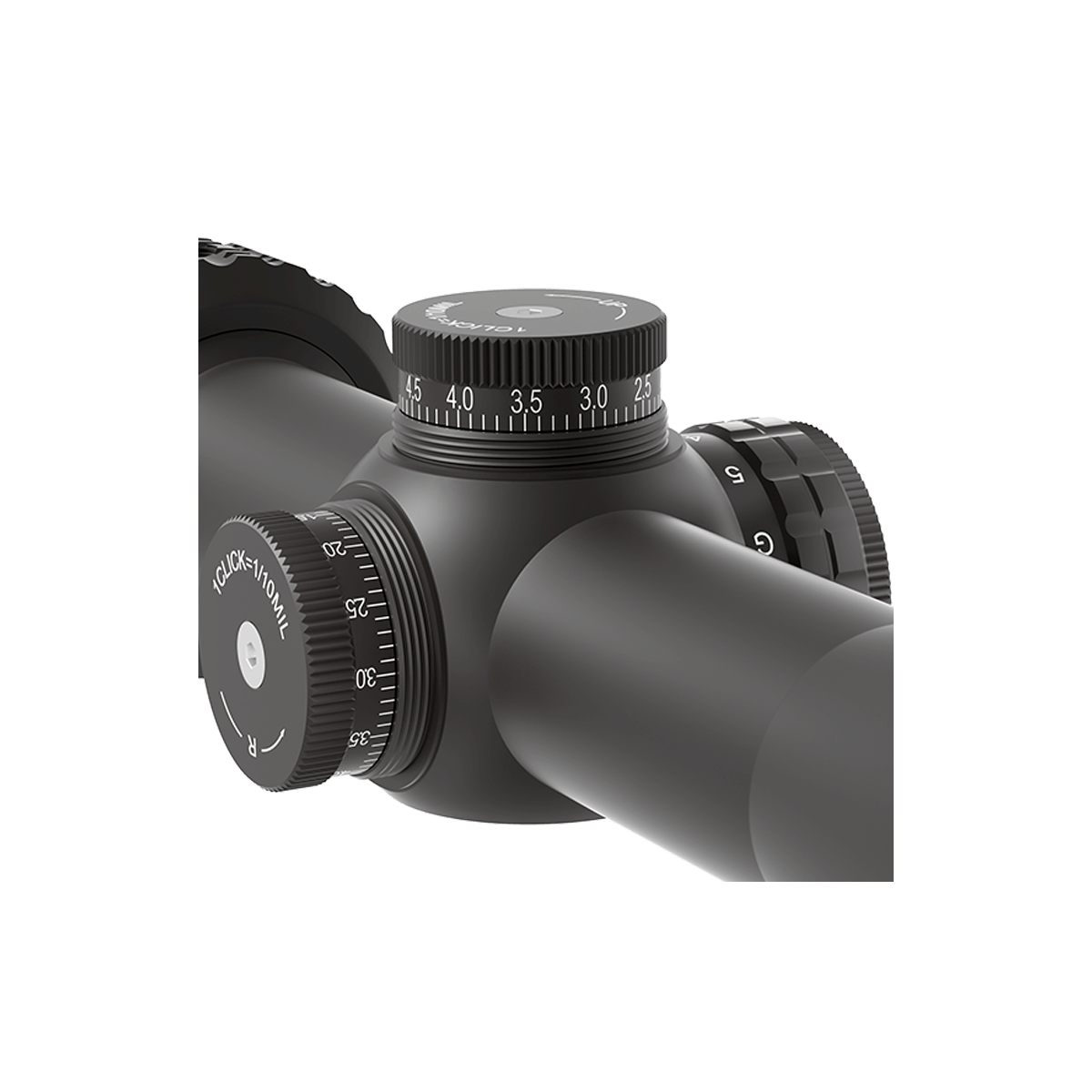

| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | >18 MIL |
| Windage Adjustment Range | >18 MIL |
| Diopter Compensation | -2 to +2 |

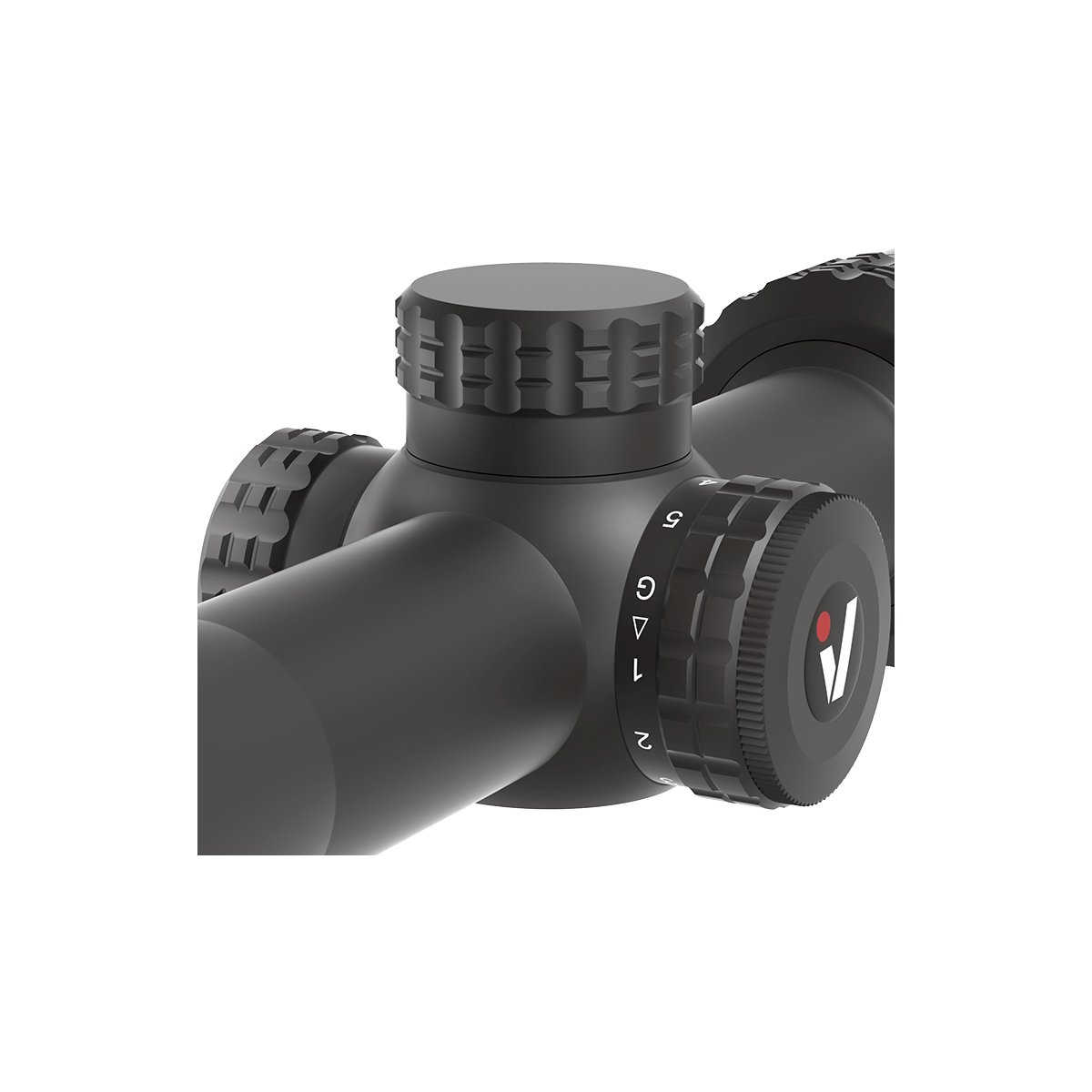

| Illumination Setting | 5 Gears, Red and Green |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 305 mm / 12 in |
| Weight (Net) | 447 g / 15.8 oz |

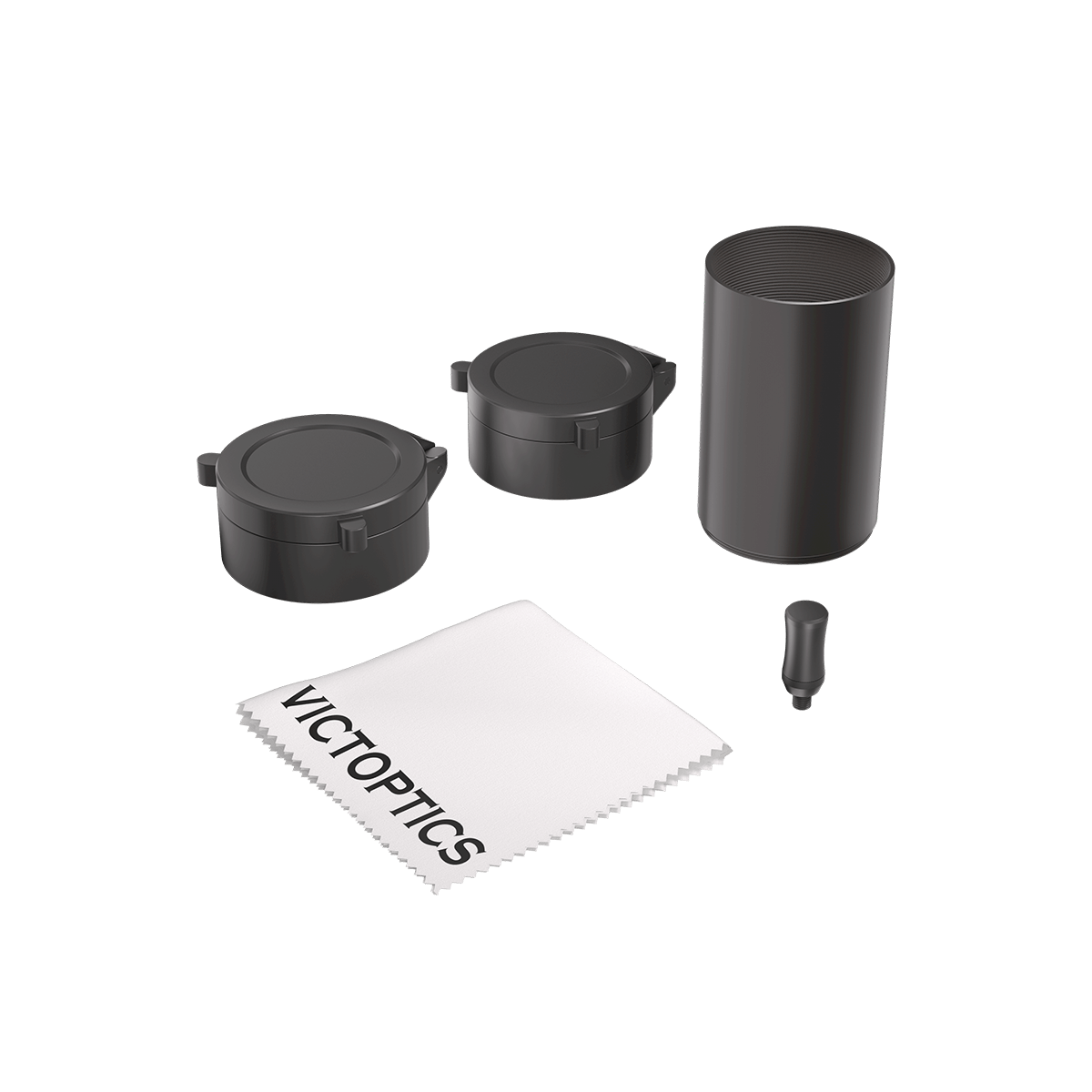

| Items in the Package | User Manual, Cleaning Cloth, Flip-up Caps, Sunshade, Plastic Wrench, Power Throw Lever, etc. |
