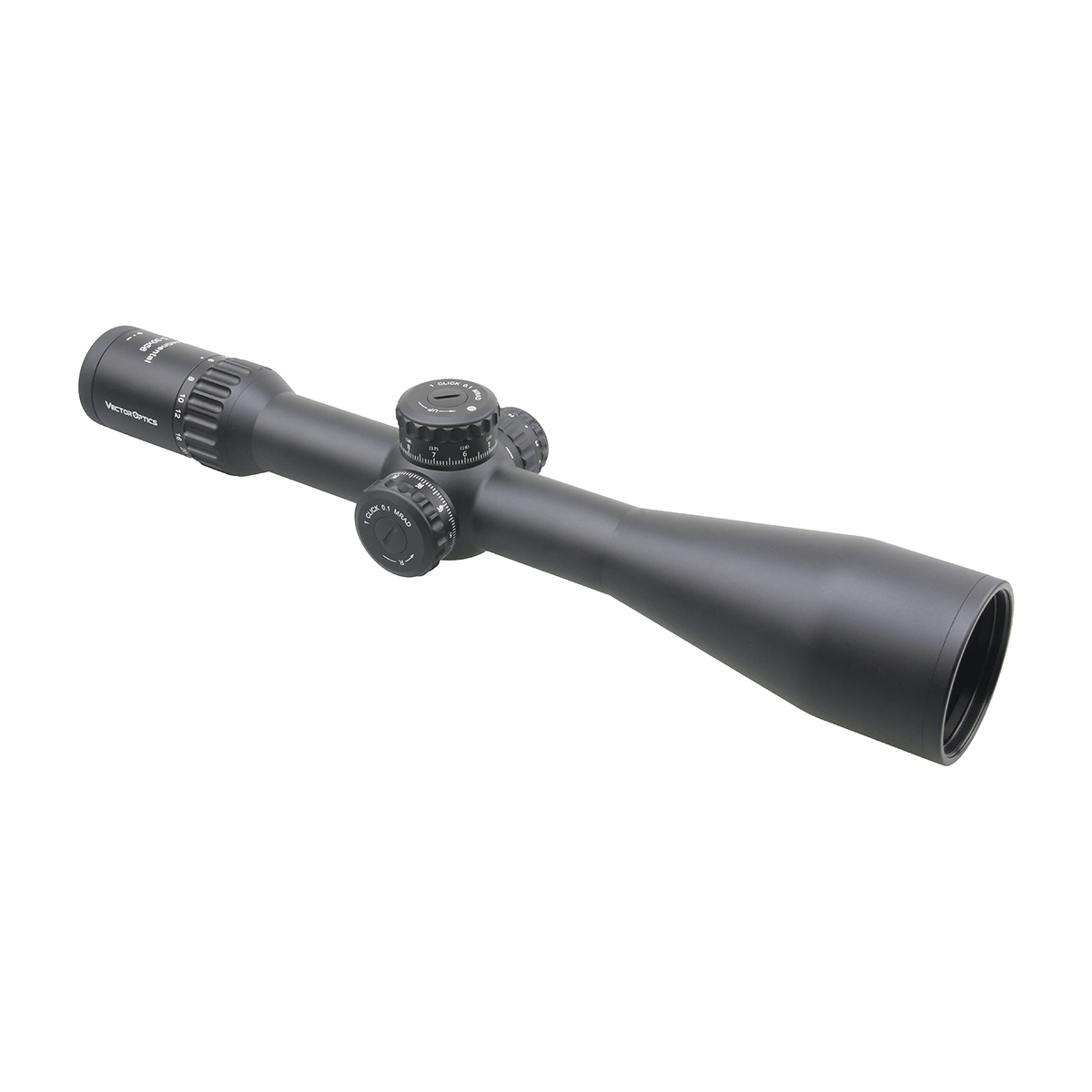

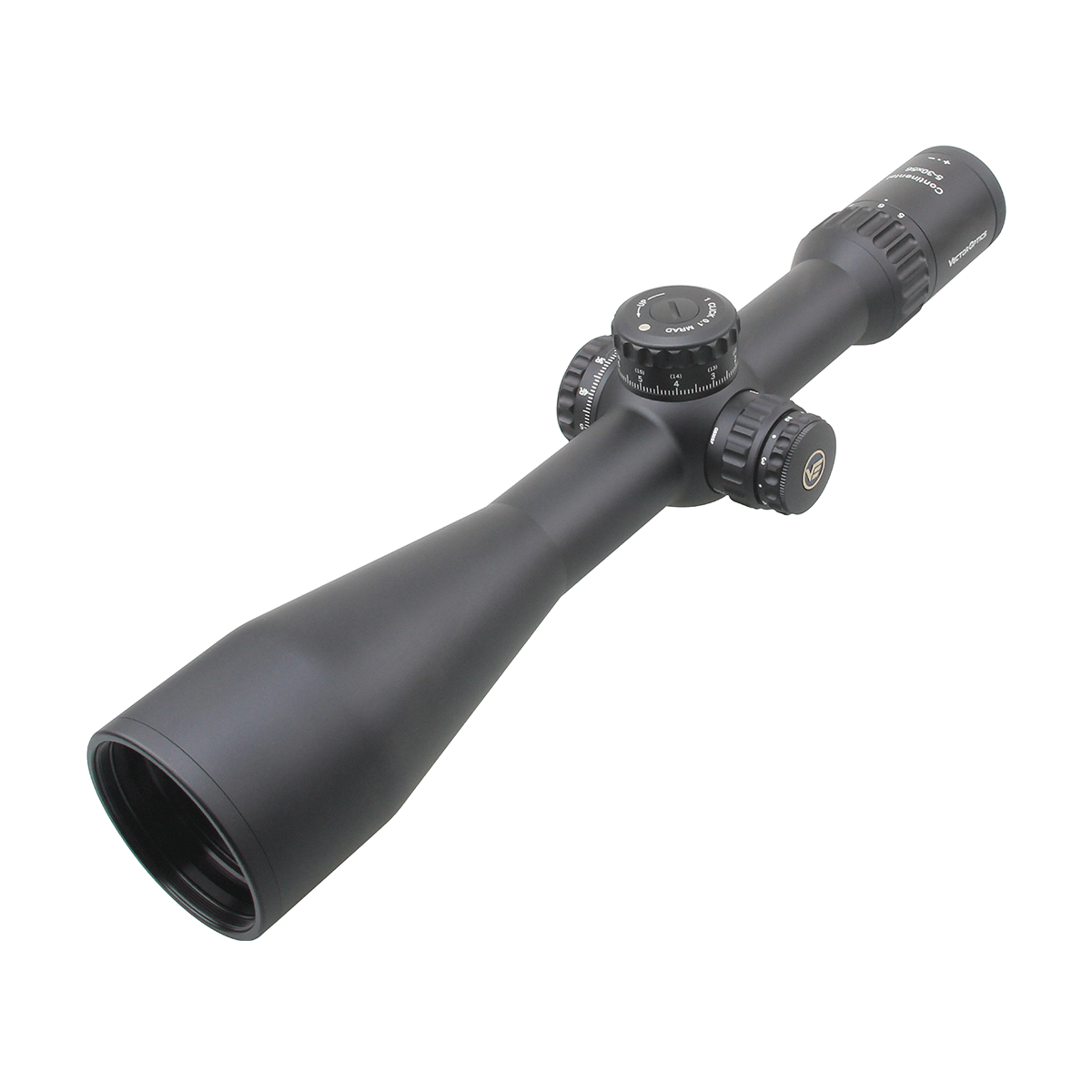

34mm Monotube Made of 6061 T6, First Focal Plane Scope with German Schott HD Glass. German Optics System by Using LaREE Lens & VePRO FMC, > 90% Light Transmission. Very Little Distortion, Extra-Low Dispersion, Excellent for Dawn, Dusk Even at Night Shooting. True 6x Zoom Factor, Constant 4" Eye Relief without Inside Dark Ring Around Image. 6 Levels Red Illumination, Side Focus Parallax Min Starts from 10 Yards to Infinite. Adjustment System Made of 7075 T6 That Never Snag on Anything and Never Get Turned. 1/10MIL Adjustment, Zero Stop & Turret Lock, 100 Clicks per Round, 26MIL Elevation Range Etched Glass VEC-MBR MIL Ranging Reticle, Center Cross Illuminated with Digital Lines & Dots Take Lapua Magnum 338 Recoil and All Fields of Application for Hunting, Sporting & Competition
| Magnification | 5-30x |
| Objective Lens Dia | 56 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 24.5-4.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.1-1.36 m @ 100 meters |
| Angular Field of View ° | 4.7-0.8° |
| Reticle | VEC-MBR |
| Tube Dia | 34 mm |
| Side Focus | 10 yards to Infinity |

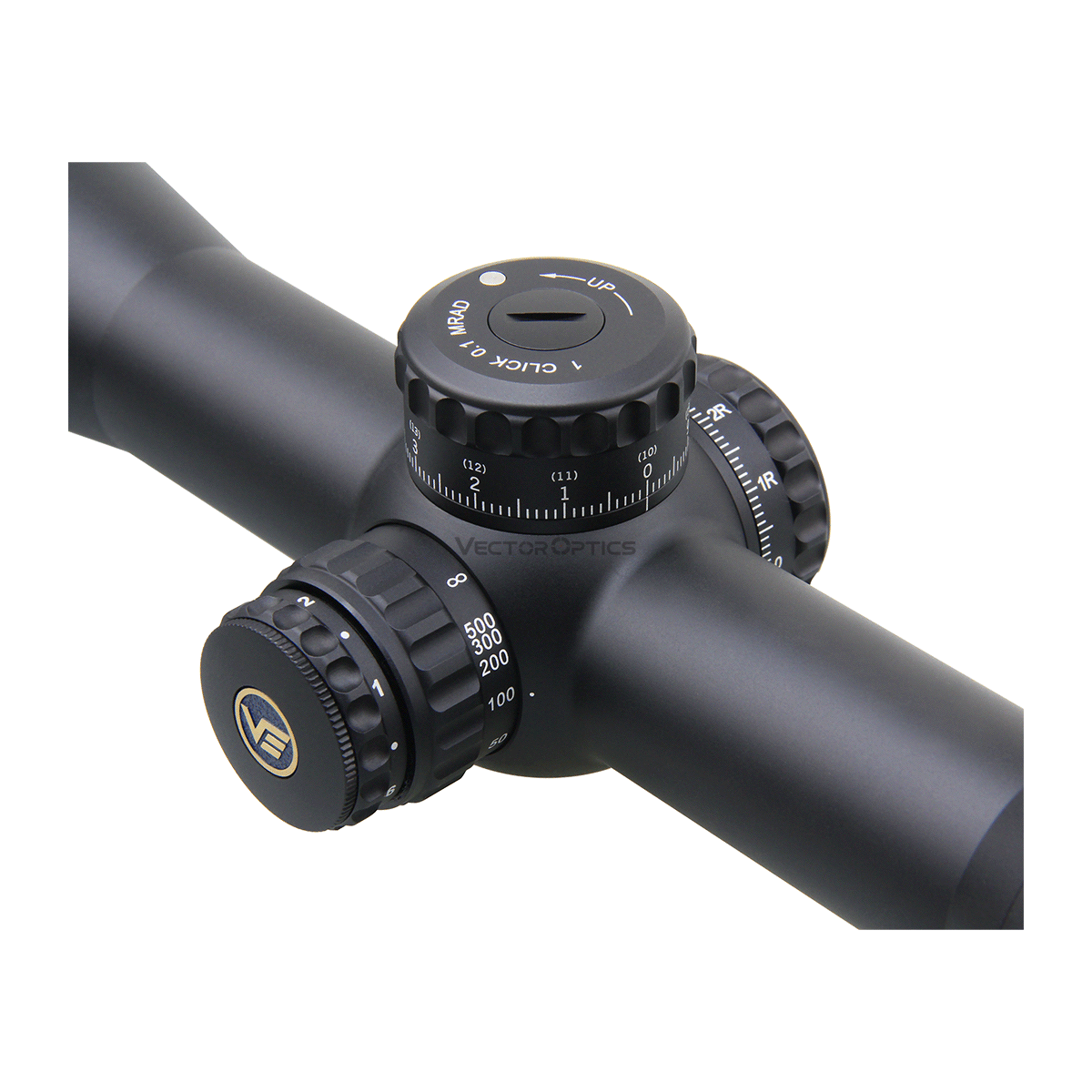

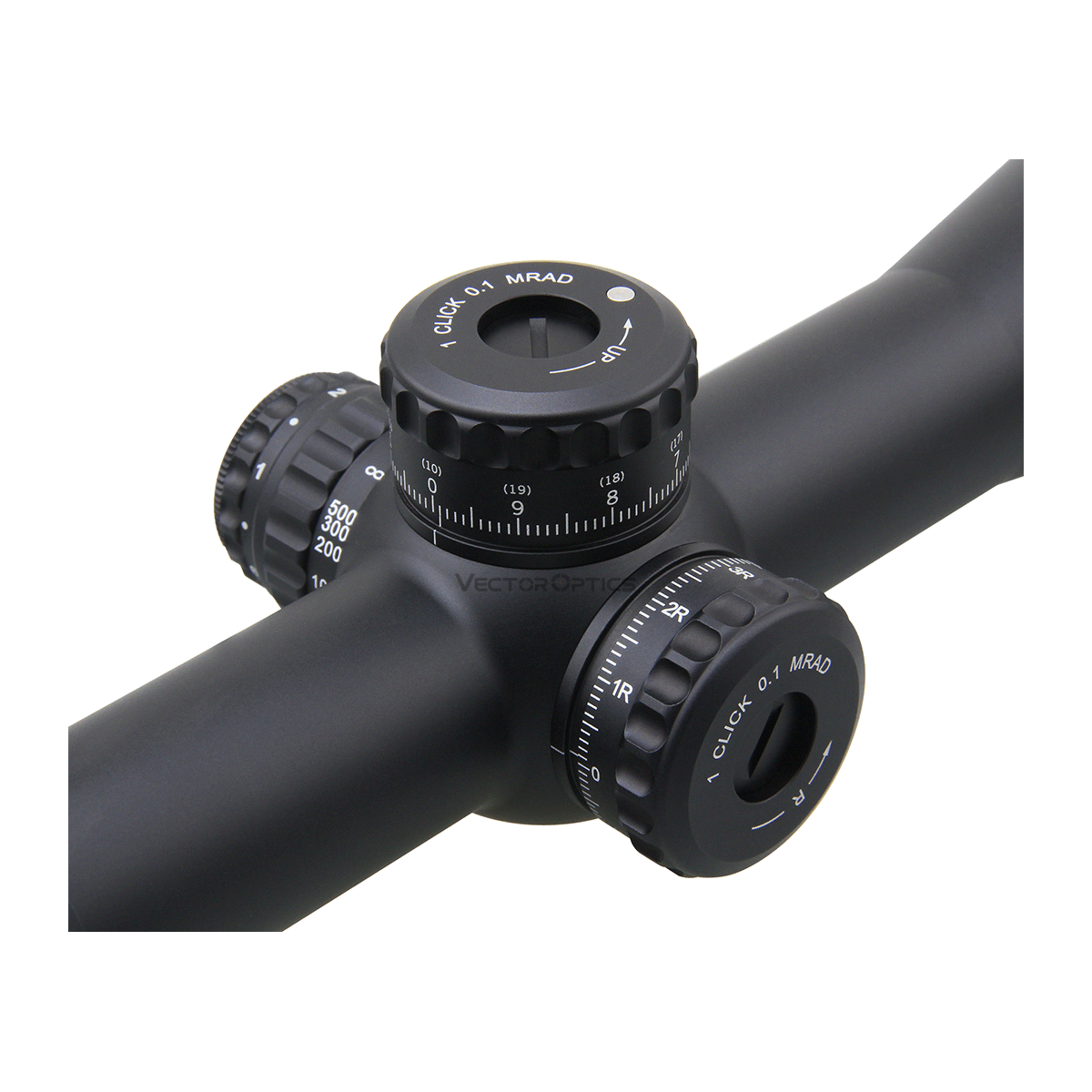

| Click Value | 1/10 MIL |
| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | 26 MIL |
| Windage Adjustment Range | 16 MIL |
| Diopter Compensation | -3 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

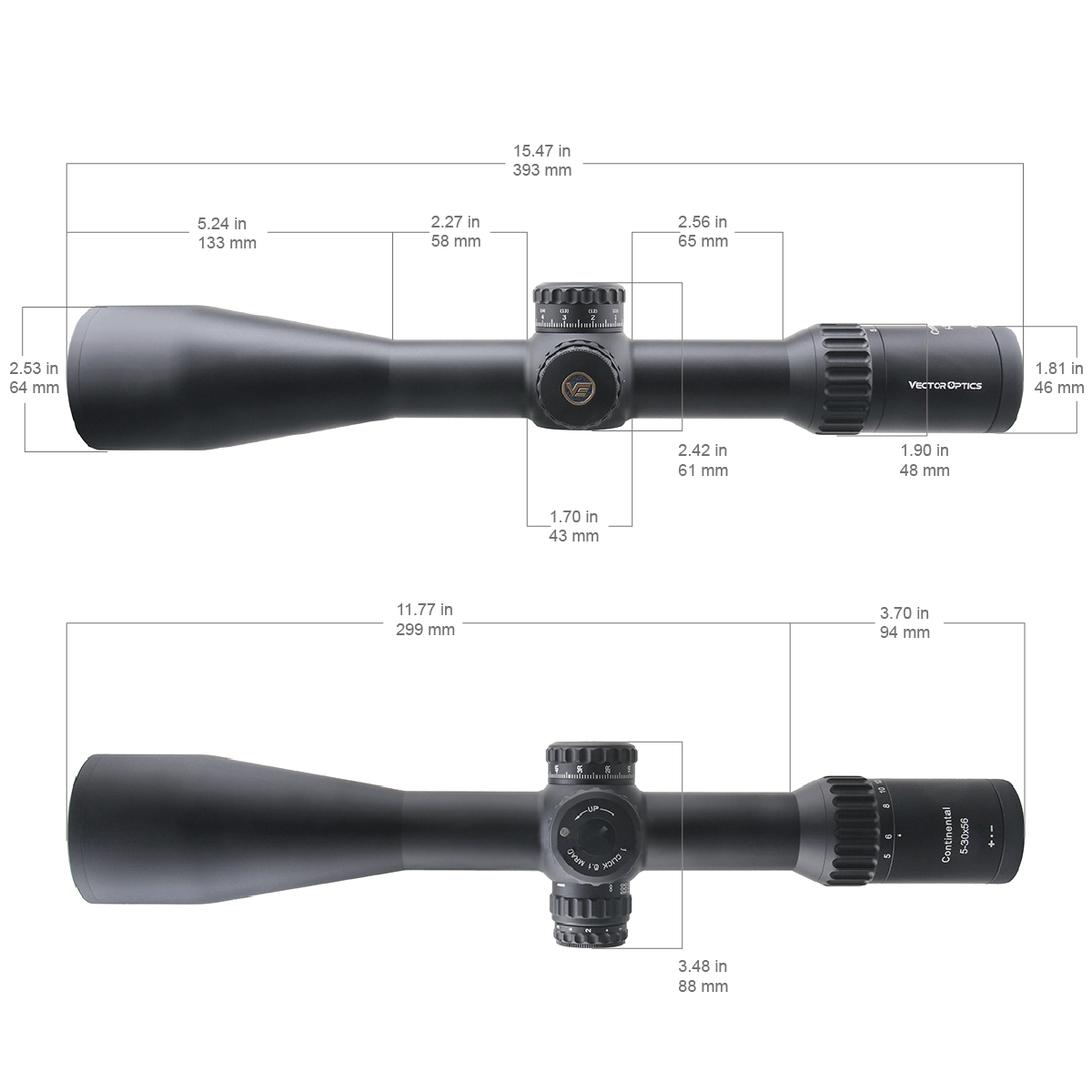

| Length | 393 mm / 15.5 in |
| Weight | 845 g / 29.8 oz |

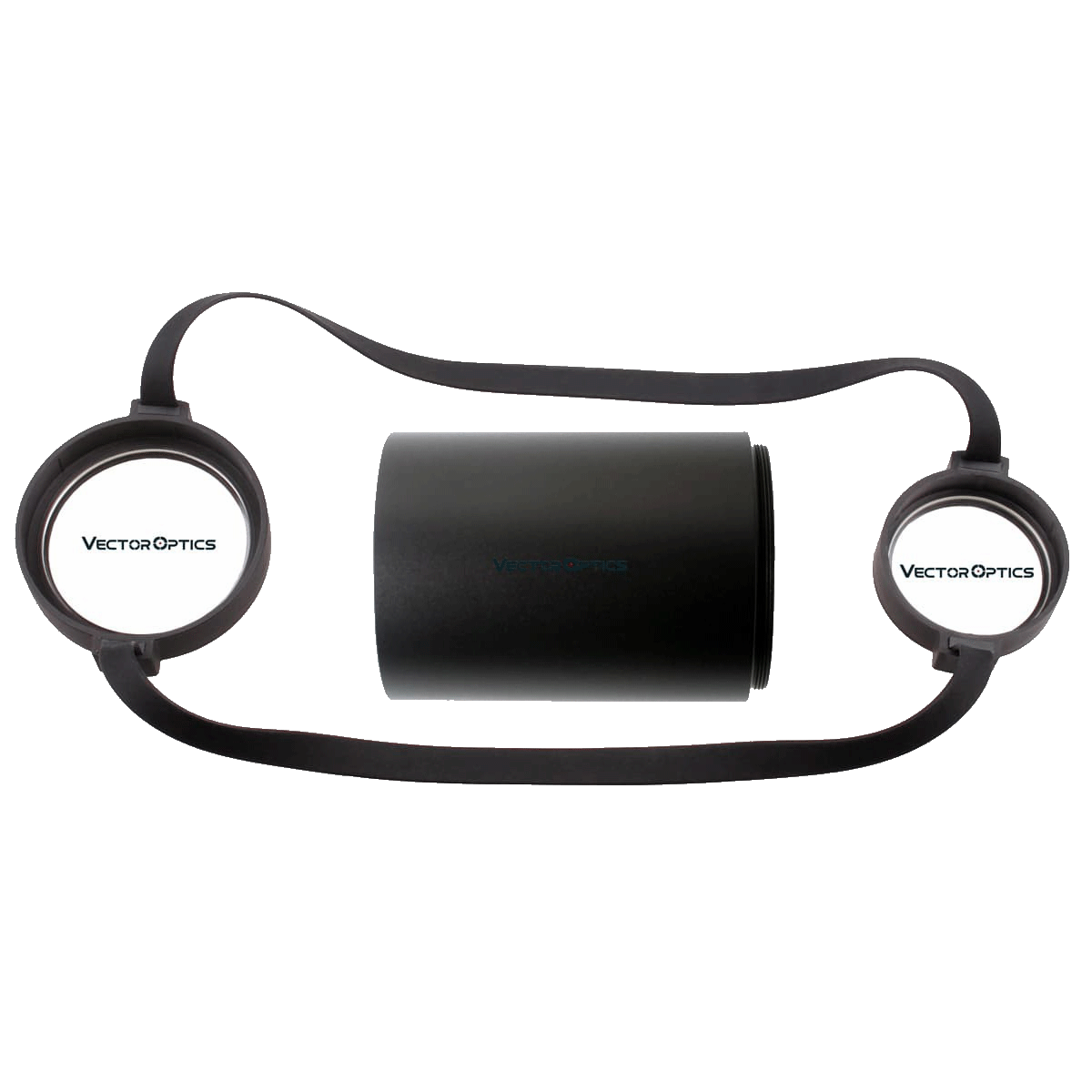

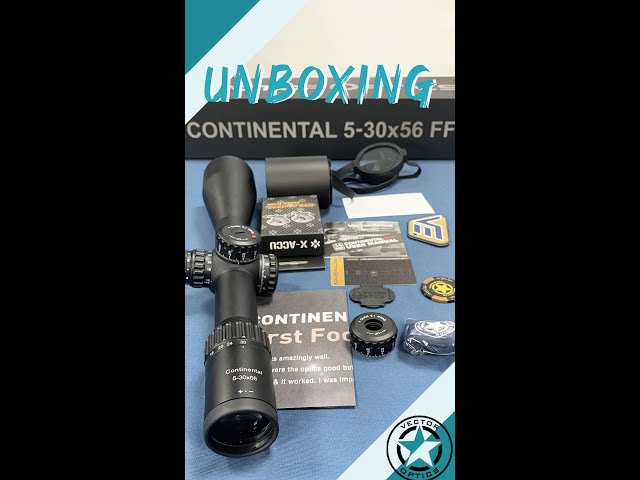

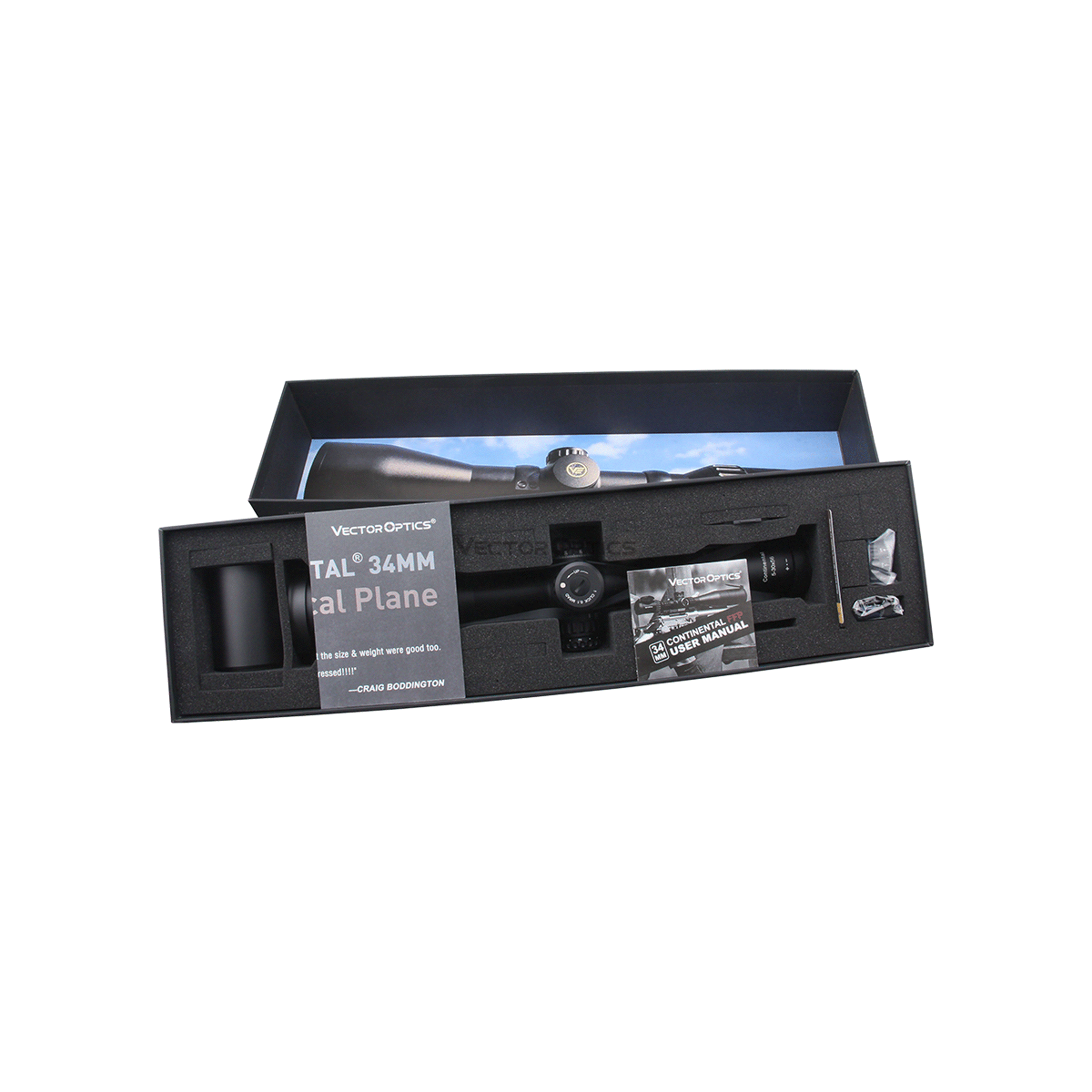

| Items in the Package | One Pair of 34mm Picatinny Scope Rings, Spare Elevation Turret (without zero stop feature), Sunshade, Instruction, Lens Caps and Cleaning Cloth |
