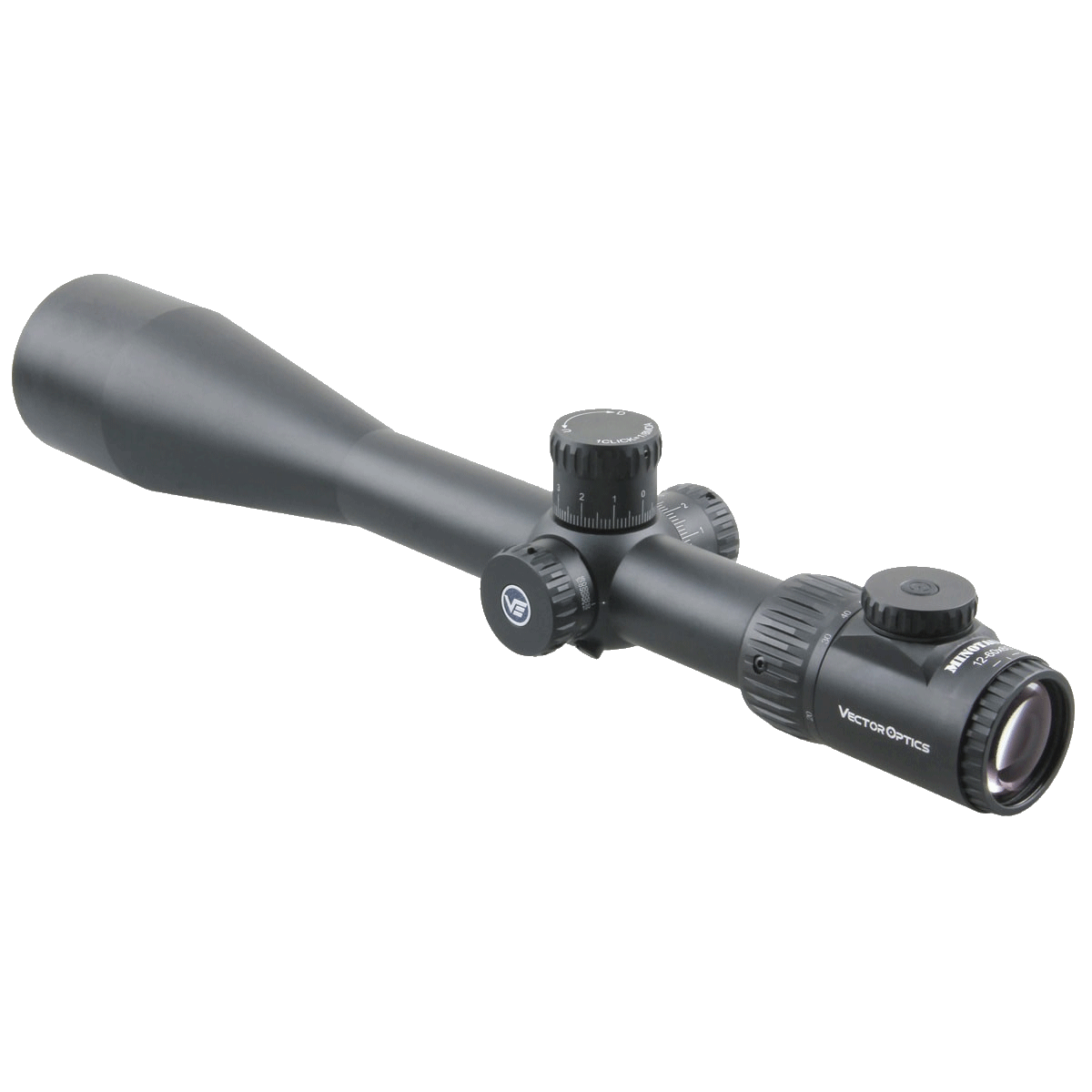

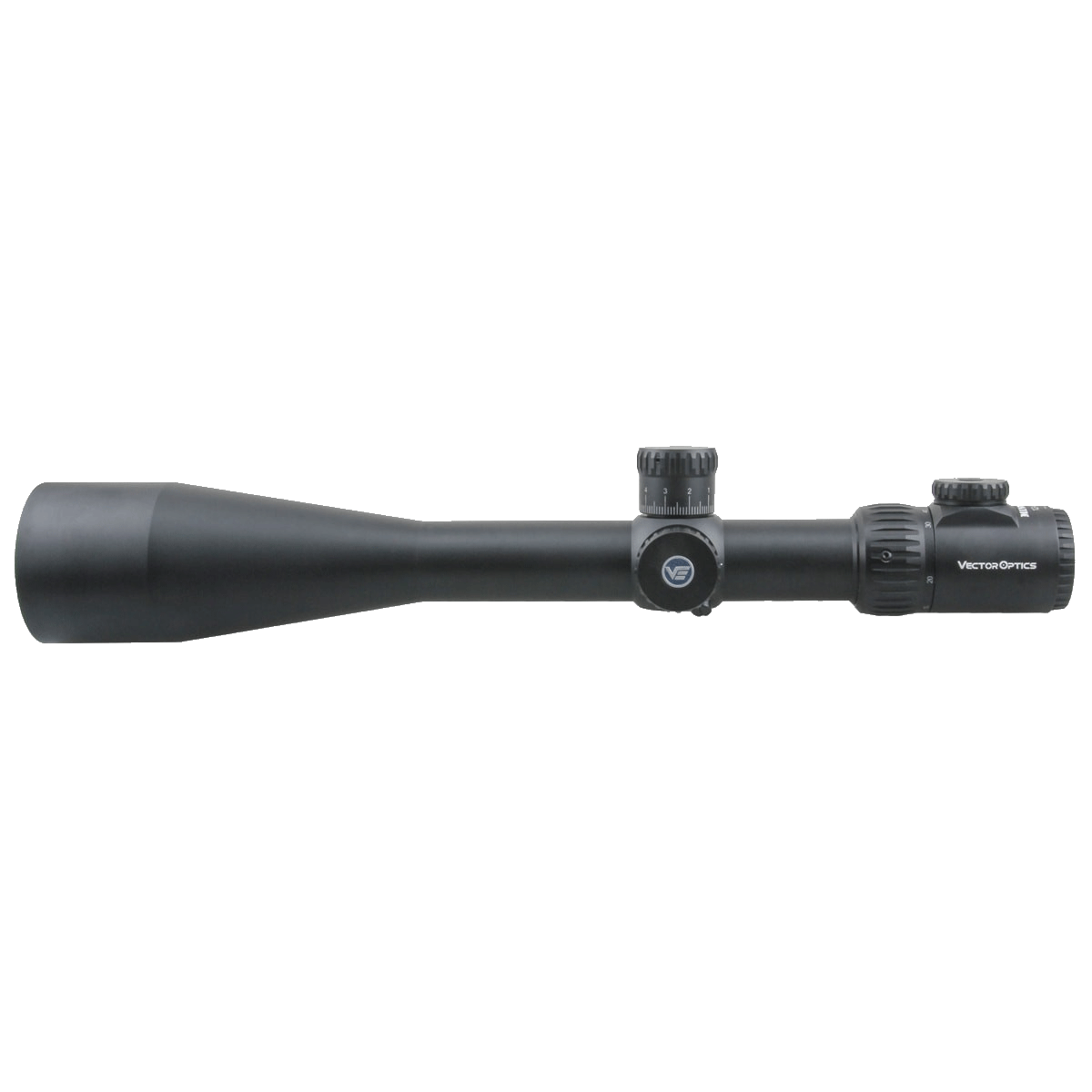

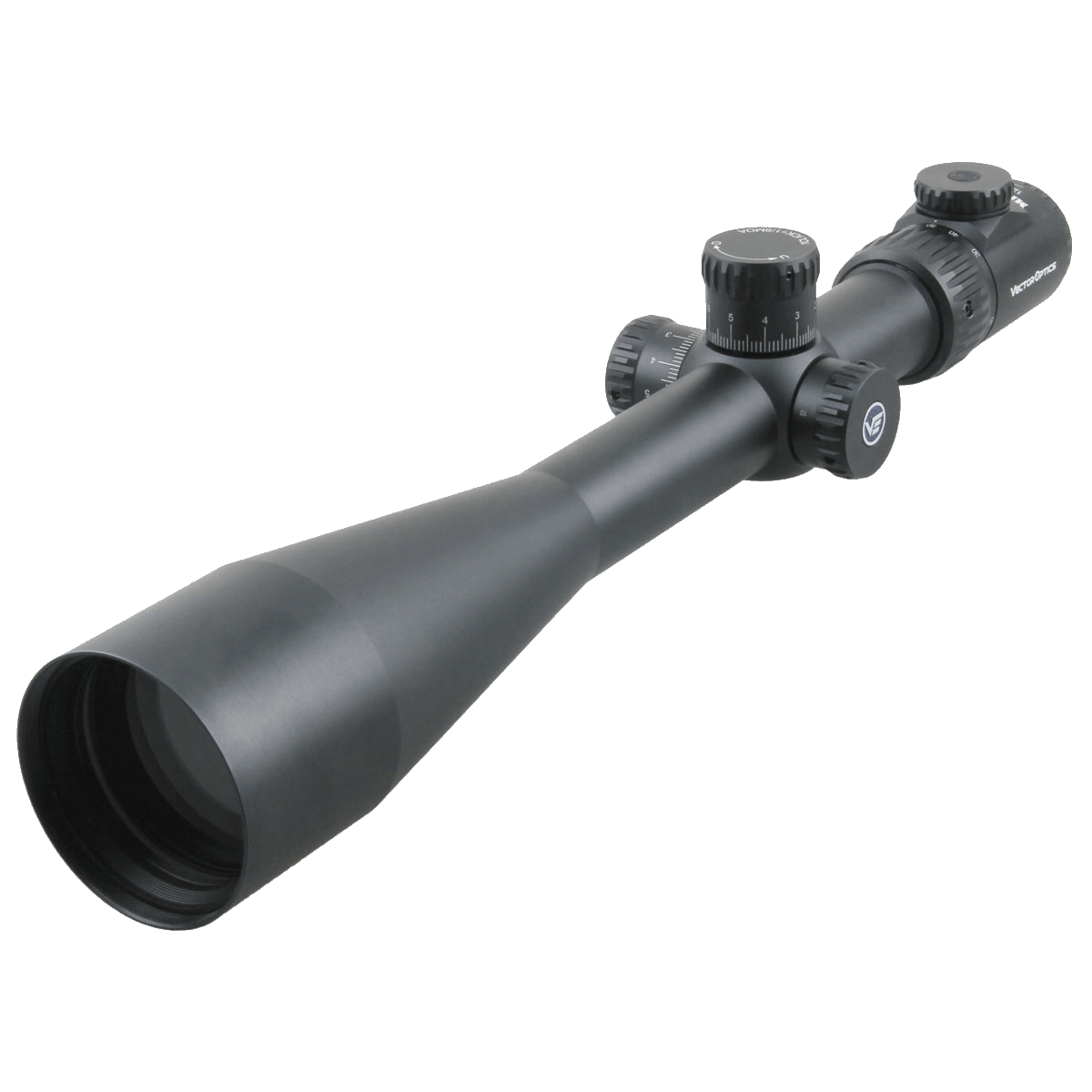

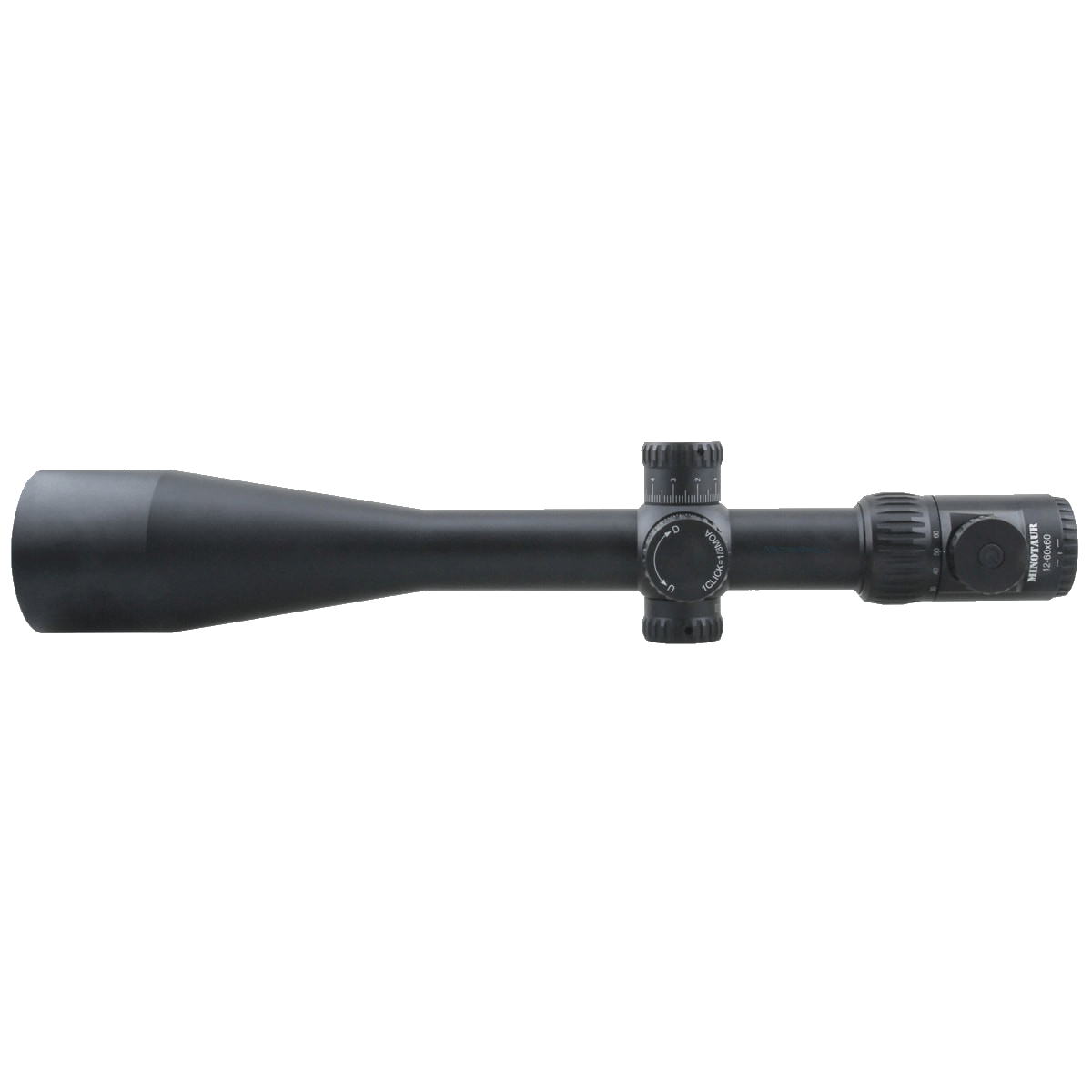

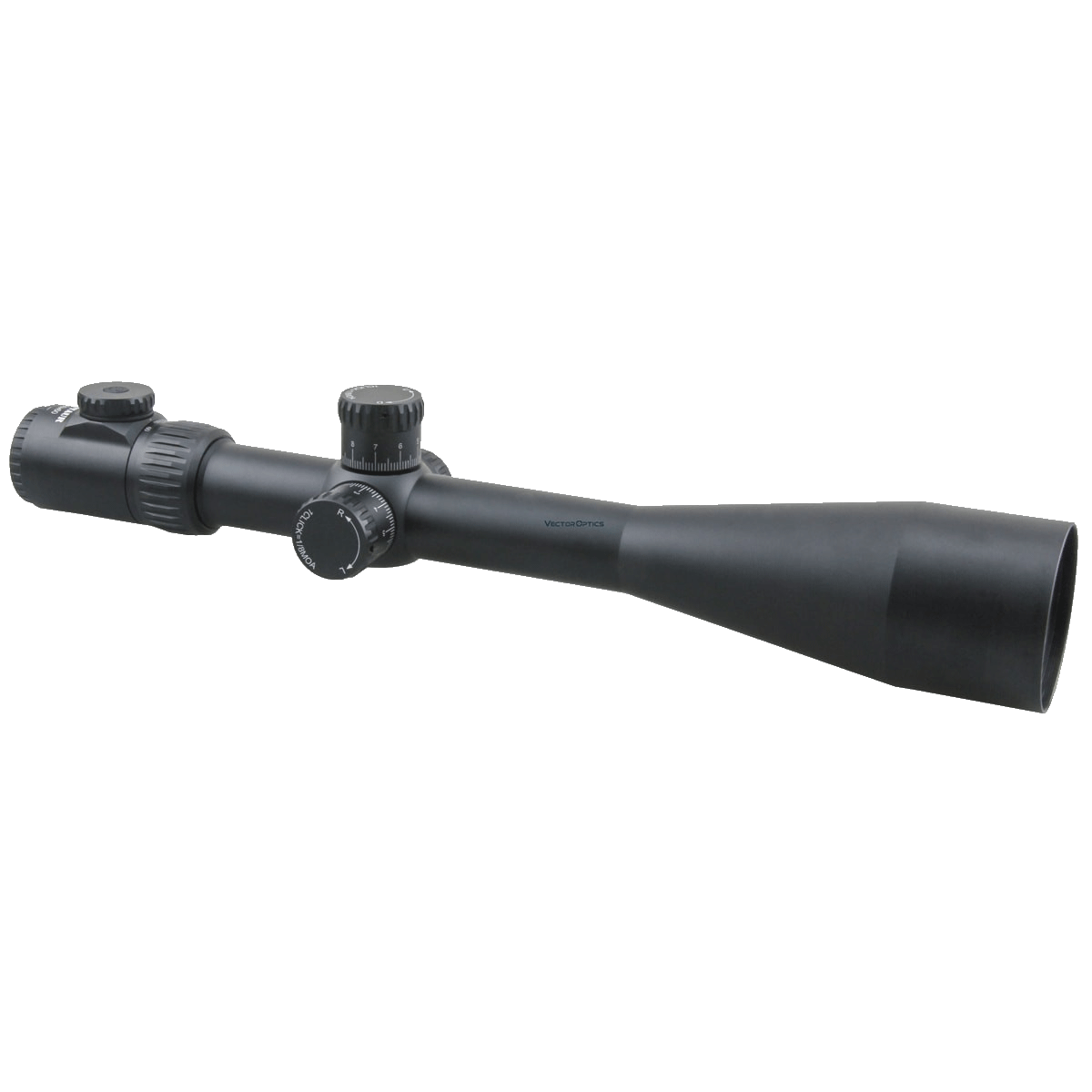

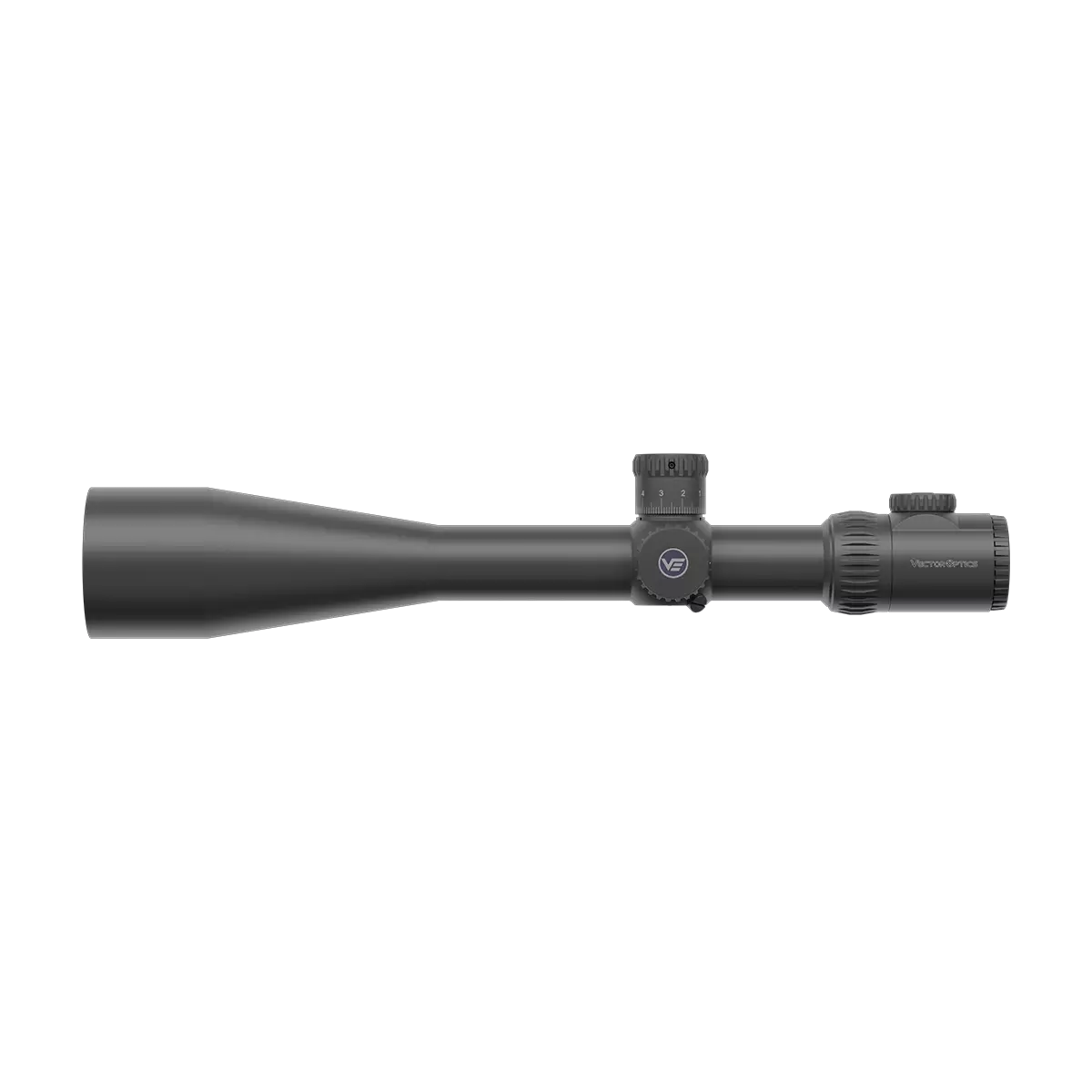

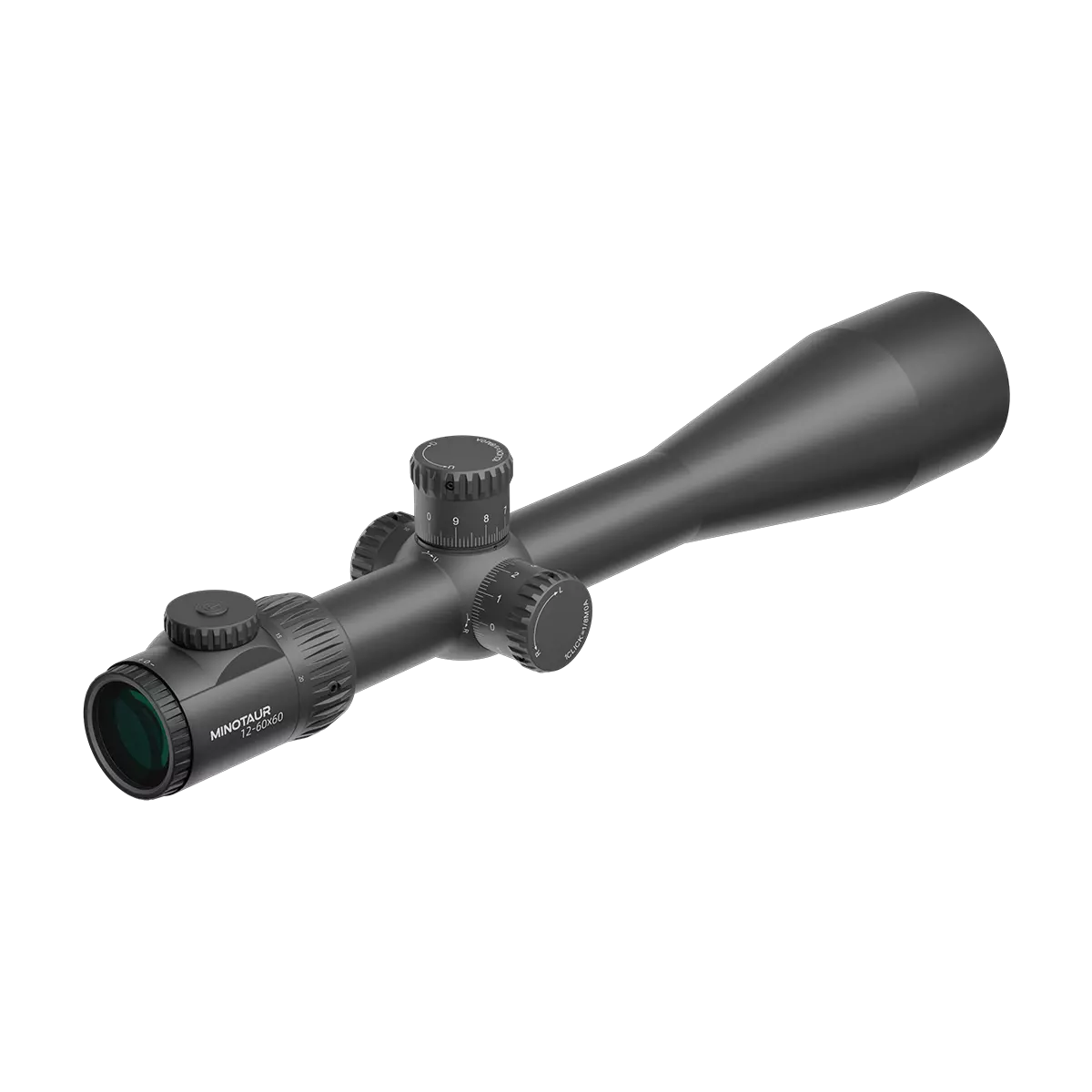

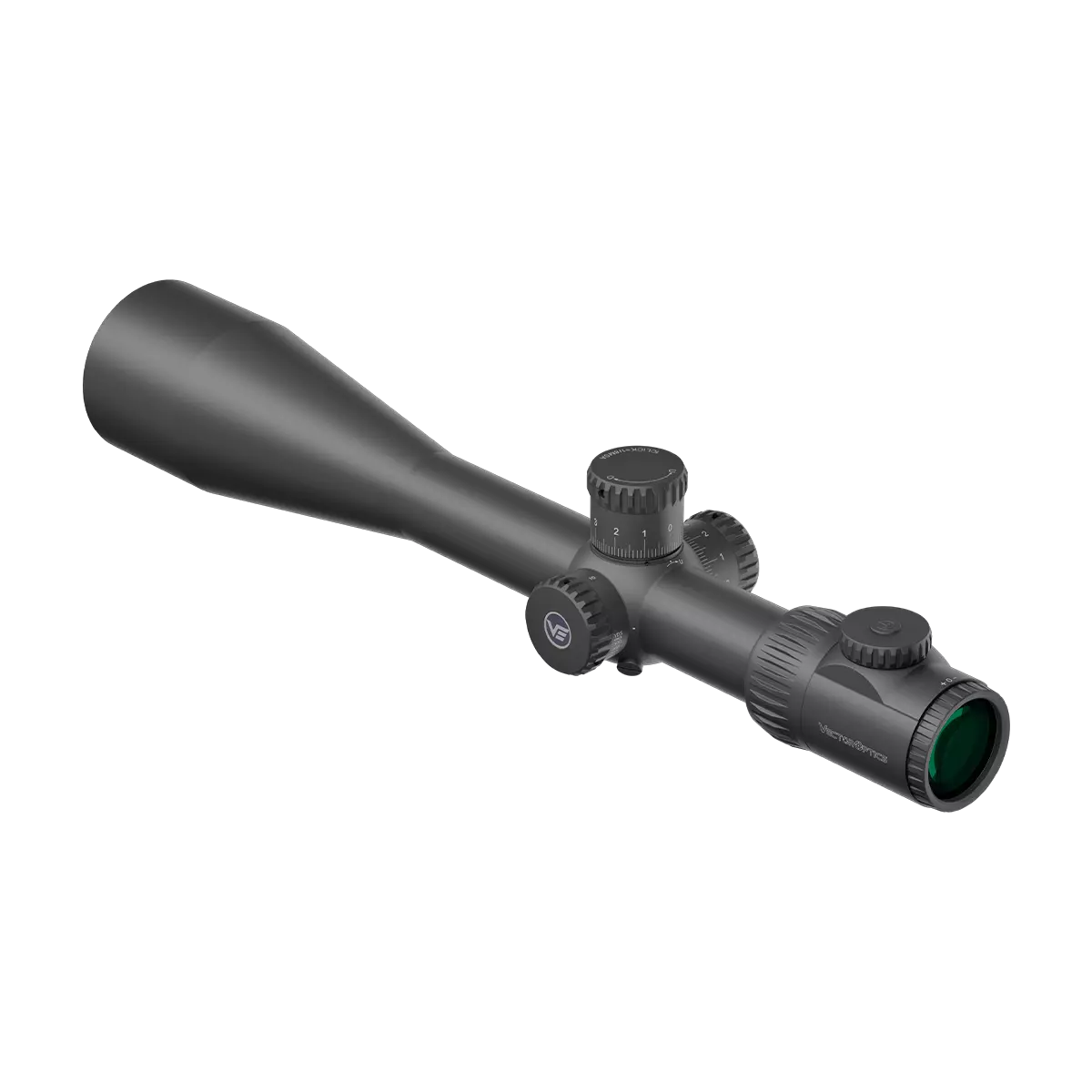

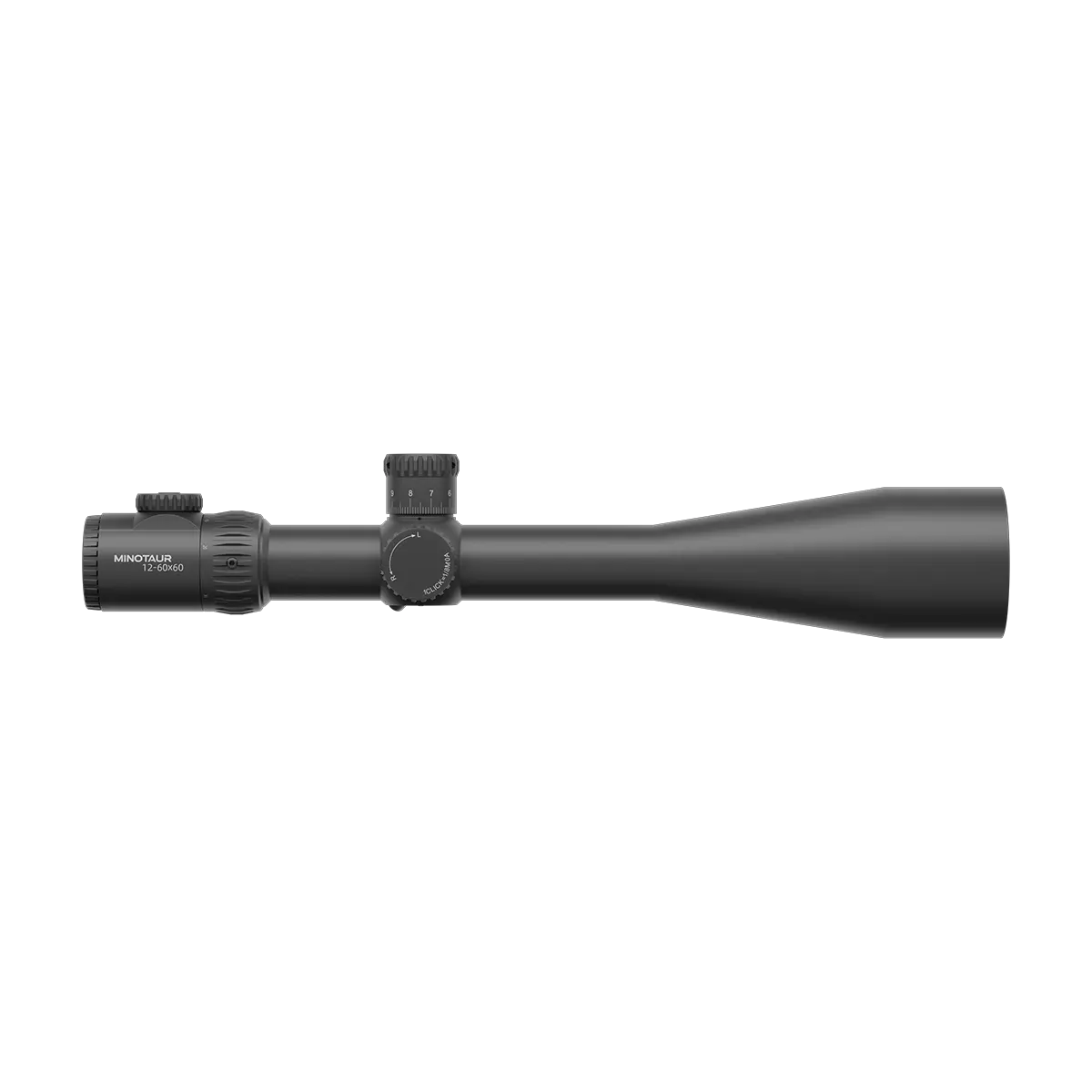

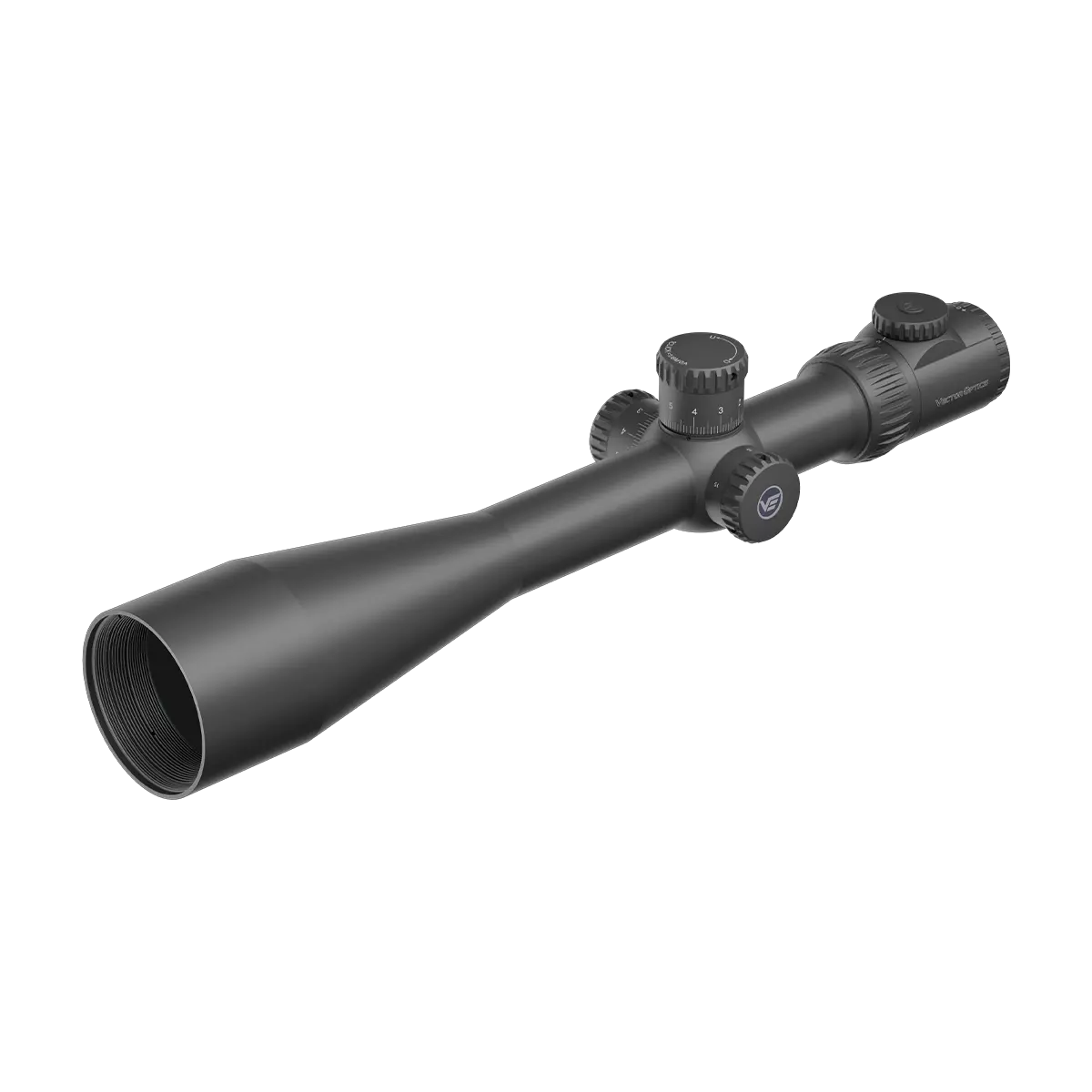

Minotaur 12-60x60 GenII SFP Riflescope

Model: SCOL-37

34mm Monotube Made of 6061 T6, Designed for LR, XLR and Precision Competition Shooting True 5x Zoom Factor, 12-60x Extremely High Power, Second Focal Plane Scope, Fully Multi Coated 11 Levels Red Illumination (1 NV Level), Side Focus Parallax Min Starts from 10 Yards to Infinite 1/8 MOA Adjustment, Zero-Stop Elevation & Turret Lock Windage, 80 Clicks per Round, 40MOA Range

Features

  • Tactical Style

    Rugged construction, and advanced reticles allow for quick and accurate target acquisition.
  • 34mm Tube Size

    The tube size determines the amount of light that enters the scope.
  • Second Focal Plane

    The reticle remains the same size when increasing the magnification, useful for long-range shooting.
  • Side Focus

    From 15 yards to infinity, make precise adjustments quickly without taking your eyes off the target and for medium to long range shooting.

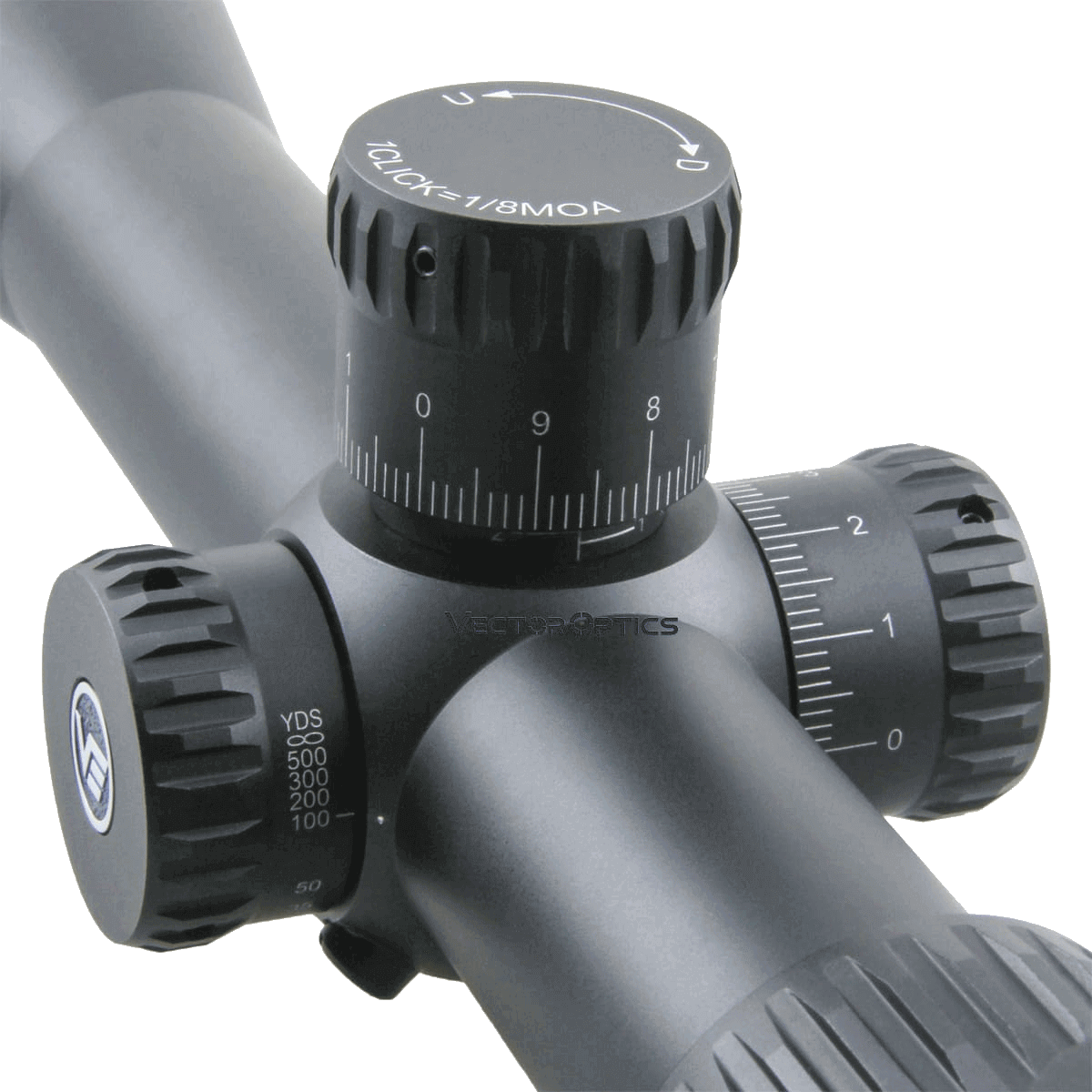

  • Zero Stop

    Return to zero without any adjustment.
  • FMC

    It enhances the clarity, brightness, and sharpness of the images
  • Edge-to-Edge

    With borderless imaging technology and large F.O.V., the edge of the imaging field of view is completely filled without any black border area.

Specifications

  • Magnification 12-60x
    Objective Lens Dia 60 mm
    Focal Plane SFP
    Eye Relief 96-95 mm / 3.8-3.7 in
    Lens Coating Fully Multi-coated
    Linear Field of View @ 100 yd 9.15-1.83 ft @ 100 yards
    Linear Field of View @ 100 m 3.05-0.61 m @ 100 meters
    Angular Field of View ° 1.75-0.35°
    Reticle VETD-LR
    Side Focus 10 yards to Infinity
  • Tube Dia 34 mm

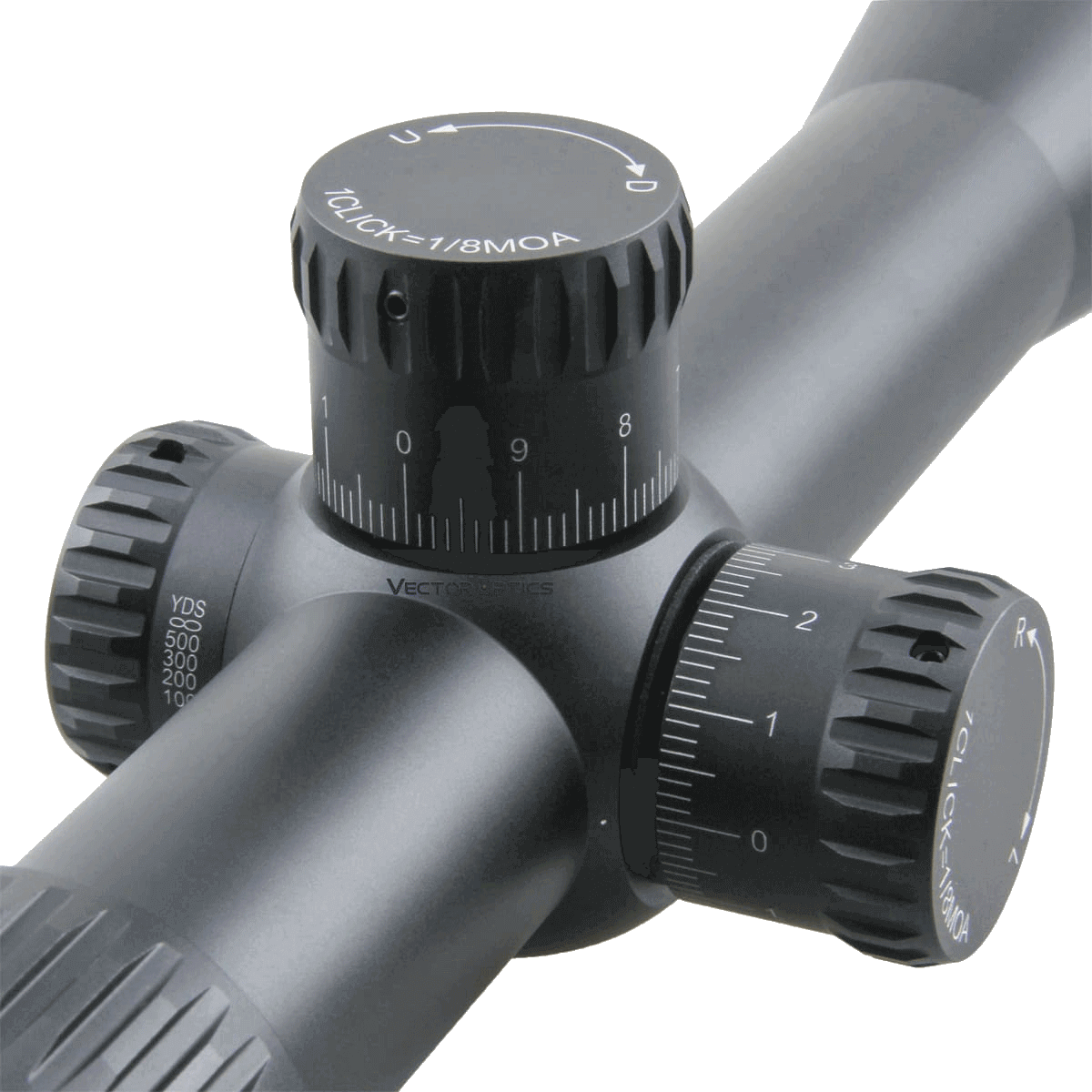

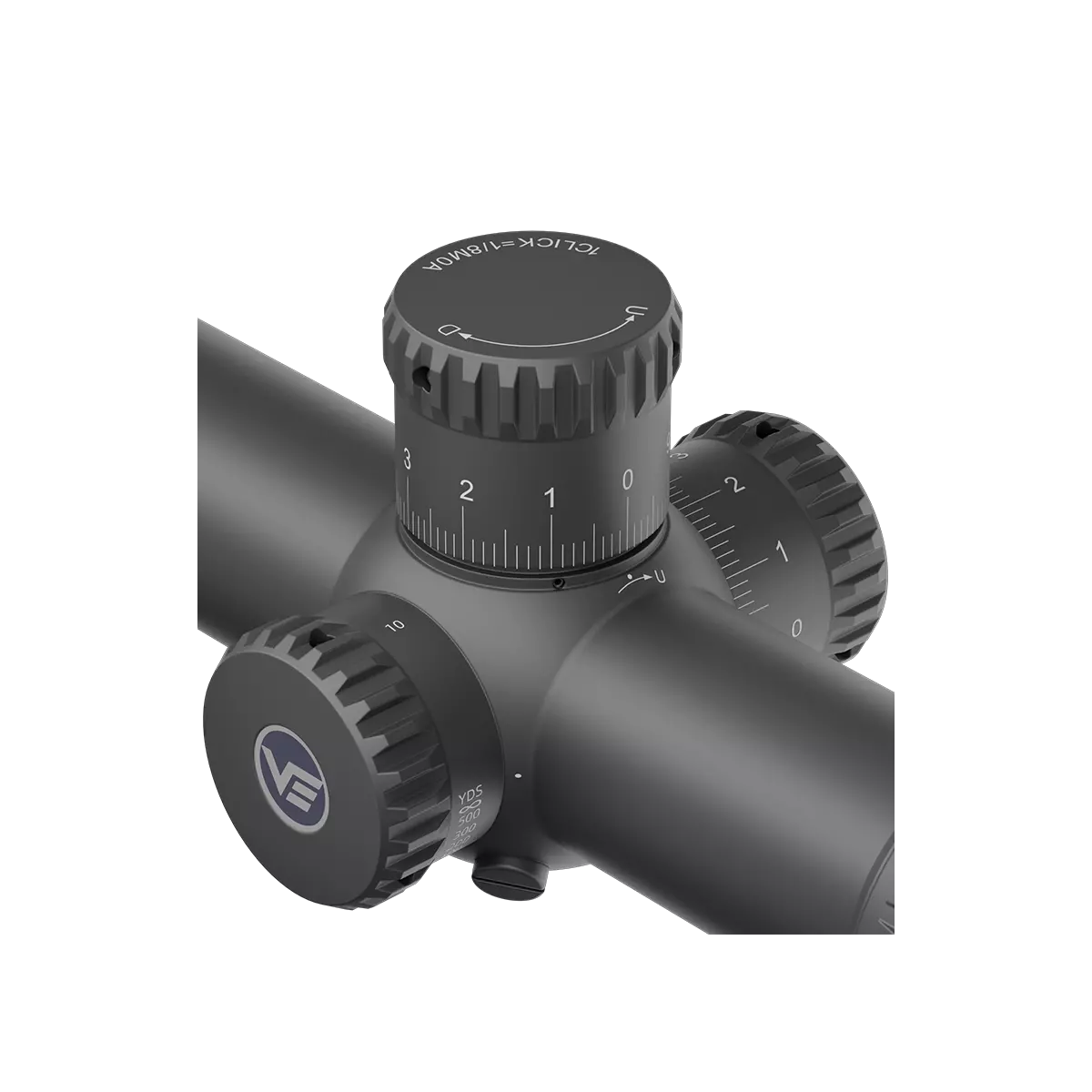

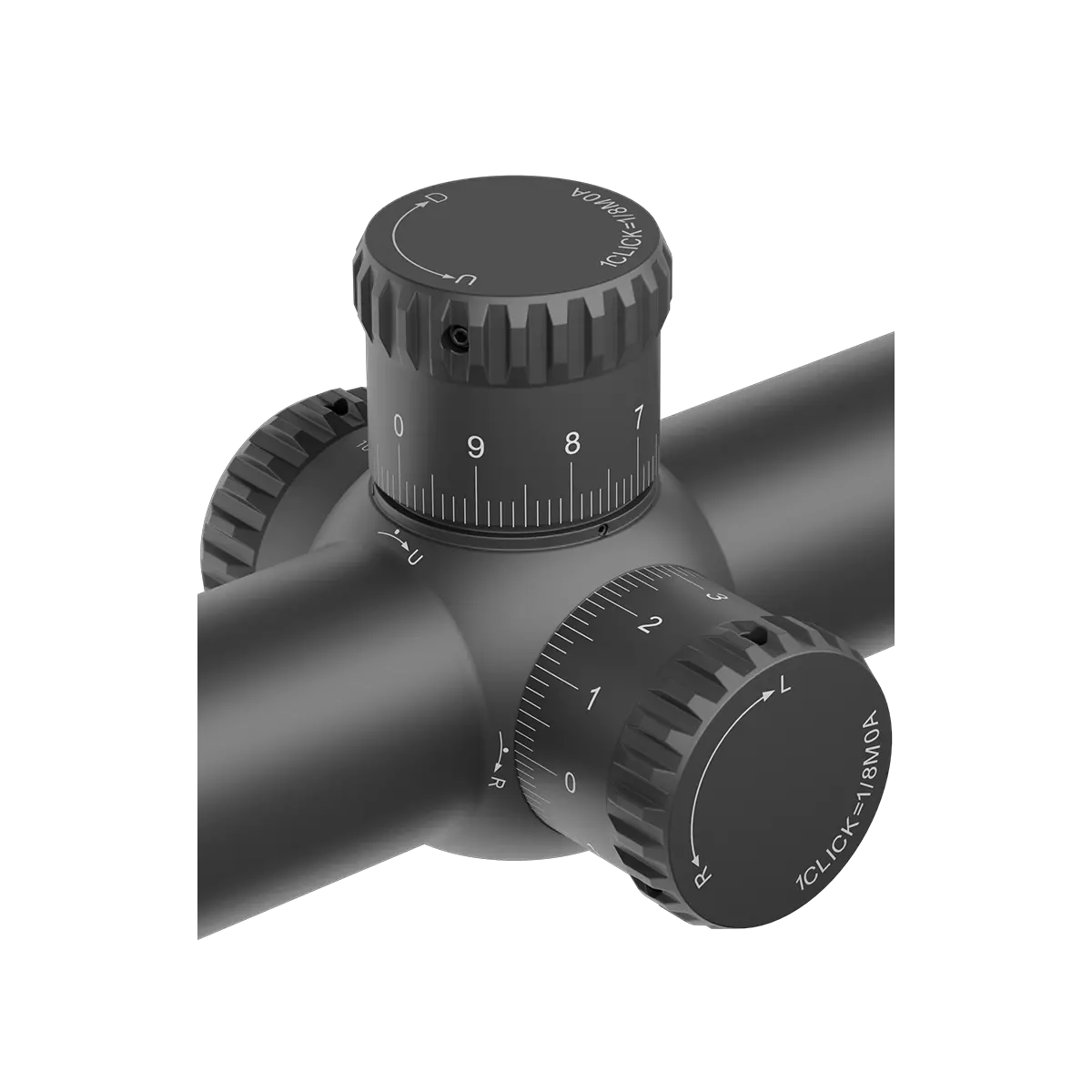

    Click Value 1/8 MOA
    Turret Function Zero Stop
    Elevation Adjustment Range 40 MOA
    Windage Adjustment Range 40 MOA
    Diopter Compensation -2 to +2
    Illumination Setting 11 Levels Red
    Battery Type CR2032
    Battery Life N/A
    Waterproof IPX4
    Fogproof Filled Nitrogen
    Shockproof 1000 G
    Material 6061-T6 Aluminum Alloy
    Finish Matte Black

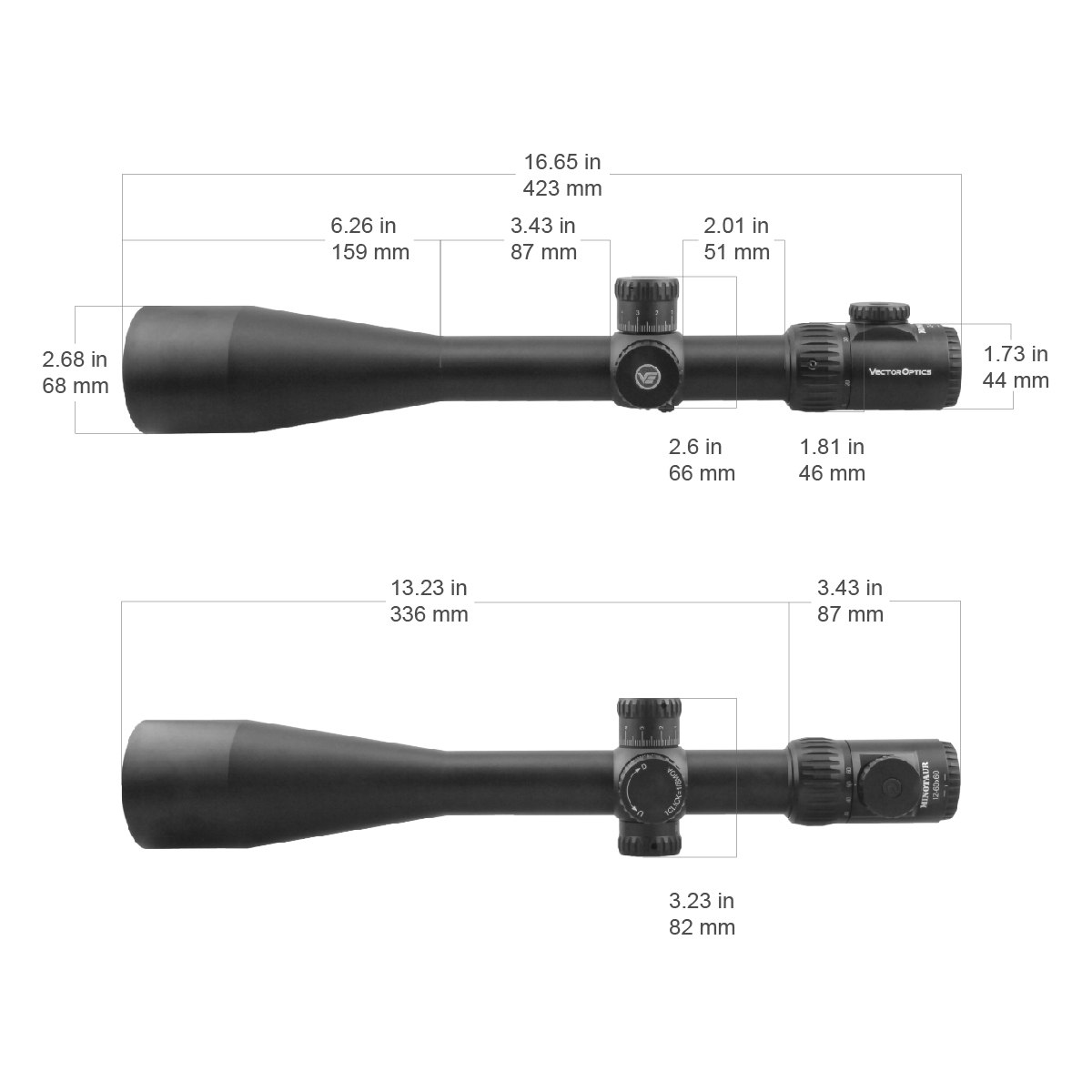

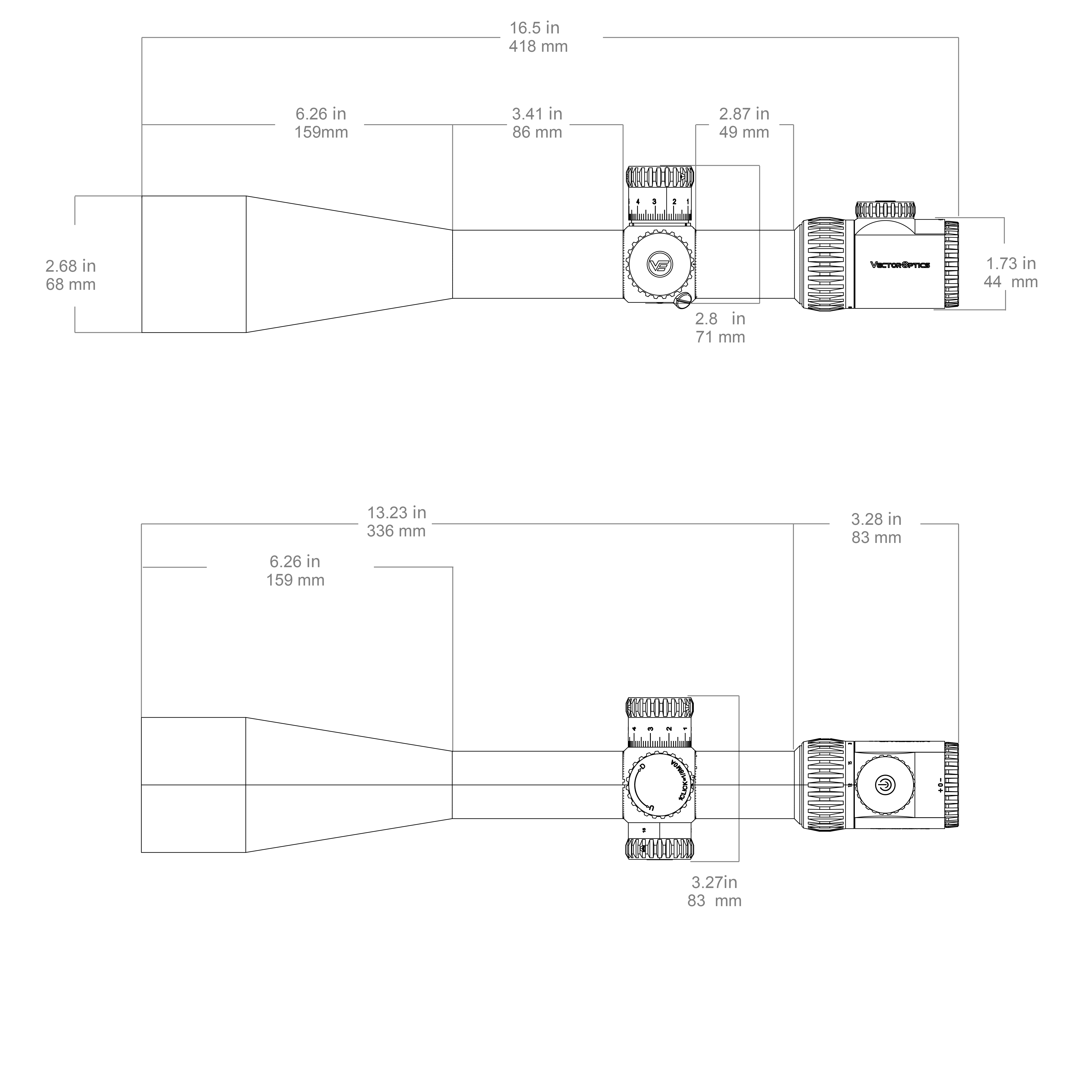

    Length 423 mm / 16.7 in
    Weight 960 g / 33.9 oz

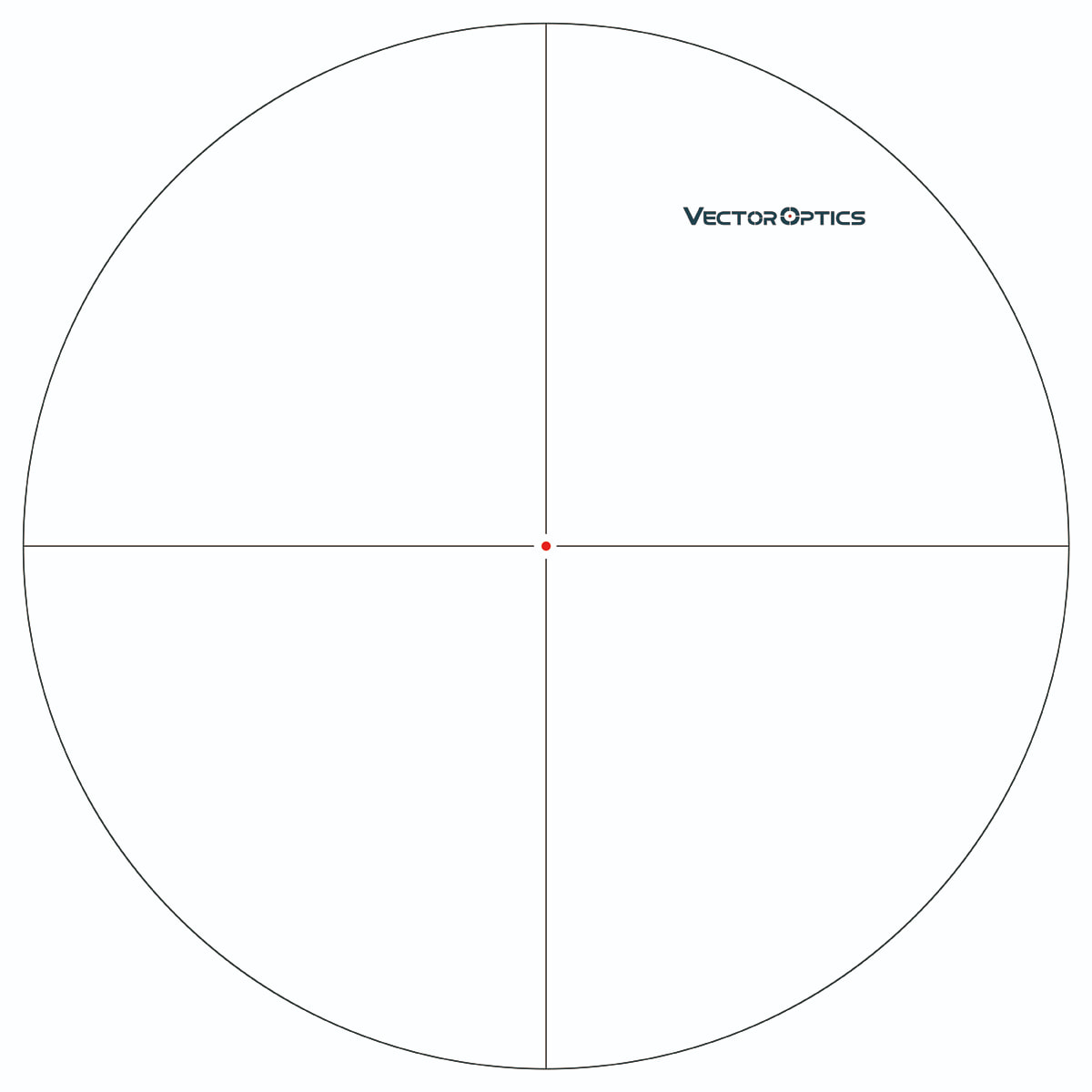

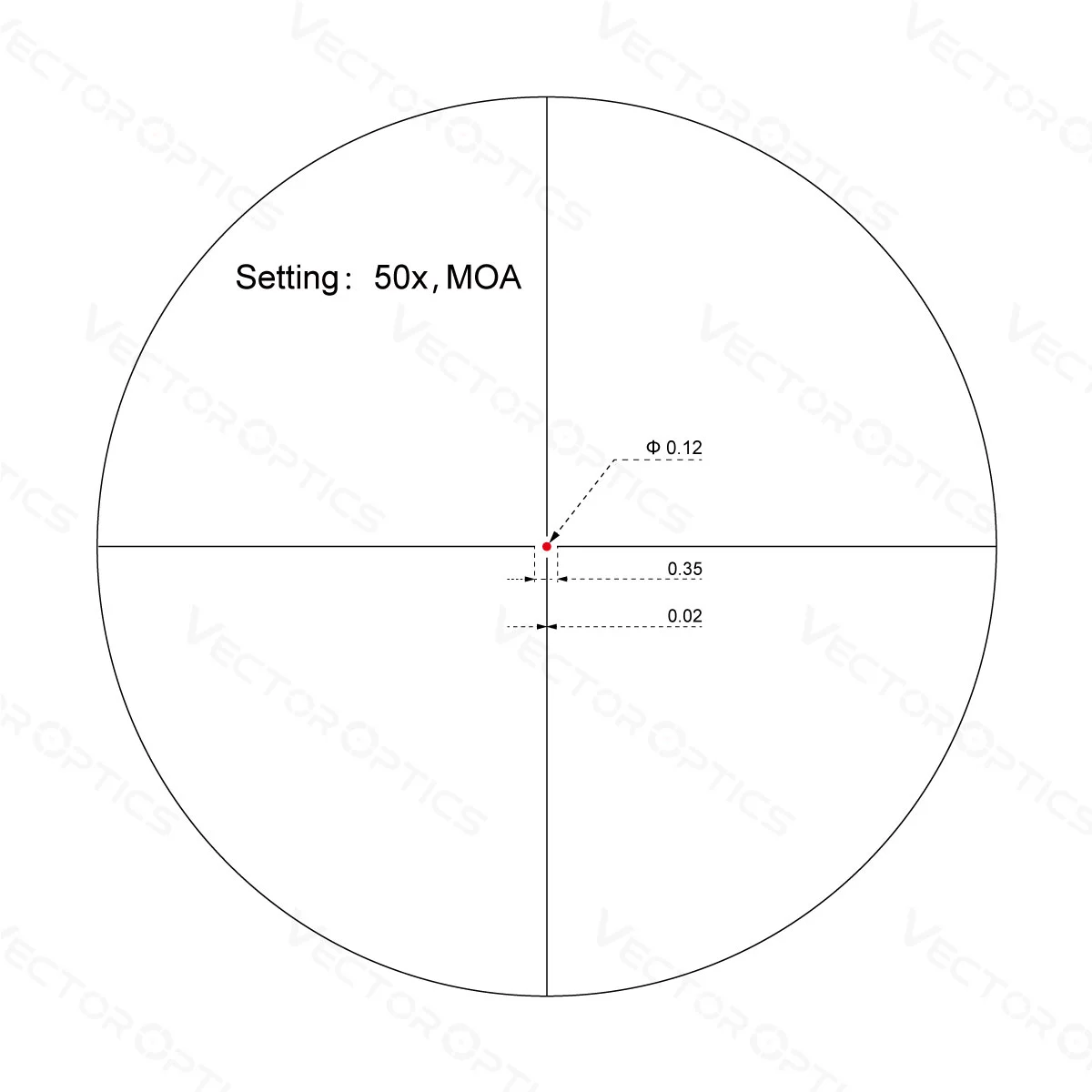

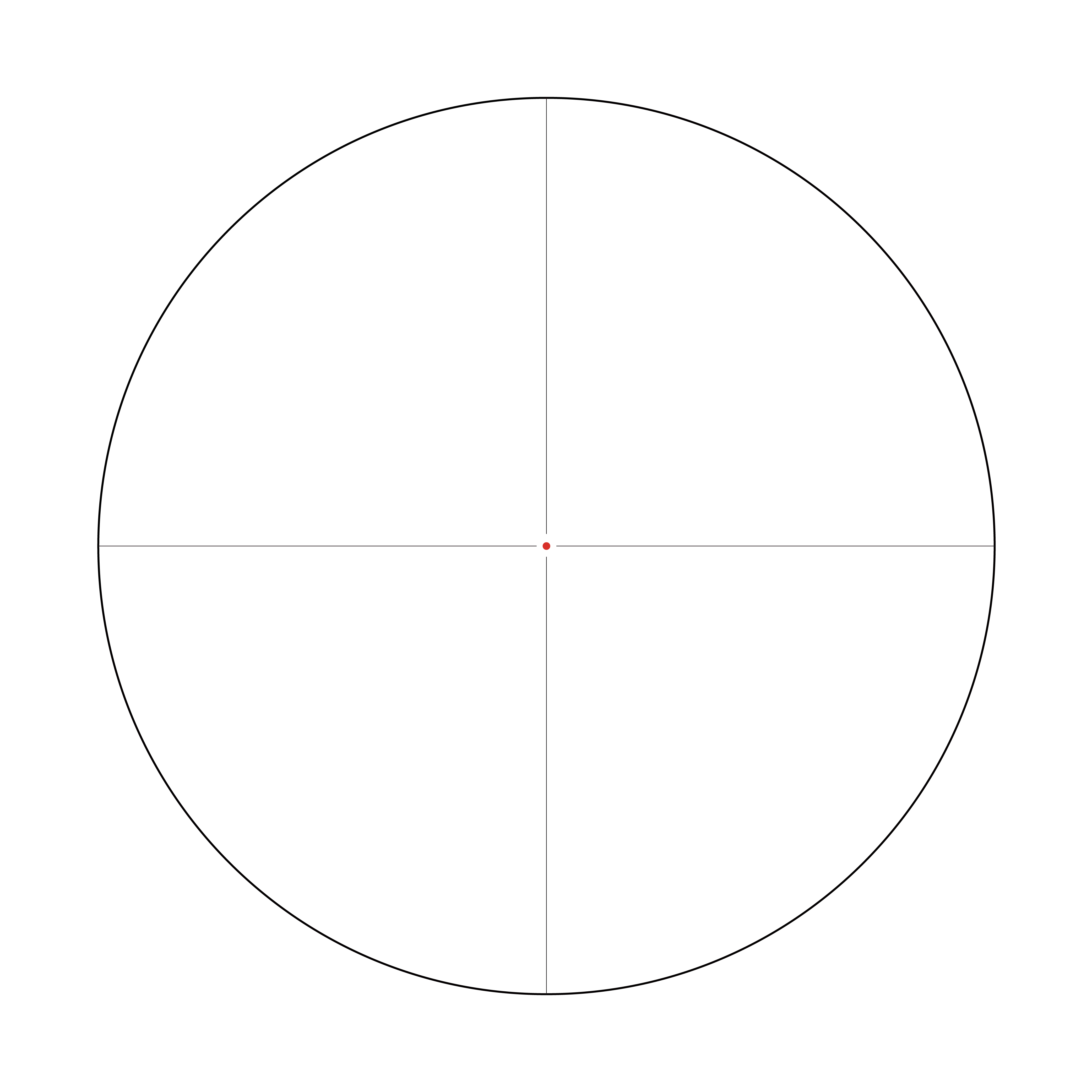

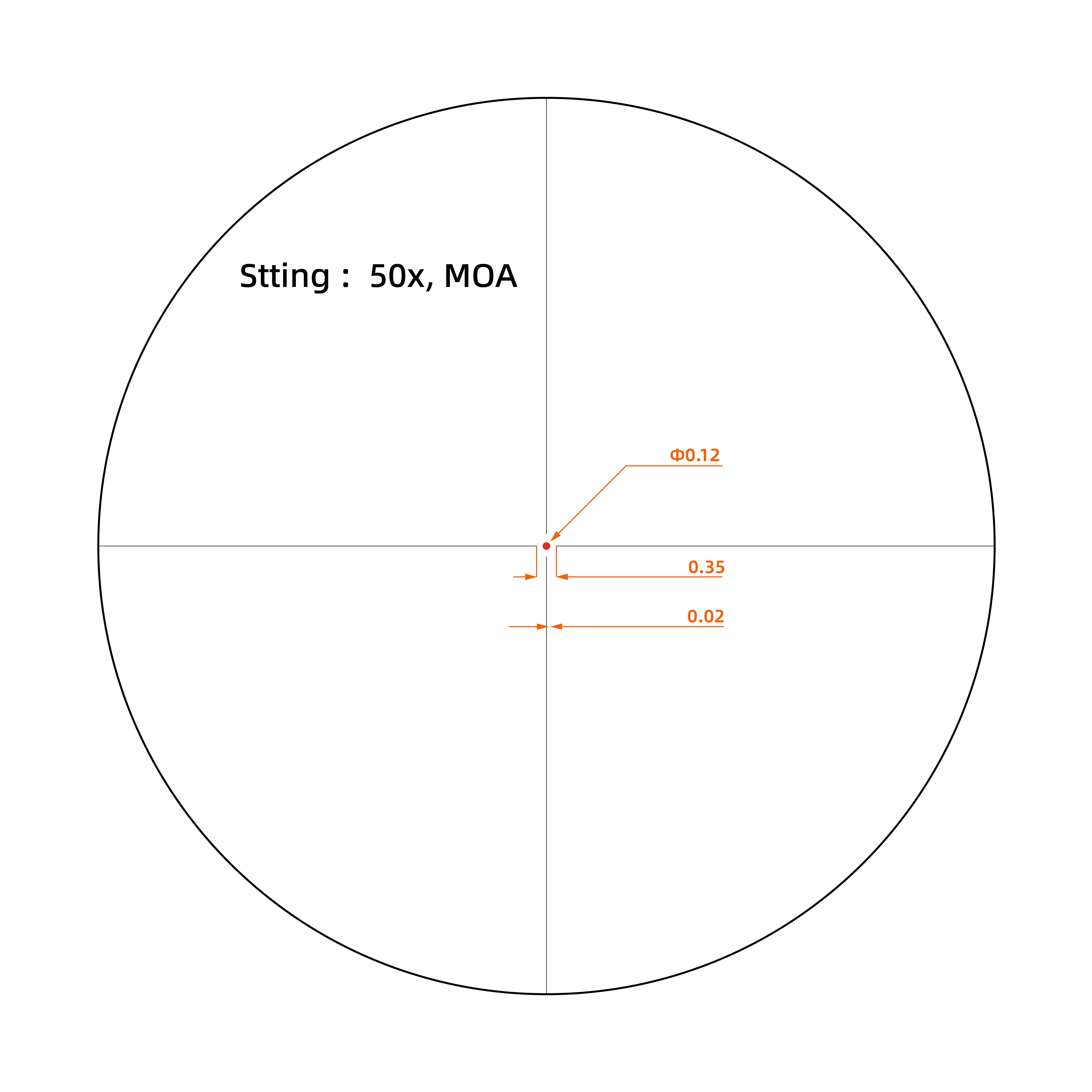

Reticle

  • VETD-LR

Download

  • VEMP-LR & VETD-LR
  • Minotaur User Manual

Warranty Policy

The product supports 5-year warranty policy.
