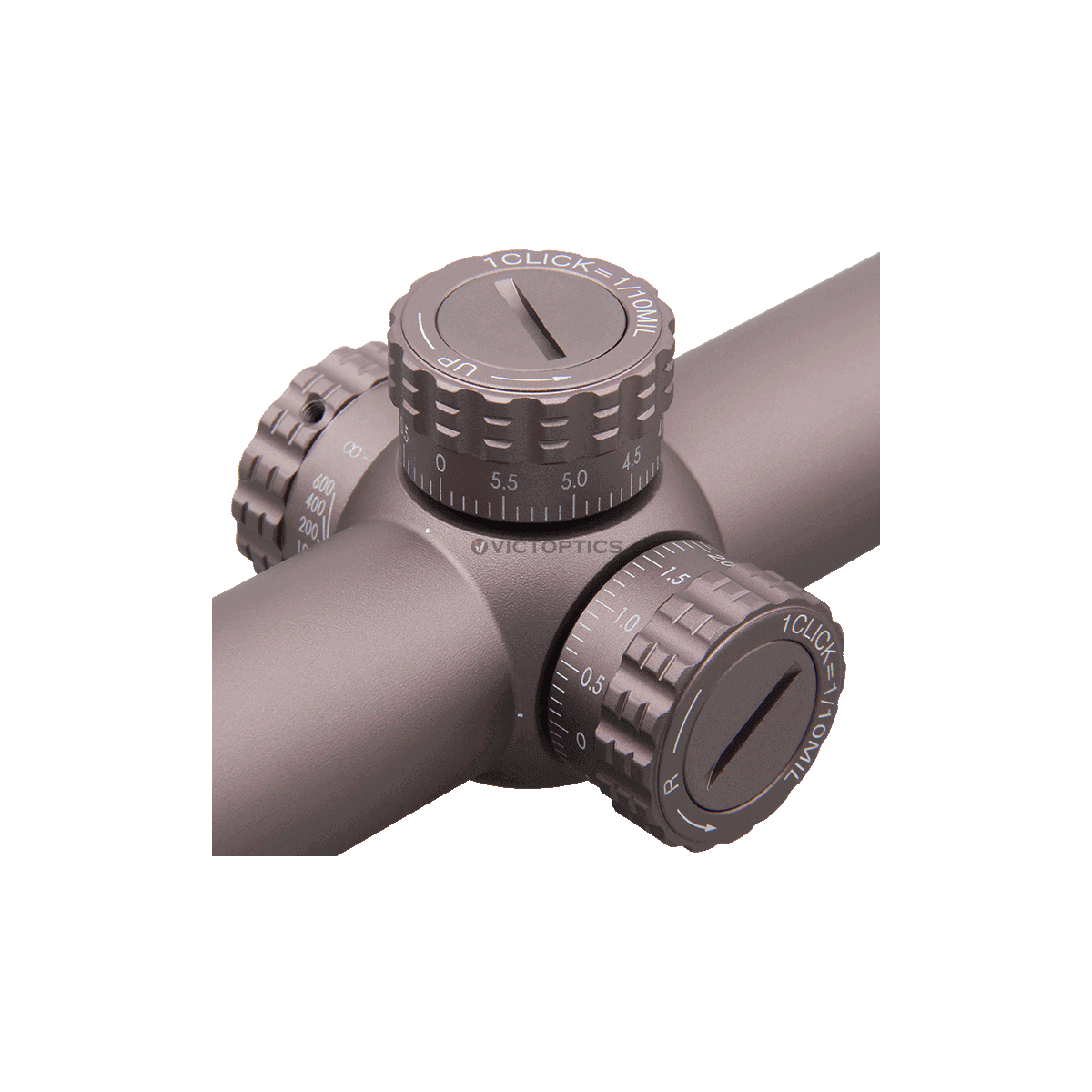

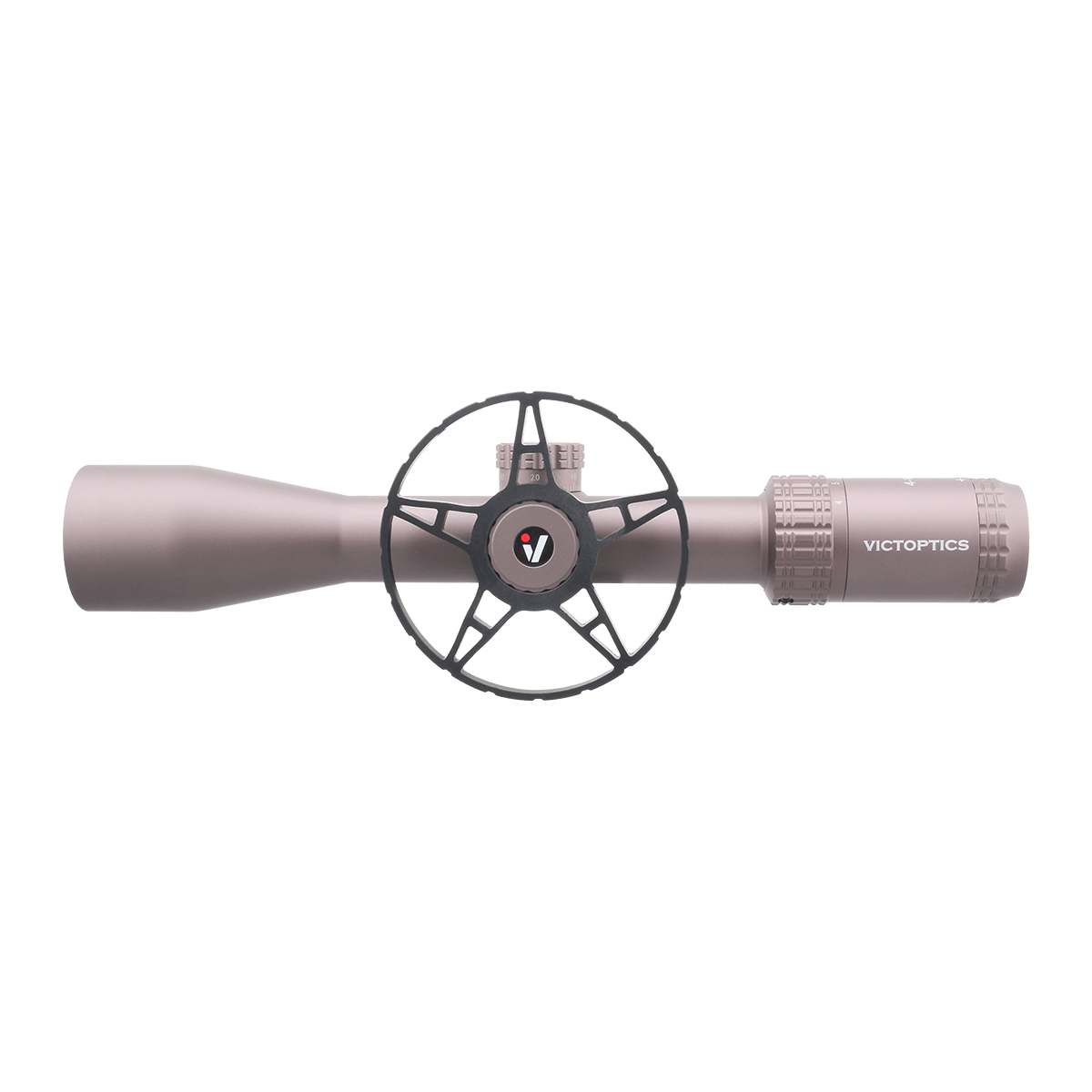

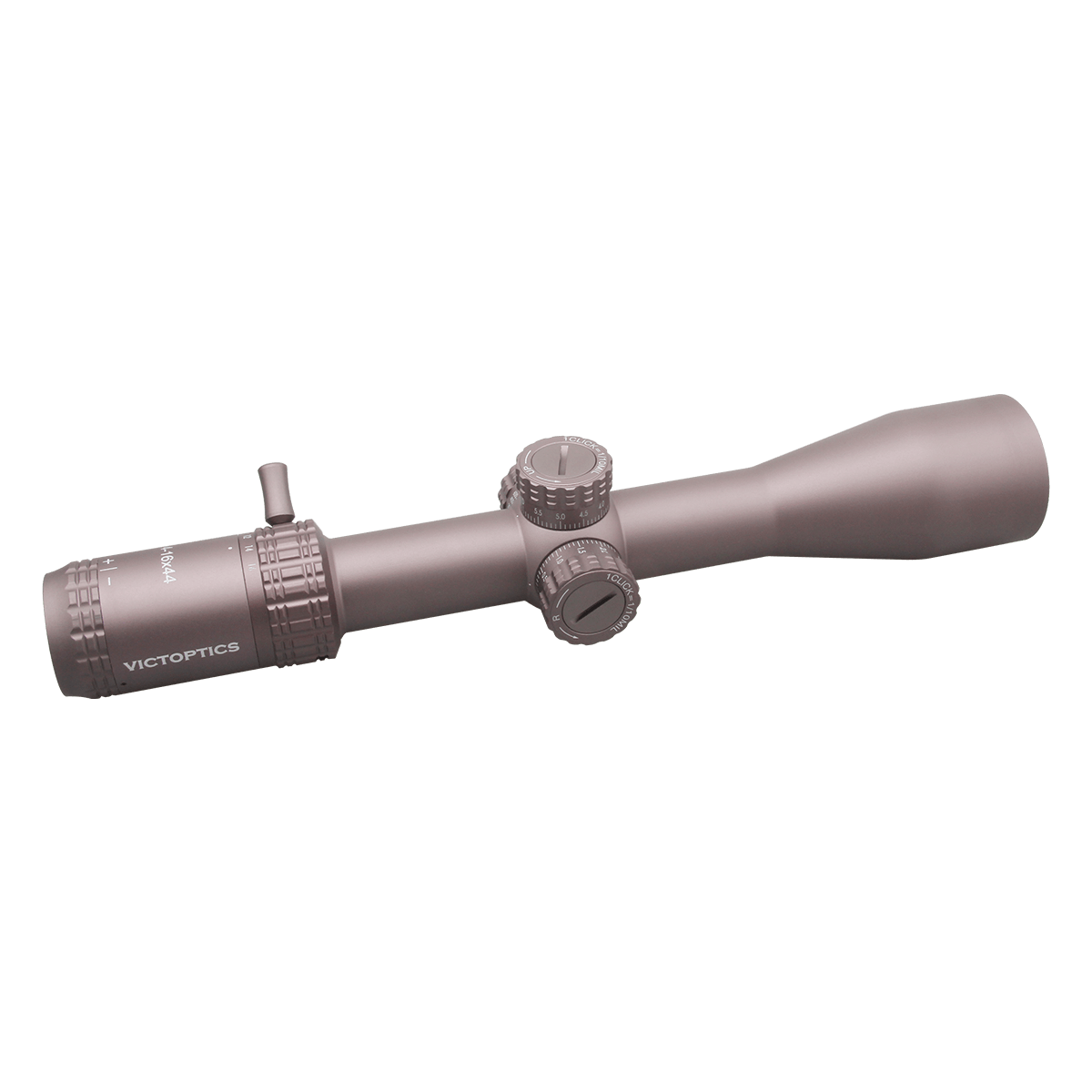

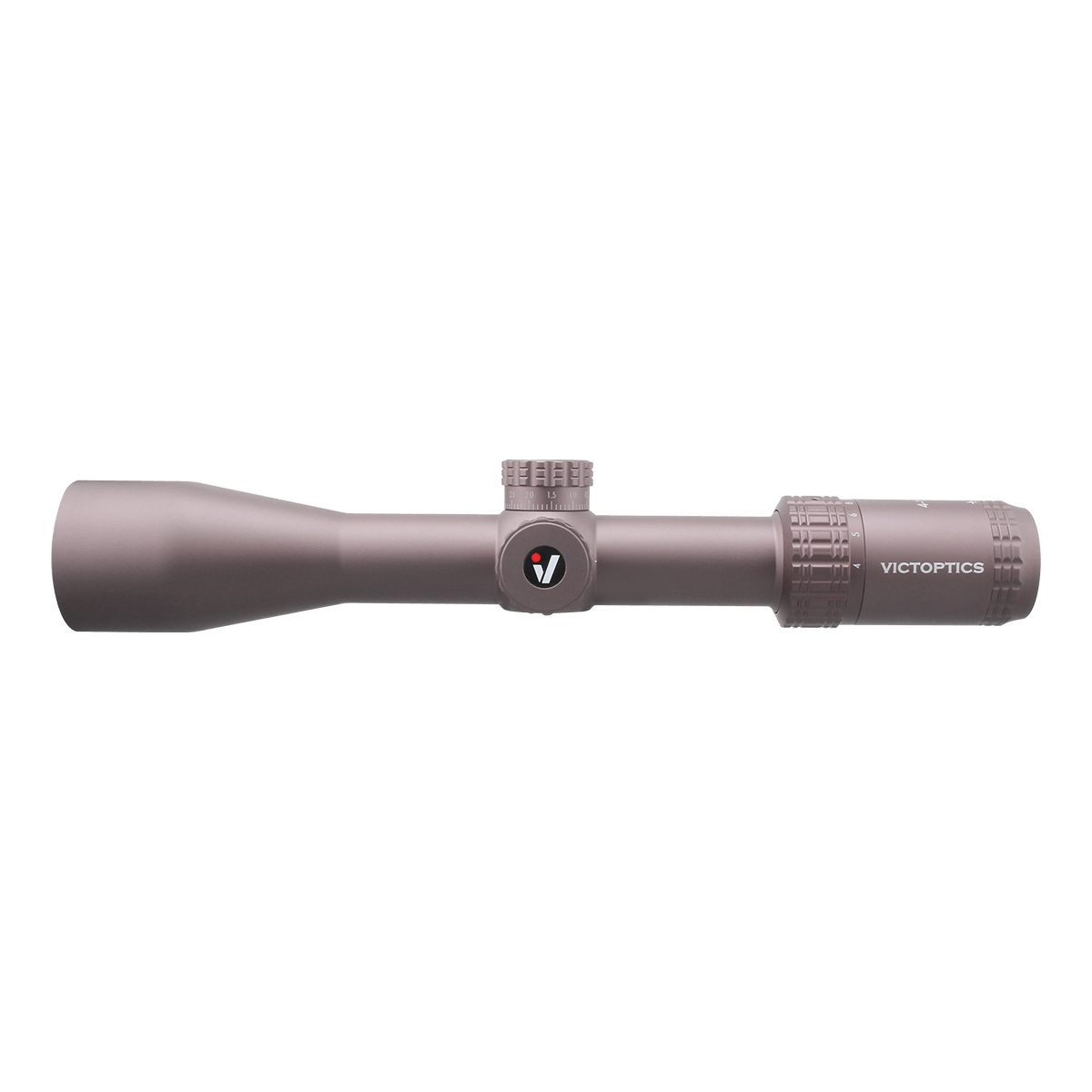

Super Slim Edge-to-Edge Image, Crystal Clear Optics, 1/10MIL Adjustment with Turret Lock Feature WDL Reticle Used at 10x Power, Custom Designed Patent Reticle Exclusive for Air Guns & Firearms Long Eye Relief, FDE Finish, Side Focus Min at 15 Yds, Big Side Wheel, Power Ring Lever Mount
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 11.0-2.75 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 28.8-7.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 9.6-2.4 m @ 100 meters |
| Angular Field of View | 5.5-1.37° |
| Reticle | MDL wire reticle |
| Tube Dia | 30 mm |
| Parallax Setting | 15 yards to infinity |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 15 MIL |
| Windage Adjustment Range | 15 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Coyote FDE |

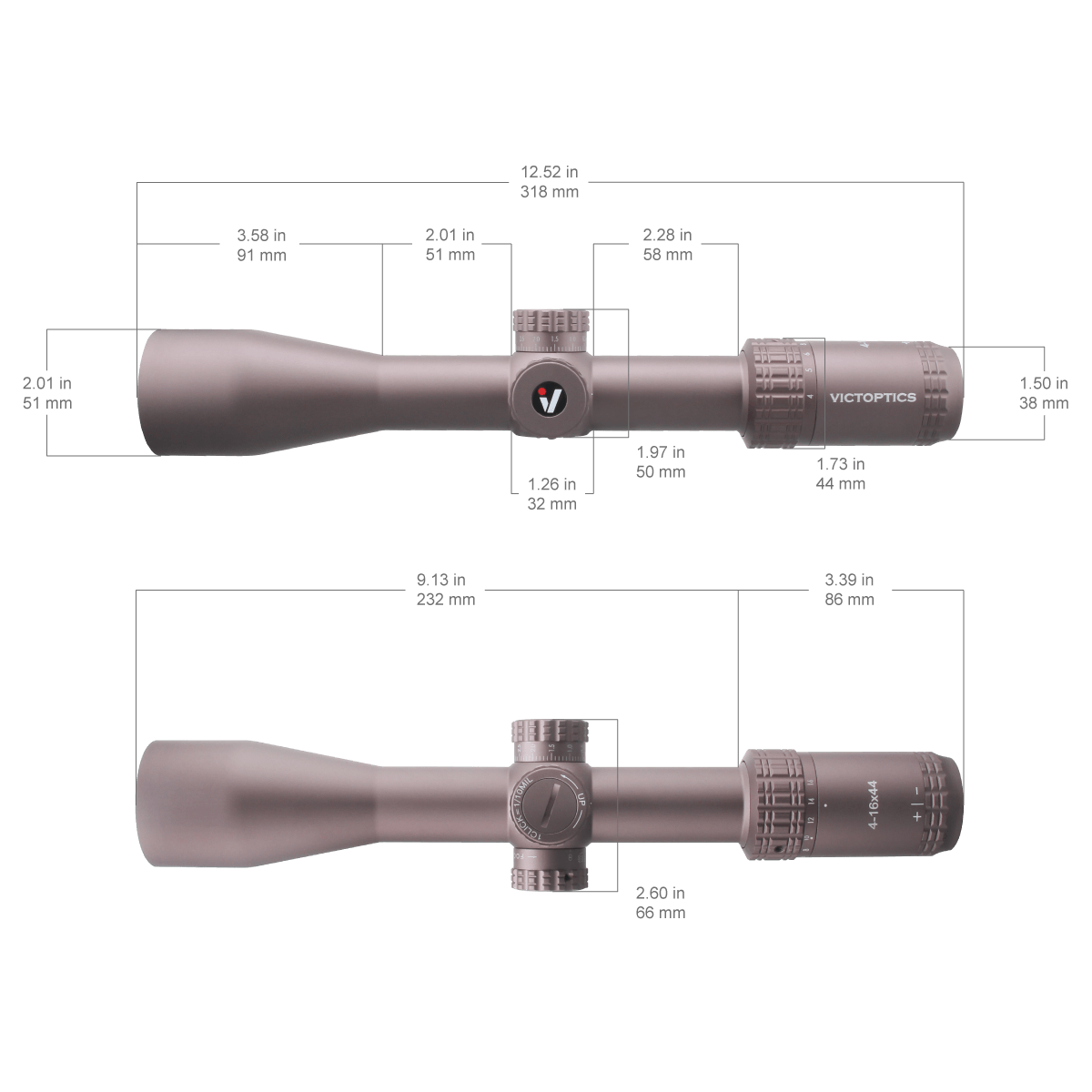

| Length | 317 mm / 12.5 in |
| Weight (Net) | 500 g / 17.6 oz |

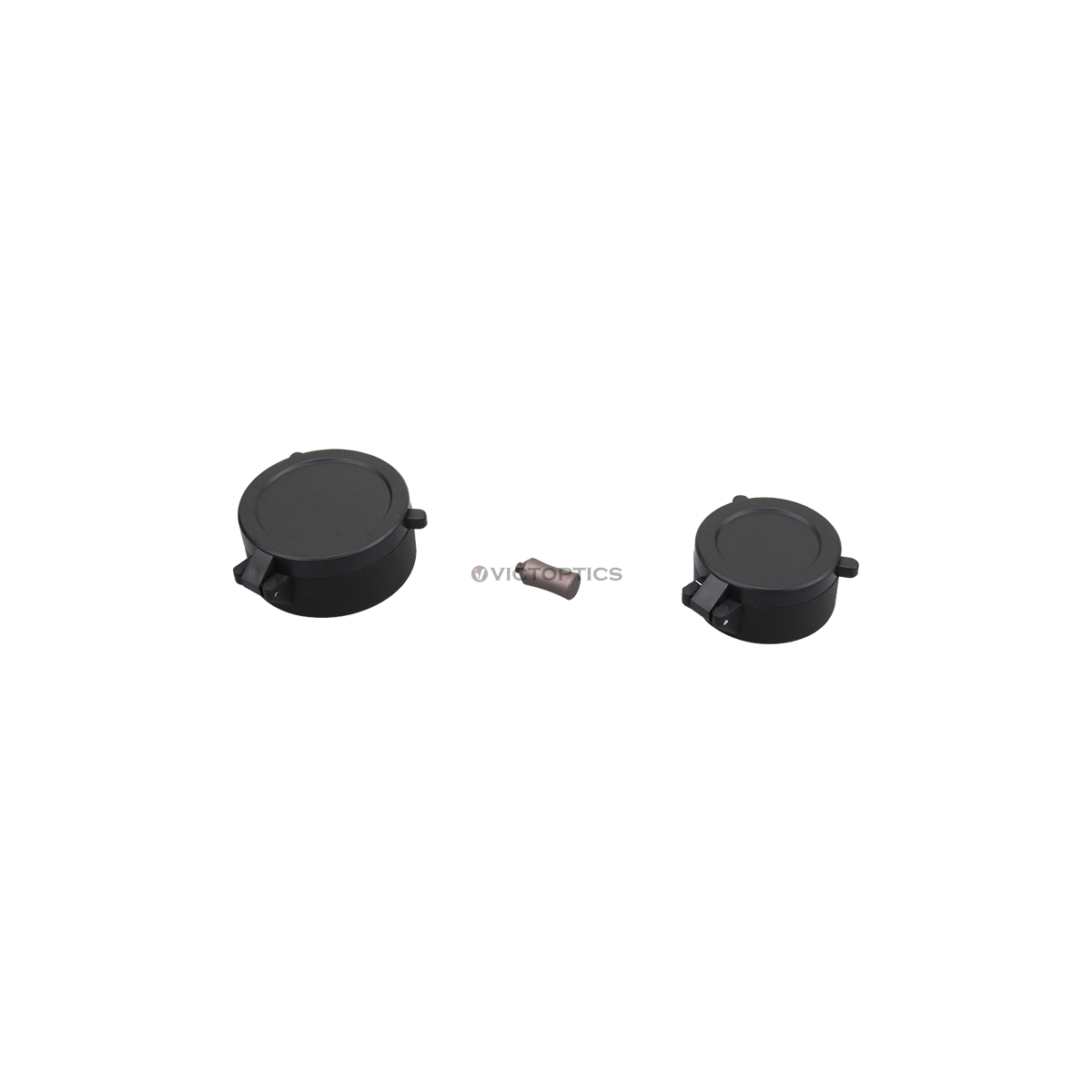

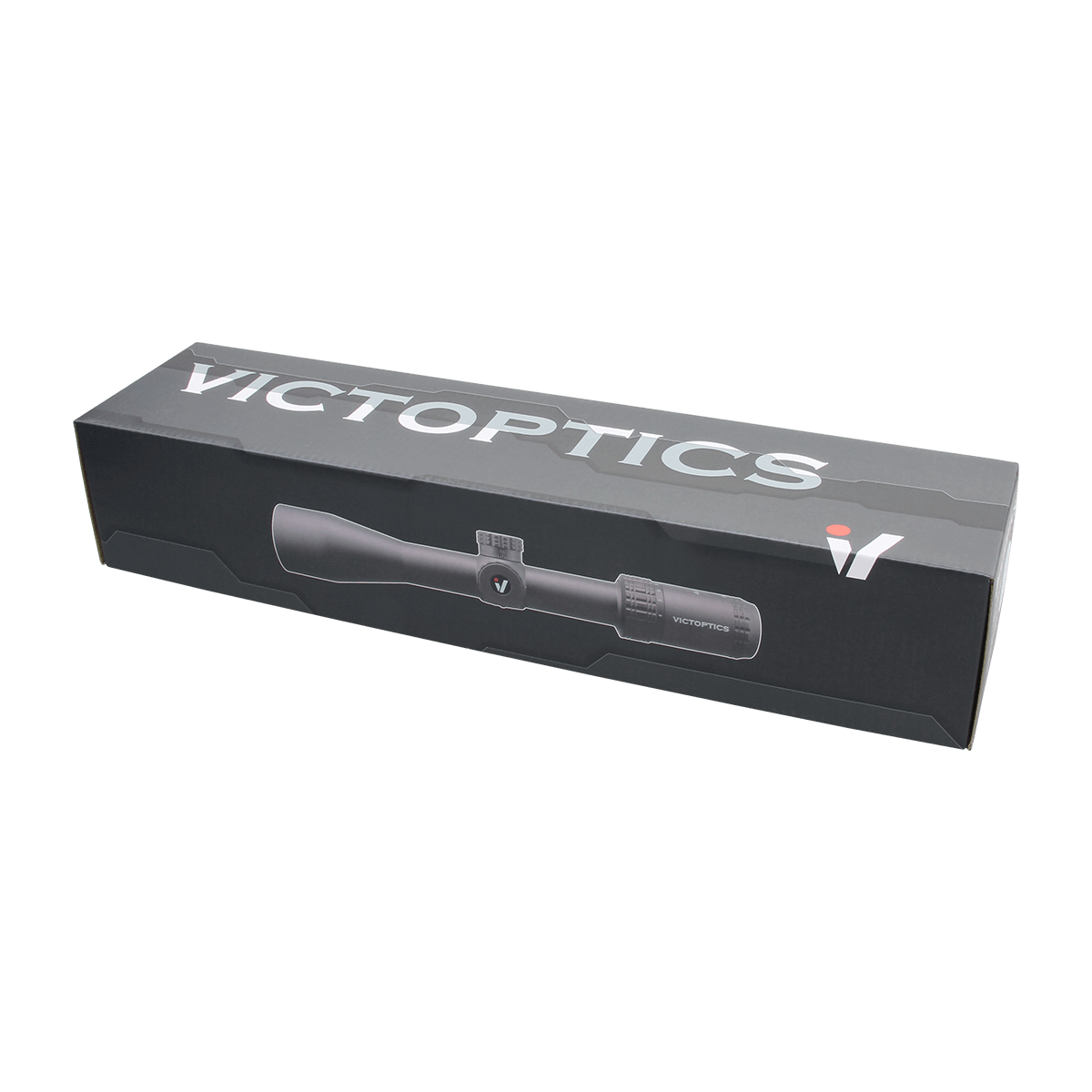

| Items in the Package | One Pair of 30mm Weaver Scope Rings, Power Ring Lever Mount, Big Side Wheel, Sunshade, Cleaning Cloth, Instruction, Lens Flip-up Caps and Packed in Nice Retail Box |
