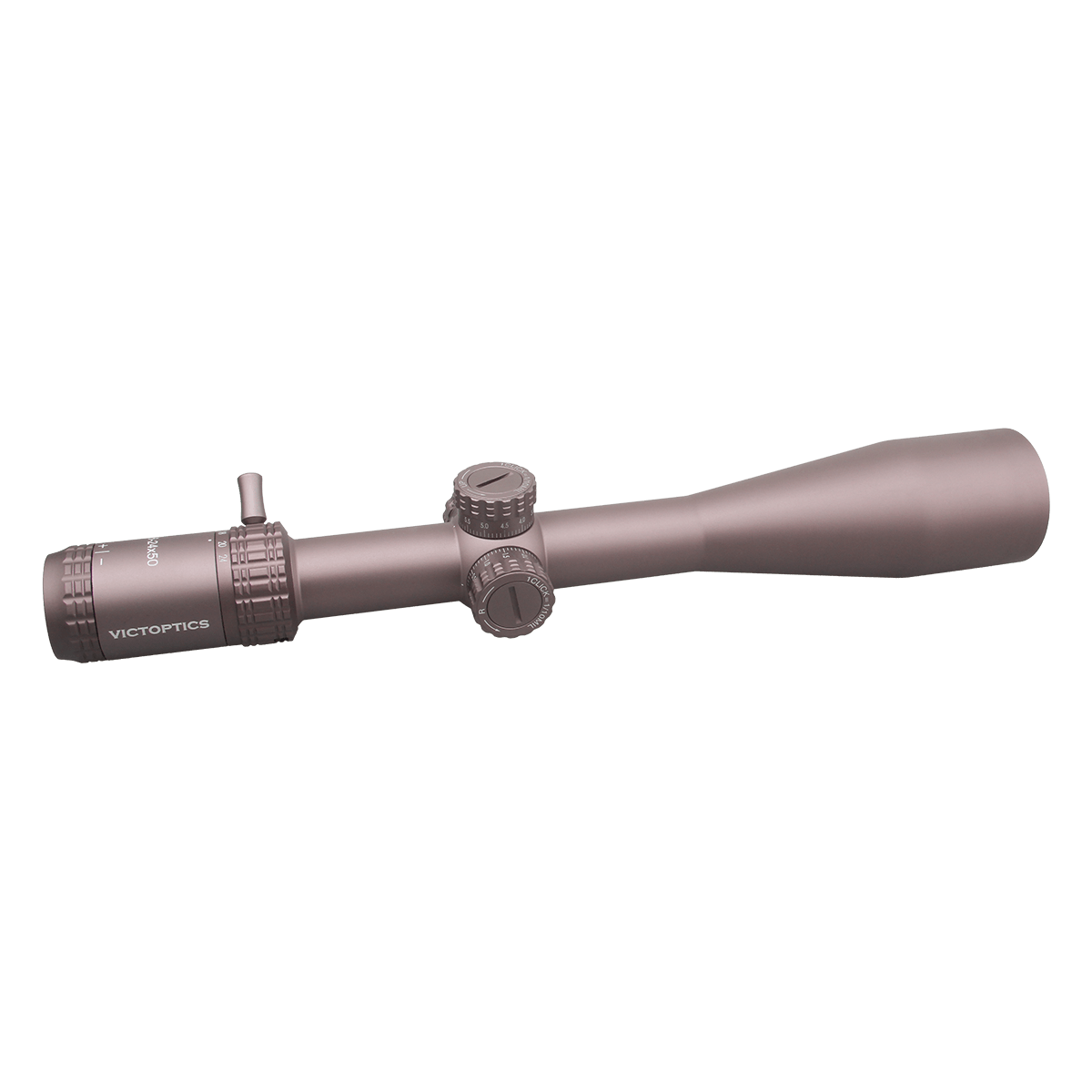

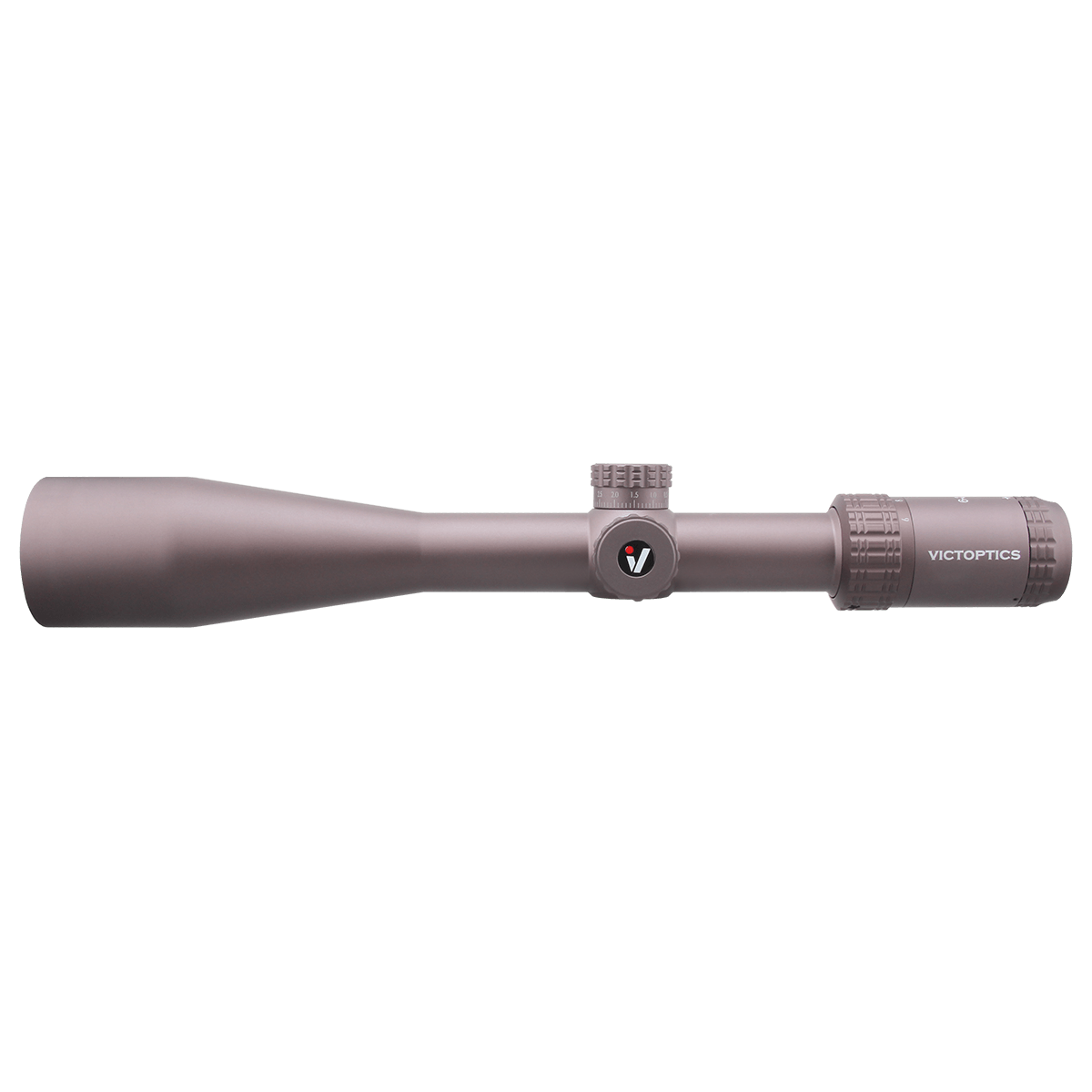

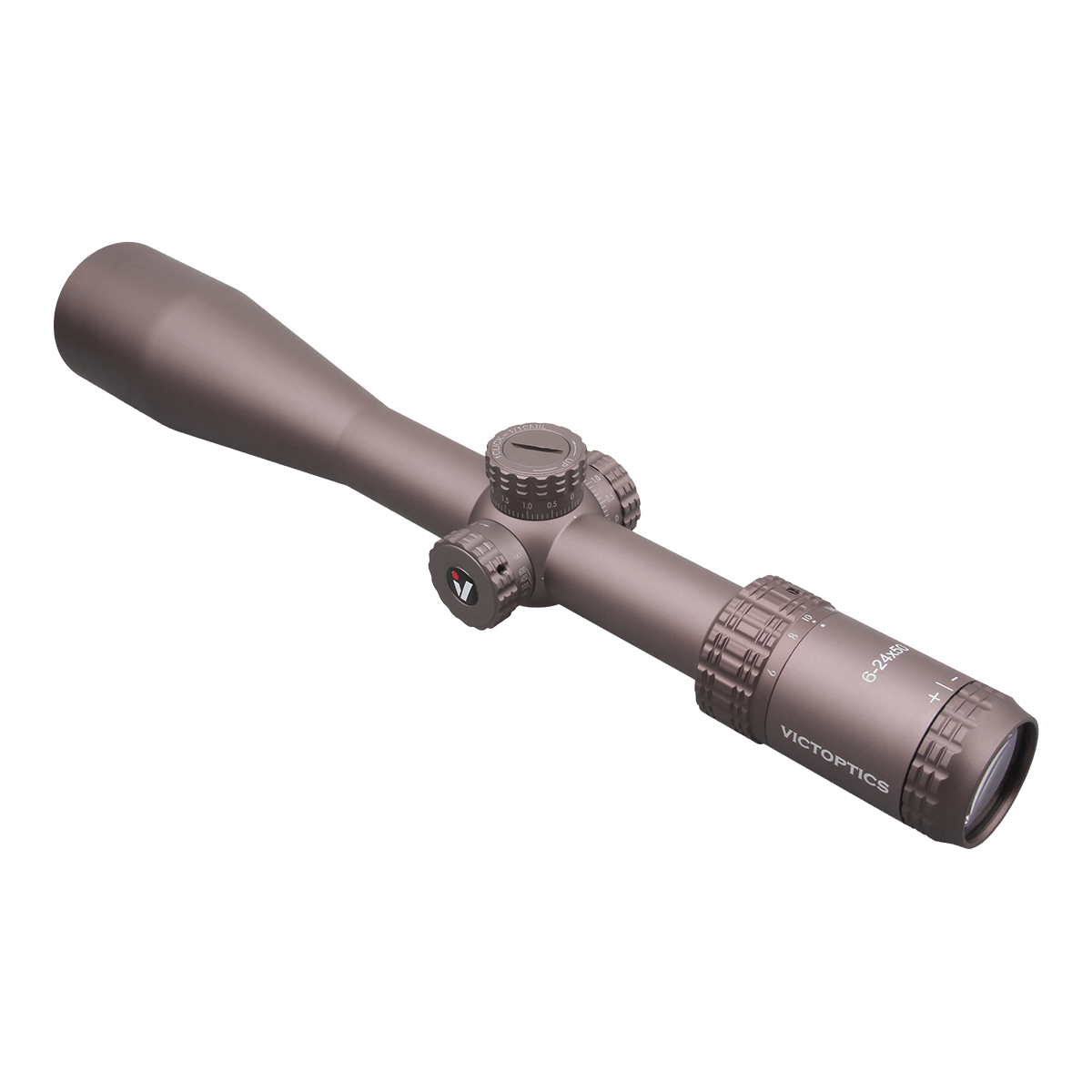

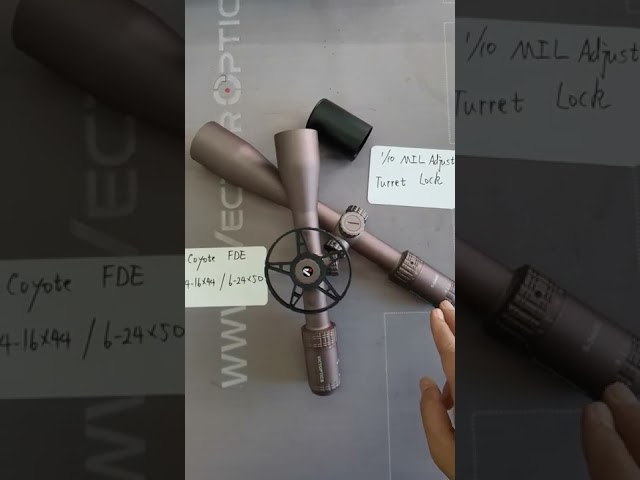

Super Slim Edge-to-Edge Image, Crystal Clear Optics, 1/10MIL Adjustment with Turret Lock Feature WDL Reticle Used at 10x Power, Custom Designed Patent Reticle Exclusive for Air Guns & Fire Arms Long Eye Relief, Coyote FDE, Side Focus Min at 20 Yds, Big Side Wheel, Power Ring Lever Mount
| Magnification | 6-24x |
| Objective Lens Dia | 50 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 8.3-2.1 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 21.2-5.3 ft @ 100 yards |
| Linear Field of View @ 100 m | 7.07-1.76 m @ 100 meters |
| Angular Field of View | 4.05-1.01° |

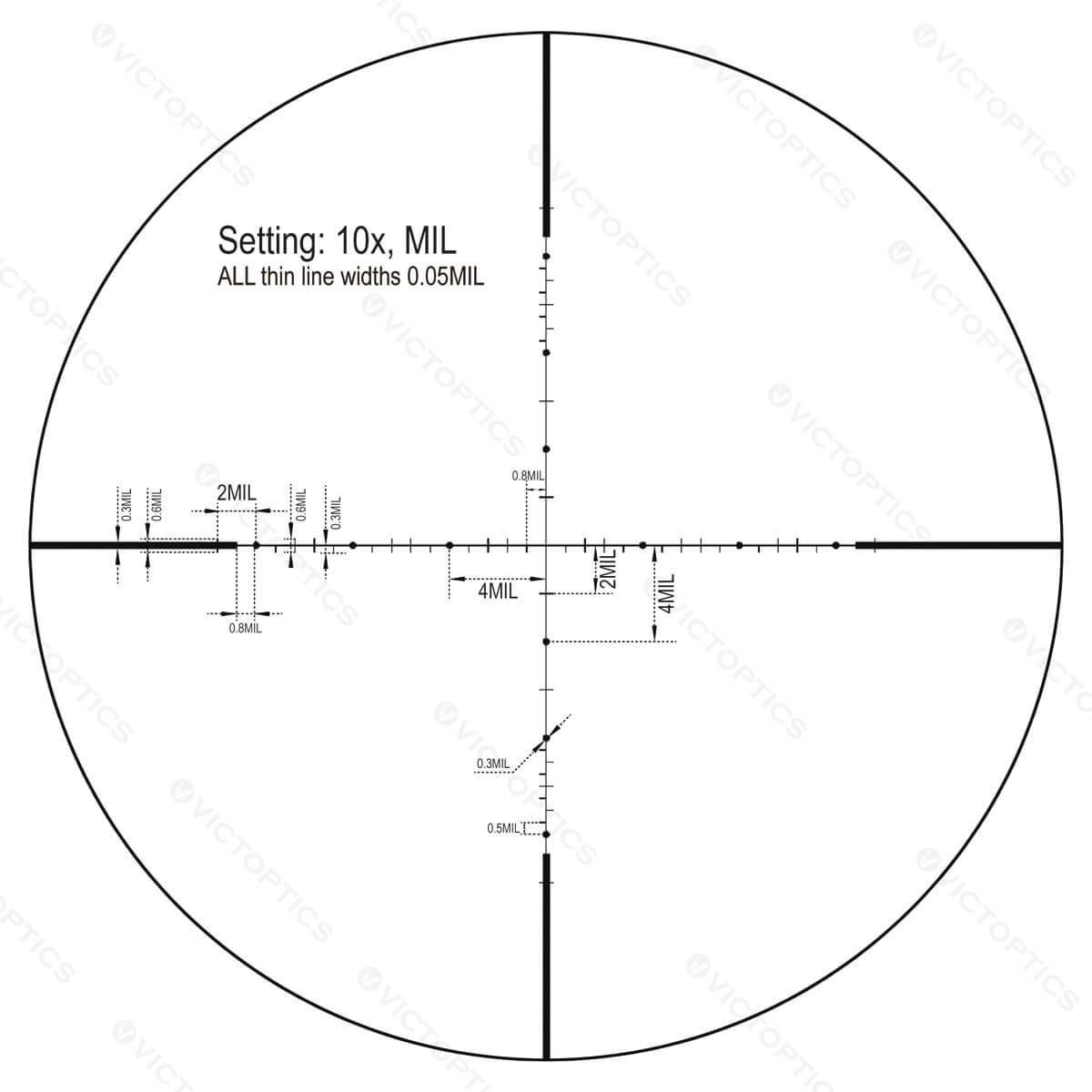

| Reticle | MDL wire reticle |
| Tube Dia | 30 mm |
| Parallax Setting | 20 yards to infinity |

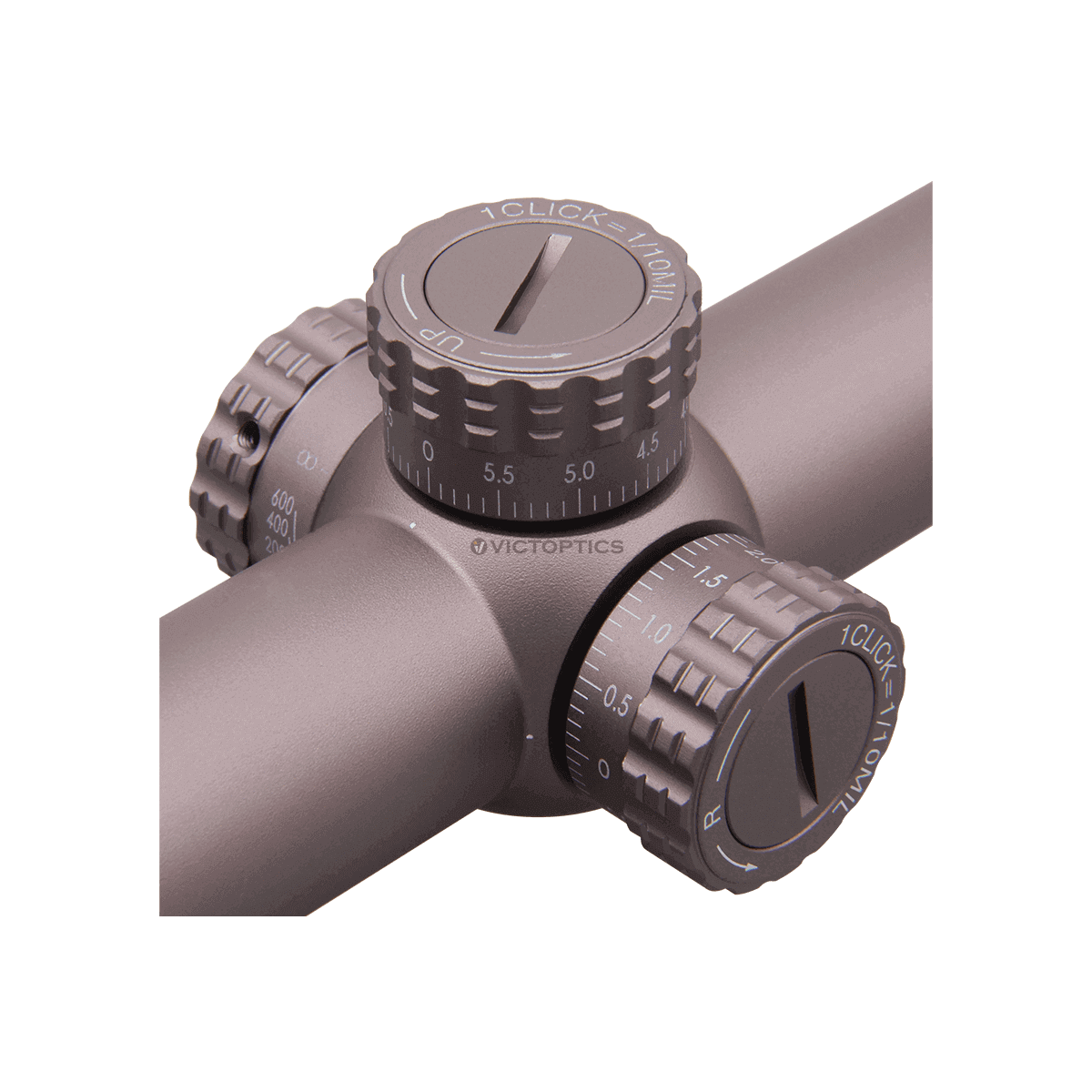

| Click Value | 1/10 MIL |

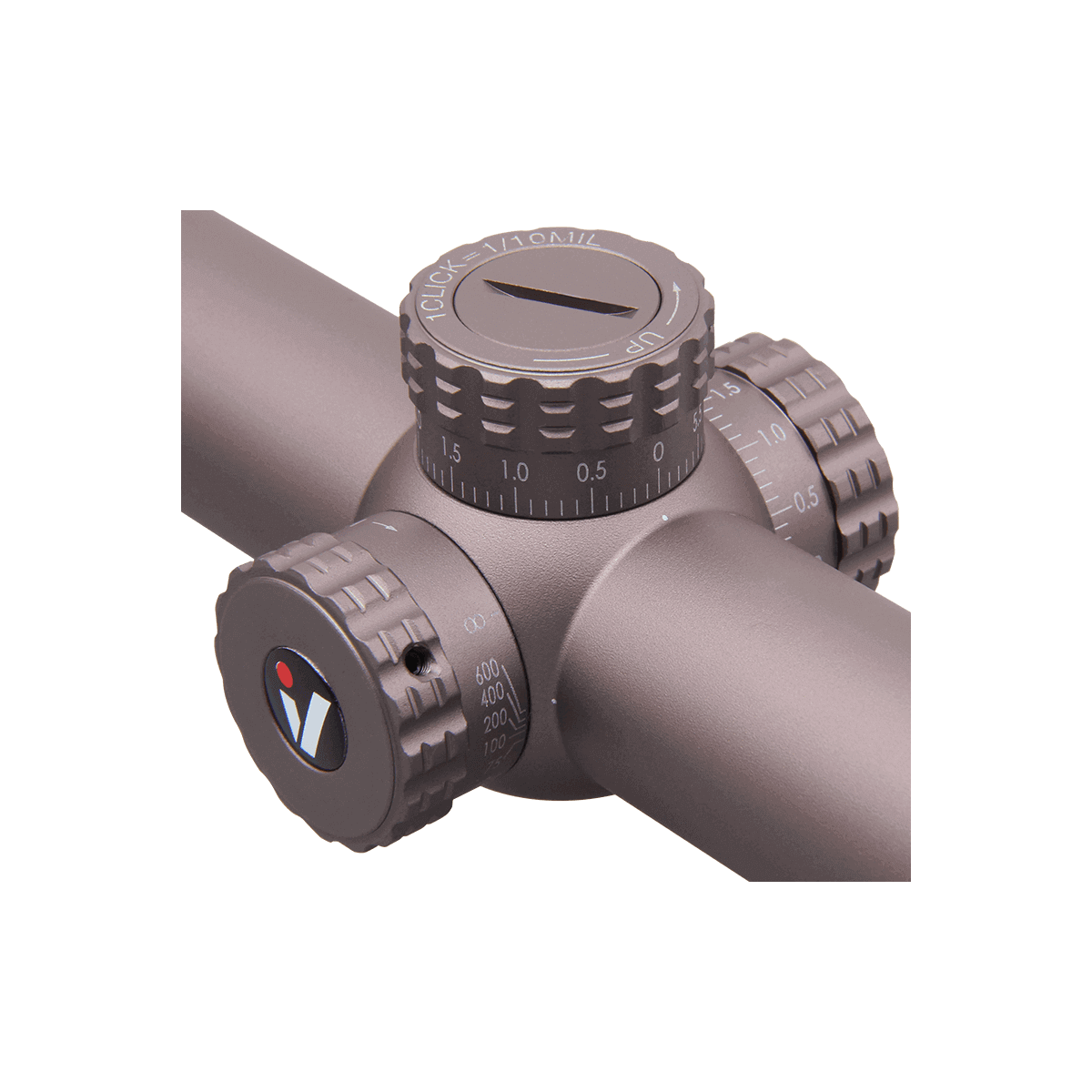

| Turret Function | Turret Lock |
| Elevation Adjustment Range | 13 MIL |
| Windage Adjustment Range | 13 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Coyote FDE |

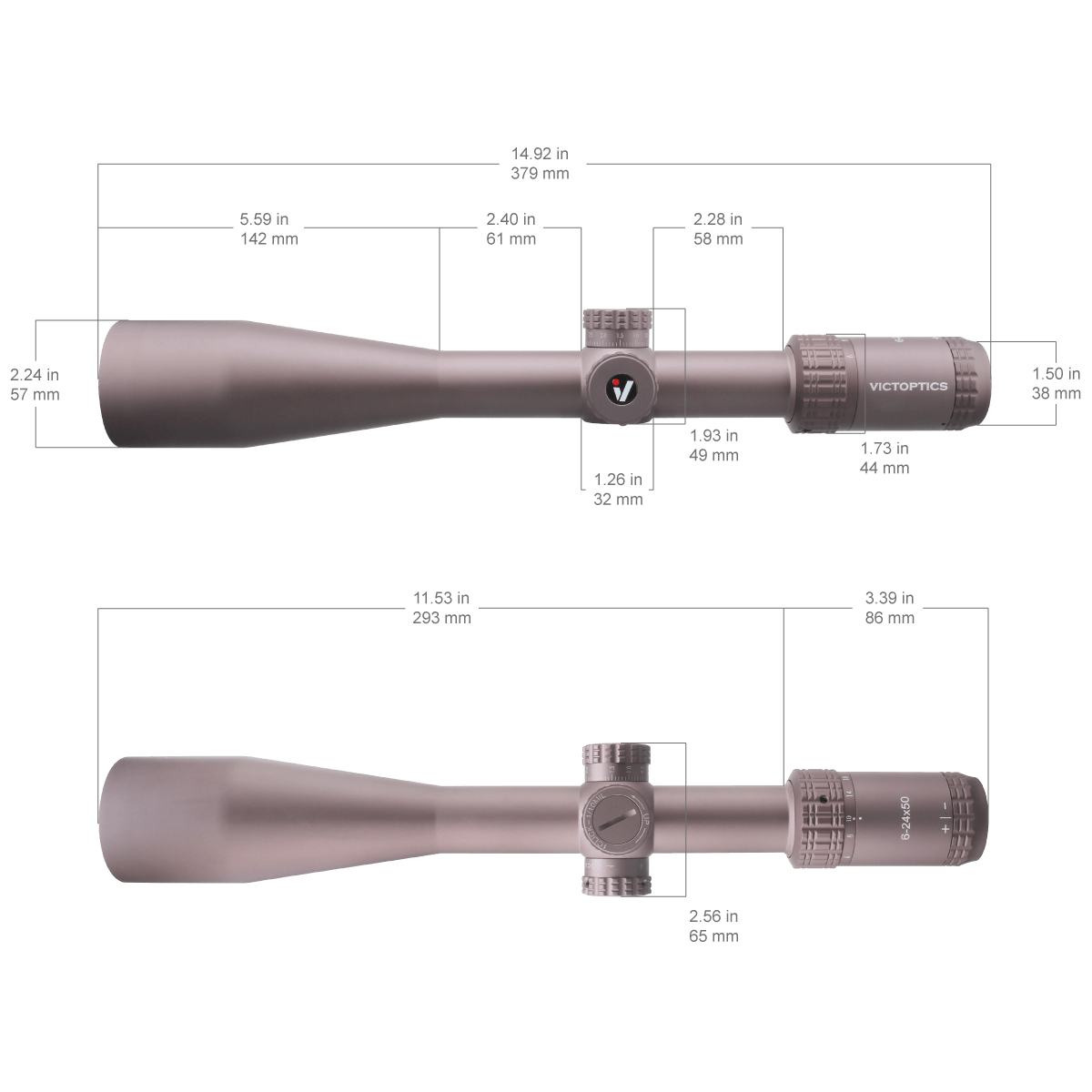

| Length | 375 mm / 14.8 in |
| Weight (Net) | 530 g / 19.6 oz |

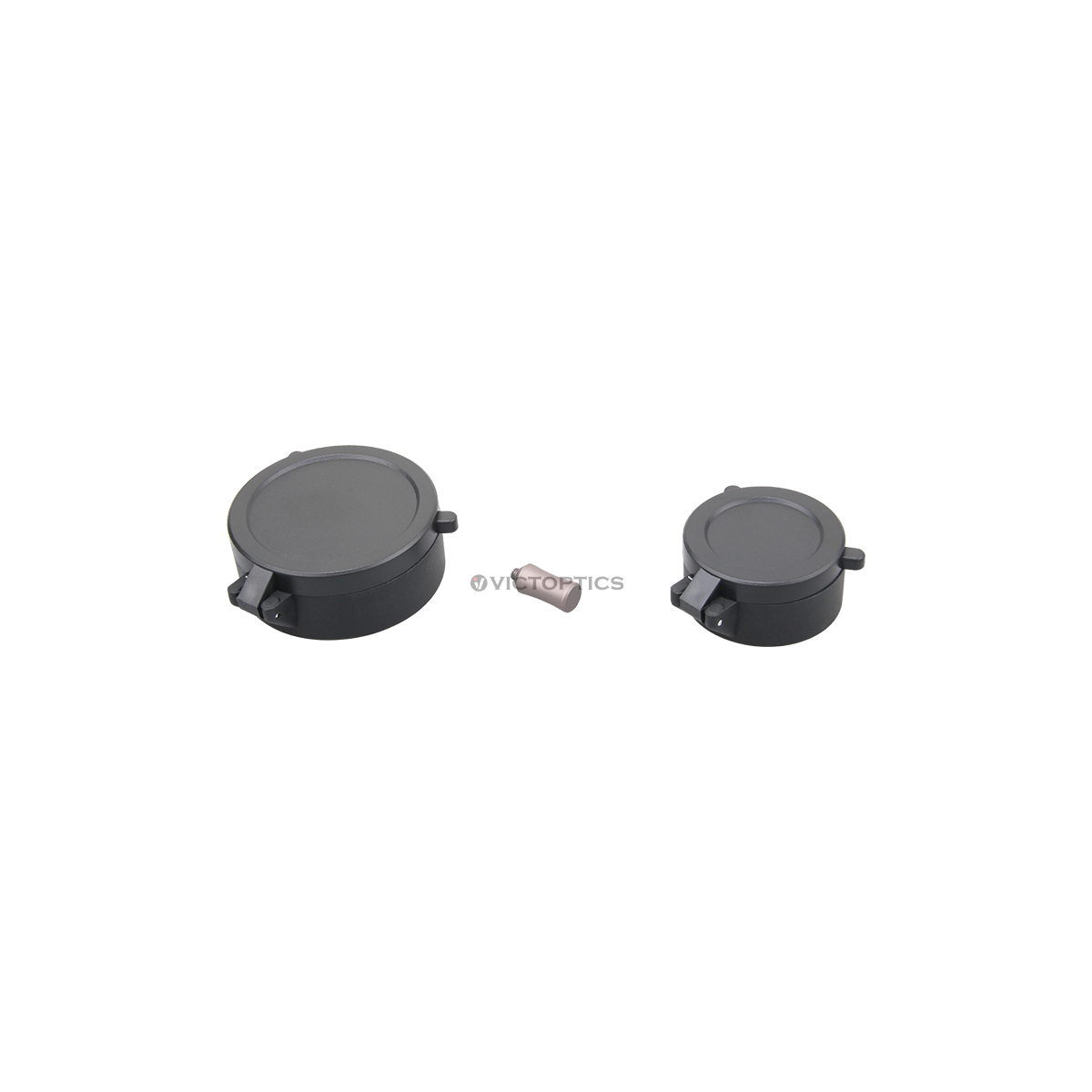

| Items in the Package | One Pair of 30mm Weaver Scope Rings, Power Ring Lever , Big Side Wheel, Sunshade, Cleaning Cloth, Instruction, Lens Flip-up Caps and Packed in Nice Retail Box |
